Item Descriptions:

Product introduction

Professional sound quality aimed at.

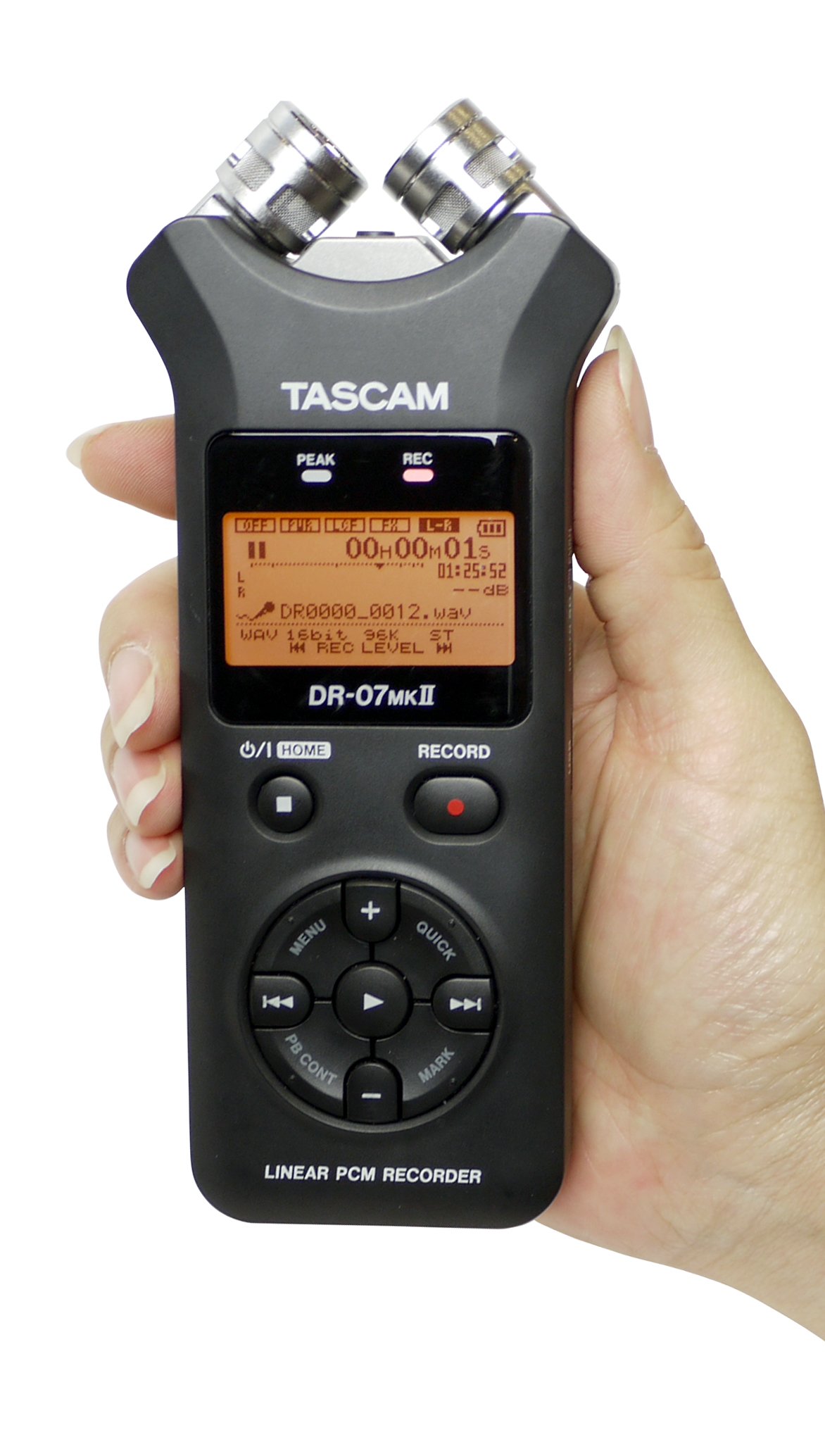

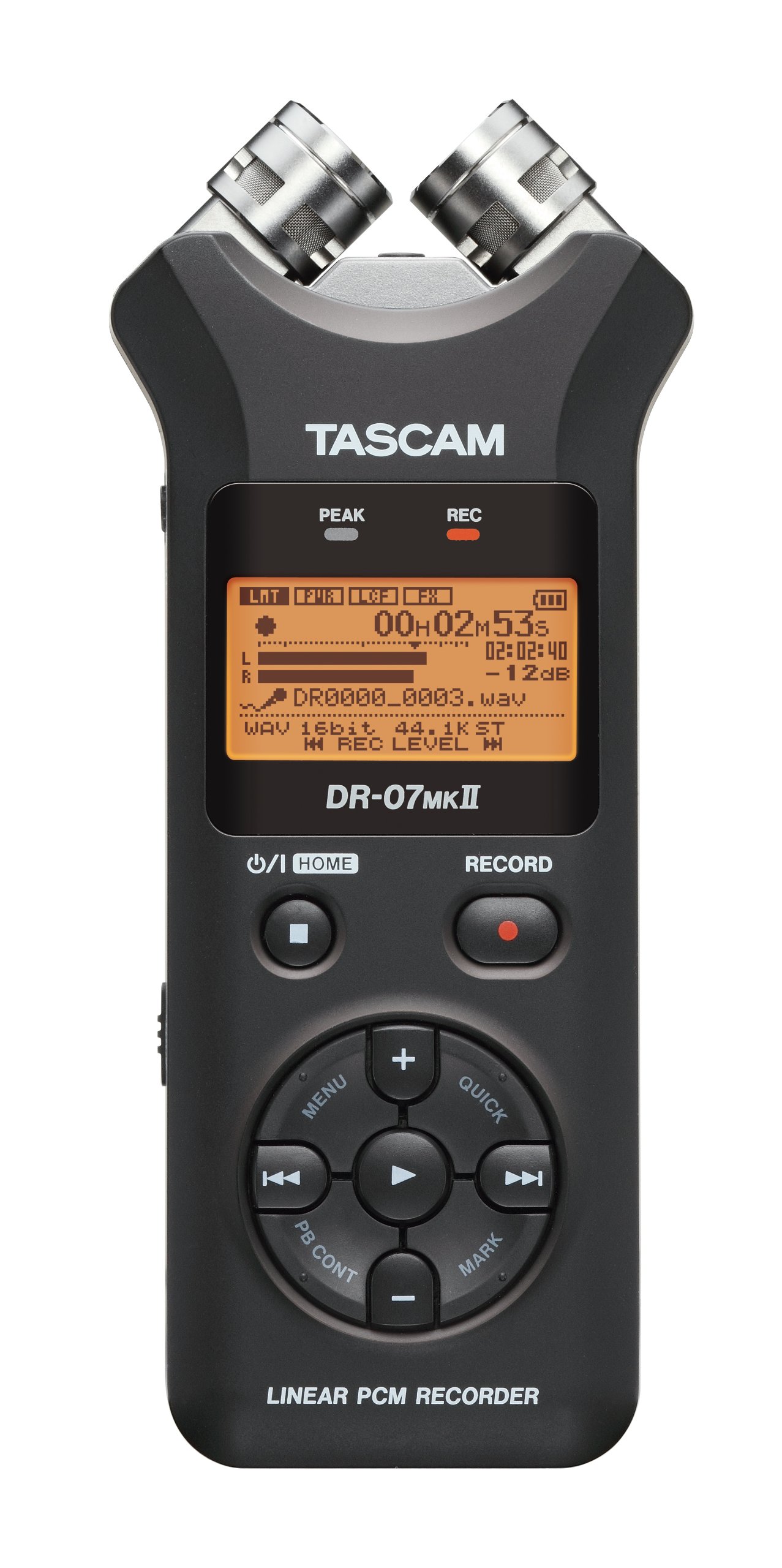

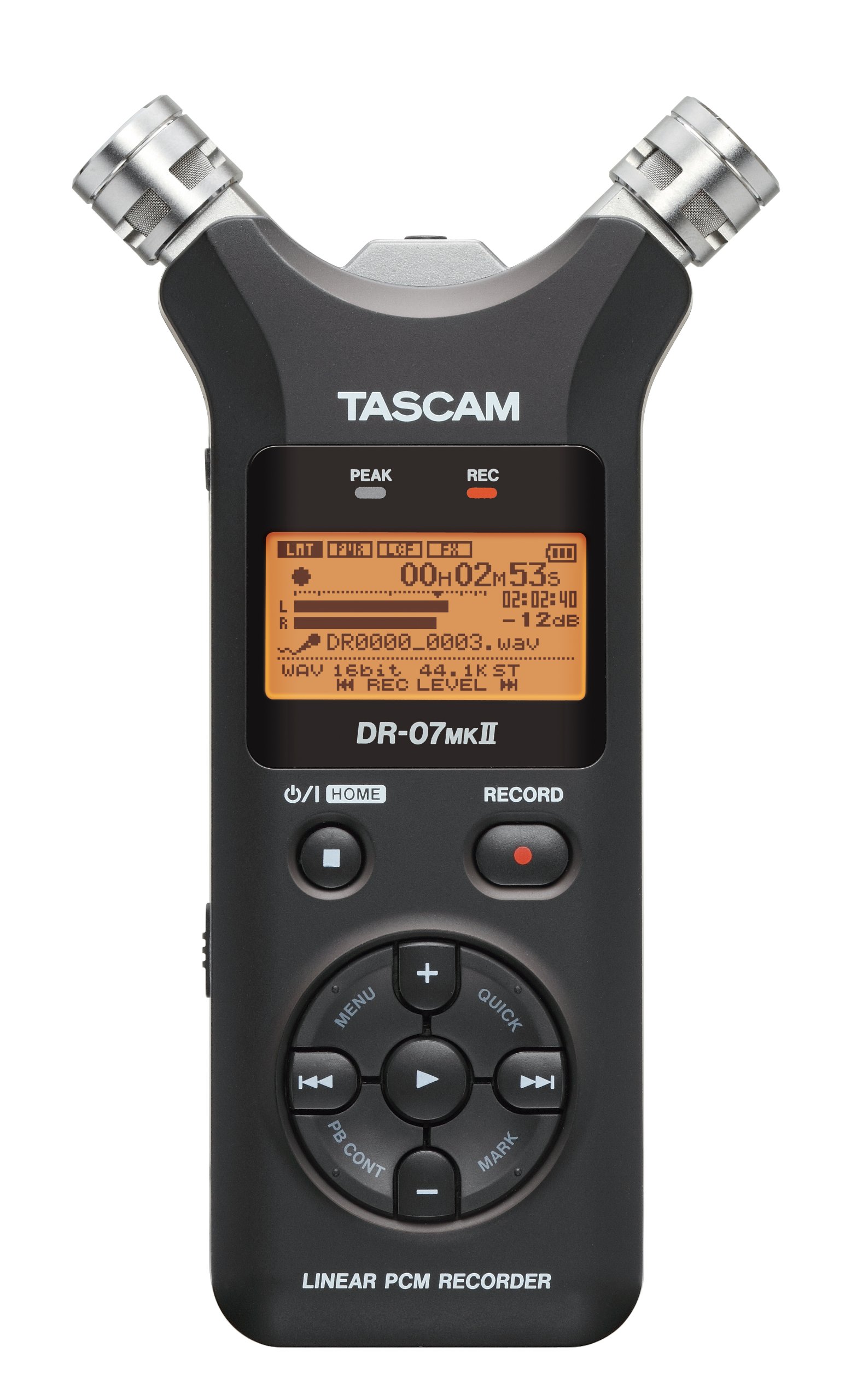

"DR-07MKII" is a linear PCM recorder supporting 24bit / 96kHz.

It realizes high-quality sound and high resolution full of presence, and it incorporates a movable unidirectional stereo condenser microphone corresponding to both A-B and X-Y method according to the sound source.

Recording of instrument performance and band performance, recording various sound sources such as train and car running sound recording, high-quality sound recording of prejudice is possible with the microphone setting according to purpose.

High sound pressure boasts boasting sound pressure of 125 dB SPL that can record sound of loud volume with confidence.

It captures even minute sound and ensures precise and powerful recording.

It also features a peak reduction function that automatically detects the peak of the input sound and sets it to the optimum recording level, and incorporates various recording functions such as overdubbing function and reverb that are convenient for music production.

Equipped with a full playback function such as VSA (Variable Speed ​​Audition) function that can vary the playback speed from 0.5 times to 1.5 times without changing the pitch, level alignment function to make the listen to varying volumes and make it easy to hear.

With these easy-to-navigate quick menus with these rich functions, intuitive operation has been realized.

From Amazon

Professional sound quality aimed at.

Unidirectional stereo condenser microphone capable of recording in A-B / X-Y system

24 bit / 96 kHz linear linear PCM recorder

"DR-07MKII" is a linear PCM recorder supporting 24bit / 96kHz.

It realizes high-quality sound and high resolution full of presence, and it incorporates a movable unidirectional stereo condenser microphone corresponding to both A-B and X-Y method according to the sound source.

Recording of instrument performance and band performance, recording various sound sources such as train and car running sound recording, high-quality sound recording of prejudice is possible with the microphone setting according to purpose.

High sound pressure boasts boasting sound pressure of 125 dB SPL that can record sound of loud volume with confidence.

It captures even minute sound and ensures precise and powerful recording.

It also features a peak reduction function that automatically detects the peak of the input sound and sets it to the optimum recording level, and incorporates a variety of recording functions such as overdubbing and reverb that are useful for music production.

Equipped with a full playback function such as VSA (Variable Speed ​​Audition) function that can vary the playback speed from 0.5 times to 1.5 times without changing the pitch, level alignment function to make the listen to varying volumes and make it easy to hear.

With these easy-to-navigate quick menus with these rich functions, intuitive operation has been realized.

"DR-07MKII" and "DR-05" are linear PCM recorders covering various recording targets with different microphones.

Features unique to DR-07MKII

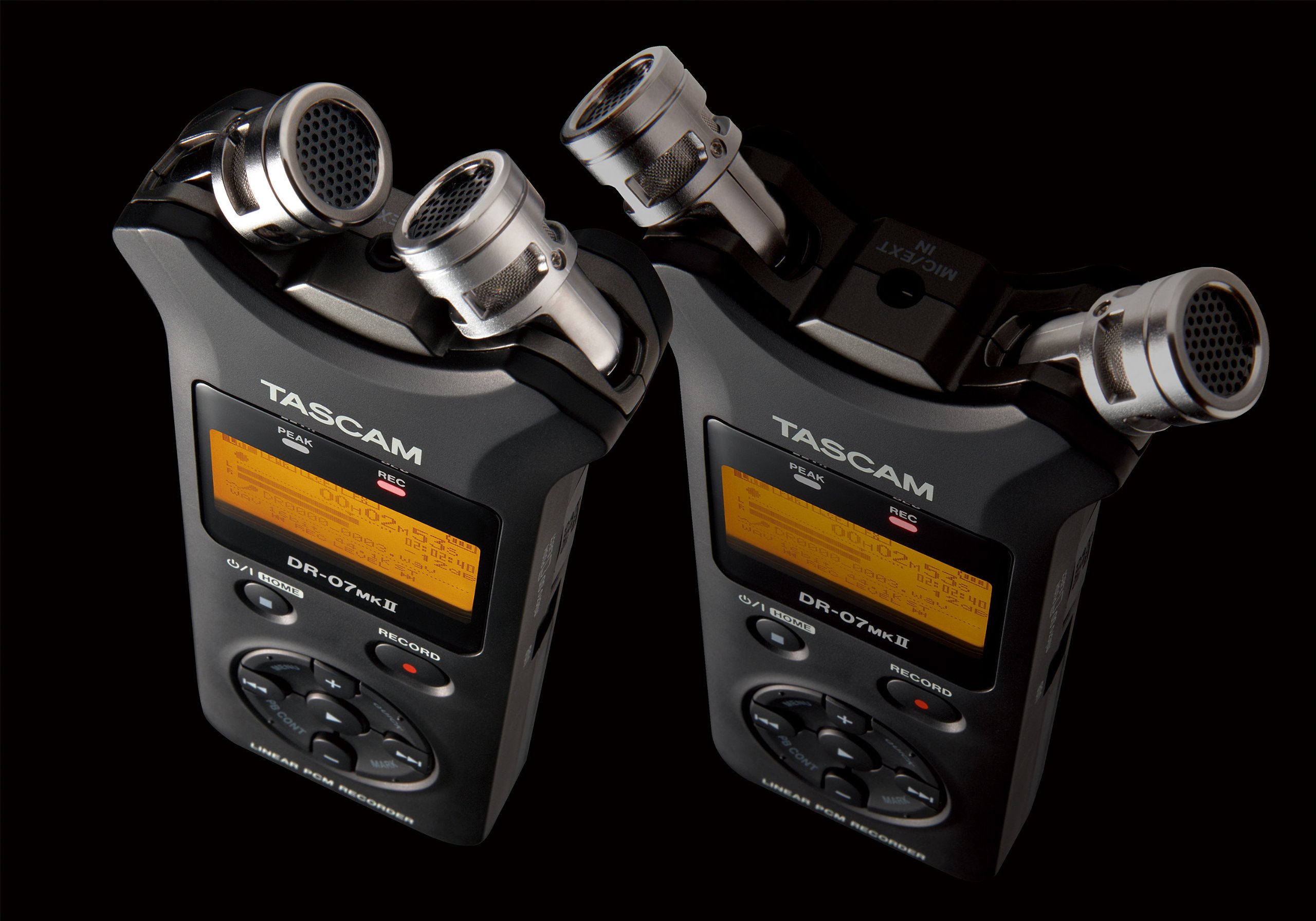

Supports both A-B / X-Y formula, achieves aimed recording, high sound quality unidirectional stereo condenser microphone

There are A-B method and X-Y method for miking in stereo recording.

The professional engineer selects the optimum method according to the sound source to be recorded and the sound to be recorded and performs recording.

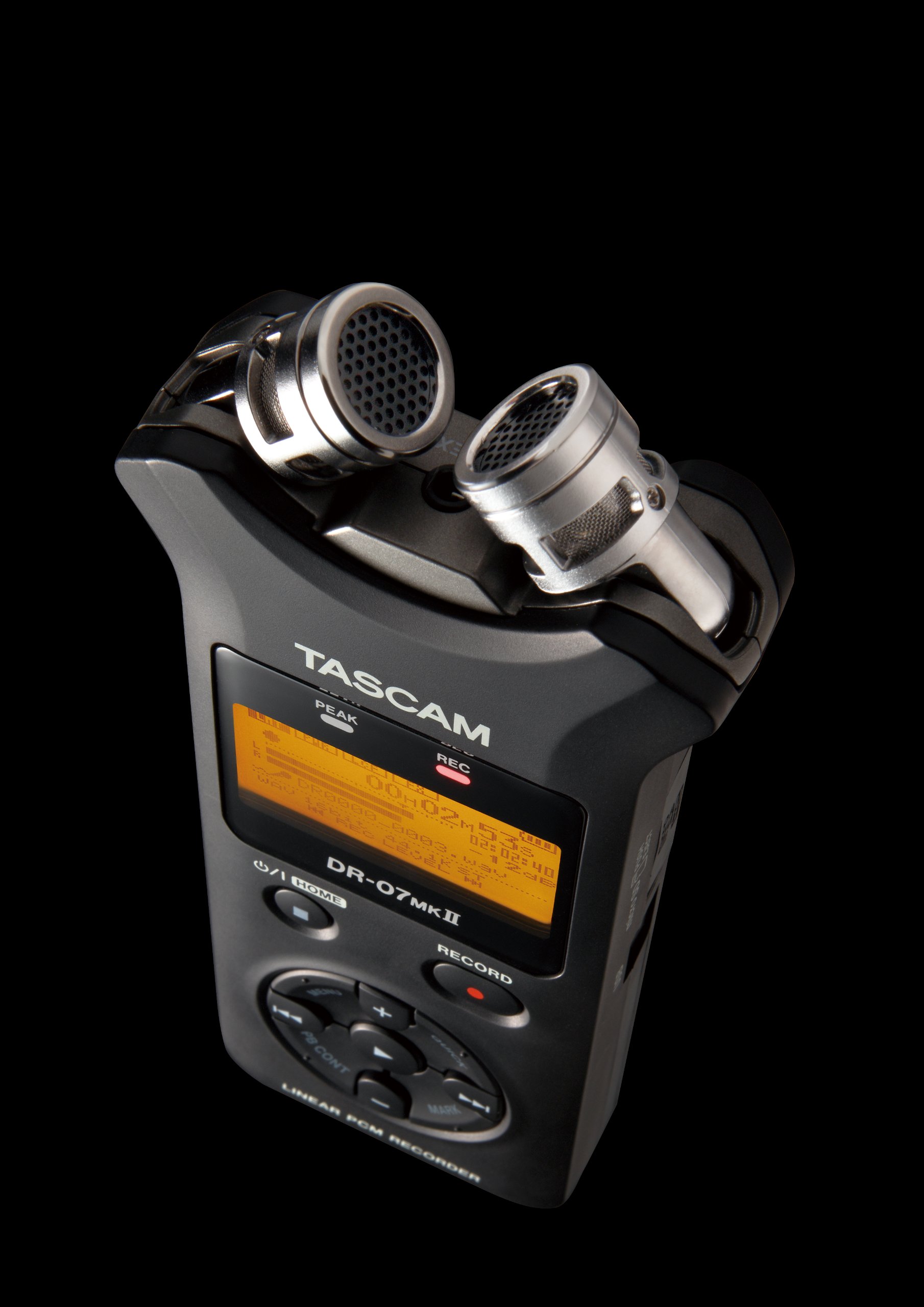

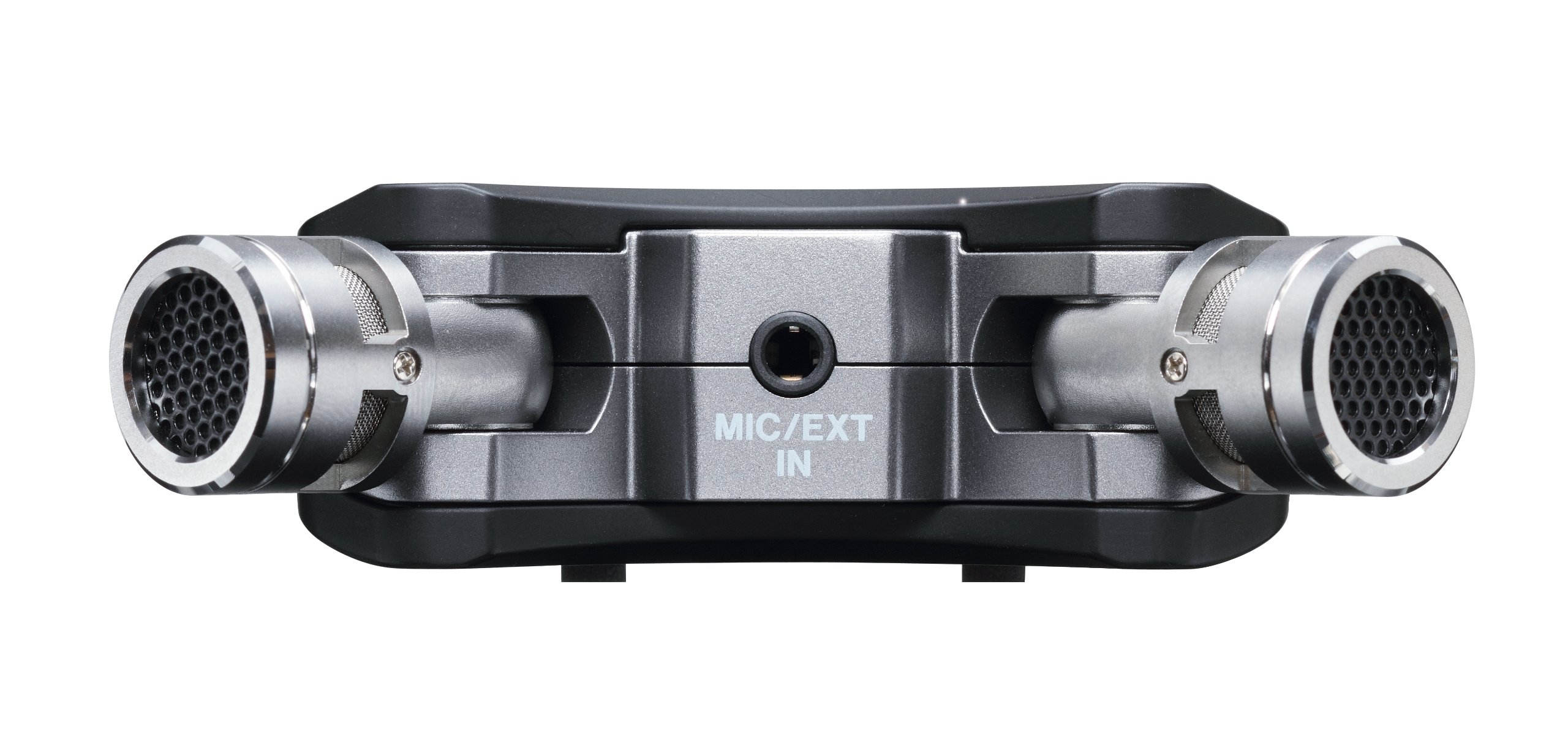

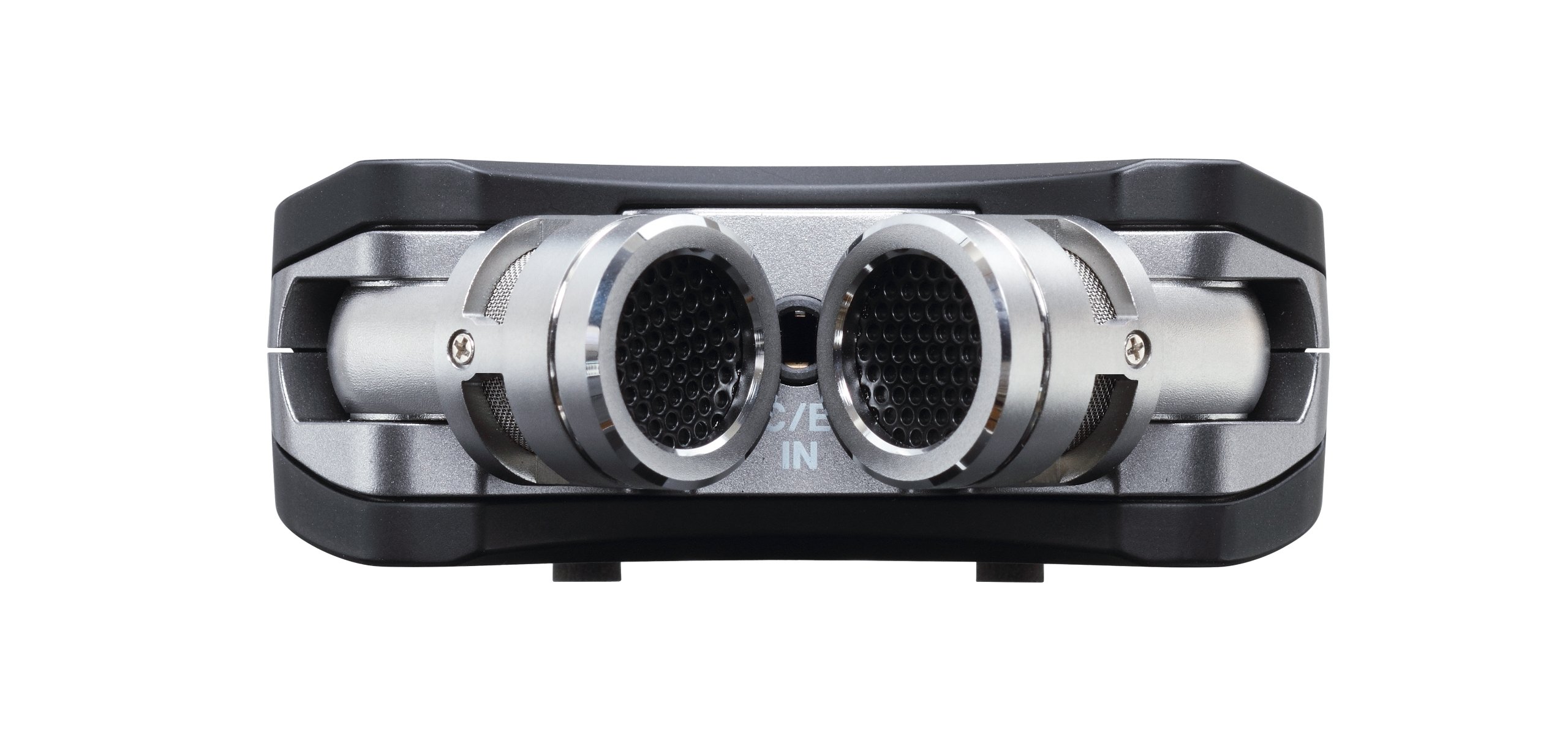

"DR - 07MKII" carries a movable unidirectional microphone, it supports recording of A - B method and X - Y method.

With advanced miking, you can record stereo with spreading, recording with low phase difference between left and right microphones, and recording with professional quality, which is difficult to fade in.

Expanding

Expanding

Non destructive overdubbing function enabling overwrite recording

Expanding

Equipped with an overdubbing function that allows you to record over recorded while playing recorded files.

It is possible to produce music such as superimposing a guitar solo at home at the band sound source recorded at the rehearsal studio.

In addition, it can be used for various purposes such as making files announced to BGM repeatedly.

When overdubbing, a new file is created and the original file is left intact, so it is easy to re-record again.

Reverb effect with vibrant and instrumental performances cleanly

It is possible to apply reverb at the time of sketch recording and overdub recording of a song, and can add natural sound.

Reverb can also be applied to playback sound, so you can express reality feeling of the hall by applying reverb to the created song.

Auto Rec Recording starts automatically by detecting the input level of audio

You can choose the mode to record and stop automatically, and the mode to mark while adding recording, according to the purpose.

The reference level to operate can also be set (-48 / -24 / -12 / -6 dB).

REC mode

Automatically record and stop.

If it falls below the reference level for more than 5 seconds during recording, the unit enters the recording standby state.

After that, when the input sound exceeds the reference level, recording will resume to a new file.

It is possible to prevent recording of unnecessary parts such as a break time of a lecture meeting.

MARK mode

Mark it when the input sound exceeds the reference level after falling below the reference level for more than 5 seconds during recording.

It is convenient when you want to find the position of a song after recording by live recording etc.

Mark can be used with BWF compatible software.

* When Auto Rec ON is on, overdubbing and self timer recording can not be performed.

Easy high quality sound recording

Sound pressure 125 dB Reliable for high volume sound recording with soundproof high pressure resistant to reliably capture large volume of SPL

High sound pressure resistant design is realized with high sound quality such as band and train passages.

You can record with confidence from small volume sound source such as lecture, acoustic live to loud volume of rock band.

Peak reduction function that detects the peak and automatically sets the optimum level

No matter how carefully the level setting is done, anyone can experience that the actual volume goes beyond expectations.

The peak reduction function automatically lowers the level and continues recording when the volume reaching the peak is input.

We will do the work we had done while looking at the meter manually.

The volume setting at the time of the live rehearsal is set to a larger size, and if you use peak reduction, it will automatically be set to the level that matches the sound source, so anyone can easily record the optimum level setting.

In "DR - 07MKII", in addition to peak reduction, all three input level adjustment functions are carried.

Peak reduction

When detecting over level, automatically lower the input level and continue recording.

It is ideal for music recording which requires appropriate level setting and wide dynamic range recording.

* Audio waveform recorded using peak reduction function

Auto Level

The input level is automatically raised and lowered according to the input sound volume.

It is ideal for conference recording etc. where the difference in volume occurs due to the distance from the microphone or the size of the voice.

Limiter

It suppresses excessive input so as not to distort.

Self-timer recording function convenient for your own performance recording

When you record your own performance, narration, etc, for example when you record sketches of songs or announcements for movies, you can start recording in 5 or 10 seconds after self recording like the camera self timer.

※ During self-timer recording, a self-timer mark will be displayed on the upper left of the meter.

Seamless gain control

Expanding

In the conventional model, there were three stages of gain switching, but it became possible to control input with the same width without switching.

Although it is not necessary to switch, it is speedy and easy, but level setting with the same adjustment width as the conventional model is possible.

Three stage low cut filter that cuts unnecessary bass such as air conditioning equipment

Extensive playback function

Playback speed variable (VSA) function (0.1 times step) 0.5 - 1.5 times convenient for music practice and language learning

Expanding

The VSA (Variable Speed ​​Audition) function which is popular with the TASCAM trainer series is installed.

Even if you change the playback speed, the pitch will not change.

It can be used in various scenes such as arrangement of music and practice, speed down recording English conversation, fast playback of conference.

* The VSA function is available only when playing files recorded at 44.1 kHz / 48 kHz.

Level align function that makes uniform volume of variations uniform and easy to hear

In conference recording, interviews, etc., there are cases where speaker's volume is large and small at playback and it is hard to hear.

In this case, if you use the level alignment function, you will automatically adjust the volume and play it, making it very easy to hear.

Even if it is difficult to adjust the level at the time of recording and you can not record at the proper level, you can make it easier to hear by the level alignment function.

* You can set from the quick menu during playback.

Equipped with adjustable sound quality

The playback equalizer function is effective when playing, bass lacks enough, voices are hard to hear.

You can boost / cut by choosing a band that is distracting from the high, mid, and low frequencies, so you can adjust it to your favorite sound quality and listen.

Divide / delete function active in file organization after recording

For WAV files, divide editing that divides files is possible.

If you delete the unnecessary part until the beginning of the song and delete it with the delete function, you can create a file of only the musical part with "DR - 07 MK II" only.

Music practice, song loop playback function convenient for language learning

Equipped with popular song loop playback function in TASCAM trainer series.

It plays an active part in various scenes, such as repeating the section specified in the song and listening to a specific part repeatedly in the language learning and minutes transcription.

Not only loops in a song, but also one repeat song like a general audio player, repeat all songs is also possible.

A resume function that holds the position at which playback was last stopped and performs playback from that position when the power is turned on again

Jump back playback (1 to 10 seconds / 1 second step, 10 seconds, 20 seconds, 30 seconds) to return back a few seconds before playing back

Other features

Quick menu to realize easy operation

According to the scenes of recording and playback, level control and file operation etc. can be done smoothly.

High sound quality linear PCM recording at 24 bit / 96 kHz, MP3 file long time recording possible

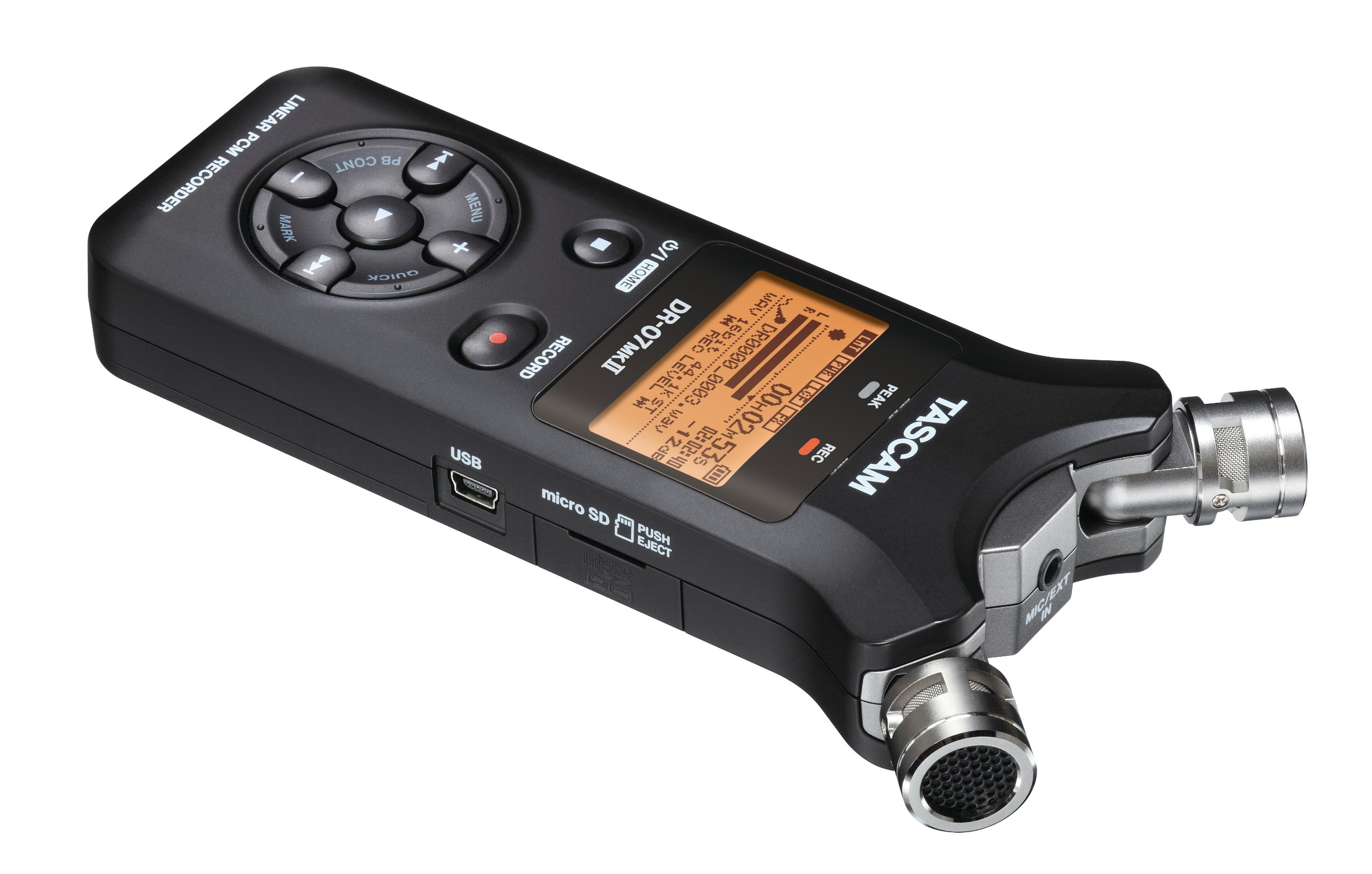

Adopt microSD / microSDHC card for recording media

2GB microSD card included.

Up to 149 hours of recording is possible with attached card capacity (MP3 32 kbps recording)

Linear PCM recording (WAV format) of 44.1 k / 48 k / 96 kHz, 16/24 bit possible

Recording in MP3 format of 44.1k / 48k, 32kbps ~ 320kbps possible

WAV file supports BWF format

Mark function that can set up to 99 points in one song.

Mark information can be used with BWF compatible software

Audio files created on PC can be played back (only for this machine playback compatible format)

Built-in monaural speaker with 0.3 W output

Prereck which can record sound from 2 seconds before the recording start operation

When the preset maximum file size is reached, a new file can be created and continuous recording is possible

Track increment that allows files to be updated at any position during recording

File name format can be set to either user word or date

The file name at the time of recording

Features:

• Please enter model number Confirm this is compatible:
• Requirements of connected computer Windows OS: Windows XP, Windows Vista, Windows 7
• CPU / clock: Pentium 300 MHz or higher Memory: 128 MB or more USB port: USB 2.0 recommended
• Macintosh OS: Mac OS 10.2 or later CPU / clock: Power PC, iMac, G3, G4, G5 266 MHz or more Memory: 64 MB or more USB port: USB 2.0 recommended

Product information:

Shipping Weight: 598 g

Package Dimensions: 7.39 x 14.20 x 20.19 cm
