Item Descriptions:

Product introduction

specification

1 x crimping pliers 5 x exchange dies 1 x screwdriver 1 x storage case crimp size 0.5 - 35 mm 2

Prevent misuse by alignment of dice tooth with good workability (It is possible to distinguish readily by separating rows of connectors and rows of bare terminals)

Lightweight, compact and hand-fit pocket-in size

Easy to hold terminal temporarily with one hand OK

When the distance between the die parts does not reach between proper crimp connections, the die part opens by automatic release when it does not open.

Bolt cutter function that cuts threads without crushing screws to lengths using bolts (screws) that are too long

After screwing into a hole with matching size screw the bolt (screw) from the necessary side,

Cut the position you want to cut at the center of the crimping pliers.

With a screwdriver, screw thread

You can use screws as they are without modifying.

Work with the ratchet mechanism!

It is safe because crimp completion can be confirmed by ratchet bundle.

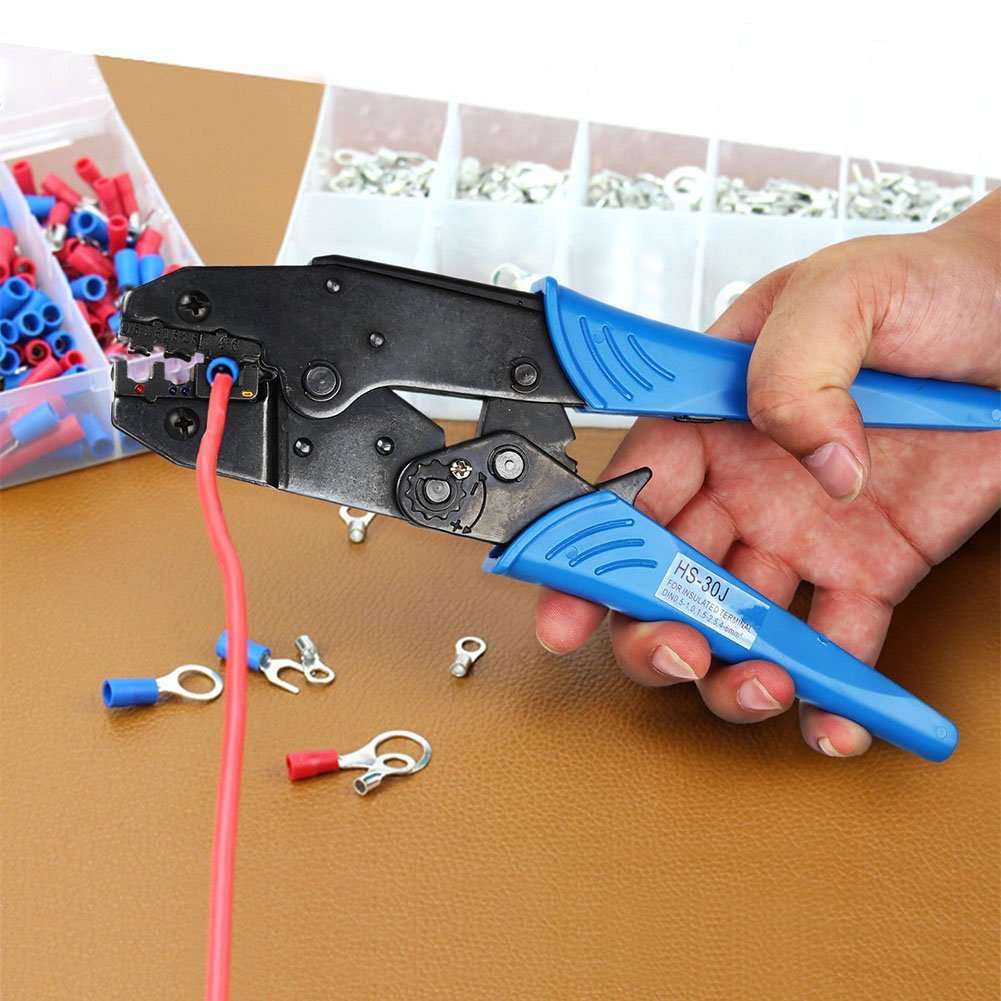

How to use crimping pliers:

(1) Cover the end of the cable

(2) Sort copper lines in a predetermined order

(3) Insert it in the connector

(4) Push all the way

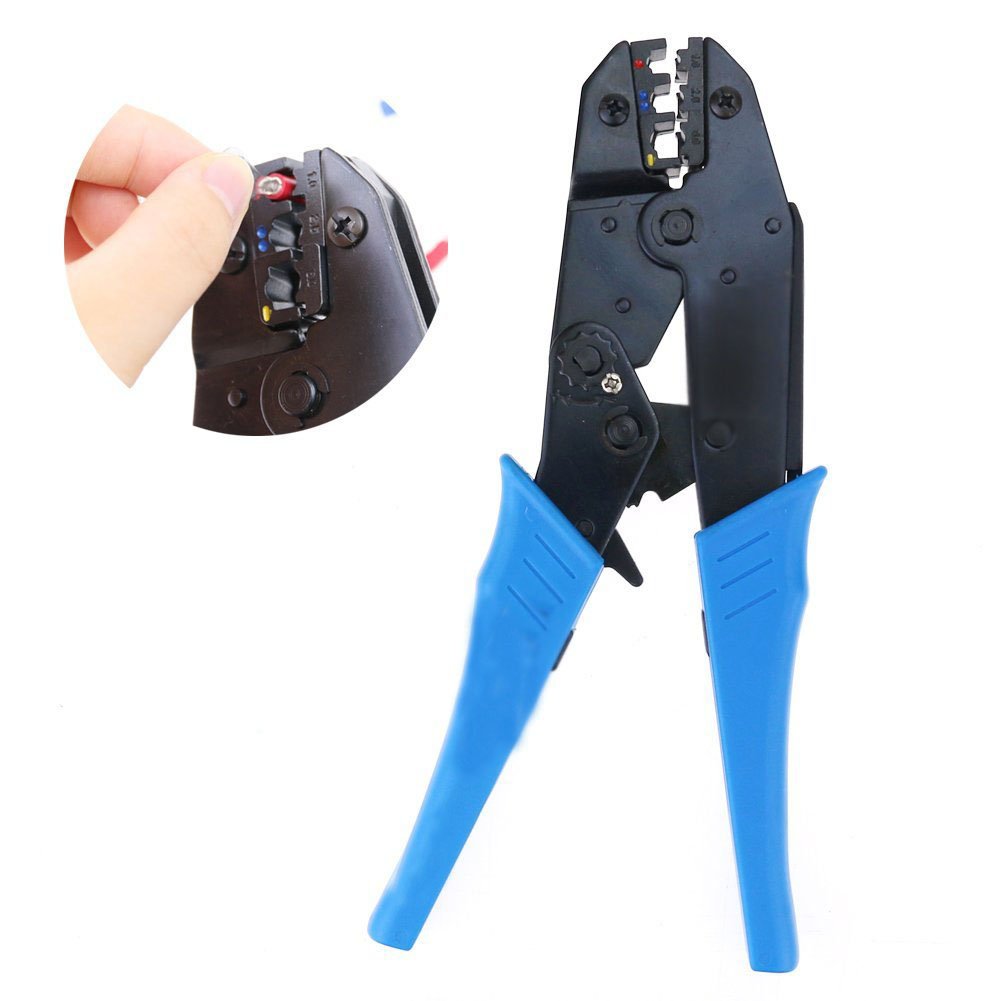

(5) Insert the connector into the slot of the crimping pliers

(6) Crimp

(7) The stopper of the connector stops pulling out the cable

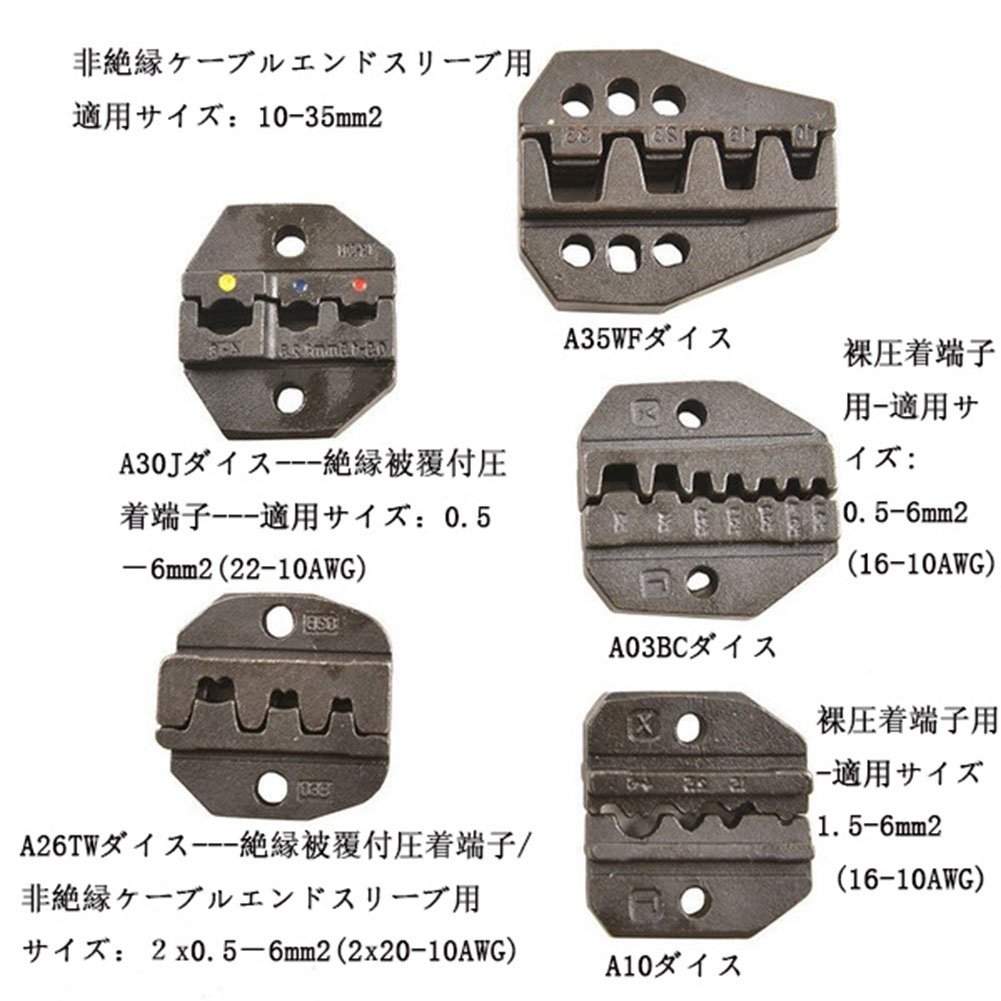

Application:

A03 BC die - - For bare crimp terminal --- Applicable terminal size: 0.5 - 6 mm 2 (16 - 10 AWG)

A35 WF dice --- For non-insulated cable end sleeve --- Applicable terminal size: 10 - 35 mm 2 (8 - 2 AWG)

A10 Die - - For bare crimp terminal --- Applicable terminal size: 1.5 - 6 mm 2 (16 - 10 AWG)

A26 TW dice --- Crimp terminal with insulation coating and non-insulated cable end sleeve - Applicable terminal size: 2 x 0.5 - 6 mm 2 (2 x 20 - 10 AWG)

A30J Die --- Crimp terminal with insulation coating --- Applicable terminal size: 0.5 - 6 mm 2 (22 - 10 AWG)

Regarding packaging

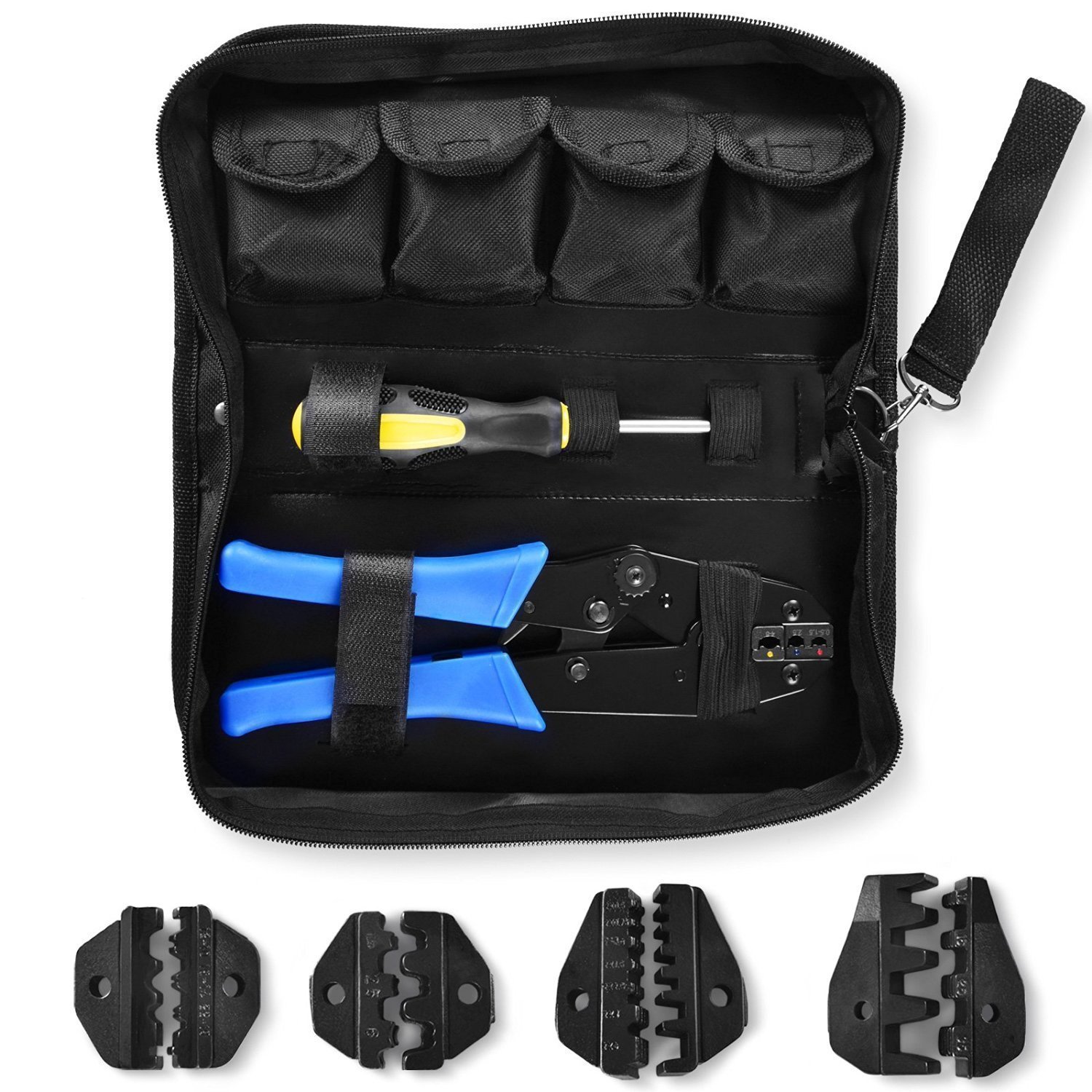

1 x crimping pliers 5 x exchange dies 1 x screwdriver 1 x storage case

important point

Please check the item details carefully and thank you for your order.

It is brand new unused.

The quality of your item is definitely warranted here.

Please check carefully, thank you for your order.

When there is a problem, such as a thing of 10,000, you can return goods, we will correspond with refund.

If you have any problems, please do not hesitate to contact us.

We deal with this sincerely sincerely.

Thank you.

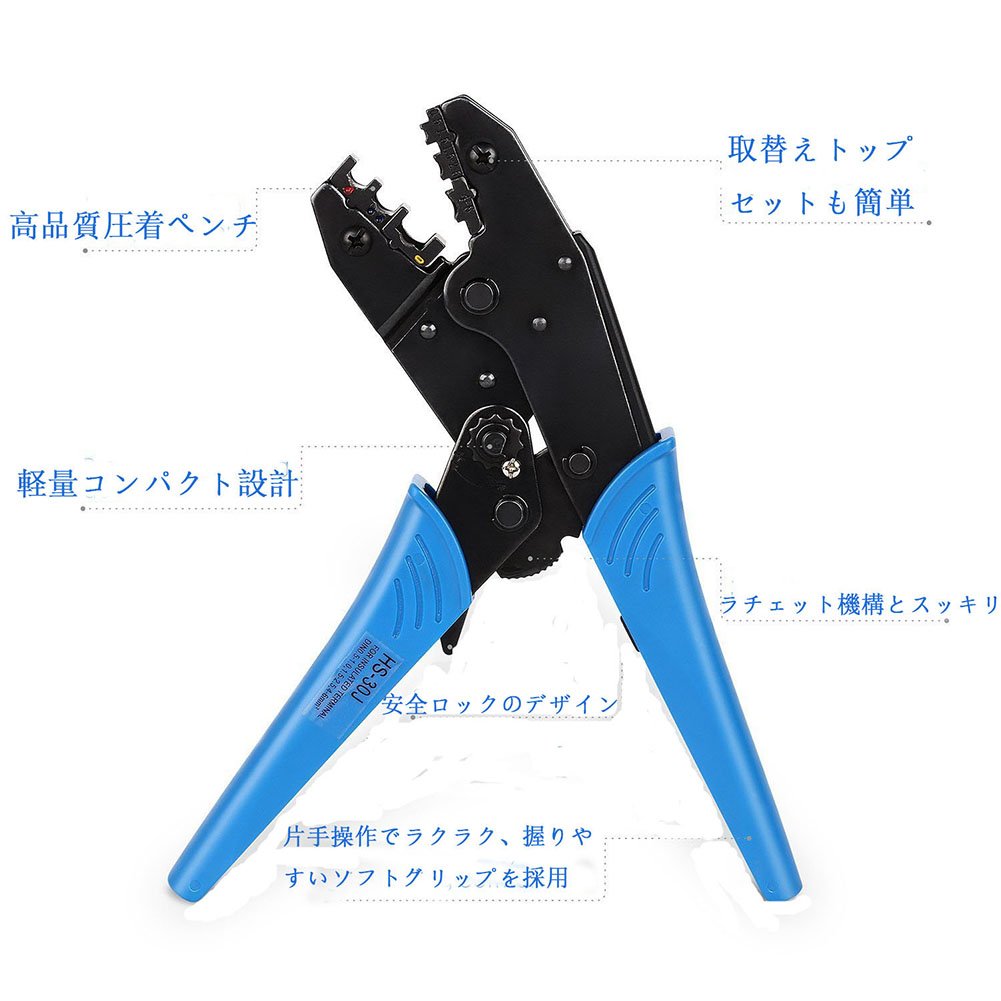

Features:

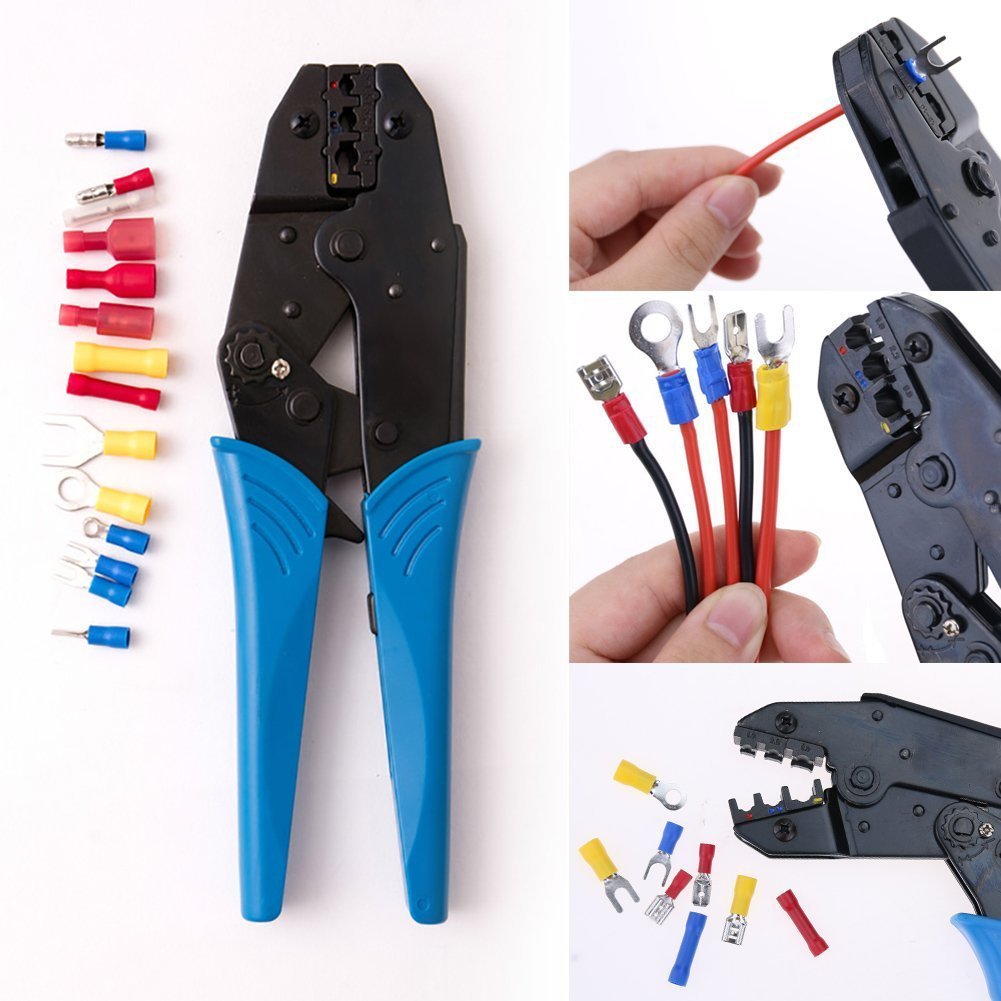

• It is a manual crimping tool set for insulation crimp terminal and plug type terminal.
• Ease of use is a priority form!
• Lightweight and compact design pocket size that fits softly in hand
• Ease with one handed operation!
• Grip extends to the top and is even easier to use.
• Storage case is attached, storage is easy and it is easy to carry.

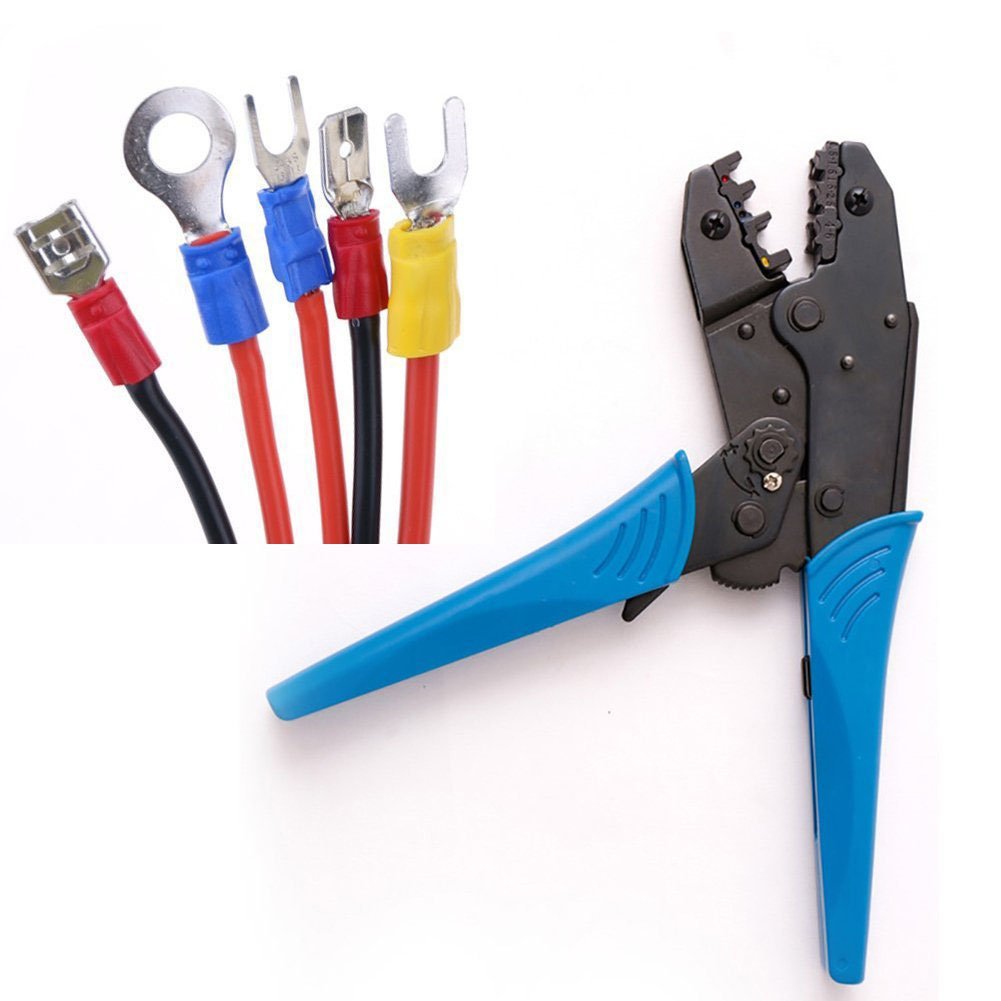

• Application: Bare crimp terminal for insulated sheath with crimp terminal For insulation closed terminal ring sleeve for open barrel type contact For non-insulated cable for end sleeve

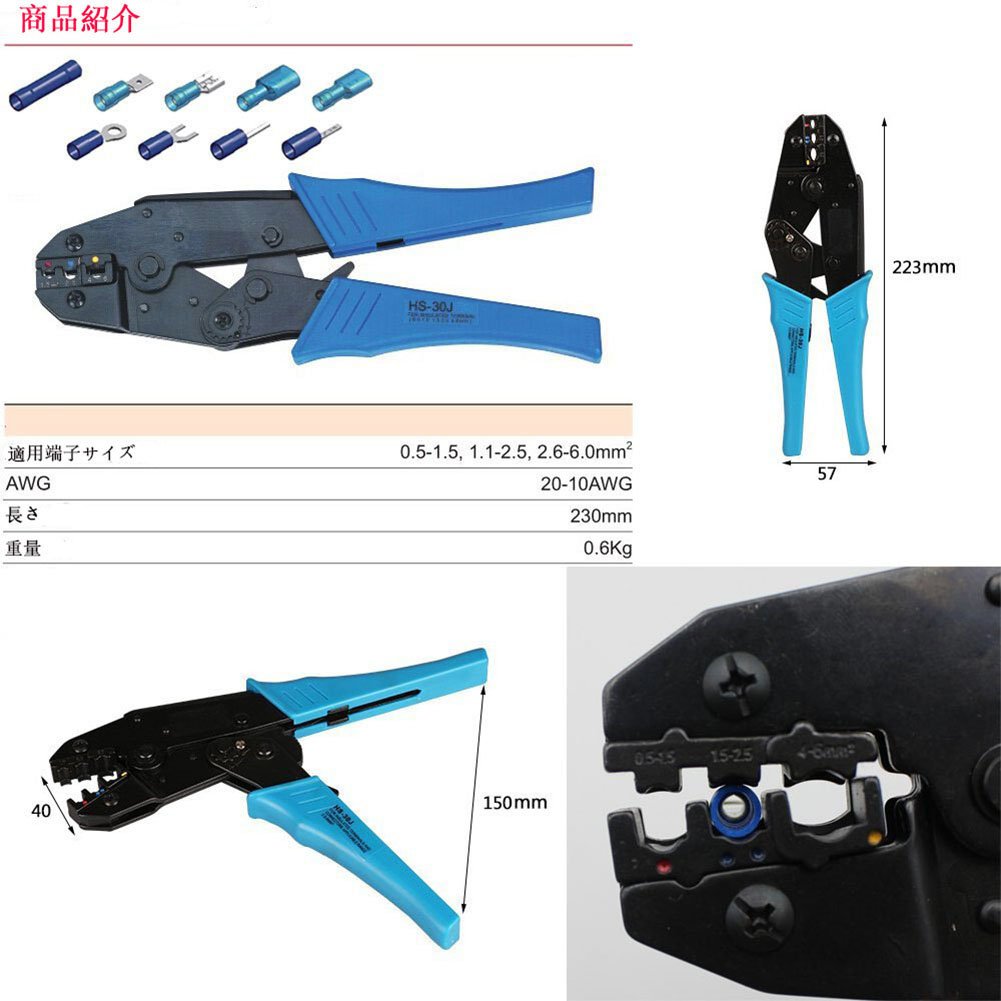

Product information:

Shipping Weight: 1170 g

Package Dimensions: 5.89 x 14.40 x 29.39 cm
