Product Description

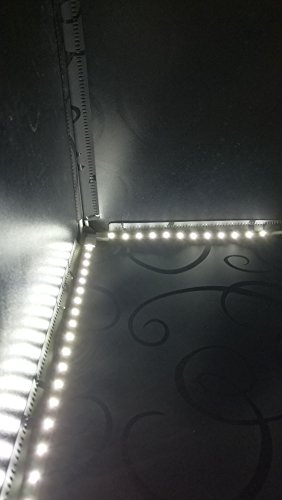

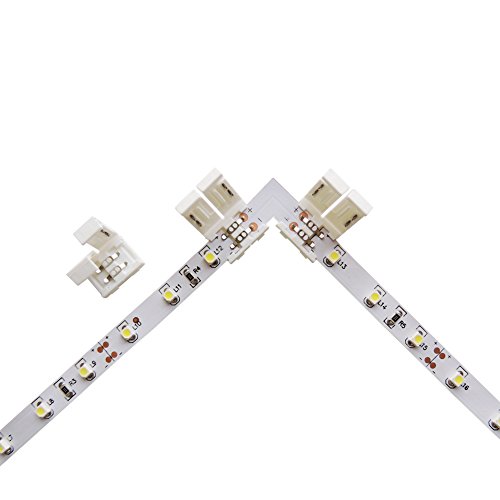

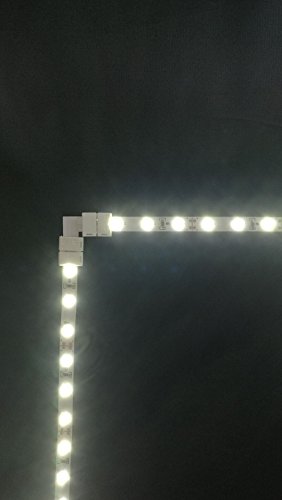

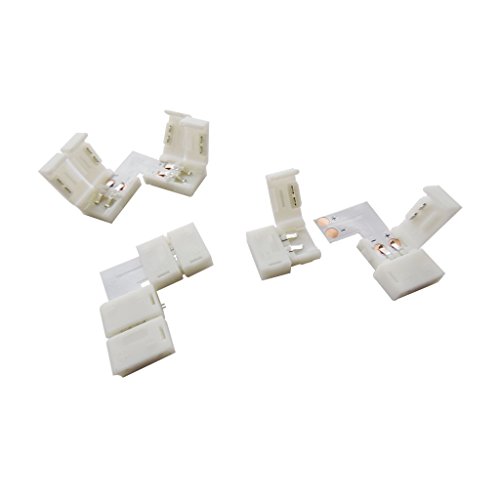

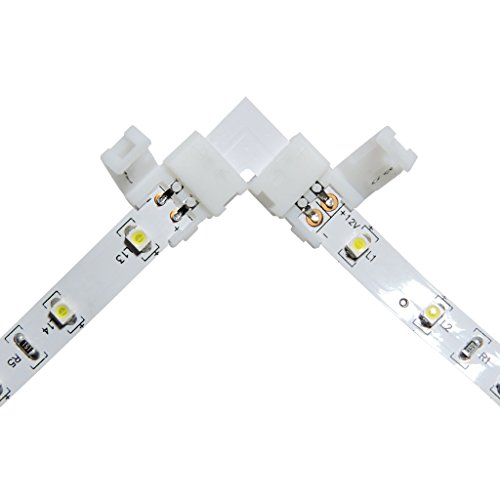

The L shape 90 degree connectors allow you to link LED strip lights together in a perfect right angle and eliminate the time consuming task of soldering. The plastic connectors simply open up and allow 3528 standard LED strip to be inserted, once closed they provide a strong connection which will provide power to the LED strips.

Intended use: Fit for 3528 SMD Standard Color led strip light with 8 mm wide PCB board.Such as warm white,cool white,pure white,red,green,blue,pink.It is not fit for rgb led light strip.

Installation Instructions:
? Insert the L shape PCB board into the clasp of white connection box-making sure to match the (positive) on the PCB board to the on the white connection box.
? Ensure the four solder joints on pcb board are clean
? Open the white clasp of the connector

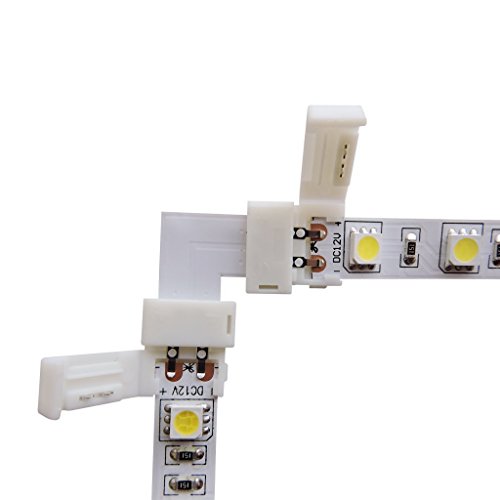

? Insert the LED light strip into the clasp and fix it under the prongs - making sure to match the (positive) on the strip to the on the clasp.
? Close the clasp well to make a solid connection

Please note: To avoid wrong connection, please make the corresponding sequential insertion for "positive" and "Negative"

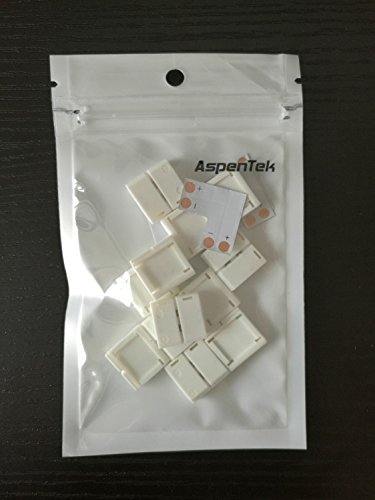

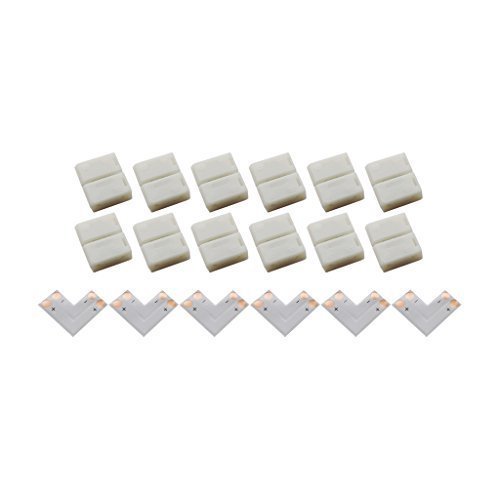

Package content: 6 Pcs "L "Shape Led strip light connector(One set includes 2pcs white connection box and one pieces PCB board)

Service Information:
·In terms of product details or questions, please first contact AspenTek Customer Service by email.We will do our best to fix your issue as soon as possible
·Warranty: All products enjoy 12 months warranty.The products can be returned with no reason in one month.
