Product Description

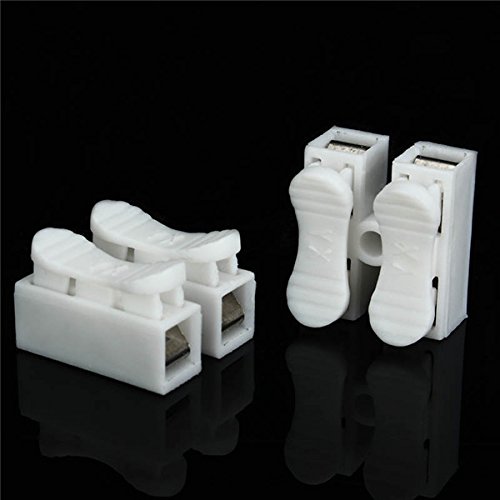

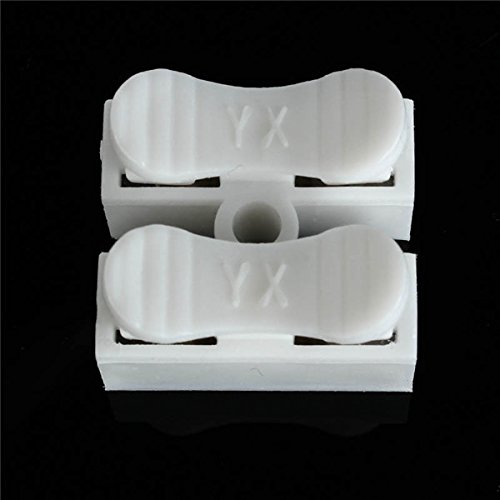

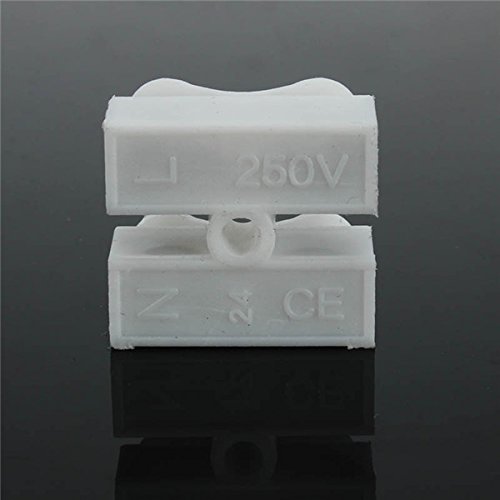

Excellway CH2 Quick Wire Connector Terminal Block Spring Connector












Specification:
Brand: Excellway
Model: CH2
Voltage:
Electricity:

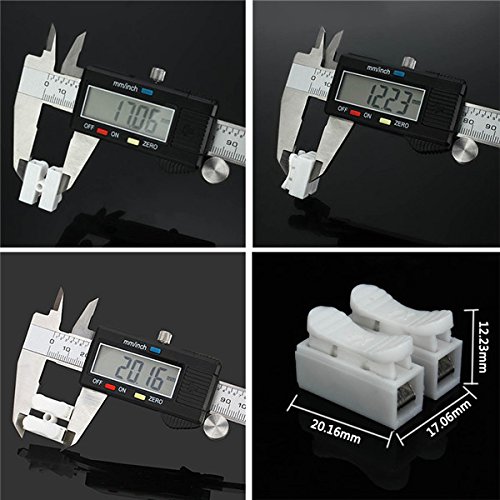

Size: 20.16*17.06*12.23mm/ 0.79'*0.71*0.3 inch (L*W*T)
Insulation material: PE (fire-retardant insulation)
Wire range: -3.5 ~ 0.5mm2
Temperature: -40℃ ~ 150℃

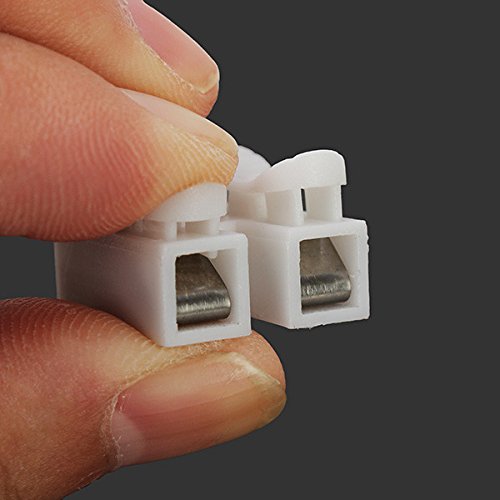

Line pressing frame material: Rolled steel

Apply for: motor, electrical control, power, household appliances, lighting, machinery and wire joints

Features:
1)By CE and ROHS, international authentication.
2)Pressed steel frame material is rolled steel , good elastic, product performance in line with UL, IEC standards

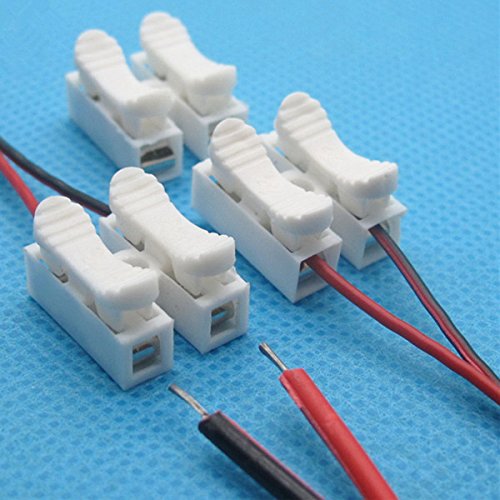

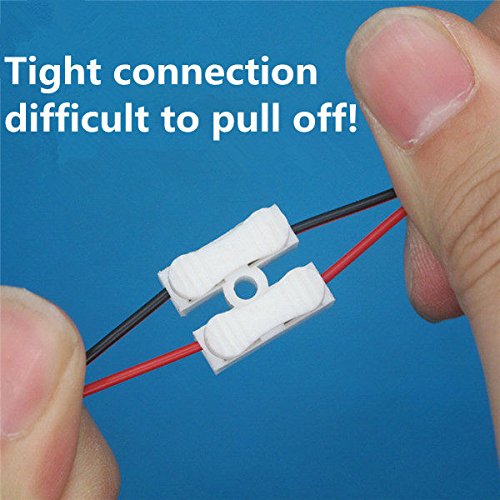

3)Wire connecting without screws, accelerate the speed of assembly, but also saves labor wages and costs

Note: please do not use to connect high-power devices, power of device does not exceed 1500W.
Package included:

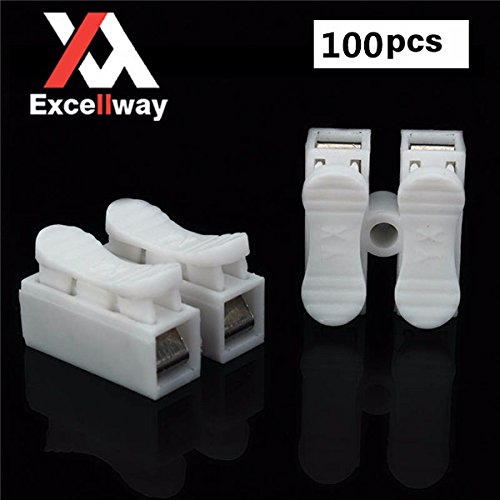

100 x CH2 Spring Connector
