Memory: 32X16Mbit DDR2 f #400MHz, Flash: 4M bytes

Demodulator Type: M88DM6000

T2 TUNER: MaxLinear MXL 608

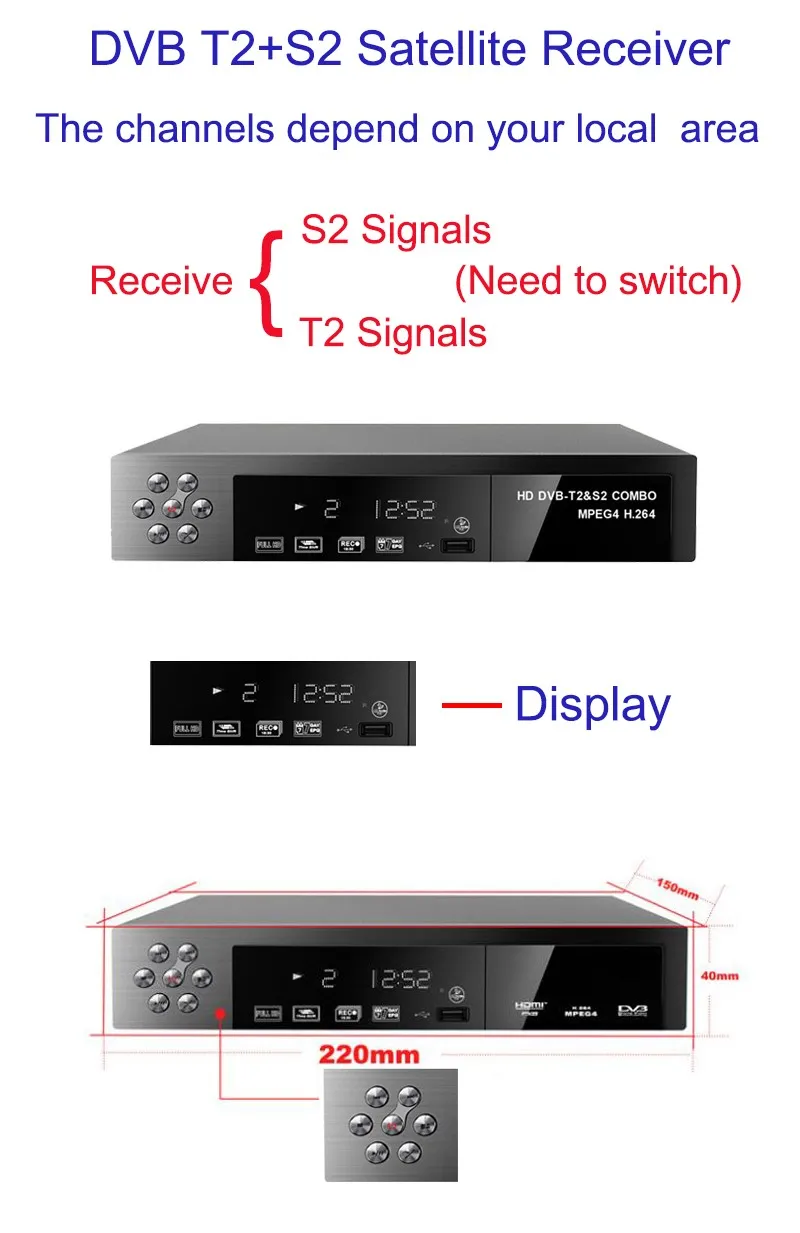

Front Panel: USB 2.0 Embedded One Host,

4-digit LED display on front panel

Red LED Standby,green LED Lock

Panel KEY, POWER, CH+ ,CH-

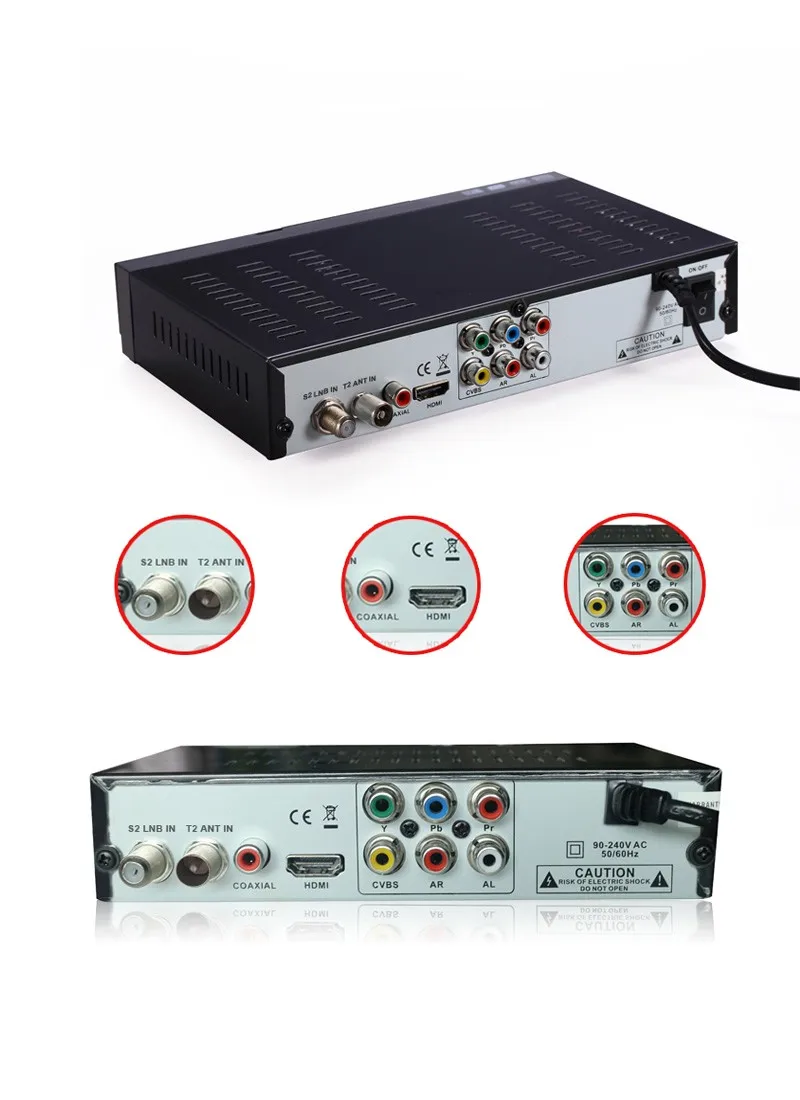

Rear Panel: S2 LNB IN input connector IEC60169-2

T2 ANT input connector IEC-162-2(IEC Female)

HDMI V1.3, RCA CVBS AL AR Connector x1

Ypbpr RCAx1, Coaxial x1, Power AC100~240V 50Hz/60Hz

DVB-T2 Demodulation :

Terrisal Receiver StandardDVB-T2/T(EN_302755 V1.3.1/EN 300744)

Input RF Frequency 48~866MHZ, Bandwidth6MHz,7MHz,8MHz

Constellation QPSK 16-QAM 64-QAM and 256-QAM

FEC 1/2, 3/5,2/3, 3/4,4/5,5/6

Guard Interval1/128 1/32 1/16 19/256 1/8 19/128 1/4

FFT Mode 2K/ 8K/32K, Support Single and multiple PLPS

Input level -83~ -5dBm

DVB-S2 Channel Decoder :

Frequency Range 950MHz-2150MHz, Sensitivity Level - 10~ - 81dBm

Mode IFFT 2k,8k, FEC Mode 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Guard intervals 1/4,1/8,1/16,1/32, Constellation QPSK.8PSK.16APSK.

Support bisskey,Not support Dobly(AC-3)

"Neighboring channels

immunity and Protection" According to ETSI TR 101 190 V1.2.1

Active Ant Power 13/18V DC # 500mA MAX,Overload Protection

NOTE:

this product does not support Dobly or AC-3,if you want to watch the channels of this format,it will be no sound.

When you purchase this product before,pls consider carefully.thanks

Sortware Features

•Fully DVB Compliant and H.264/MPEG-2/MPEG-4/AVS

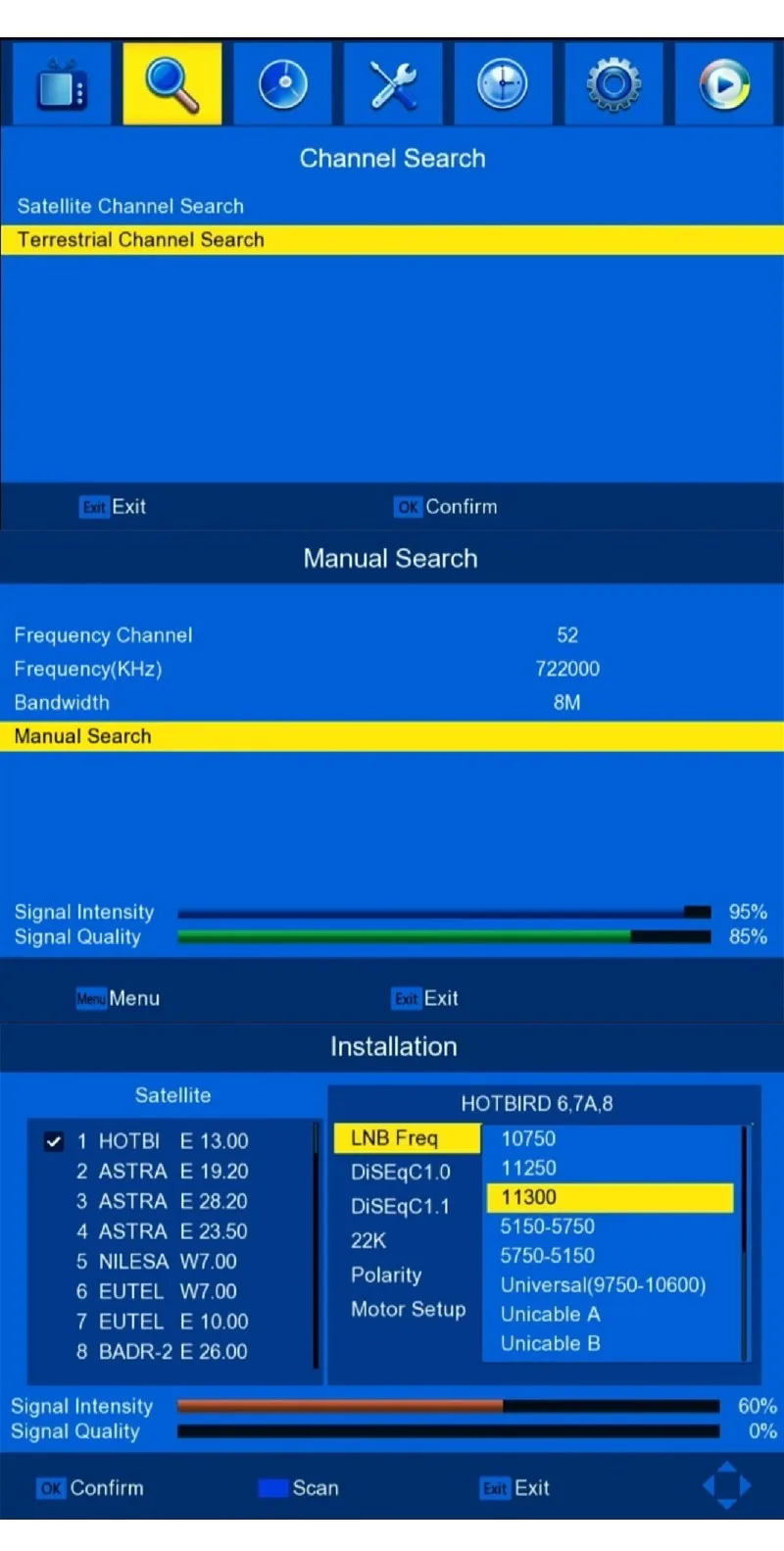

•Support Full / Blind Search on Single / Multiple Satellites

•Support Auto / Manual Search on Terrestrial Network

•Support DiSEqC 1.0 / 1.1 / 1.2 / USALS / Unicable

•Powerful Service Control by Favorites, Lock, Skip, Move, Rename & Delete

•Support 7-day EPG, Event Recording by EPG

•Support Multi-Language (OSD & Menu)

•Maximum 4000 Service Programmable

•TV System: Auto / PAL / NTSC

•Aspect Mode: Auto / 4:3LetterBox / 4:3PanScan / 16:9

•Video Output Resolution: 480i/576i/480p/576p/720p/1080i/1080P

•Support Audio Description (Thailand Standard)

•Support Teletext, Subtitle

•Support Find / Zoom

•Support Parental Lock

•Support Software Upgrade by OTA/USB

•USB 2.0 Host Support (Time Shift, PVR, MP3 Player & Picture Viewer & Media Player)

Video Decoder

• MPEG2 MP#ML for SD

• MPEG2 MP#HL for HD

• H.264/AVC MP#L3.0 for SD

• H.264/AVC HP#L4.1 for HD

• AVS Jizhun profile #L6.0

• MPEG4 Simple profile # all levels

• MPEG4 Advanced Simple Profile# L5 without GMC, data partitioning and Reversible VLC.

• MPEG4 Xvid1.3.2 without GMC

• MPEG4 DivX without GMC

• MPEG4 H263 baseline profile

Audio Decoder

• MPEG-1 LayerI & Layer II Musicam

• MPEG-2 AAC-LC

• MPEG4 HE-AAC

• AAC 5.1

Powerful Multimedia Features

Media Codec mpeg2, m2ts, ts, avi, mkv, asf, 3g2, 3gp, mp4, mov, flv, f4v, vob, dvix

Audio Codec wav, mp3

Photo Codec jpeg, gif, bmp, png
