NADAMOO 2D WIRELESS BARCODE SCANNER (2-IN-1 433MHZ WIRELESS & USB2.0 WIRED) 1D QR PDF417 DATA MATRIX BAR CODE SCANNER CORDLESS CCD IMAGE BARCODE READER FOR MOBILE PAYMENT COMPUTER SCREEN

FEATURES

  • 2D/QR BARCODE SCANNER: easily capture all 1D, 2D bar codes on labels, paper, and mobile phone or computer displays
  • CCD IMAGING SCANNING TECHNOLOGY: with advanced digital image acquisition function,Which can identify screen code, incomplete code and fuzzy code etc, Effectively compensate for the problem that scanner can not identify screen code
  • Two connection modes:433MHz wireless connection and USB2.0 wired connection; In wireless mode, with Mini USB Receiver,delivers up to 200m/656ft transmission in open space, 50m/164ft transmission indoor. easily connected with your laptop, PC etc.
  • Two upload mode :Instant upload mode + Storage mode. Internal offline storage supports up to 10,000 barcodes in offline storage mode. Scan and store barcode when far away from the receiver,and then update the data to your device when you need it.
  • Trigger Mode:Manual trigger,Auto-sensing,Continuous scanning(do not need to press the button)

SPECIFICATION

Model No.Y-6800W
Package Dimension10.21 x 8.10 x 16.79 Cm
Package Weight0.32 ~ 0.38 Kg
Product GroupCE
AvailabilityAvailable (Usually ships in 1-4 business days)

DESCRIPTION

This is a plug & play 433MHz wireless CCD barcode scanner that can read all the standard 1D /2D bar codes on labels, paper, and mobile phone or computer displays

2 Connection
USB Wired Mode:Connect the scanner to your computer Via USB cable and upload the data into whatever program/software you have open to accept info
433Mhz Wireless Mode:Simply plug the USB receiver into the USB port of your computer,when you scan a barcode, the value is entered into the location of the cursor. Without the entrapment of cords, wireless barcode scanner allows you to move your scanner to the inventory instead of hauling the inventory to your scanner when it comes time to count inventory.

2 Upload Mode:
Instant Upload Mode + Storage Mode
Not only does it allow your employees to instantly upload the barcode to your computer.
But they also allow for storing the barcode inside the built-in storege of the scanner and then upload the data to your device when you need it.Internal offline storage (2M)supports up to 10000 barcodes.

Decode capacity:
1D barcode: Codabar,Code11, Code39/Code93, UPC/EAN, Code128,Industrial 25, Interleaved2of5, Matrix2of5,MSI Code
2D barcode:QR Code,PDF 417,Data Matrix

Scanning area:
2cm*2cm ~ 30cm*30cm/ 0.8in*0.8in~11in*11in

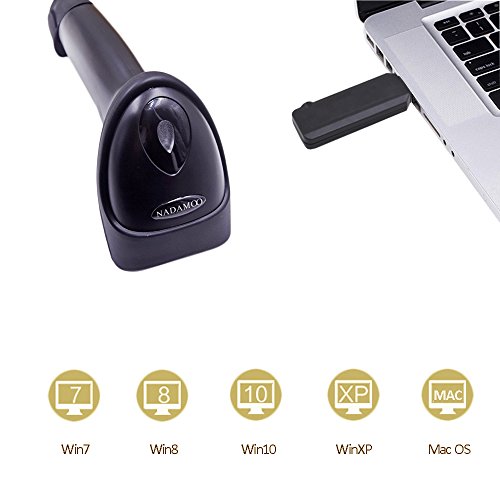

Compatible Computer System
Windows, Mac and Linux

Trigger Mode:
Manual trigger,Auto-sensing, Continue scanning

Data editing
Support for adding terminator TAB,CR,CRLF

Parameter
Battery: 3.7V 1500mAH
Working time :7 to 10 days
Laser Class II
Maximum radiant power less than 1mW

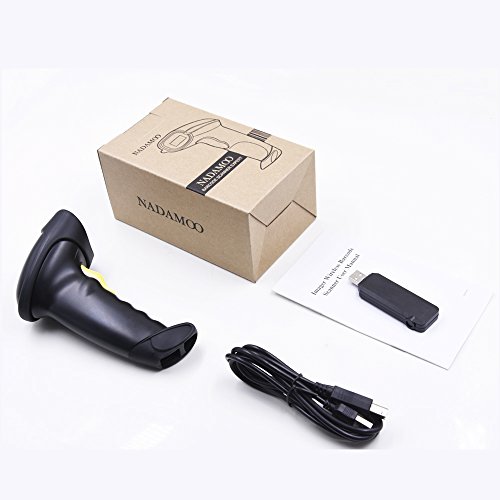

Package list
USB Receiver *1
Scanner*1
USB cable*1
Manual *1

For more details on operation, please refer to PDF manual under the Technical Specification
