Product Description

■ LED Power: 24W
■ LED: 6×4W LED Chip
■ Operating Voltage: 9- 32V
■Beam Type: Flood Beam
■Waterproof : IP 68
■Lens Material: PMMA Tempered Glass
■Housing Bracket: Die Cast Aluminum Alloy
■Life Span:50000+hours
■Color Temperature: 6000K
■Operating Lumens Output: 1530 LM
■Weight :1kg (Per Unit Included The Box)
■WARRANTY: 1 year warranty.

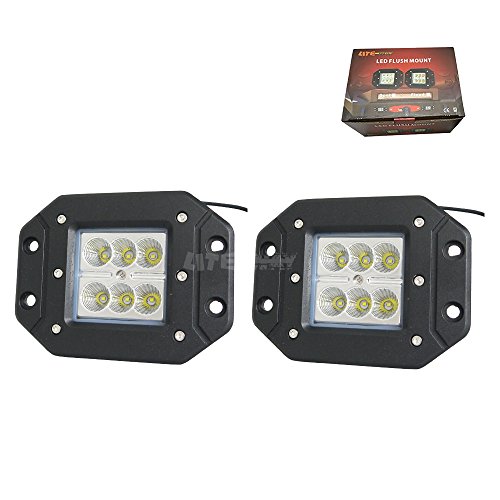

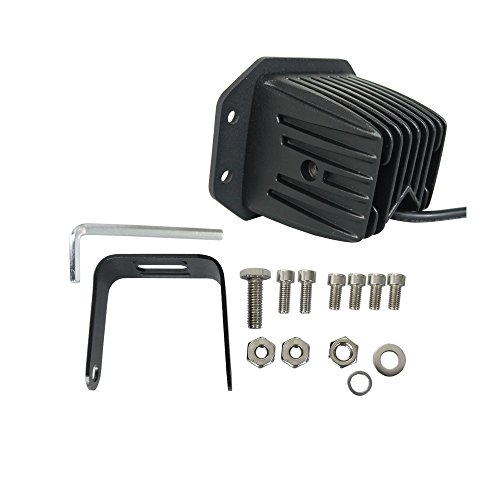

■Package included:
2×24W Led Light Bar
2× Mounting Brackets
■Application:
2014 F-250 Super Duty
2013 F-150
2013 F-250 Super Duty
2013 Toyota Tacoma
2013 Toyota Tundra
2012 Ford F-150
2012 Ford F-250 Super Duty
2012 Toyota Tundra
2012 Toyota Tacoma
Other Application
It is used on any vehicles， car， ATV， SUV， UTE， mining， boat， Jeep， off-road， trailer， motor，bicycle，Excavators， truck， tractor and other heavy equipments. It use the latest LED technology，Supplying superior light output and will not drain your battery
Installation
1. Test the light to make sure it can work properly. (Red line is positive， black line is negative.)
2. Install the hex nuts on the bolts， And twist the spring meson .
3. Make the bolts go through the mounting holes And set into the spring meson， And then tighten the hex nut.
4. Connect the power line to the corresponding power connector.
5. Make sure the light is installed steadily， And then start the power.

Feature

LED: 6×4W LED Chip
Beam Type: Flood Beam
Waterproof : IP 68
Lens Material: PMMA Tempered Glass
Life Span:50000+hours
Brand : LITE-WAY
Item model num : 1218FC
MPN(PartNumber) : 1218FC
EAN : 0602447450051
Product Dimensions(LxWxH) : 13x10x9cm ; 1451 g
