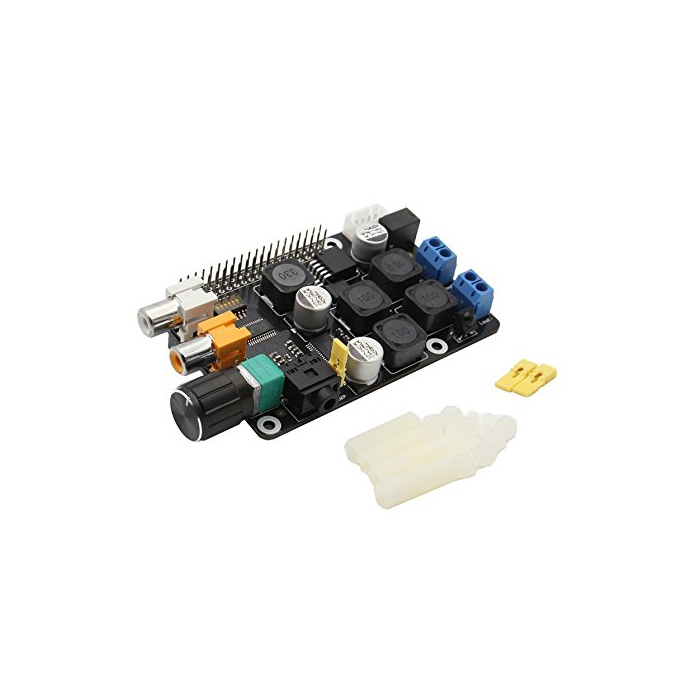

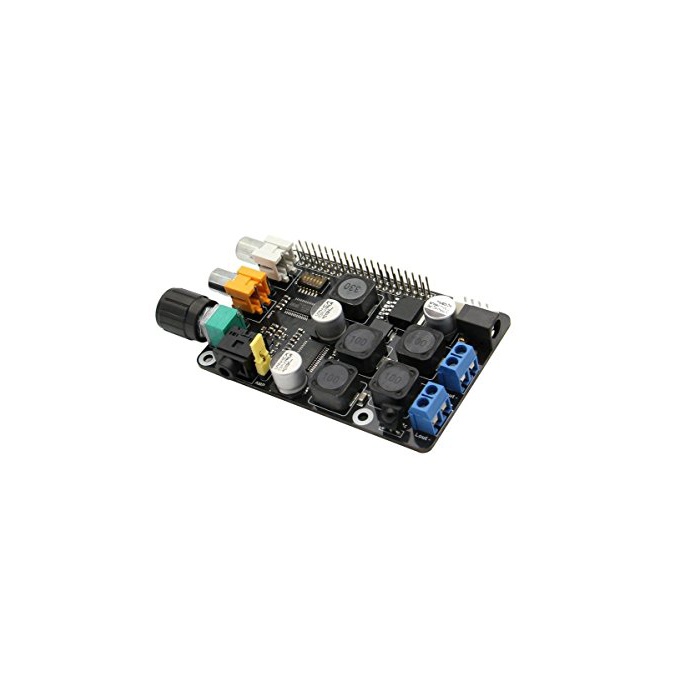

원본상품명: SupTronics Raspberry Pi 3B 2B B+ Zero HIFI ラズベリパイオディオボド X400

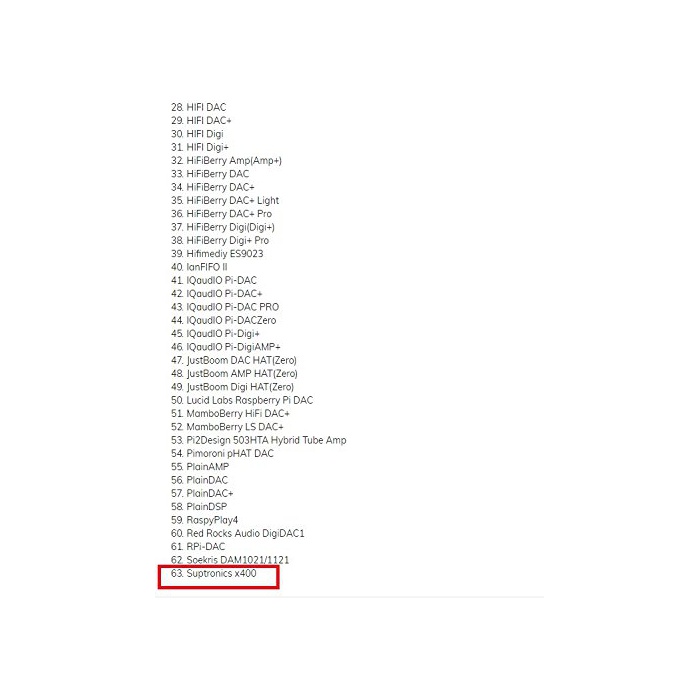

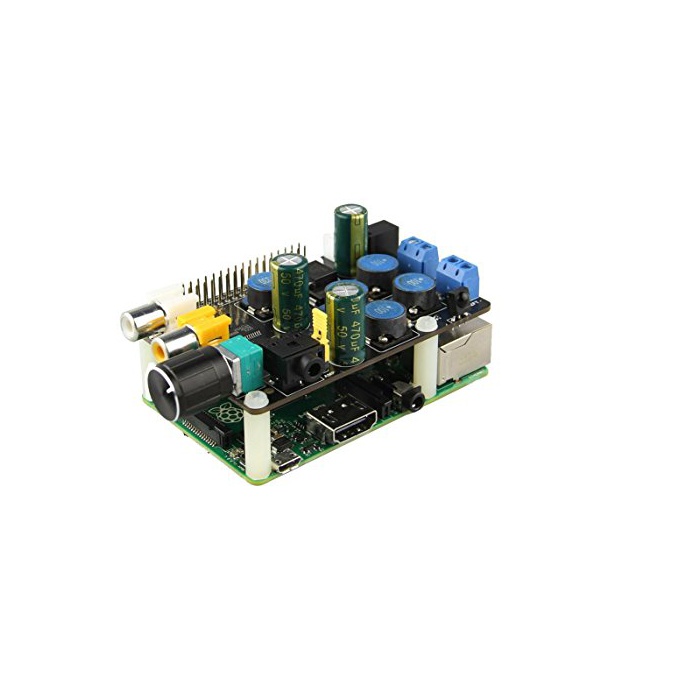

Raspberry Pi Model B+,Raspberry Pi 2 Model B and Raspberry Pi 3 Model B NEW!에 대응,HAT（Addon 보드 규격）에 준거.Moode audio오디오 시스템에서 정식 대응.
T.I바 브라운 32bit384kHz DAC/PCM5122탑재/audio headphone amplifier (TI TPA6133A)탑재,Full-HD오디오 192kHz24bit에 대응,DSD-PCM변환 재생도 가능

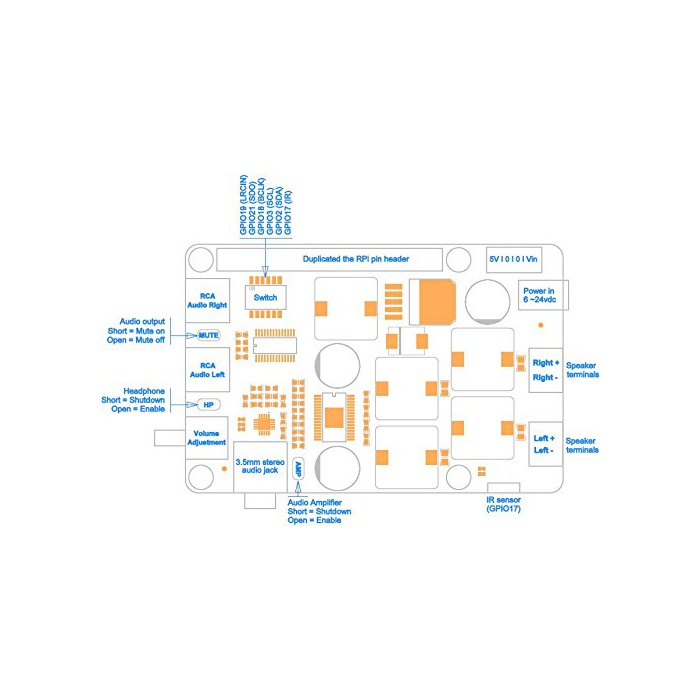

적외선 기능 탑재（38KHz）/ Phono/RCA connectors / 이어폰 잭 출력： 2ch 아날로그 스테레오 / Speaker terminals / Up to 2 x 20W into 4 ohm
amplifier (TI TPA3118D2)/ AMP can be enabled or disabled via jumper / Earphone AMP can be enabled or disabled via jumper /Mute can be enabled or disabled via jumper
입력 전원：6 - 24V DC（권장AC어댑터：출력 12V DC 2A）/ 6V to 24Vdc converted to 5V, 3A via step-down DC/DC converter to power the Raspberry Pi

Technical Details

Product Details

Package Dimensions
Width : 4.02 inch
Height : 2.05 inch
Length : 6.06 inch

Shipping Weight: 2.08 ounce (View shipping rates and policies)

ASIN : B01LQ6VAMS
