Product Description

Video Compression: H.264

Video System: NTSC/PAL

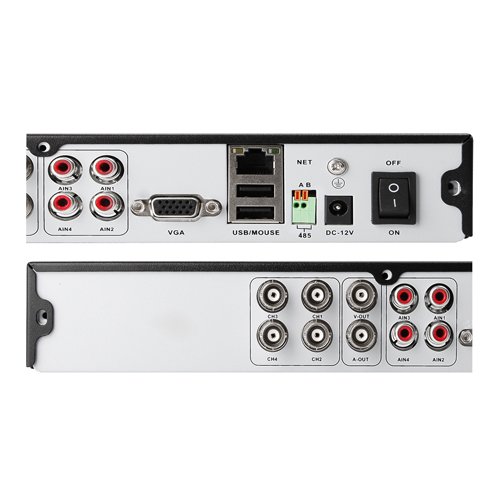

Video Input/Output Interface: BNC

Video Output: 1 Channel

Other Video Output: VGA

Record Mode: Manual/Schedule, Motion Detection, Time Schedule

Mobile Device OS Support: Windows Mobile, iOS, Android, Blackberry

Network Function: Mobile & Email Function, DVR Setting, Live Monitoring, IE Viewer

Net Protocol: DHCP and TCP/UDP

Remote Access: Remote Client Software and IE Browser

PTZ Control: RS-485

HDD Interface: SATA, Support between 250GB and 2TB

HDD Port: 1

Built-in HDD: No

Playback Mode: Frame by Frame, Fast Rewind, Fast Forward, Normal Play

Synchronous Playback (Channel): 4

USB: USB Backup/USB 2.0

Power Supply: 12V DC

Dimensions (LxWxH): 260x210x43

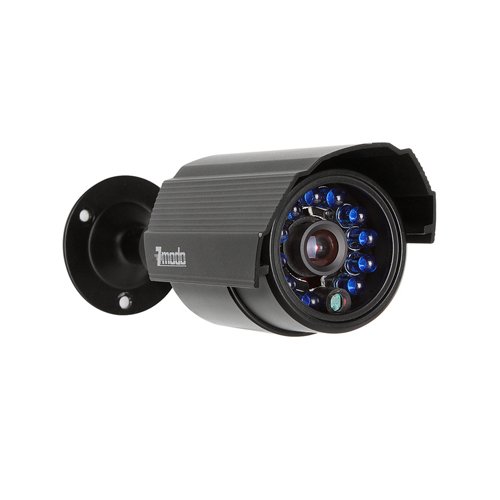

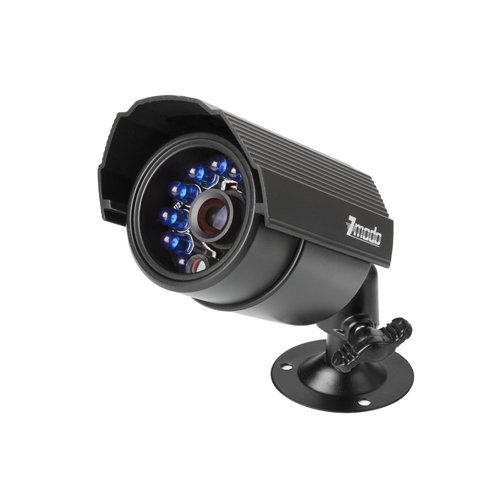

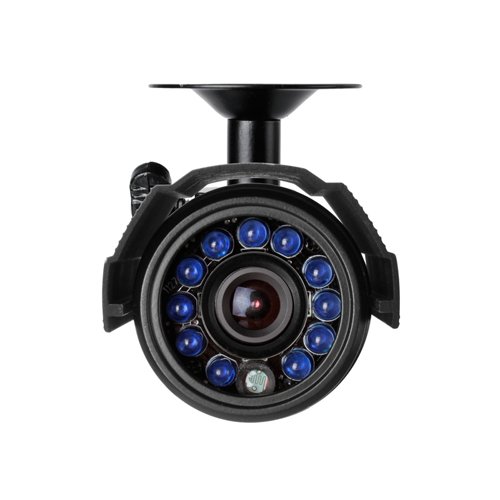

Bullet Camera Image Sensor: 1/4" Color CMOS

TV System: PAL/NTSC

Effective Pixels: NTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V)

Lens (mm): 3.6

Maximum IR Distance (m): 20

Features: Waterproof, Auto White Balance

Minimum Illumination: 0.0 Lux

S/N Ratio: ≧ 50dB

Video Output: 1.0Vp-p, 75ohms

Operating Temperature: -4°F~140°F / -20°C ~60°C

Power: 12V DC

Material: Metal Shell

Effective Pixels: NTSC: 768 (H) x 494 (V)/PAL: 752 (H) x 582 (V)


Feature

Audio Input / Output:RCA 1-Channel Input / RCA 1-Channel Output
Display Frame Rate:NTSC: 120 fps @D1 / PAL: 100 fps @D1
Display Resolution:NTSC: D1(704 x 480)/ PAL: D1(704 x 576)
Recording Frame Rate:NTSC: 120fps @D1 / PAL: 100 fps @D1

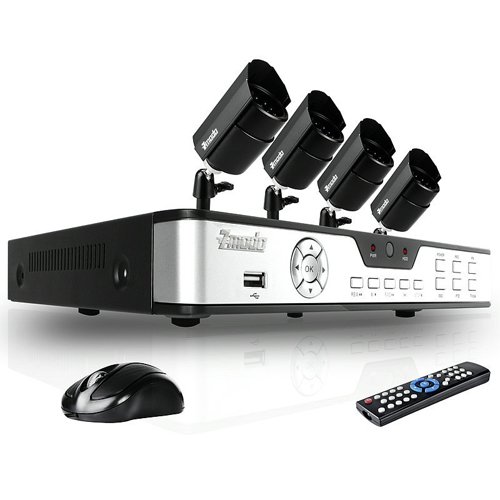

What's in the box: 12V Power Supply × 2, 66ft Cable × 4, Bullet Camera × 4, 1 To 4 DC Line × 1, User Manual - English × 1, Remote Control × 1, Mouse × 1, DVR × 1
Brand : Zmodo
MPN(PartNumber) : 733411AMZ
EAN : 0889148146111
