Item Descriptions:

Light Staff CANBUS LED series

Neutral pure white light (color temperature 5800K ~ 6000K) with emphasis on color rendering is not included, LED chip of the color temperature is mounted and directs luxuriousness casually.

In case

Light Staff 5630, 3030, 4014 Chip The CANBUS LED series has the same color temperature, so total coordination is possible by mounting the same series LEDs.

T10 5W realized brightness which is not comparable with incandescent light bulb

The standard 5 W incandescent light bulb is generally said to be about 50 lumens of brightness.

In case

Brightness realizes 400 lumens far brighter than a genuine 5W bulb

It is a specification for those who cherish the color and who have a commitment.

In case

Specification concerning housing

The enclosure is not ordinary aluminum scraped out unpainted specifications but rather luxurious specifications floating luxury unique to imported cars with matte silver paint after scraping out

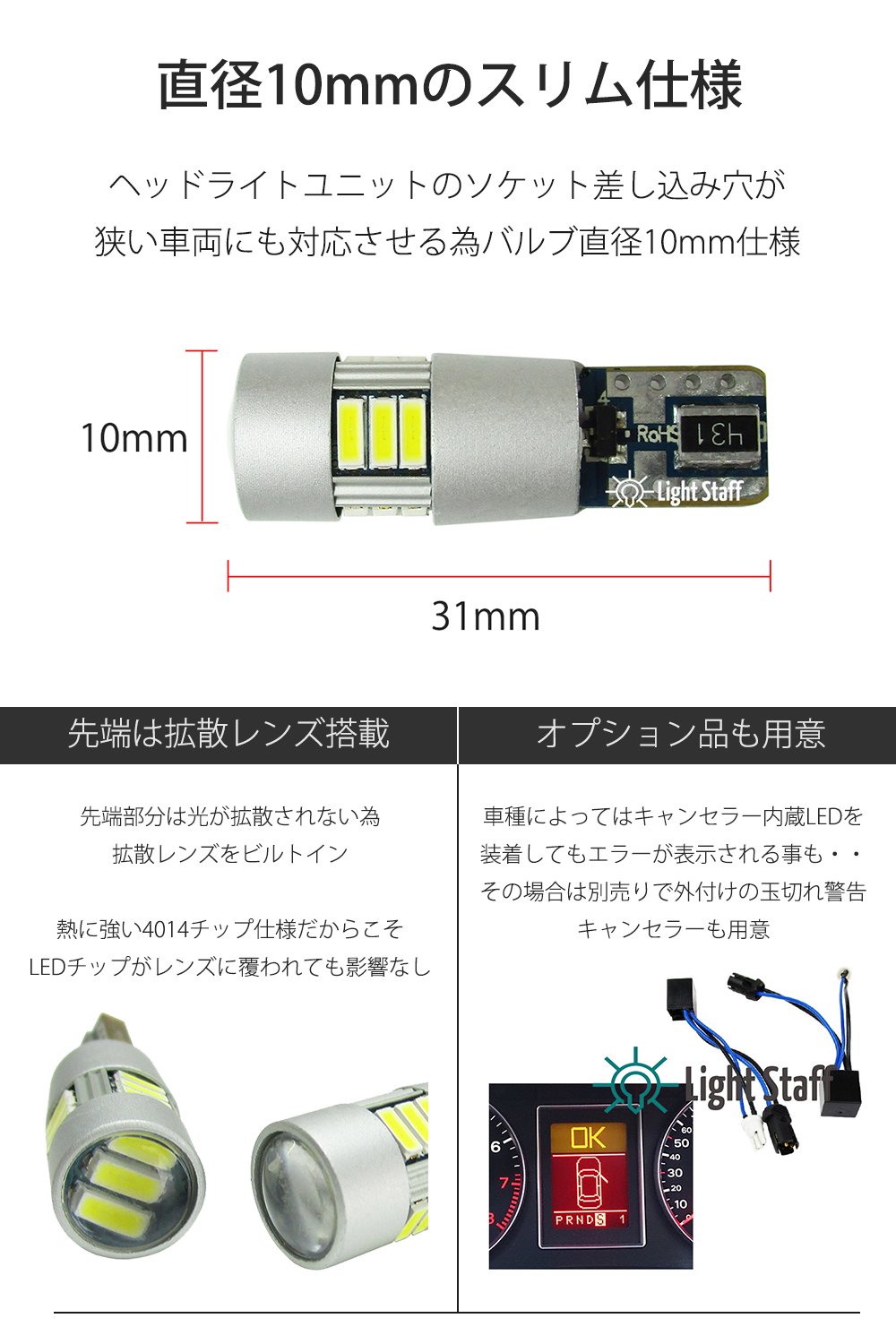

Slim type diameter 10 mm spec

By setting the main body diameter to be the same 10 mm as the T10 incandescent light bulb, it can also be installed on a vehicle with a narrow insertion hole like VW

That's why we are also sensitive to static electricity

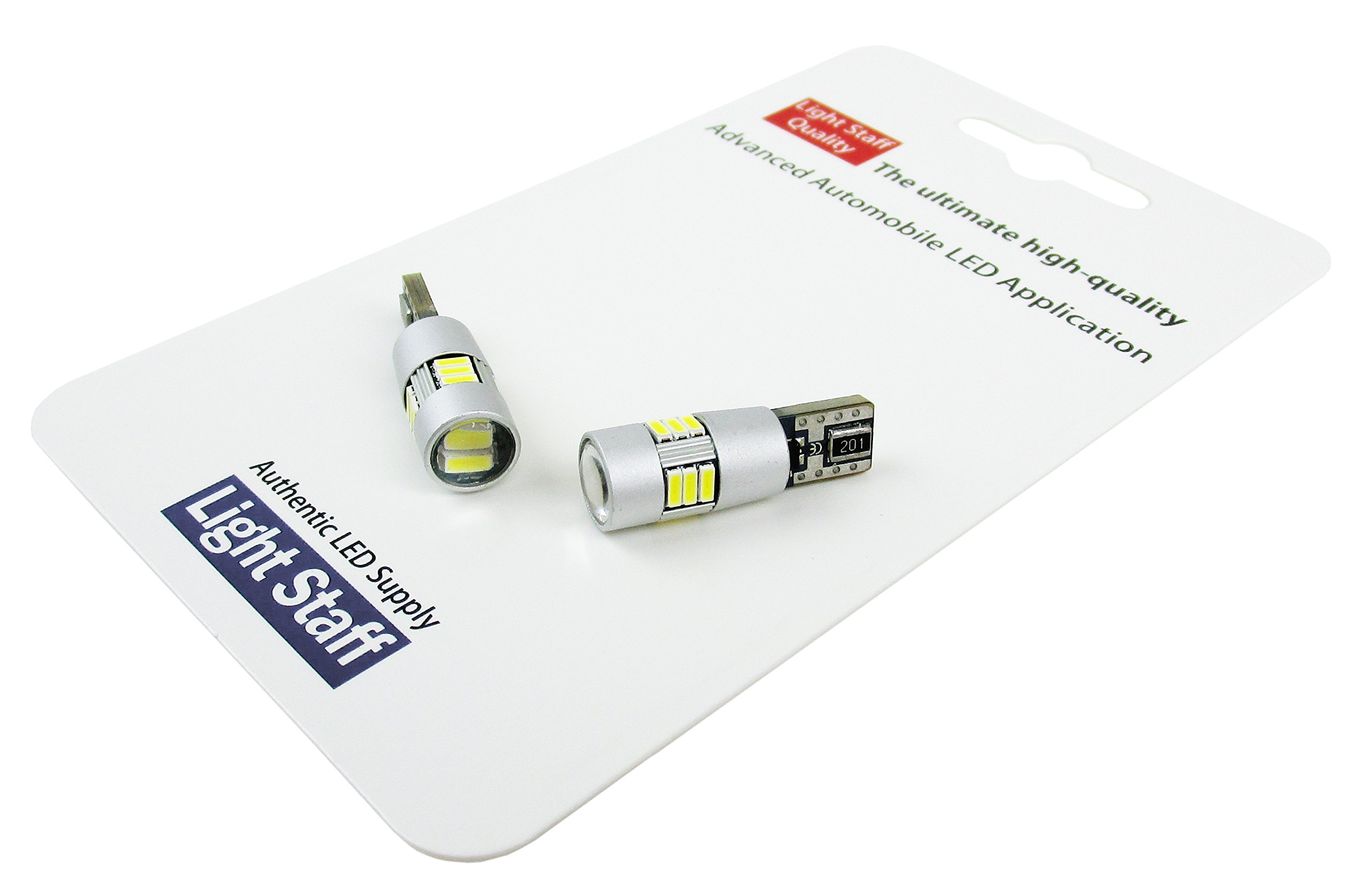

Light Staff LED is inspected and set on the card blister and then stored in a warehouse after being enclosed in an antistatic package used for packaging electronic parts considering LEDs susceptible to static electricity.

Specification

Base: T10 (W5W)

LED chip: 4014 chips

Power consumption: 2.76 W (at 13.8 V)

Operating current: 200 mA

Brightness: 400 LM

Operating voltage: 12 VDC -16 V

Package: Light Staff blister package + antistatic packaging

※ This product has polarity.

If it does not light up please rotate it by 180 degrees.

* If you install it on a vehicle whose allowable voltage is severe on the CANBUS side and the bulb warning lamp lights up, please separately purchase Light Staff 3.9W LED bulb warning canceller.

(Wiring processing is required)

Features:

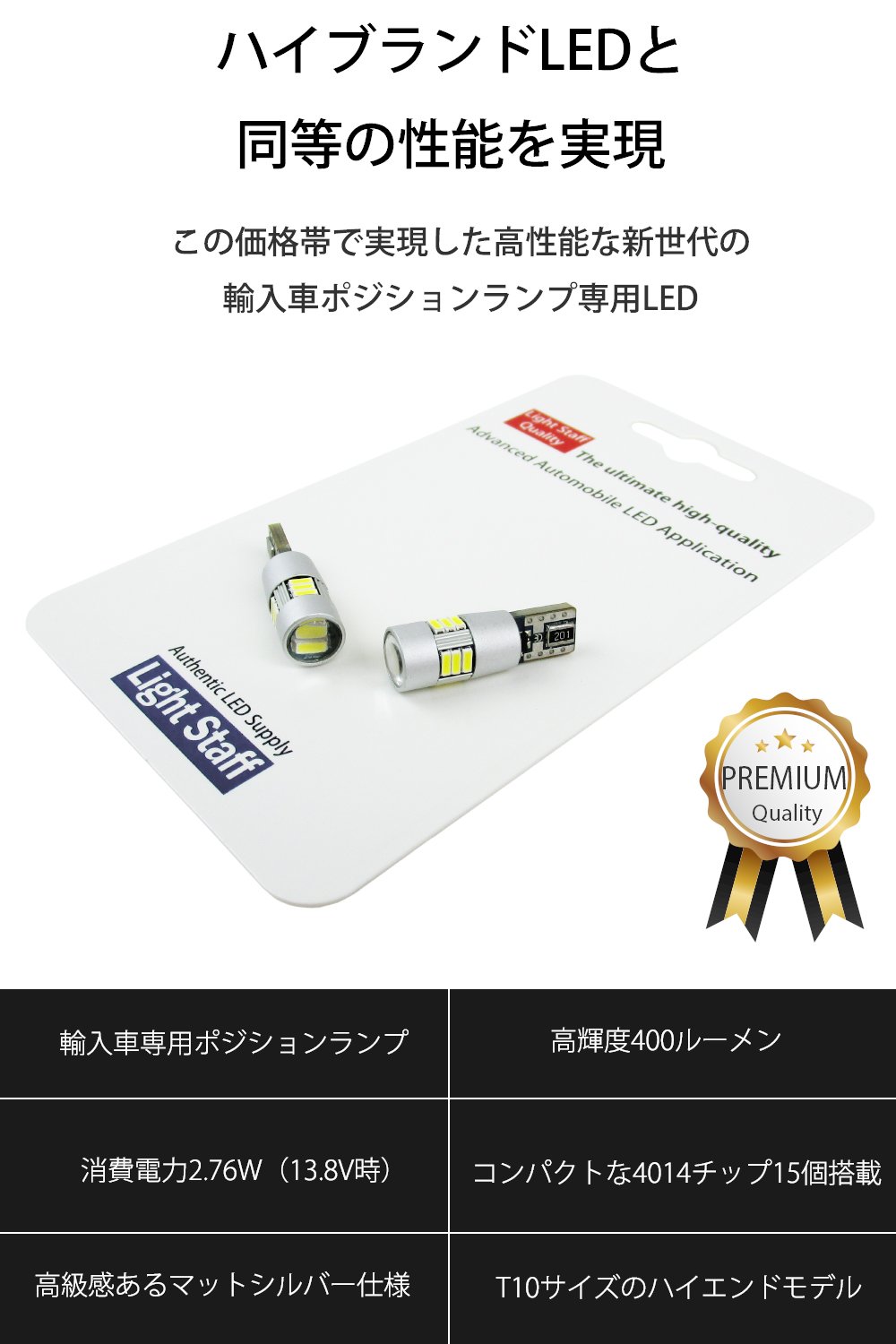

• ✅ 【High end models of imported car LEDs】 Achieved brightness of about 400 lumens far exceeding T10 LED / T10 5W normal incandescent bulb for imported cars
• ✅ 【High Brightness Model Considering Light Distribution】 A total of 15 LED chips with 4014 LED chips on each side face of 90 ° and three on top side are arranged, and specifications that also consider light distribution
• ✅ 【Corresponds to a wide range of vehicles】 Slim specification with a diameter of 10 mm, VW and Audi etc. position lamp compatible even for vehicles with small insertion holes
• ✅ 【HIGH SPEC specs not allowed other companies to follow] Base: T10 / LED chip: 4014 15 stations / Dimension: 10 mm diameter x 31 mm length Operating voltage: 12 V to 16 V / consumption current: 200 mA / power consumption: 2.76 W
• V hour) * If you install on a vehicle whose allowable voltage is severe on the CANBUS side and the warning light turns on, please separately purchase Light Staff 3.9W LED bulb warning canceller.
• (Wiring processing is required)

Product information:

Shipping Weight: 9 g

Package Dimensions: 1.19 x 11.51 x 17.91 cm
