Item Descriptions:
Color:
Platinum White
Product introduction
High sound quality design of jitter free & upsampling for high rigidity chassis by aluminum die casting.
DAC has PCM 1792 with a reputation.
Also equipped with a headphone impedance selector that can drive headphones in optimum condition.
From Amazon

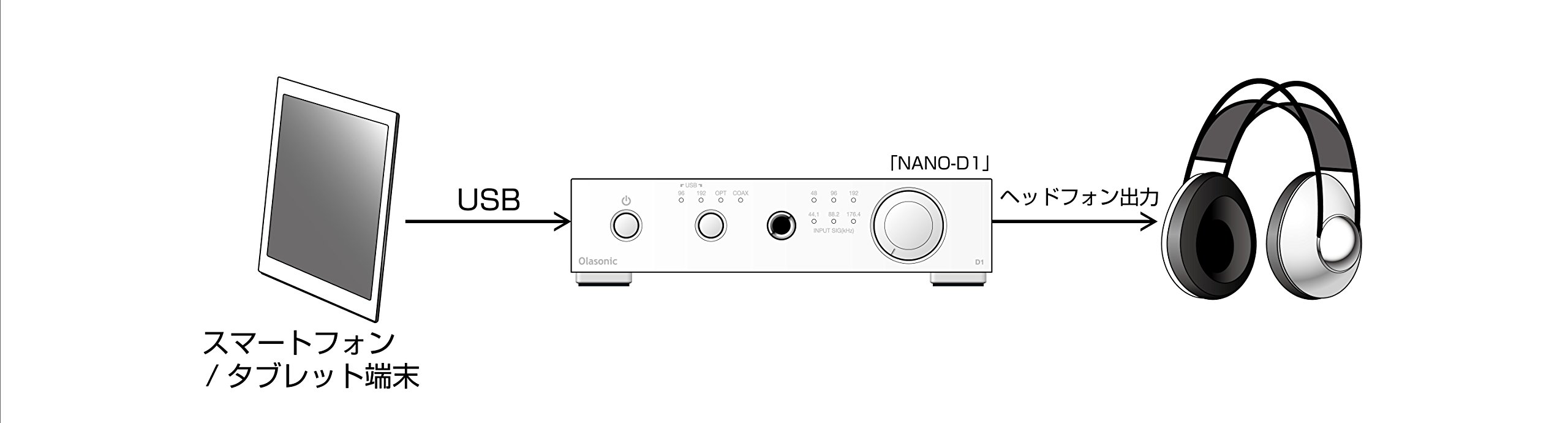

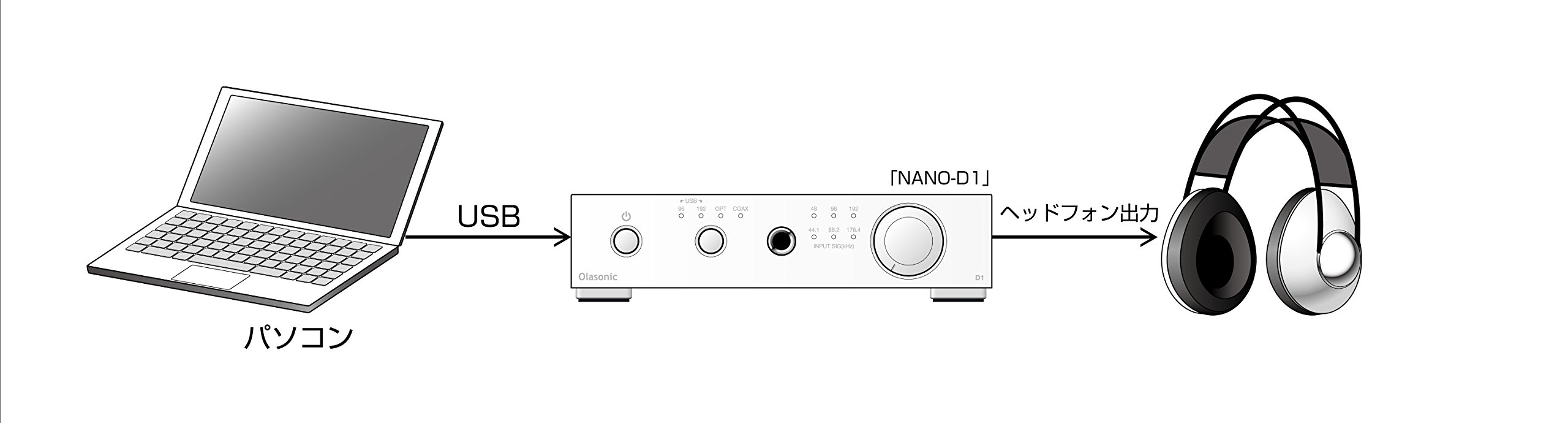

USB D / A converter with built-in headphone amplifier
The third series of NANOCOMPO series.

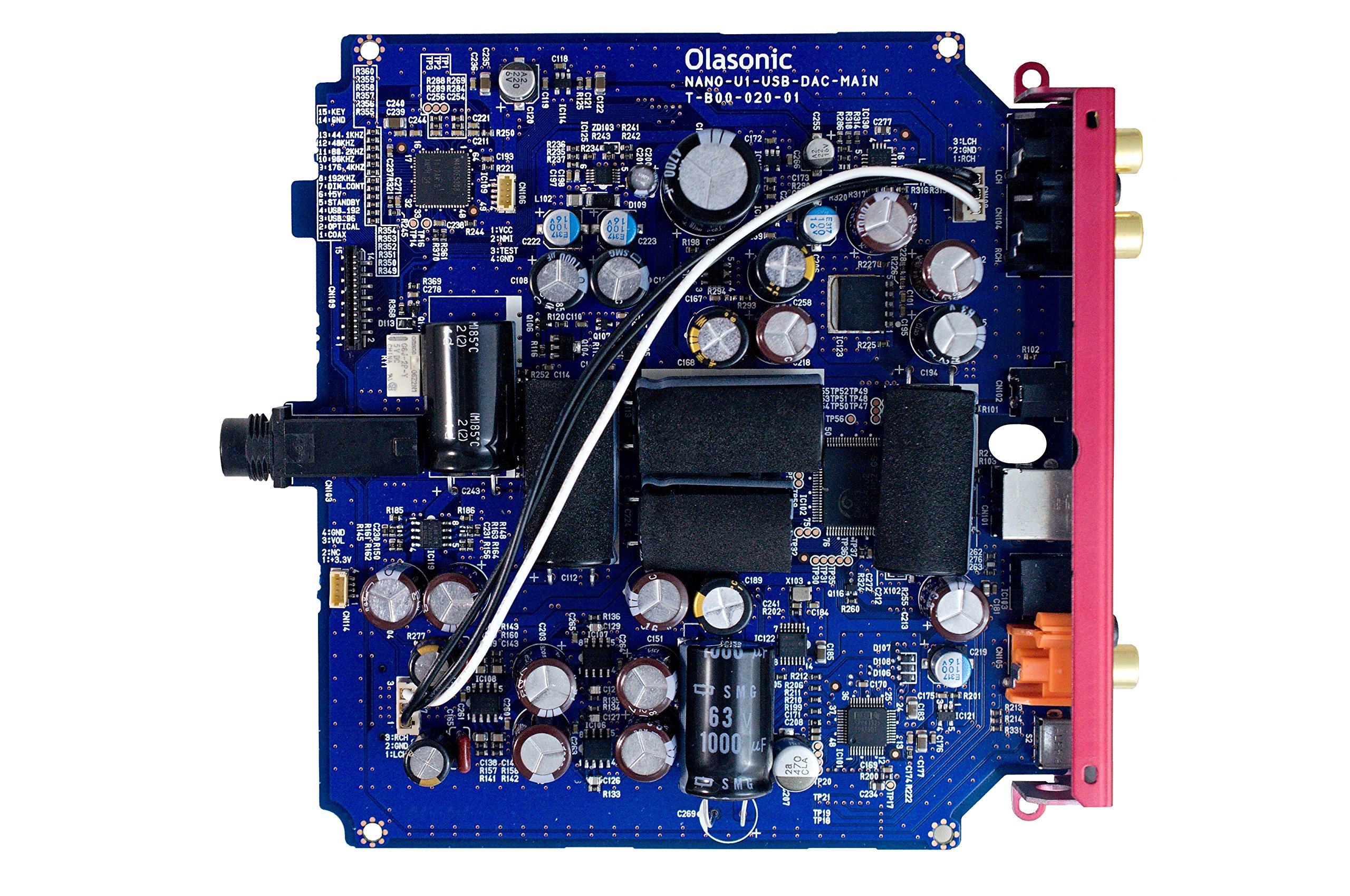

In addition to advanced digital signal processing, NANO-D 1 realized high sound quality not expressible by numerical value by equipping an analog circuit carefully examining each one of the parts.

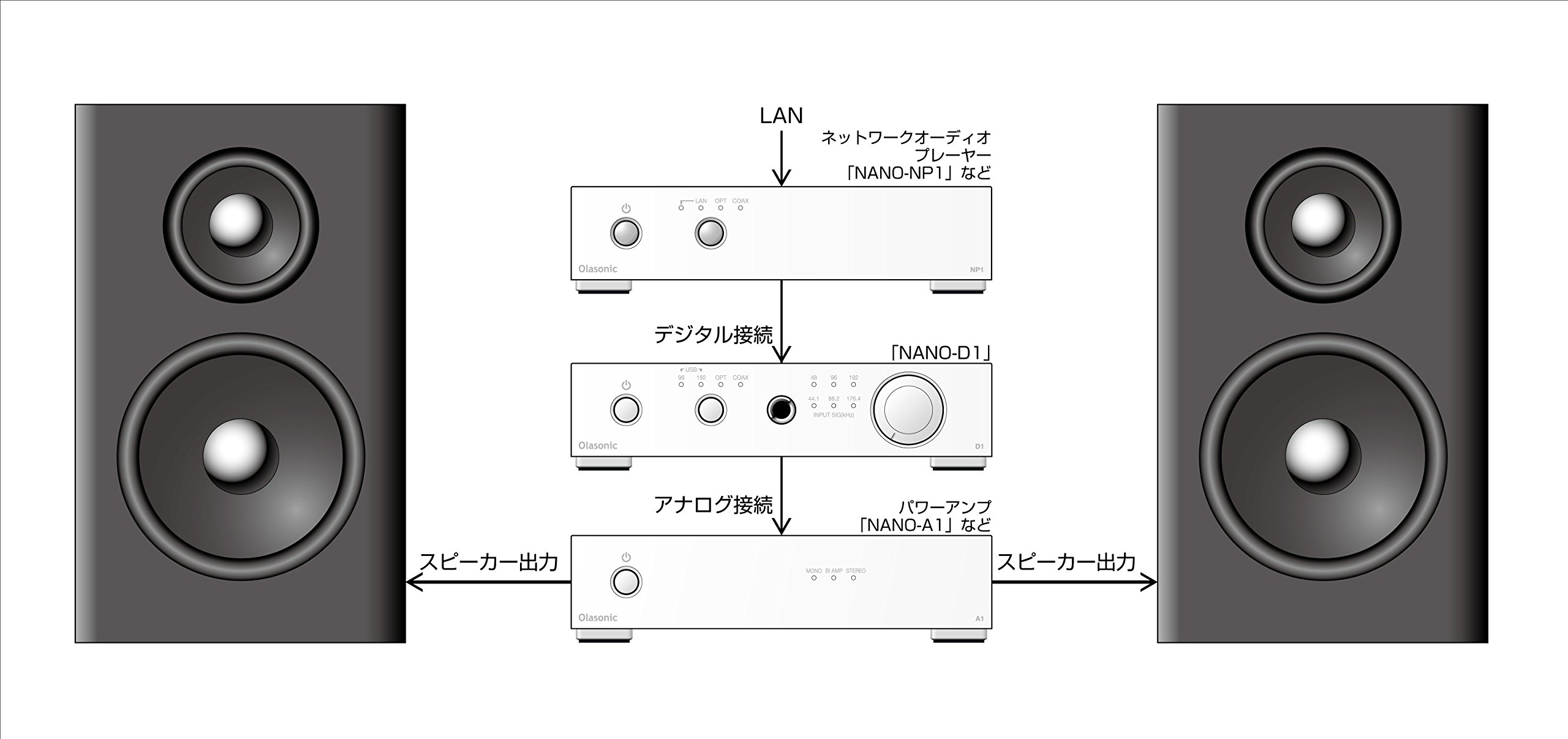

In addition to "headphone amplifier" and "D / A converter", its use can also be used as a "preamplifier" to connect with a power amplifier.
1, Equipped with "headphone impedance selector" that can drive various headphones in optimum condition
The impedance of the headphone that the customer uses is wide, from 8 Ω to 600 Ω.
Equipped with impedance selectors of LOW (100 Ω or less) and HIGH (100 Ω or more) so that optimum drive can be made for each headphone.
2, USB input can select "96 kHz / 24 bit (exclusive driver unnecessary)" and "192 kHz / 24 bit (using exclusive driver)"
NANO-D1 can enjoy high sound quality without driver installation up to 96 kHz / 24 bit.
3, adopt high rigidity chassis by aluminum die casting
Highly rigid seamless chassis made of aluminum die cast realizes high purity sound quality.
Housing size 149 x 33 x 149 mm (W x H x D, excluding protrusions) is almost the size of three CD cases.

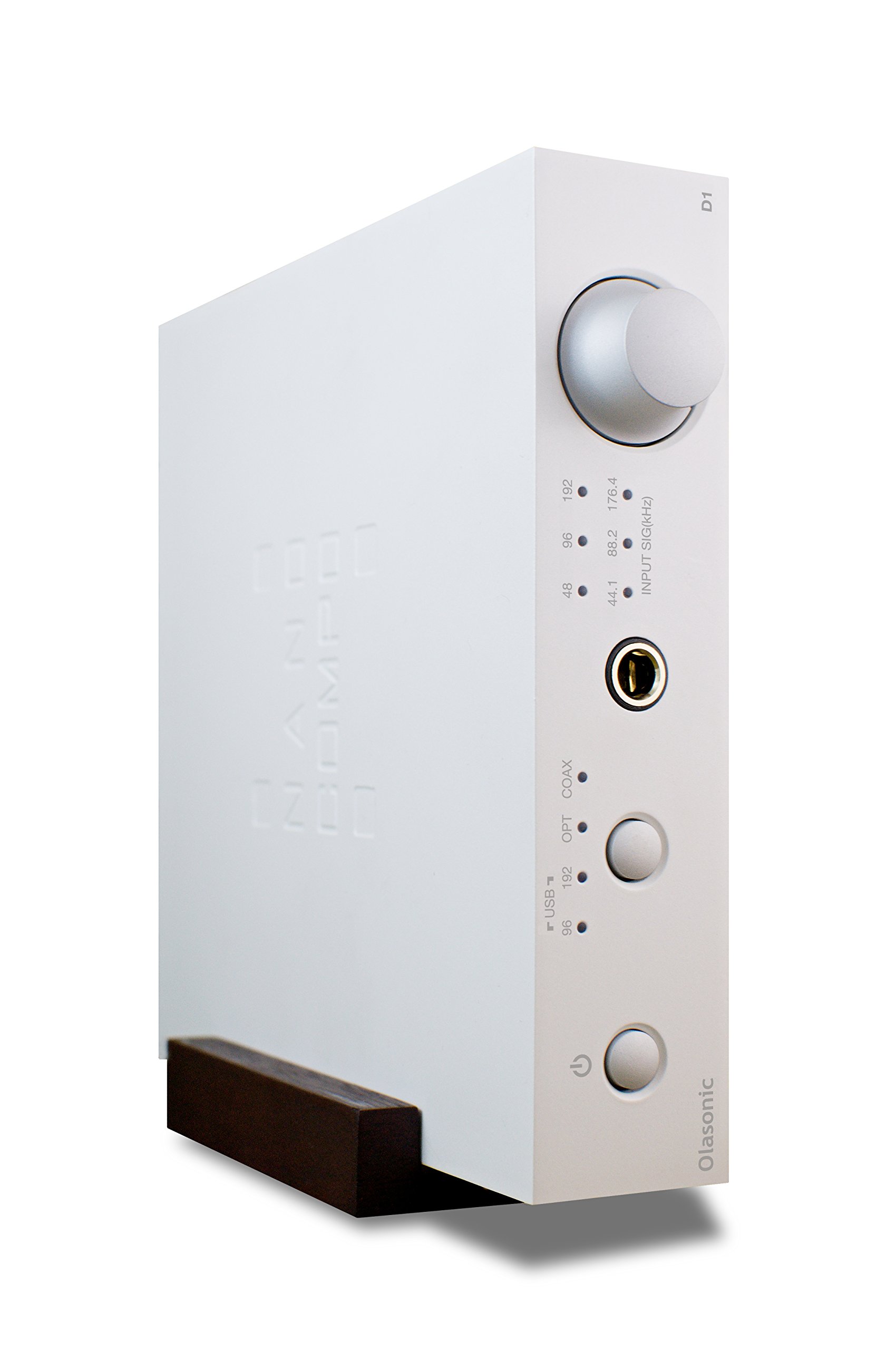

It is also available for vertical use, and free installation according to the living space of the home such as living room and private space is possible.

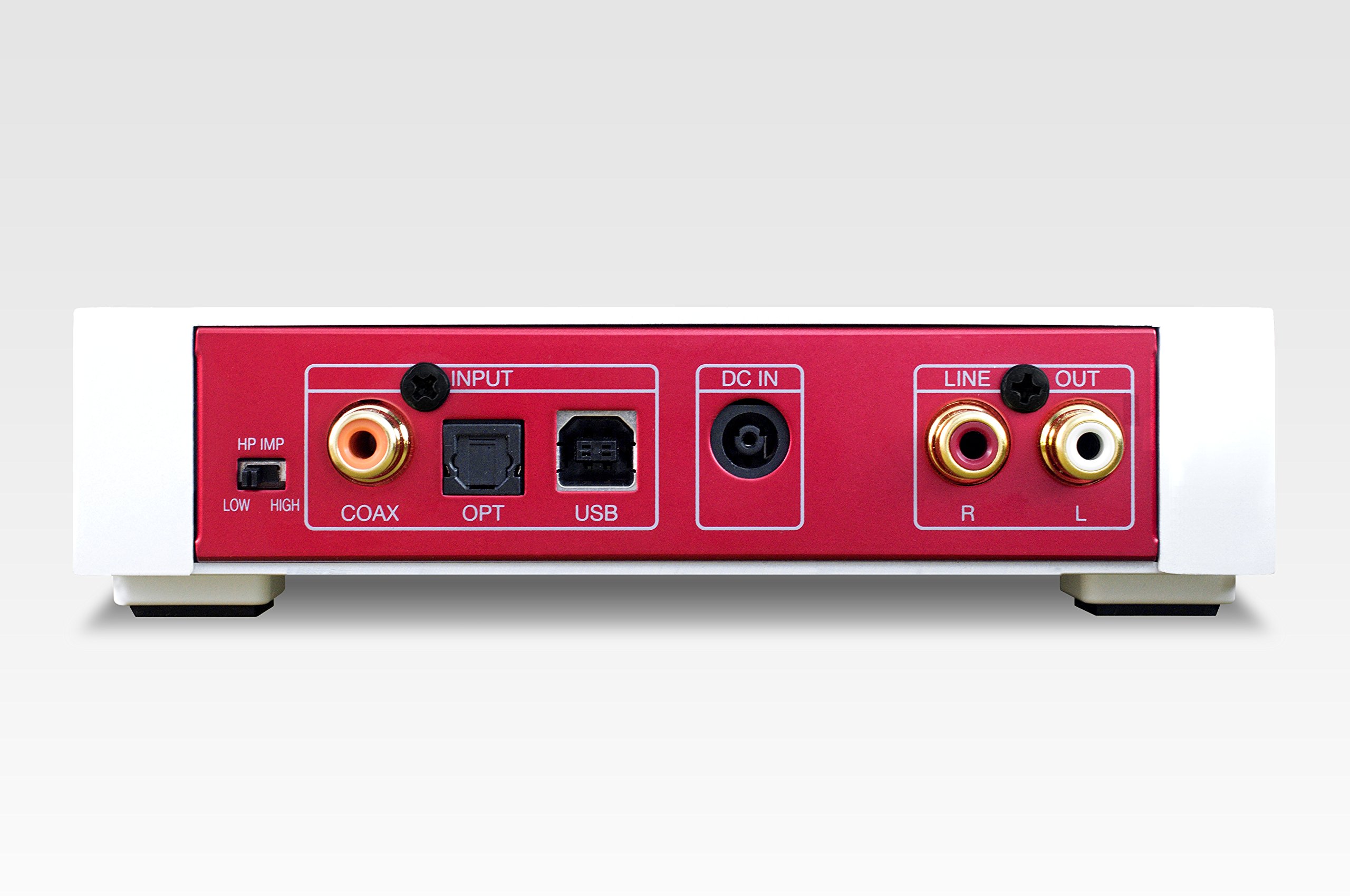

4, corresponding to 3 inputs of USB, optical digital, coaxial digital
Sampling frequency up to 192 kHz / 24 bit is supported for all inputs.
5, thorough high sound quality design by jitter free & upsampling
Jitter free for all inputs as well as USB is realized.
All inputs are upsampled to 192 kHz / 24 bit, and high quality sound signal processing is carried out.
For upsampling, we use Asynchronous Rate Converter SRC - 4392 from TI 's Burr - Brown brand that examines the sound quality.
6, High performance DAC "PCM 1792" with reputation for sound quality is installed
For the DAC device that is the key to sound quality, we are enhancing the sound quality by adopting the well-established "Burr-Brown brand PCM 1792 made by TI company" and "Turtle Burr-Brown brand OPA 2132" for the IV conversion circuit.
Show all product descriptions
Features:
- Please enter model number Confirm this is compatible:
- Size: 149 (W) x 39 (H) x 170 (D)
- Color: Platinum White
- Accessories: AC power adapter, AC power cable, USB cable, stereo standard conversion plug
Product information:
Shipping Weight: 1306 g
Package Dimensions: 8.89 x 22.91 x 25.30 cm
