Item Descriptions:

Connect the fuse box directly under the car to the fuse box under the car dashboard, and then take the power of the Doreco from the car's battery.

If you connect to the power supply at all times, even if you turn off the engine, Dora Réco continues to work, you can protect your car.

please note

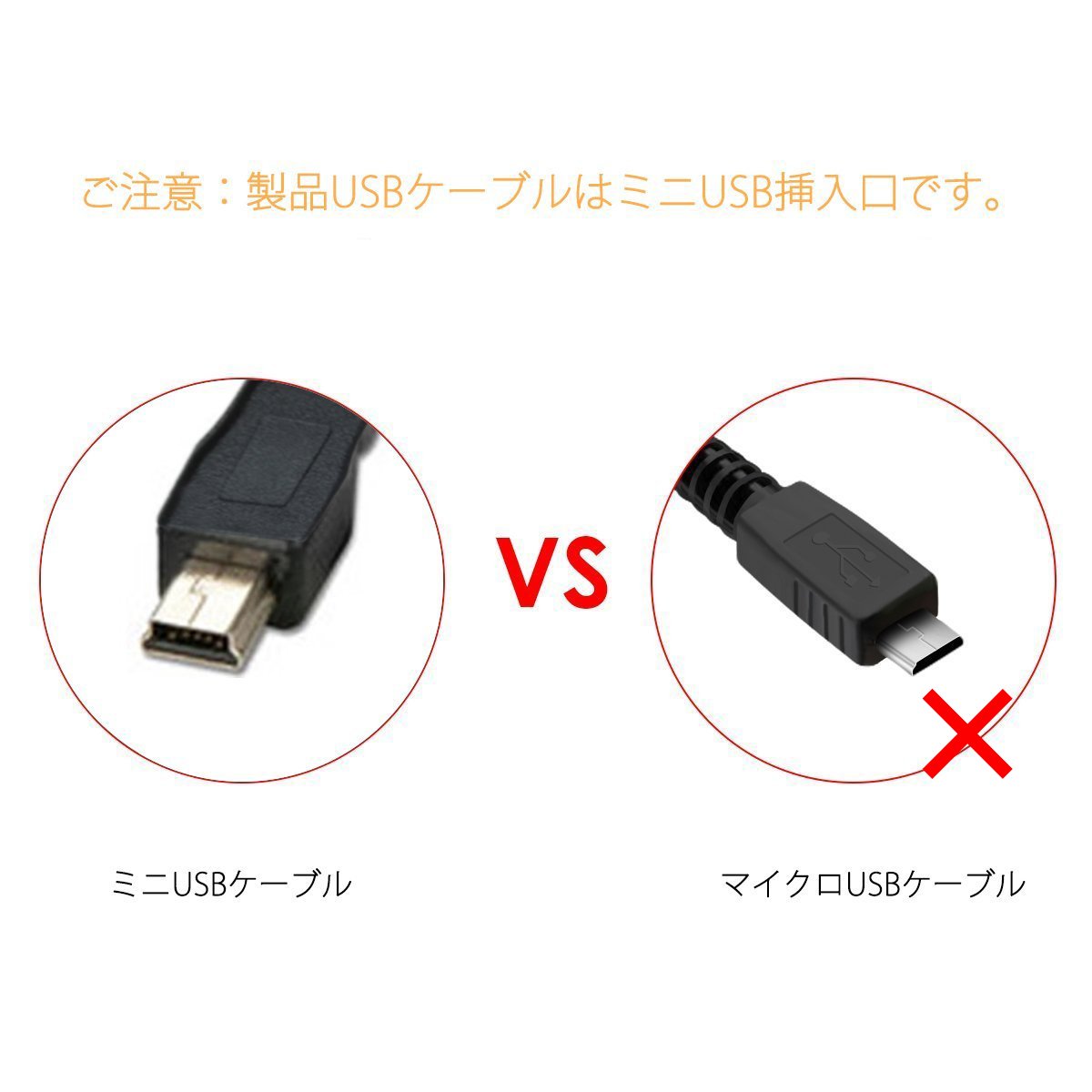

: USB port of cable is mini USB port, please confirm when purchasing.

[Extracted model excerpt (as of July 2017)]

Drive recorder: M6 / D1 / D2Pro / B40C

specification

Wide voltage input: 12 V / 24 V

Output voltage: DC 5 V, current 1.5 A

It has protection function at low voltage.

For example, when the voltage of a 12V car is reduced to 11.5 ± 0.1v, it automatically stops supplying power to the drive recorder.

SMD power inductor

SMD power inductors are adopted to avoid high power, sealed type, radiation resistant, shielding interference.

(Actual figure)

please note:

This fuse is a low profile mini flat type, please check before purchase.

Refresh the interior of the car

It is not necessary to hang straight wires to the cigar socket like the old wiring method, or because it looks clean inside the car, you do not have to worry about routing around to the cigar socket.

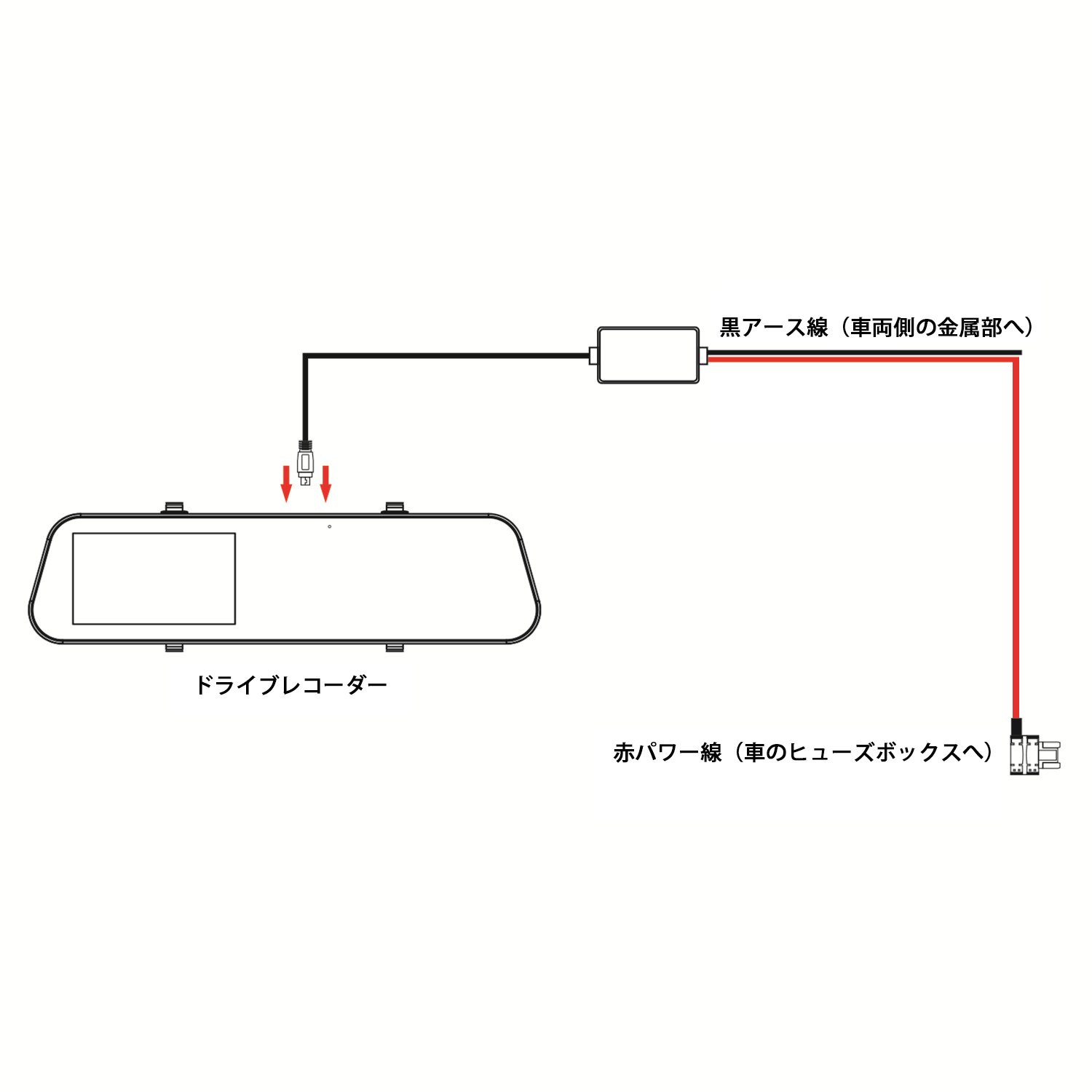

It is completed by connecting directly to the ACC power supply of the fuse box with one cable.

With hidden wiring, I will refresh the inside of the car at once.

An empty cigar lighter socket can also charge other

Dorareko is no longer to take power from cigar socket alone.

You can use this cable to connect to the ACC power supply of the car's fuse box.

An empty cigar lighter socket can charge the mobile device.

Especially it can charge smartphone, GPS device, music player and so on.

Or if you like cigarettes, when you want to smoke cigarettes, you can eliminate the trouble of pulling out the Dorreco cigar charger that is connected to the cigar socket again.

Features:

• It is used to take power directly from the ACC terminal of the fuse box without using a cigar socket.
• I will refresh the interior of the car.
• Note: The fuse is a low profile mini flat type.

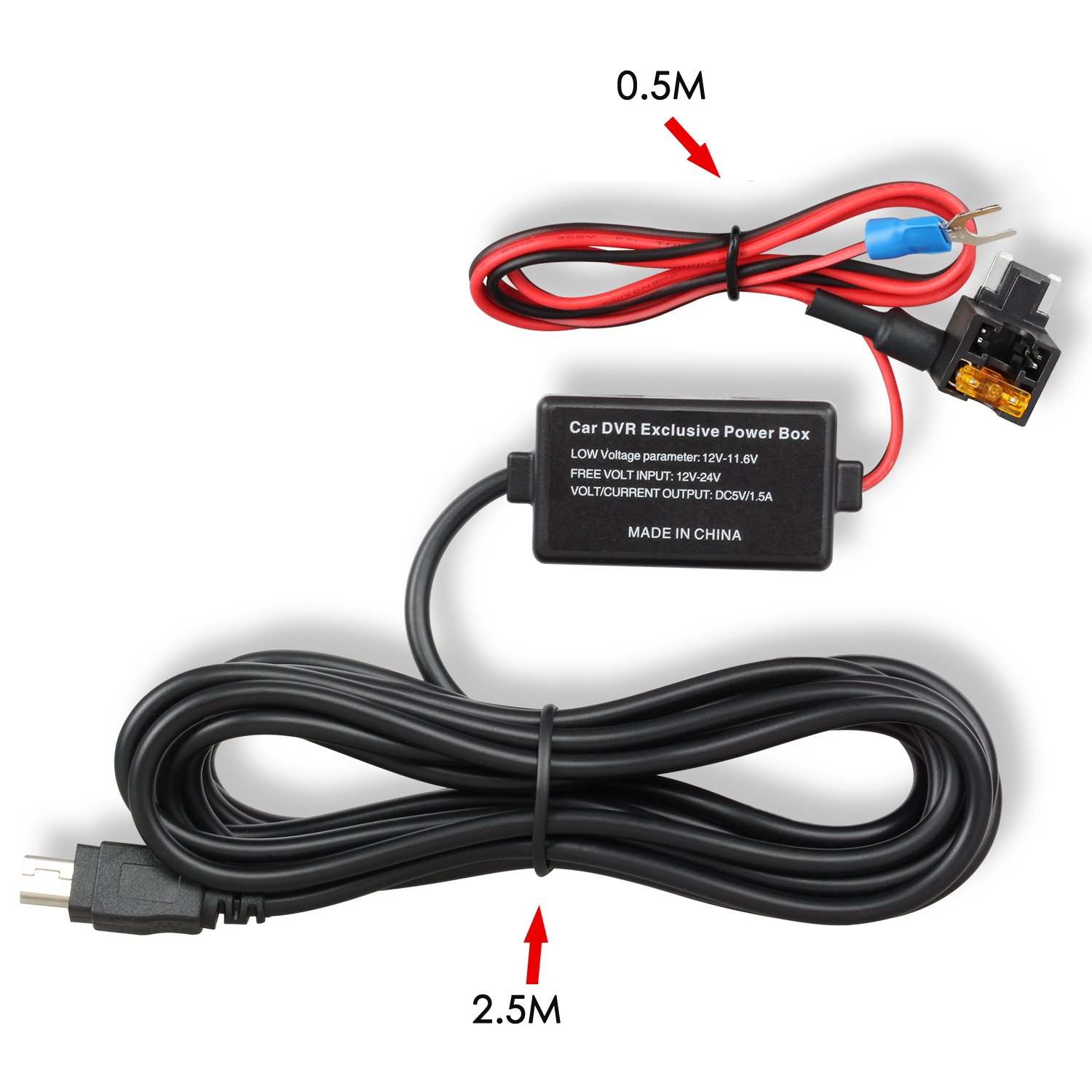

• Long cable: 3 meters, enough for wiring installation.
• Cable applies to most mini USB terminal drive recorder.
• You can connect the step-down cable to the power supply at all times and provide 24-hour continuous power supply.
• This cable can demonstrate 24 hour monitoring function and motion detection function.
• When connecting with the regular power supply in the car, you can further prevent the battery car from getting caught.
• This cable stops the operation of Dorareko when it detects that the voltage drops to 11.5 ± 0.1 V.

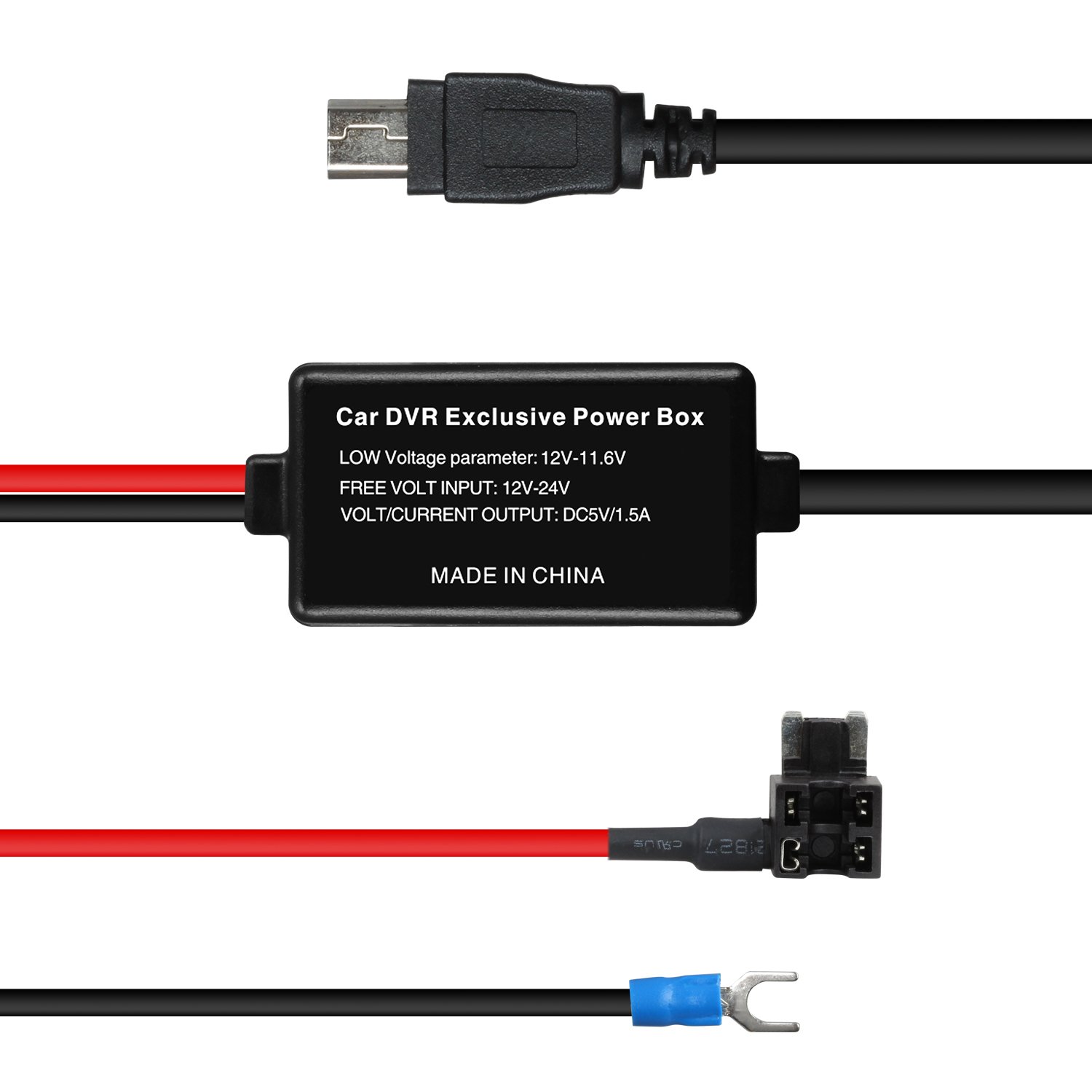

• Input voltage 12-24 V can be converted to output voltage DC 5 V, current 1.5 A.

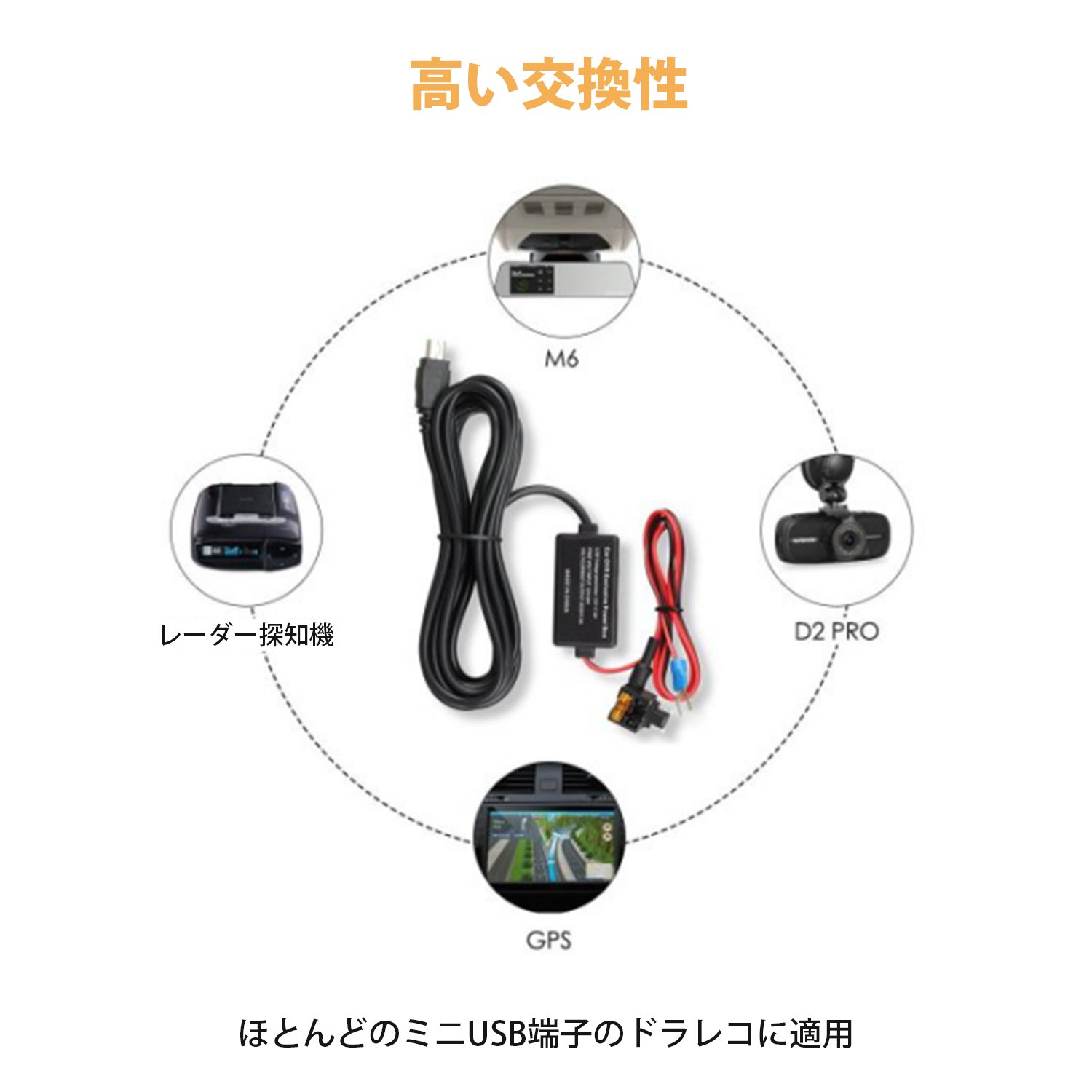

• Extract from our model (as of October 2017): M6 / D1 / D2Pro / B40C

Product information:

Shipping Weight: 90 g

Package Dimensions: 4.29 x 6.71 x 13.00 cm
