B2ocled-LED RGB Controller IR Remote Wireless Capacitive Touch Controller for RGB LED Strip Flexible Light Tape 5050 3528, Input DC12~DC24V








Product Description

product manual:
√ Wireless touch remote control RGB controller uses advanced capacitive touch technology, used to control the LED light source, through the resistance of current lamps, such as: RGB lights and so on. This product uses advanced wireless touch remote control, with a choice of different modes of change, adjust the rate of change.
√ Adjust the brightness of static colors, switches and other functions. This product also has a power-down memory function, each power-on when the last power-off mode.
√ Users can choose their favorite mode of change by touching the remote control according to their own needs. Its built-in 7 kinds of static color, jump, gradient, strobe, automatic cycle lighting transformation effect. It has the advantages of flexible wiring, convenient wiring and easy to use.

Performance parameters:
Controller:
● Working temperature: -20-60 ℃
● Power supply voltage: DC5V, 12V ~ 24V optional (order to specify the required voltage)

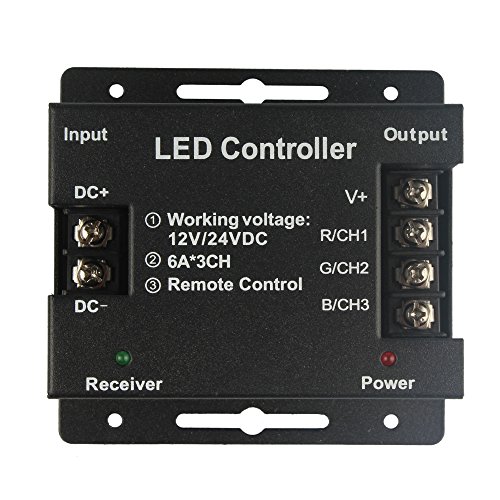

● Output: Three CMOS open-drain outputs
● Connection: a total of Yang

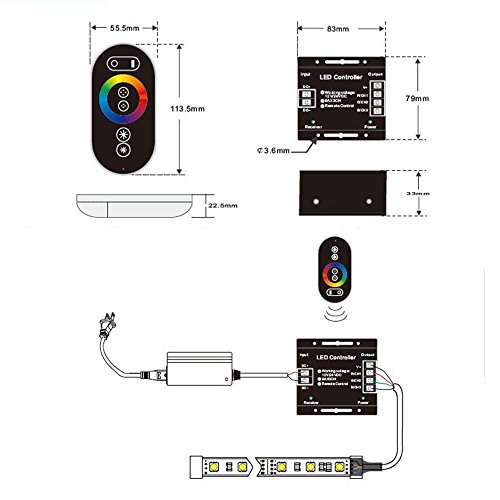

● Overall dimensions: L83 × W79 × H33 mm
● Packing size: L205 × W134 × H47mm
● Net weight: 227g
● Gross weight: 379g
● Static power consumption: <1W
● Output current: <6A per circuit
● Output power: 12V: <216W, 24V: <432W
remote control:
● Operating temperature: -30 ℃ ~ +60 ℃
● Power supply: 7 * 2 batteries
● Power supply voltage: 3V
● Standby power consumption: <0.09mW
● remote control distance:> 20 meters

Feature

15 preset patterns including: static colors, jump, gradient, stroboscopic, automatic cycle lighting transformation effect, 3-7 color blink, cross fade, gradual change, and more.

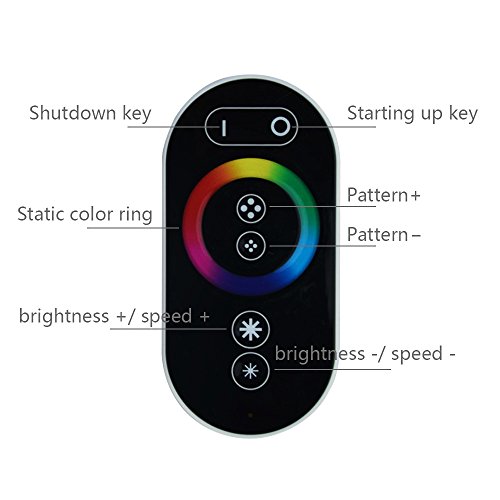

Easy connection and simplicity to use you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control.
The RF remote controls the light that is connected to it within 60 feet.
8 key touch, LED effect, and short circuit protection, more secure and practical.

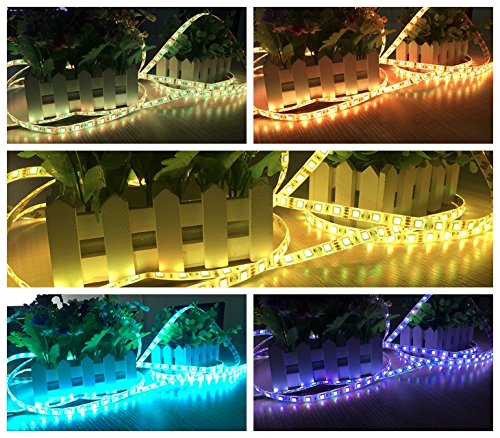

This product and RGB led strip lights can perfect connection and operation, if you need to LED strip lights. Please search 2835 SMD:B01FEZQBQC, B01FEZQCHK. 5050 SMD:B01FEZQ856, B01FEZQBYO.
Brand : B2ocled
Item model num : KZQ2
MPN(PartNumber) : KZQ2
Package Dimensions(LxWxH) : 21x14x5cm ; 358 g
