Product details of ASUS Lyra AC2200 Tri-Band Mesh Network

Corner to Corner Wi-Fi
Banish Wi-Fi dead spots and say goodbye to unreliable connections. ASUS Lyra delivers superfast, ultra-reliable Wi-Fi to every corner of your home. Whether you're using a smartphone, PC, game console or a smart-home gadget, Lyra ensures that every device enjoys a smooth, seamless and secure connection — anywhere in the house and all the time.
Wi-Fi You Can Rely On
Whether you're in the basement, the garden or the living room, you want all your Wi-Fi devices to work smoothly. The ASUS Lyra whole-home Wi-Fi system uses three wirelessly connected hubs to deliver a superfast, reliable and secure signal to every corner of your home.

Its intelligent technology gives you the freedom to roam anywhere around the house, automatically connecting you to the best signal at all times.

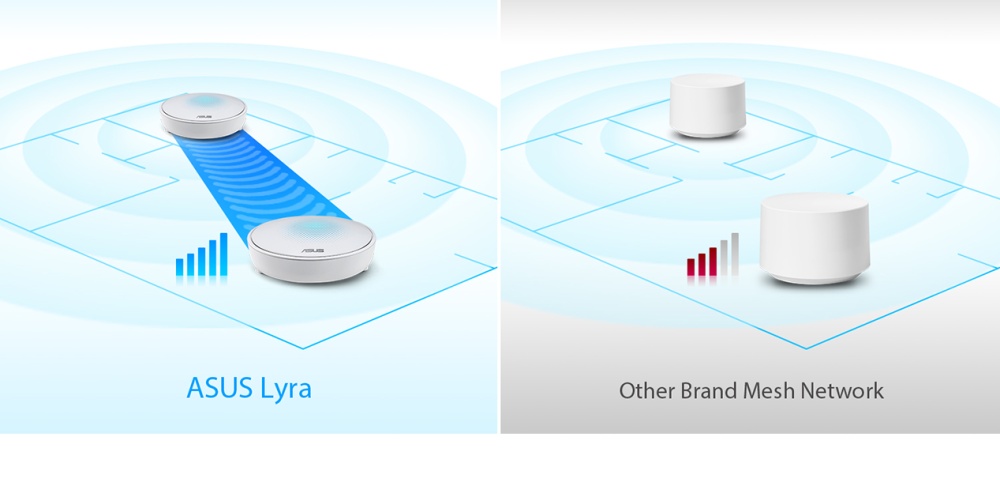

Always-Smooth Wi-Fi
ASUS Lyra intelligently connects you to the best signal source and switches seamlessly between hubs without interruption as you move through your home — so you'll always enjoy a smooth, strong signal.
Wi-Fi, Made Simple
With ASUS Lyra, we've made Wi-Fi simple. Lyra creates a single Wi-Fi network for the entire house, so there's no need to worry about which network to connect to — Lyra does all the complicated work for you. All you have to do is enjoy your seamless Wi-Fi connection!
More Bands, More Capacity
To give you maximum performance, ASUS Lyra uses three separate frequency bands. Each hub uses one band to communicate with the others, leaving the other two bands completely free for superfast connections to your devices.

Smart Antennas for Stable Wi-Fi
Each Lyra hub has four integrated smart antennas. When you add a new hub to your existing Lyra network, it checks the strength and quality of each antenna's connection and uses the best two. So if there's more than one other hub on the network, Lyra will automatically connect to the hub with the best signal.


Lyra, for Any Home
No matter what shape or size your house is, ASUS Lyra can cover it. The Lyra base system includes three hubs, and up to two more hubs can easily be added to provide even more coverage.

  • Townhouse
  • Traditional
    Two-Story Home
  • Ranch Style Home
Commercial-Grade Home Network Security
SPECIFICATIONS
  • Network Standard

    IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6

  • Product Segment

    AC2200 ultimate AC performance : 400+867+867 Mbps

  • Coverage

    Very large homes

  • Data Rate

    802.11a : 6,9,12,18,24,36,48,54 Mbps
    802.11b : 1, 2, 5.5, 11 Mbps
    802.11g : 6,9,12,18,24,36,48,54 Mbps
    802.11n : up to 400 Mbps
    802.11ac : up to 867 Mbps

  • Antenna

    Internal antenna x 7

  • Transmit/Receive

    MIMO technology
    2.4 GHz 2 x 2
    5 GHz-1 2 x 2
    5 GHz-2 2 x 2

  • Operating Frequency

    2.4G Hz, 5 GHz-1, 5 GHz-2

  • Encryption

    WPA2-PSK

  • Ports

    RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1, RJ45 for 10/100/1000/Gigabits BaseT for LAN x 1

  • Features

    MU-MIMO
    Adaptive QoS
    AiProtection
    Parental Control
    Guest Network :

  • Button

    Reset Button

  • Power Supply

    AC Input : 110V~240V(50~60Hz)
    DC Output : 12 V with max. 2 A current

  • OS Support

    Windows® 10
    Windows® 8.1
    Windows® 8
    Windows® 7
    Mac OS X 10.1
    Mac OS X 10.4
    Mac OS X 10.4
    Mac OS X 10.5
    Mac OS X 10.6
    Mac OS X 10.7
    Mac OS X 10.8

  • Dimensions

    149.8 x 149.8 x 49.5 ~ mm (LxWxH) (Without Bezel)

  • Package Content

    •Lyra x 3
    •AC adapter
    •Network cable (RJ-45)
    •Quick Start Guide


  • All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
  • PCB color and bundled software versions are subject to change without notice.
  • Brand and product names mentioned are trademarks of their respective companies.
