TP-LINK AC3200 Tri-Band Wireless Gigabit Wi-Fi Router

• ㆍProduct Highlights

  - Tri-Band technology creates three separate Wi-Fi bands for connecting more devices to your network without a drop in performance

  - Combined 3200Mbps Wi-Fi speed over one 2.4GHz (600Mbps) and two 5GHz (1300Mbps each) bands

  - Smart Connect helps devices run faster by assigning them to the best band to balance network demand

  - Six high-performance antennas maximize coverage area and stability

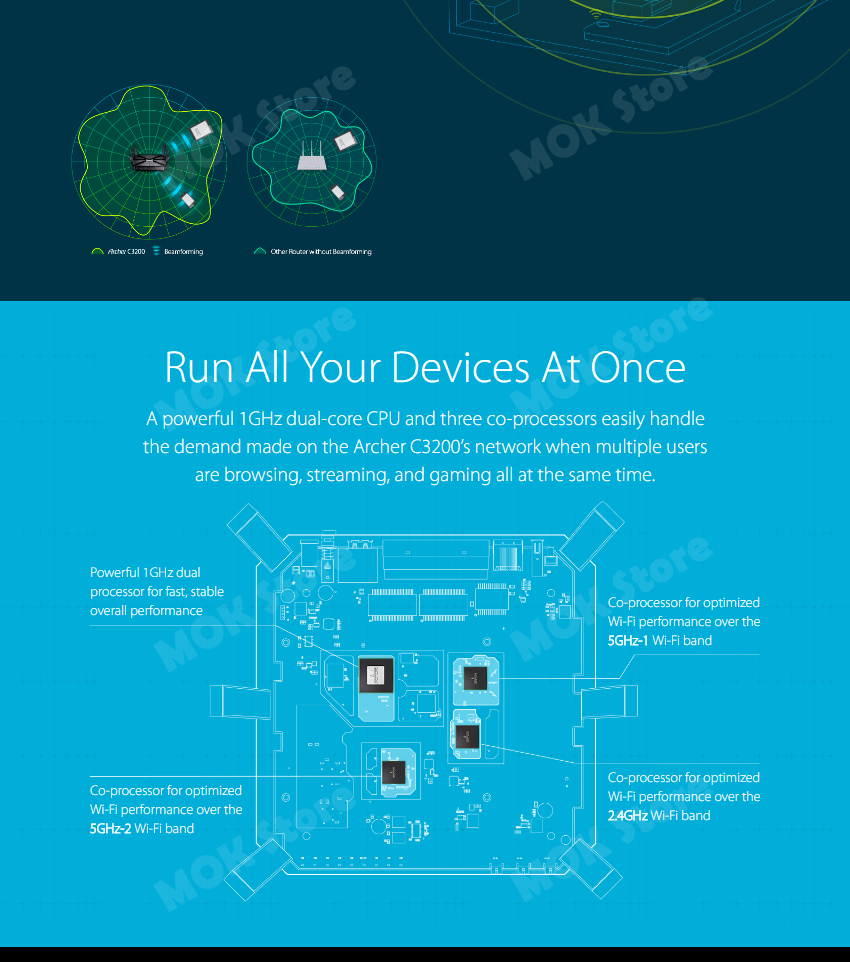

  - 1GHz dual-core CPU and three co-processors handle simultaneous connections without interruption





• ㆍSpecification



  Hardware

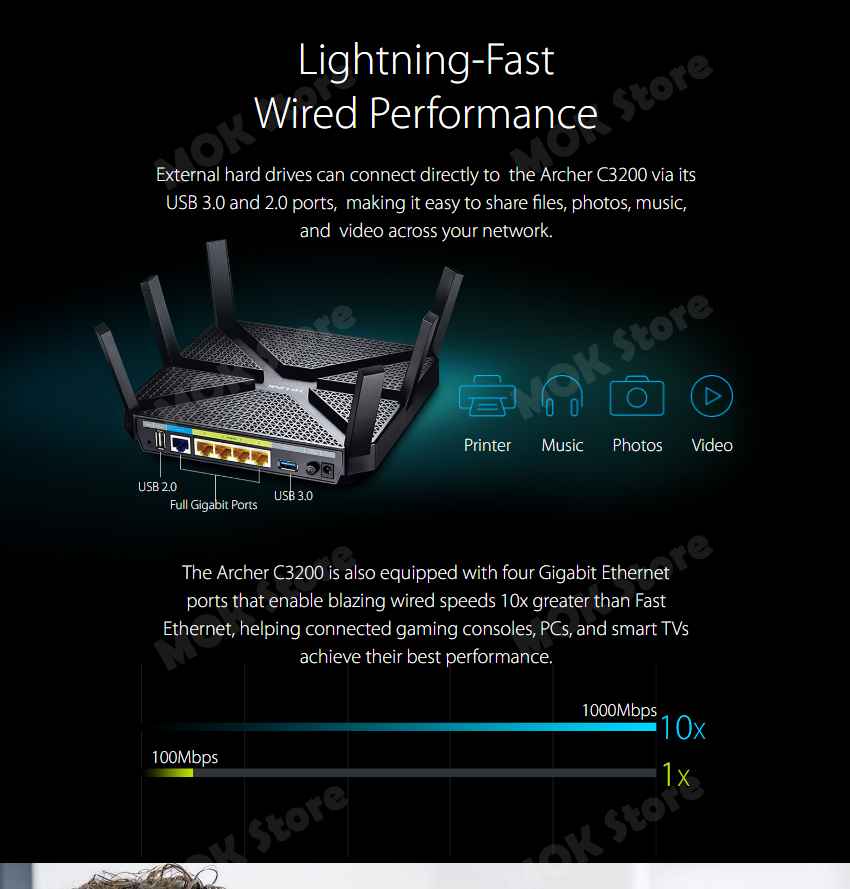

  Interfaces	4 x 10/100/1000 Mbps LAN ports 1 x 10/100/1000 Mbps WAN port 1 x USB 3.0 port 1 x USB 2.0 port
  Button	Wireless On/Off button Power On/off button LED On/off button WPS button Reset button
  Antenna	3 x dual band fixed antennas 3 x single band fixed antennas
  External Power Supply	12 V / 5 A




  Wireless Specifications
  Wireless Standards	IEEE 802.11ac/n/a 5 GHz IEEE 802.11b/g/n 2.4 GHz
  Frequency	2.4 GHz and 5 GHz Band 1 / Band 4
  Signal Rate	5 GHz Band 1: Up to 1300 Mbps 5 GHz Band 2: Up to 1300 Mbps 2.4 GHz: Up to 600 Mbps
  Reception Sensitivity	5 GHz: 11a 6 Mbps: -94 dBm 11a 54 Mbps: -76 dBm 11ac HT20: -68 dBm 11ac HT40: -64 dBm 11ac HT80: -60 dBm 2.4 GHz 11g 54M: -77 dBm 11n HT20: -73 dBm 11n HT40: -71 dBm
  Wireless Functions	Enable/Disable Wireless Radio, WMM, Wireless Statistics
  Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption
  Transmission Power	CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm
  Guest Network	1 x 2.4 GHz guest network 2 x 5 GHz guest network




  Software Specifications
  Quality of Service (QoS)	WMM, bandwidth control
  WAN Type	Dynamic IP / Static IP / PPPoE / PPTP (Dual Access) / L2TP (Dual Access)
  Management	Access Control Local Management Remote Management
  DHCP	Server, Client, DHCP Client List, Address Reservation
  Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
  Dynamic DNS	DynDns, NO-IP
  VPN Pass-Through	PPTP, L2TP, IPSec
  Access Control	Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
  Protocols	Supports IPv4 and IPv6
  USB Sharing	Support Samba (Storage) / FTP Server / Media Server / Printer Server




  Other Specifications
  Certifications	CE, FCC, RoHS
  System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
  Temperature & Humidity	Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -40 to 158°F / -40 to 70°C Operating Humidity: 10 to 90% non-condensing Storage Humidity: 5 to 95% non-condensing




  Dimensions & Weight
  Dimensions	7.9 x 7.9 x 1.5" / 200 x 200 x 39 mm
  Weight	Not specified by manufacturer




  Packaging Info
  Package Weight	3.85 lb
  Box Dimensions (LxWxH)	12.362 x 9.449 x 2.835"






• ㆍWhat is in the box ?

  - TP-Link ARCHER C3200 AC3200 Wireless Tri-Band Gigabit Router

  - Power Supply Unit

  - Ethernet Cable

  - Limited 1-Year Manufacturer Warranty
