Item Descriptions:
size:

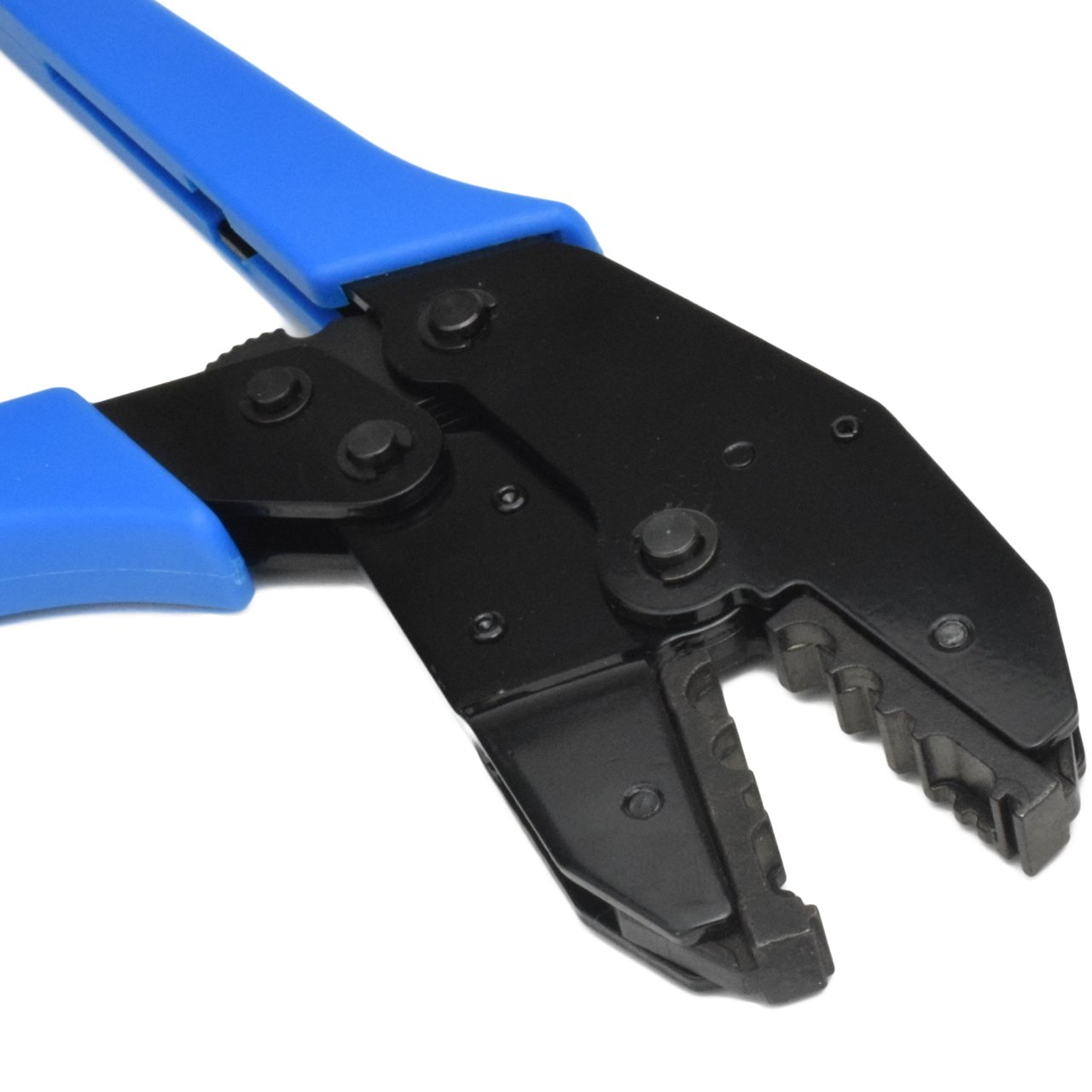

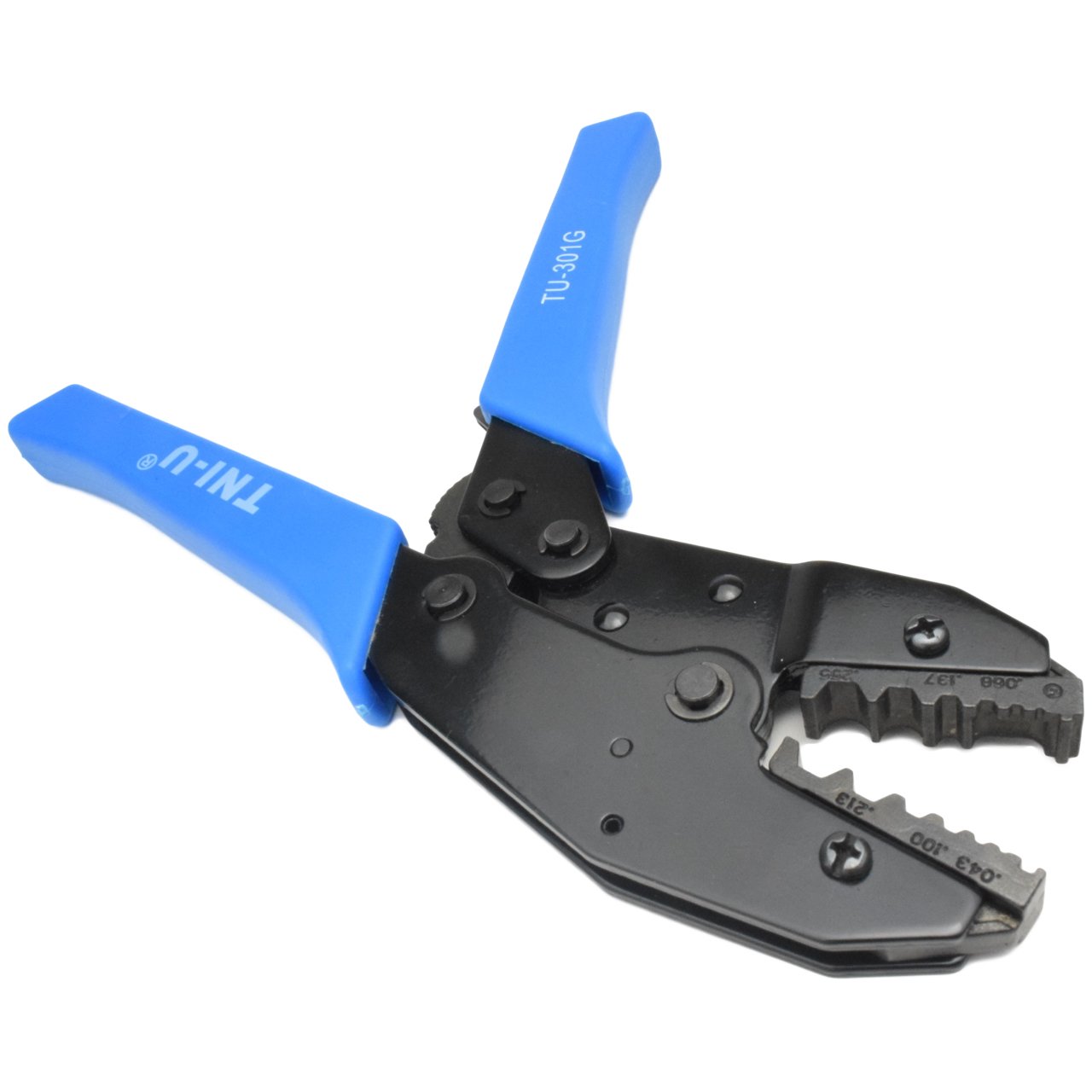

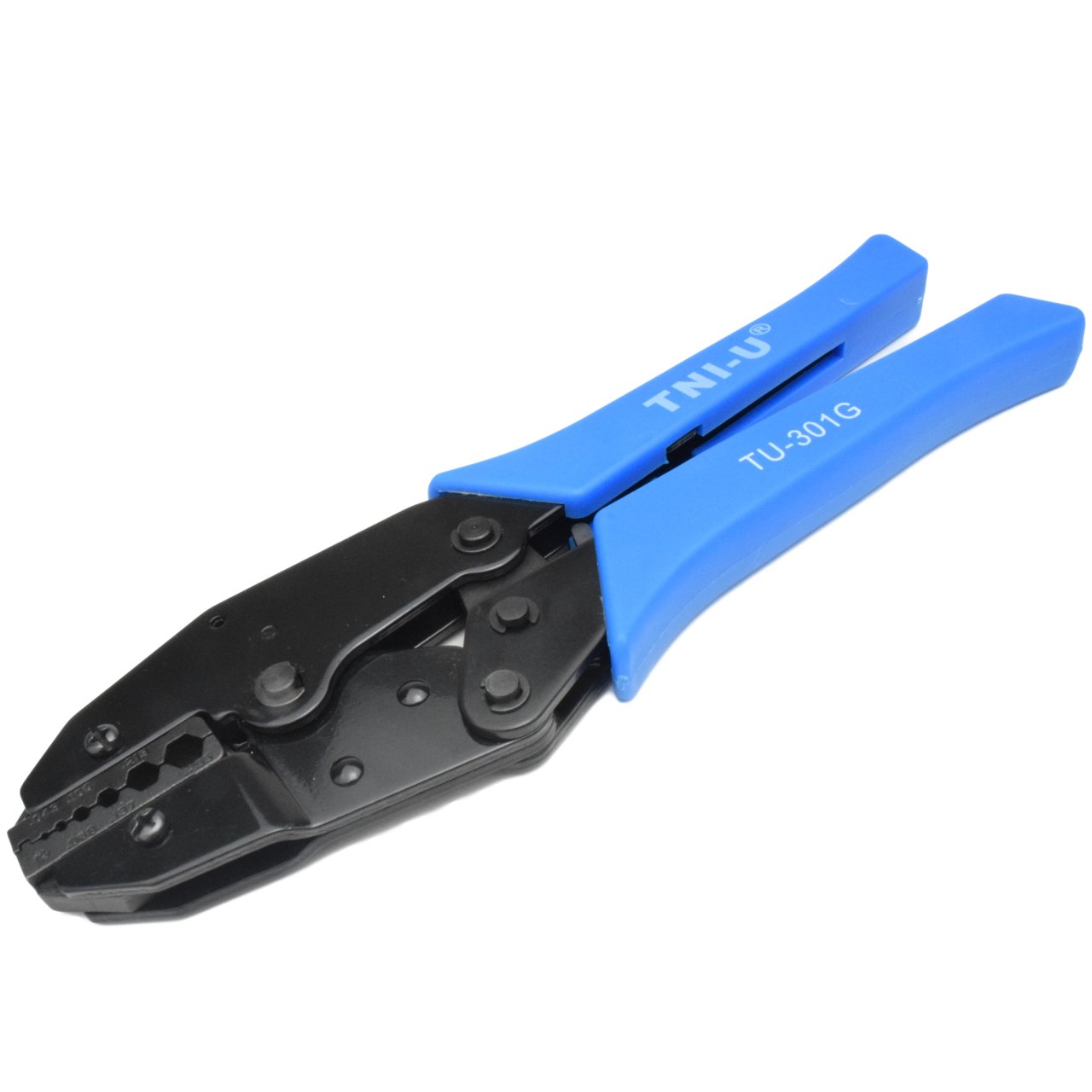

Crimp tool

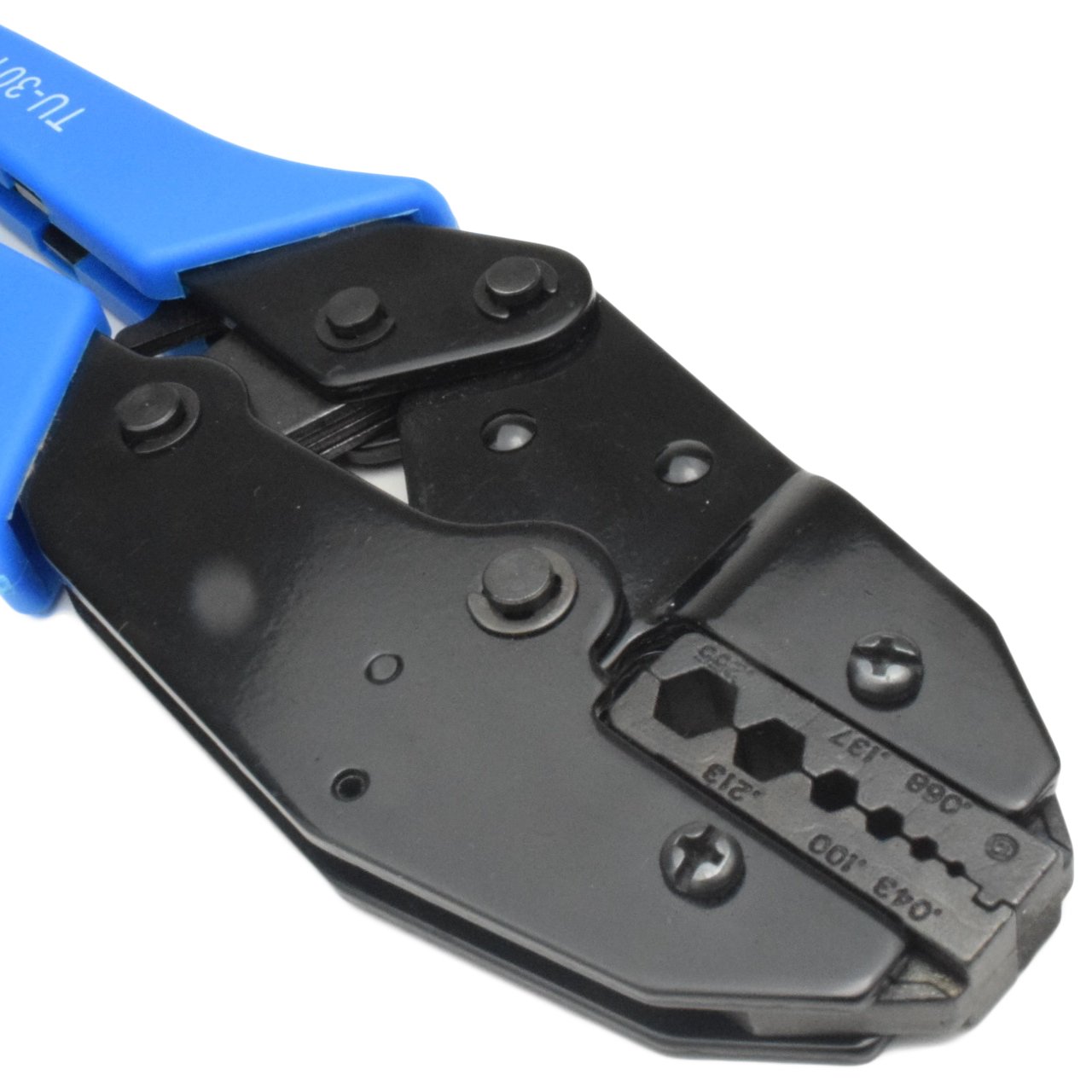

Crimp various connectors, FC, SC, coaxial cables etc with a hexagonal interface.
You can attach terminals such as BNC SMA to the connector with crimping tool.
Easy to use ratchet type grip is adopted.
It is also compatible with standards such as 3C 4C 5C.

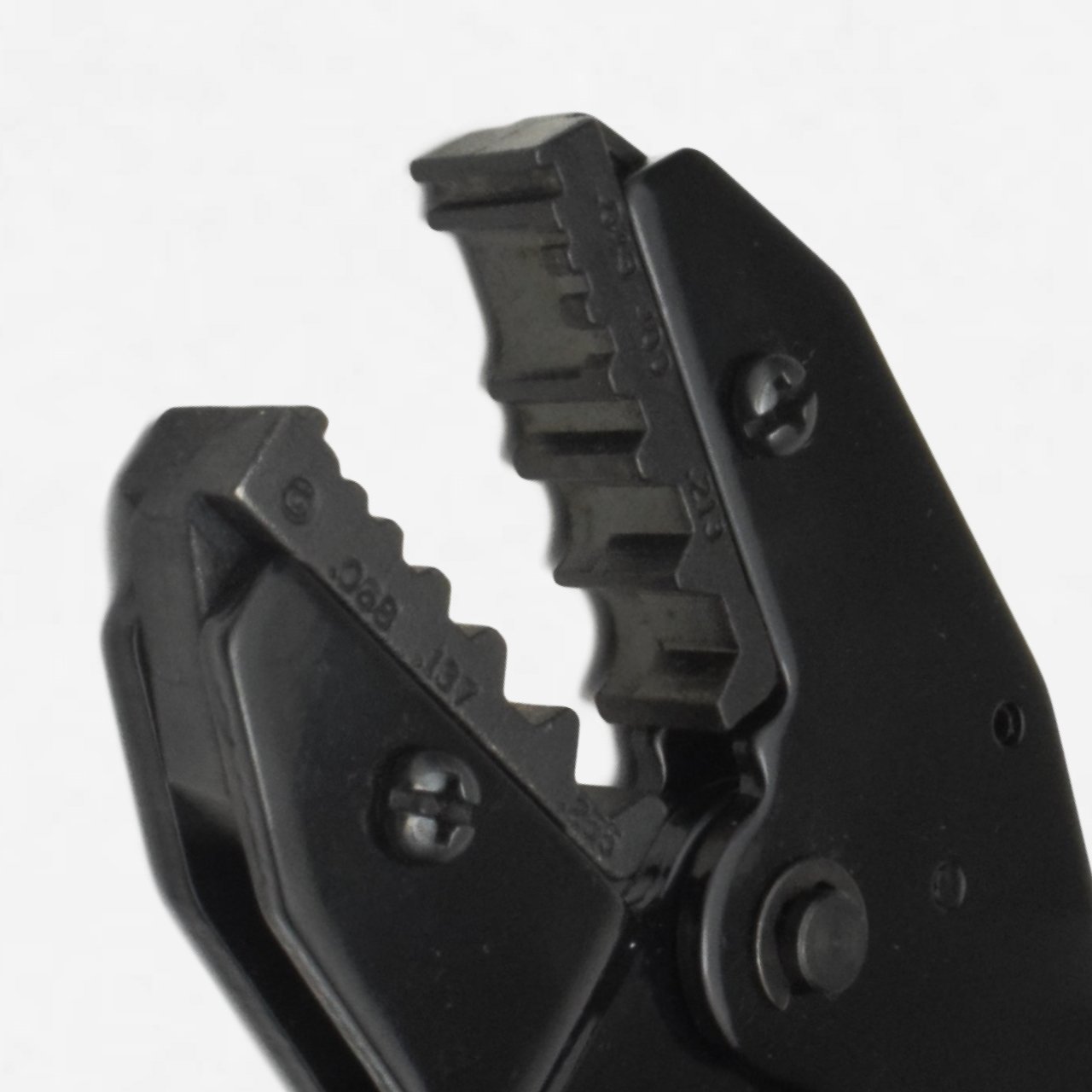

Crimp metal fittings are removable.
Depending on the application, please detach.
● RG compatible cable type
59, 62, 8X, 140, 210, BELDEN 8279, 55, 58, 141, 174, 223, 303, 400, FIBER OPTIC
Remove the coaxial cable strippers such as coaxial cable stripper RG-58/59/62/6 / 6QS / 3C / 4C / 5C.
Adjustable cutting depth by multistage adjustment, correspond to different cables.
Simply coaxial cable peeling is possible simply by aligning the cable to the V-groove and rotating the main body.
● Specification
Coaxial cable stripper × 1, hexagonal wrench × 1, size length 9.8 cm width 3.4 cm thickness 2.0 cm
Weighs about 35 g
● Applicable cable: 5C2V, 3C2V, RG59 / 62 (4C2V), RG174 (HT-332D)
● How to use
1. Adjust the orange dial to the specification of the cable you want to cover.
6 = RG 6 (5 C2 V), 8 = RG 58 (3 C2 V), 9 = RG 59/62 (4 C2 V), D = RG 174 (HT-332 D)
2. Slide the clamp fixing pin to remove it.
3. Remove the cutting blade fixing pin, change the right blade and the left blade and change to the desired cutting width.
In case
4. Relation between position of two blades and cut width position of blade on the right side B A position of the blade on the left side
C 4 mm 8 mm
D 6 mm 10 mm
E 8 mm 12 mm
5. Reassemble the cutting blades and return to their original condition.
In case
6. After cutting the cable, adjust the depth adjustment pin with the supplied hexagonal wrench.
7. Peel peeling by rotating the main body across the cable.
Features:
- Crimp various connectors, FC, SC, coaxial cables etc with a hexagonal interface.
- You can attach terminals such as BNC SMA to the connector with crimping tool.
- Easy to use ratchet type grip is adopted.
- It is in inches notation.
- Please refer to the description of the conversion table.
- It is also compatible with standards such as 3C 4C 5C.
Product information:
Shipping Weight: 517 g
Package Dimensions: 2.31 x 10.90 x 28.29 cm
