Product Description

With IMUST, you can build the bike of your dreams!

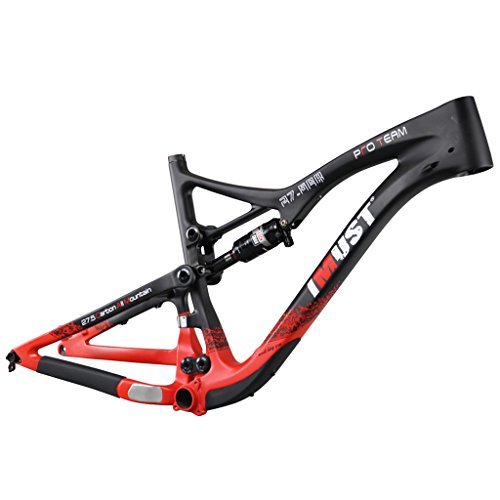

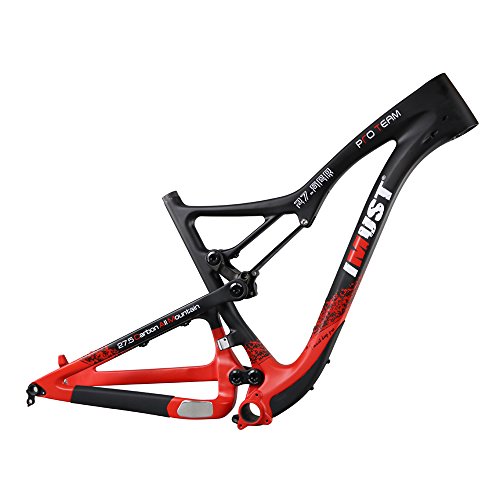

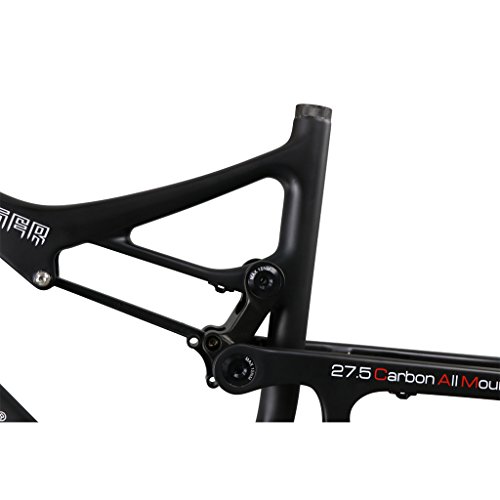

This frame is designed with longer wheelbase and reach, a slacker head tube angle, and a higher bottom bracket for the bike park rider. All IMUST products are manufactured in a state-of-the art facility using both rigorous internal quality assurance and quality control procedures, and an external third-party testing company. This 27.5 Carbon Frame is finished in UD matte. The available frame sizes are 15.5/17.5/19/20.5 inch seat tube length. Bearings are standardized sizes available through IMUST and most precision bearing suppliers. Rear dropouts are replaceable 12 X 142 mm thru-axle.

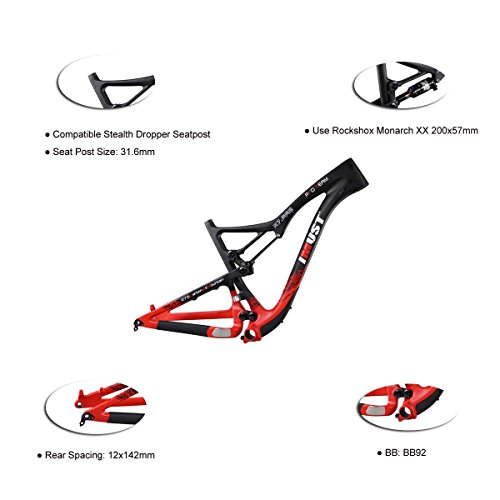

The following specifications are to assist in your parts selection:
Wheel Size: 27.5 (650b or 584 mm ISO inside rim diameter)
Seatpost Diameter: 31.6 mm
Seatpost Clamp Diameter:34.9 mm (IMUST seatpost clamps are available)
Headset: Integrated 1-1/8" X 1-1/2" (Cane Creek 40.IS41 Short Cover or equivalent. IMUST headset included with this frame)

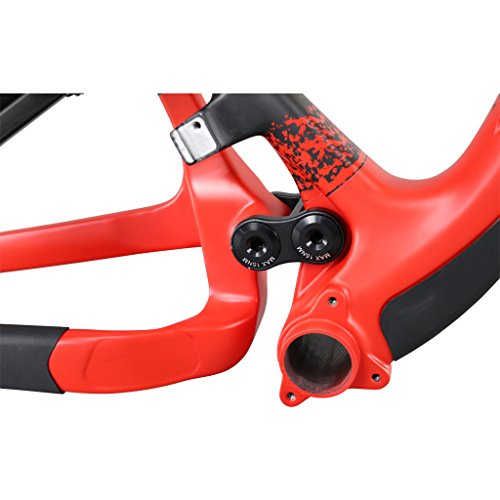

Bottom bracket: BB92
Shock Size: 200 X 57 mm
Suspension Travel: 150 mm (note, the head and seat angle slacken about 1 degree for about every 15 mm increased front travel)
Brake: 160 mm Disc Brake
Axle: 142 X 12 mm E-thru style (not included, but available)

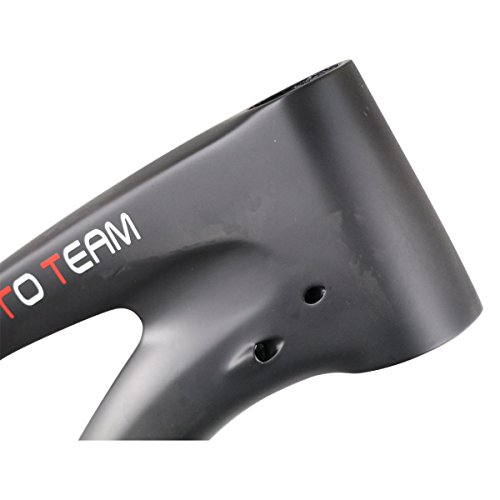

All internal cable routing

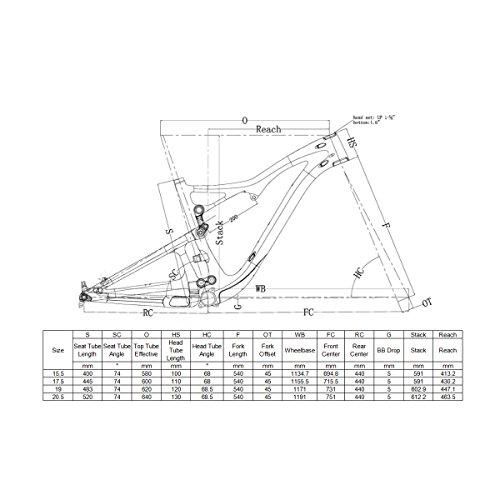

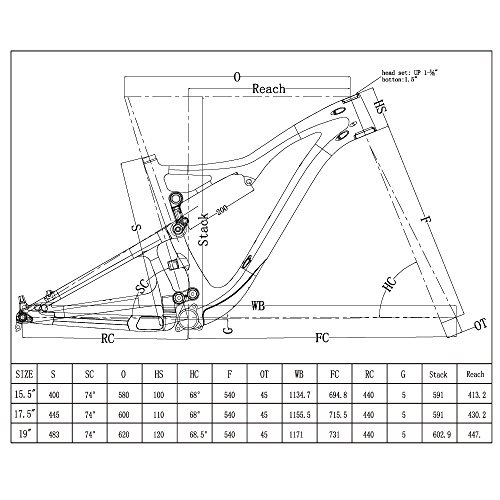

Geometry (for 15.5 inch frame, other sizes are listed in the chart)
Top Tube (effective): 580 mm
Seat Tube (BB Center to Top): 400 mm
Chainstay (actual): 440 mm
Seat Tube Angle: 74 degree (our seat angle is measured from the seat tube center to the bottom bracket center)
Bottom Bracket Drop: 5 mm
Head Tube Length: 100 mm
Head Tube Angle: 68 degree
Wheelbase 1,135 mm (with 45 mm fork offset)
Stack: 591 mm
Reach: 413 mm
Package included:
Frame
Headset (IMUST model H212)
