Product Description

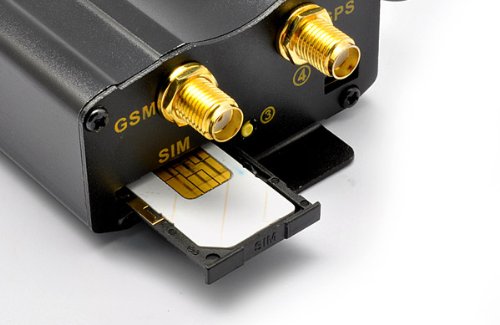

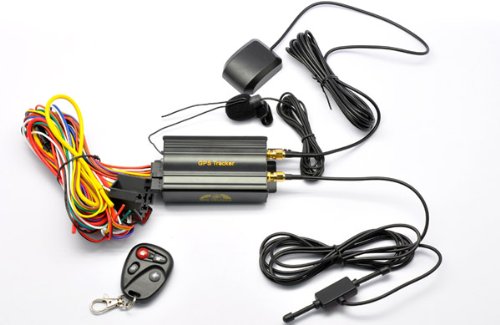

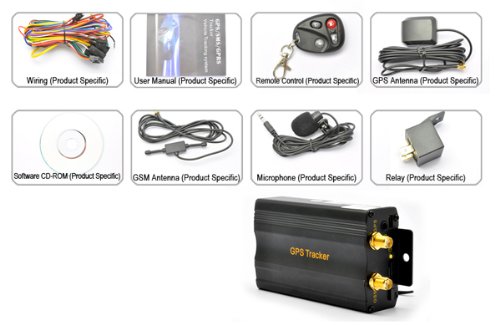

Hot Spots: SIM card slot Micro SD card store Real-time Tracking Fleet Management Specifications General Network: GSM / GPRS 2G: 850/900/1800/1900MHz GSM/GPRS Module: SIMCOM340 Detachable Microphone Operation Temperature: -20 to +55 Degree Celsius Operating Humidity: 5-95% Non-Condensing Power Source: Built-In Battery or Car Battery Battery Size: 1000mAh Battery Standby: 80 Hours GPS Receiver Module: SiRF III GPS Sensitivity: -159 dBM GPS Accuracy: 5 Meters Altitude Limit: 18,000 meters (60,000 feet) max Velocity Limit: 515 meters/second (1000 knots) max Cold Status: 45s Warm Status: 35s Hot Status: 1s Memory Micro SD Card up to 4GB(not included) Alarms, Alerts, Security Functions Real-time Tracking Equipment Self-Check Remote Power Off Audio Monitoring Ports SIM Card Slot Micro SD Card Slot GSM Antenna GPS Antenna Mini USB Port 16 PIN Harness Port Mic IN Minimum System Requirements: Supported OS: Vista/Windows7 Dimensions Main product dimensions: 100x50x25mm (L x W x D) Main product weight: 110g SKU#:TK103BC Package Contents GPS Tracker GPS Antenna GSM Antenna Microphone Remote Control Relay Wirng Software CD-ROM User Manual
