Item Descriptions:

Description of item

Product Features:

ONVIF talks and mainstream NVR support

Compression method: H.264 CMOS 1 million pixels

Marine brain 3518E chip + OV 9712

Pan tilt function: horizontal 355 degrees vertical 90 degrees

Built-in IRCUT, daytime color does not change, clearer from night

P2P cloud technology penetrates all the nets

Lens: 3.6 mm zoom

Infrared night vision distance: 10 m, infrared activated automatically by photosensitive electrical resistance

Maximum 64 GTF card support

Product parameter

Movie resolution 720P (1280 * 720) adjustable, double current stream

Pan tilt range Horizontal 355 degrees Vertical 90 degrees

Wireless linked alarm function Nothing

Minimum illumination 0.5 Lux

Video frame rate 0 to 30 frames

Adjustable moving image parameters Saturation, brightness, contrast degree, sharpness

Audio format G.726

System interface Audio input / output report input / output 10Base-T / 100Base-TX interface Supported protocols TCP / IP, UDP / IP, HTTP, SMTP, FTP, DHCP, DDNS, UPNP, NTP, PPPOE

Wifi Protocol IEEE 802.11b / g / n

Image rotating mirror site / falling over

IRCUT built-in double filter automatic control

Audio control support

Two way audio support

Dynamic detection support

Alarm action Email external alarm / Email / FTP / server

Audio channel built-in microphone, 1 way audio output

Operating temperature -10 ° C to 55 ° C

Working humidity 10% to 80% without condensation

Power supply DC 5V 2A

PC version installation instructions:

Hardware environment: 1, Ventium Pentium IV series, CPU main frequency

2.0 G or more 2, DRAM 2 G or more

3, hard disk 120 G or more

4, an image with a display of 1024 × 768 or more

Software environment: Windows 2000 / Windows XP / Windows 2003 / Windows Vista / Windows 7/8, advanced Windows XP

Click the link to download the software: http: //down4.54it.cn/

When registering, it is set that the user does not have admin and password.

Clicking on the "confirm" button can directly enter the client's main interface.

Only users with "withdrawal" admin privilege can withdraw from the client.

User with user and guest authority can not clarify client.

When you want to withdraw from the client you must enter the user name and password of the administrator authority.

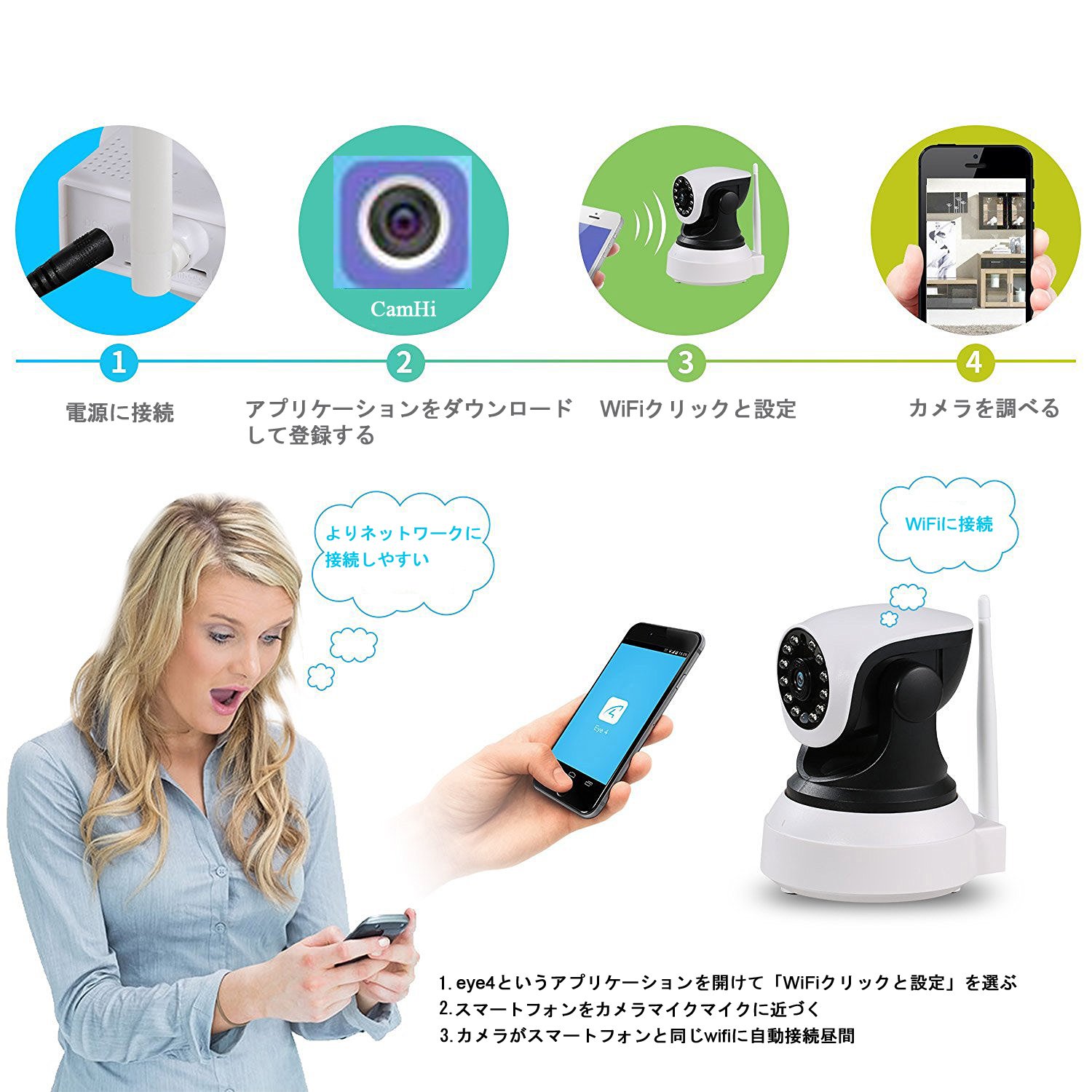

Mobile phone version installation explanation:

Please hold the camera and turn on the camera,

1, Connect the mobile phone to the WiFi network and download the mobile phone monitoring software called Camhi.

2, enter the official software download address: http // down4.54it.cn /

Select the software you want to download after entering and click the icon to download directly.

3, Open mobile phone monitoring software.

4, Click on "Add camera" → Click "WiFi click and setting" below to enter the password → click "Setting" → wait 100 seconds, the software connects the camera directly to the WiFi network

(If you failed, please operate again), installation completed.

Features:

• Please enter model number Confirm this is compatible:
• Anytime, anytime and anytime you can see the real time life of the baby.
• Combine iOS Android, PC (Windows) and PC (Mac).
• You can see the situation of the child sleeping in the next room.
• Or, it is decided whether the pet is destroying activity
• It can be used as an elderly real-time life safety confirmation.
• The camera can be mounted on a horizontal place, a ceiling, a wall, etc.
• Bidirectional audio: Built-in microphone and speaker; 64 gb SD card support
• 5, Packing: 1 xc camera, 1 x support, 2 x screw plug, 1 x plug

Product information:

Shipping Weight: 557 g

Package Dimensions: 13.59 x 15.49 x 19.30 cm
