Product Description

Description:
Layout:

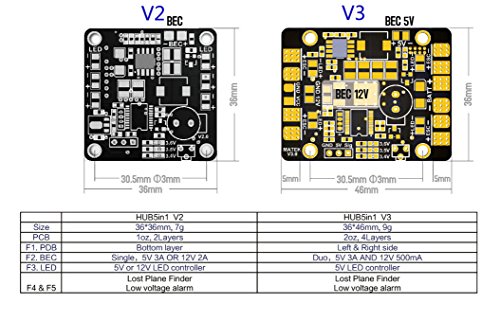

A. PDB, twin bonding pads
B. 7-26V DC input pads
C. BEC 3A 5V/ 12V (5V default, you could switch to 12V, but couldn't use both, to use both, please see our V3 version www.amazon.com/dp/B018IBQLPU)
D. LED light pads (6 pairs)
E. Connect to RX Aux channel or flight controller
F. Low voltage alarm value (3.4V, 3.5V, 3.6V, OFF)
G. Button -> R15 or R16 for adjusting the BEC to 12V

Functions:
1. Twin pads, one side is positive plate, the other side is negative plate.

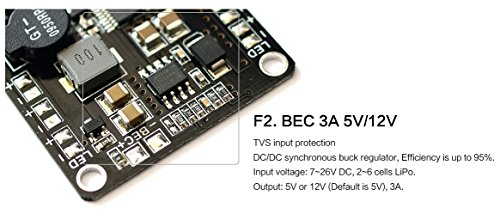

2. TVS input protection.
DC/DC synchronous buck regulator, efficiency is up to 95%.
Input voltage: 7-26V DC, 2-6 cells Lipo.
Output: 5V or 12V (default is 5V), 3A.
3. LED light controller
Total 6 pair LED light pads.
Three LED modes: constant light, slow flash, fast flash.
Option: 5V or 12V RGB LED Board/Circle.
4. Lost plane finder
The buzzer can be triggered with the TX toggle switch which can help you find the models in tall grass or trees.
5. Low voltage alarm
Voltage precision: + 0.1
Low voltage alarm value (3.4V, 3.5V, 3.6V, OFF)
The buzzer & LED light status of F5 has priority over F3
& F4.

Specification:

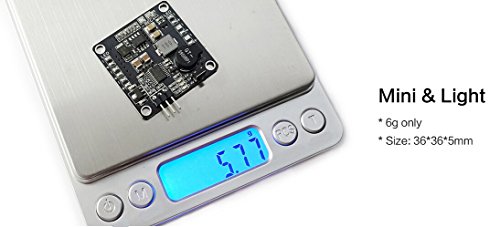

Weight: 6g
Dimension: 36 x 36 x 5mm

Package including:
5 in 1 board x 1
Nylon screws & nuts
Cable

Feature

It is a V2 5in1 HUB with PDB (Power Distribution Board), BEC 3A 5V or 12V(coud not use both) , LED Light Controller, Lost Plane Finder & Low Voltage Alarm functions. For more powerful yet still inexpensive V3 version(could use both 5v&12V bec), please see www.amazon.com/dp/B018IBQLPU

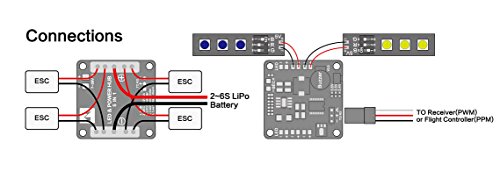

It is specially made for the Multi-Rotors, mini FPV Quad. Built-in 5V BEC can be connected to receiver or flight controller with Aux pins directly.
Simplify wiring. If the battery is 4~6 cells LiPo, the BEC can be set to 12V output, to power the Gimbals, Video Transmitters, etc.
Inbuilt LED light controller, three flash modes can be chosen with the toggle switch of transmitter.
And the buzzer can also be triggered with the toggle switch, which can help you find the models in tall grass or trees.
Brand : Usmile
EAN : 0735980947457
