Thank you for using our product - Lii-500, which is a high-end smart charger with 4 channels of independent charging / battery capacity detection / battery internal resistance detection / reverse connection / short circuit protection / overcharge protection / temperature control protection /1.65V-2.2V voltage can not charge function / USB 5V output and battery zero volt activation and other 10 functions, at the same time can automatically monitor the battery (charge, detection) process in a timely manner.
Lii-500 can charge many different types of cylindrical lithium-ion batteries and AAAAA cylindrical nickel-metal hydride batteries, widely used in battery charging of flashlights, power tools, instrumentation, digital cameras and other electronic products. It is safe, portable and powerful. It is a good helper for your home and travel.

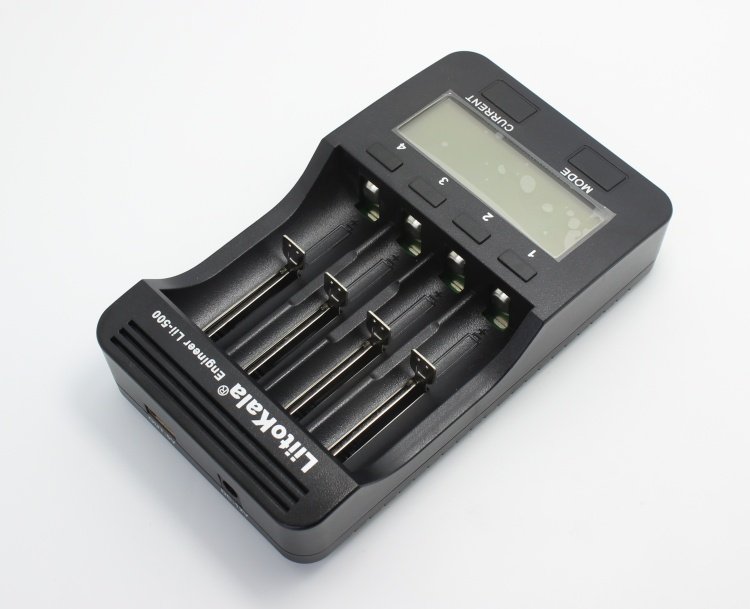

LiitoKala Lii-500 4-slot high-end smart charger officially listed!
Are you still worried about the battery capacity you have bought?
Are you still unwilling to buy hairpins for the purpose of delinquishing your equipment?
A warning
1. This charger can only charge cylindrical lithium-ion battery and nickel-metal hydride battery, non-rechargeable lithium iron phosphate battery;
2. Before use, please refer to the manual carefully, pay attention to the recommended charging current of the rechargeable battery, do not exceed the recommended current charging;
3. Do not use other power adapters;
4. The charger may heat up when it is charged and discharged. Be careful not to burn it.
5. When you stop using it, unplug it and remove the battery.
6. Can only be used in a normal room.
7. The test data of this product is for reference only. Please refer to the professional instrument for the actual situation.
Second, characteristics
1. Four kinds of charging current regulation (300mA/500mA/700mA/1000mA);
2. Can charge different sizes (18650/26650.../AA/AAA) simultaneously;
3. The charger uses a screen independent LCD display, voltage (V). Current (mA). Time (h). Capacity (mAh) internal resistance (mR) parameters, E eye clear;
4. Under the CHARGE mode, 4 channels work independently, and different charging currents can be selected to charge and charge Li-Ion and NiMH batteries.
5. In the FAST TEST mode, 4 channels can quickly detect the battery capacity, regardless of lithium-ion battery and nickel-metal hydride battery, all work independently. Rapid detection of battery capacity process by 2 steps (1 discharge, 2 full)
6. In the NOR TEST mode, the normal detection of battery capacity consists of three steps (1 full charge first, 2 full discharge, 3 full charge) to detect the battery capacity process;
7. CHARGE and FAST TEST. / NOR TEST 3 modes can work at the same time; independently set the charge / rapid capacity detection / normal capacity detection function;
8. A variety of protection functions: overcharge and overdischarge, short circuit, temperature, 0V voltage activation function, (-ΔV & 0ΔV), 1.65V-2.2V can not charge function, intelligent identification of bad battery and reverse battery detection protection.
9. With standard 5V/1000 mA USB output function: From 1 lithium battery to 4 lithium batteries to complete the USB output, this product nickel-metal hydride battery can not bring USB output.

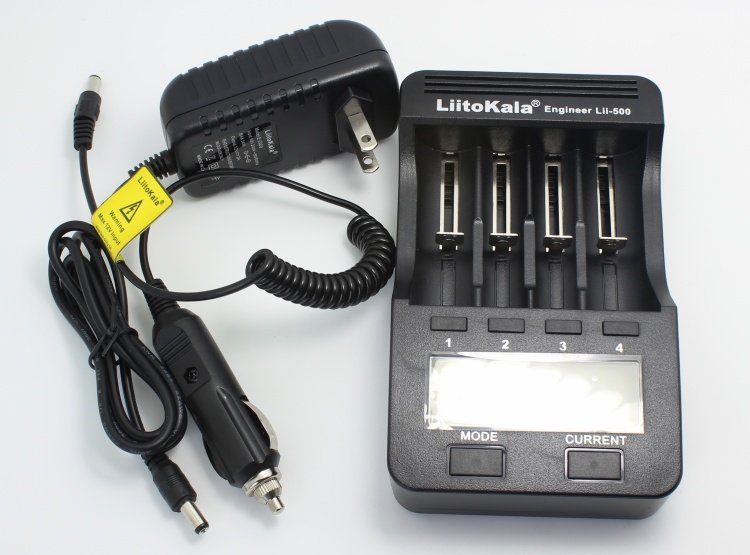

10. With a dedicated power adapter: DC input voltage: 12V/2A.

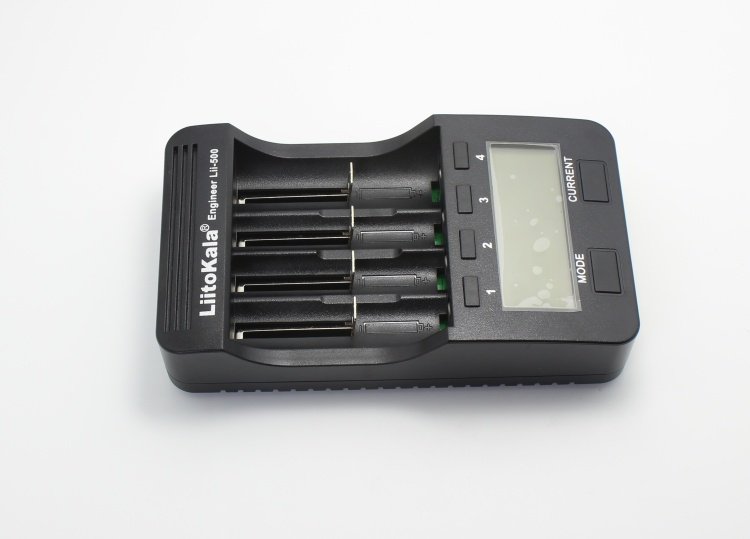

Third, the description of the button

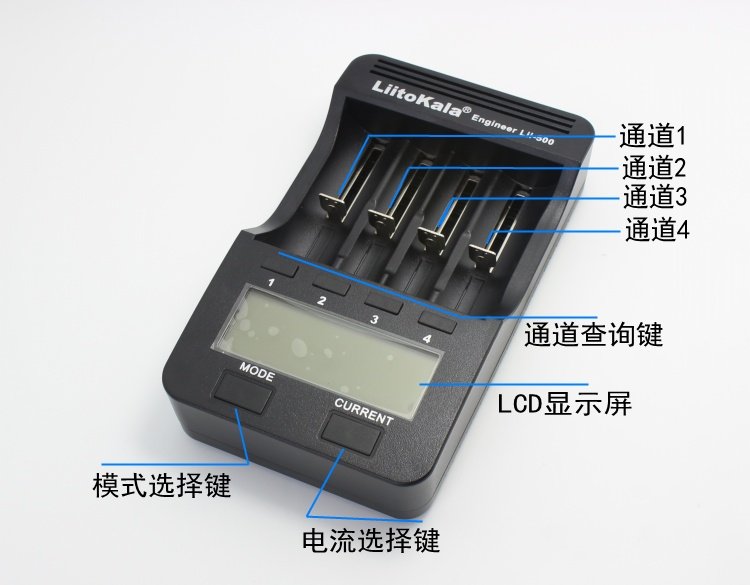

1. Charger has 6 buttons, mode selection button (MODE), current selection button (CURREN), independent selection and view data button (1234), easy to use;
2. In any case, hold down the MODE button and hold for 3 seconds to change the CHARGE mode or FAST TEST, NOR TEST mode, and then tap the function corresponding button again within 8 seconds to change. Current, independent, mixed charge, capacity detection, selected function enter working state after 8 seconds, in working state, you can press (1234) key to view current (mA) / capacity (mAh) / voltage (V) / time ( h)/internal resistance (mR) data reference value.
Fourth, the mode of operation instructions:
CHARGE (charging mode)
1. When the charger is turned on, all the LCD screens of the charger will be on instantly. If the battery is not inserted, it will show Null. If it is a bad battery, it will show Null.
2. Charger put the battery into power, the charger measures the internal resistance of the battery in about 3 seconds, then the system automatically enters the charging mode (CHARGE), the charger default automatic charging current is "500mA, in 8 seconds Can select 300mA, 500mA, 700mA, 1000mA electric current through the electric current to choose the key (CURREN) to carry on the charge, the system locks the electric current of your choice and charges after 8 seconds, if does not make the setting in 8 seconds, then the system Automatically defaults to charging with 500mA current, current and other functions will no longer be able to change, if you need to change, you need to change mode key long press select;
3. In charging mode (CHARGE), 8 seconds to change the independent charging or different current options, and different battery hybrid charge.橾 简单 简单 简单 、 简单 简单 简单 简单 简单 简单 8 8 8 8 8 8 8 8 8 , 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 12 Capacity to select the charging current, if you do not need fast charging, it is recommended to charge with 500mA, this is the most secure;
4. Under the charging mode, you can switch to view the charging power (mAh) / charging time (h) / battery internal resistance (mR) / charging current (mA), voltage (V) 5 kinds of units, the battery is full by tapping the 1234 key Will be displayed later, (charging end);
Two. Capacity test mode (FAST TEST, NOR TEST)
(a) FAST TEST (Fast Capacity Detection Mode)
1. When the battery is connected to the charger and the power is turned on, press (mode key MODE) within 8 seconds to select (FAST TEST rapid capacity detection mode), and then press (current selection key CURREN) to select the desired current. After 8 seconds, your chosen job will be locked. Rapid capacity detection process reference: enter the FASTT TEST - the selected current - the battery discharge - recharge, first discharge the battery, and then the battery is full and record the charge of electricity to detect the battery capacity.
Note that when the product is in the capacity detection mode, the discharge mode is divided into two types. When you select the charging current (300mA, 500mA), the system automatically discharges the default 250mA, when you select the charging current (700mA, 1000mA) The system uses an automatic default discharge current of 500mA.
(B) NOR TEST (normal capacity detection mode)
1. NOR TEST mode: First, the battery is full, then discharge the battery and record the discharge power to detect the battery capacity, then automatically fill the battery; Capacity detection process reference: Enter NOR TEST - Selected current charge - Battery discharge - - Recharge,
2. After the battery is connected to the charger and it is turned on, press the MODE button for 8 seconds, select the NOR TEST mode, and press the mode button for 2 seconds in any state to enter the NOR TEST mode.
3. After entering the NOR TEST mode, you can select 300mA, 500mA, 700mA, or 1000mA current through the current selection button (CURREN) within 8 seconds. The system will lock the current of your choice after 8 seconds. In seconds, if no setting is made, the system will automatically lock the 500mA current (the selected current is the default charging current of the system, and the discharging current will automatically select 250mA when discharged). Within 8 seconds, Select 700mA or 1000mA current charging, discharge will automatically select the discharge current of 500mA.
4. When the battery is full, the system will automatically switch to discharge, discharge current to the system default value (select the current when charging), and record the discharge data, thus detecting the battery capacity, when the screen appears, the capacity detection mode ends, The parameters displayed on the LCD screen are the actual battery capacity reference values.
5. After the capacity detection mode is over, the charger will recharge the battery with the previously selected current parameters until it is full.
V. USB 5V output
5.1 USB is only used as a 5V mobile output, the output current is 1000mA, and the USB output connected to the power supply is invalid.

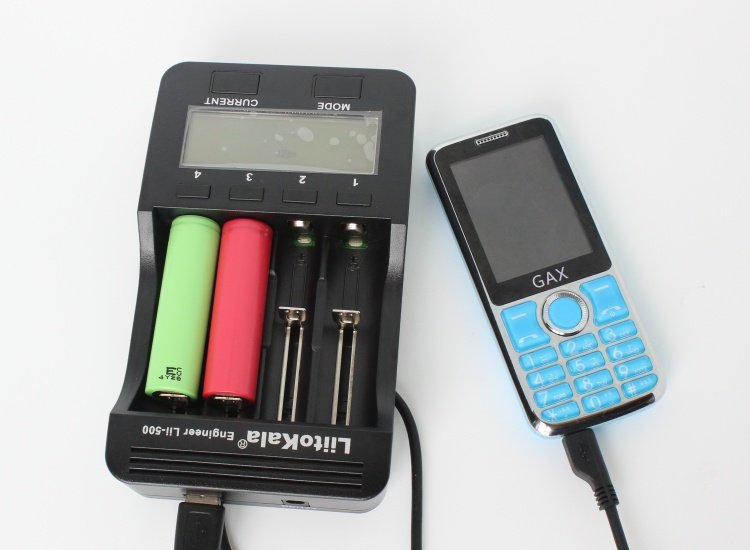

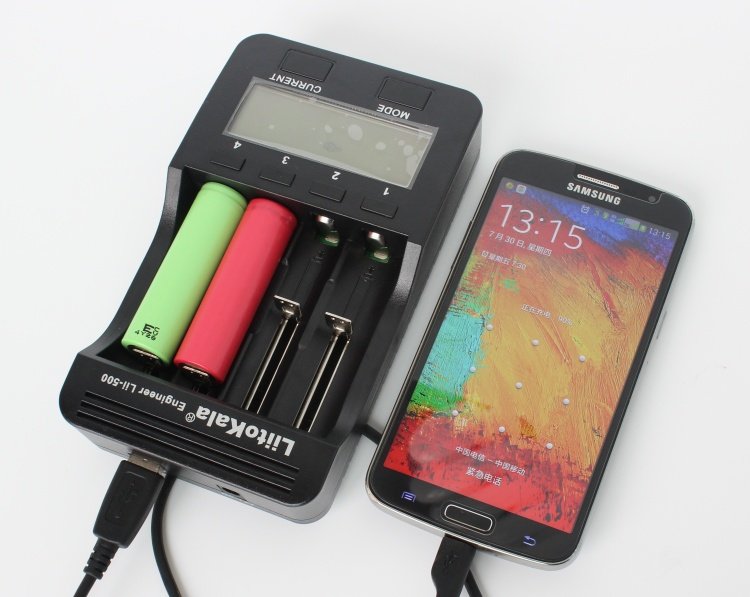

5.2 When the battery is placed in the slot, the USB/5V will be output and wake up. At this time, the 5V electronic product can be powered.
5.3 The 4 battery slots of the product, any slot can be USB output, it is recommended that both slots should be loaded with batteries.
5.4 USB 5V output is only valid for 3.7V lithium battery, Ni-MH boost is invalid.
Six. Specific parameters

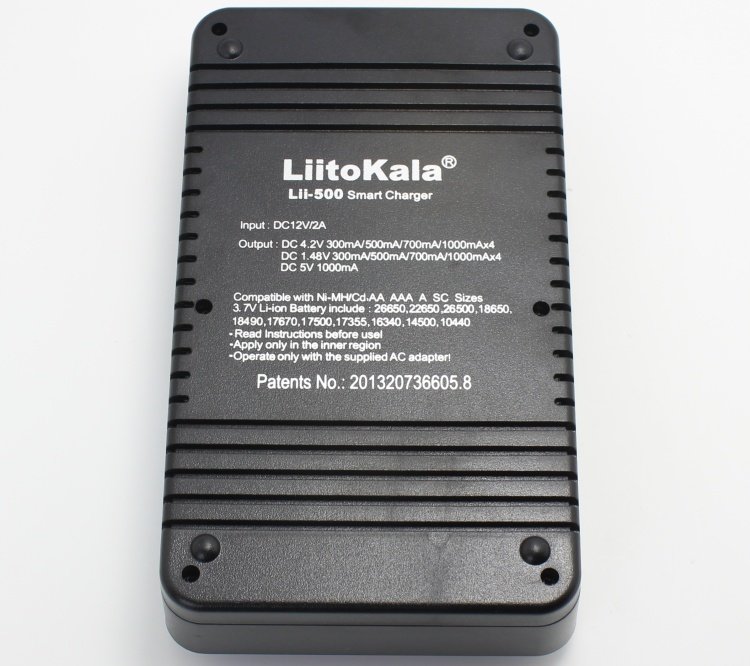

6.1 DC input voltage: 12V/2.0A
6.2 Lithium battery charging current: 4.2V 300mA/500mA/700mA/1000mA
6.3 NiMH battery charge current: 1.48V 300mA/500mA/700mA/1000mA
6.4 Rechargeable Battery Specifications: 18650, 26650, 14500, AA, AAA, etc.
6.5 Discharge Current: 250mA, 500mA

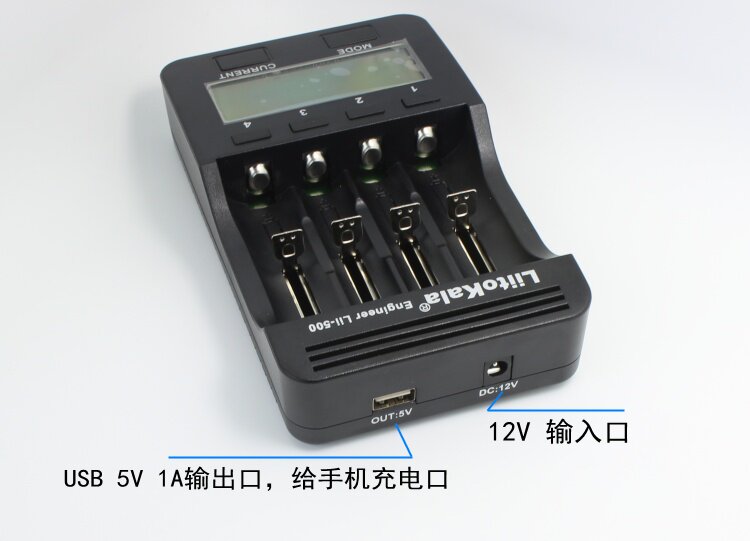

6.6 USB output: 5V---1000mA
6.7 Termination Mode: Smart Voltage Monitoring
6.8 Dimensions: 162mm (length) * 96mm (width) * 36mm (height).

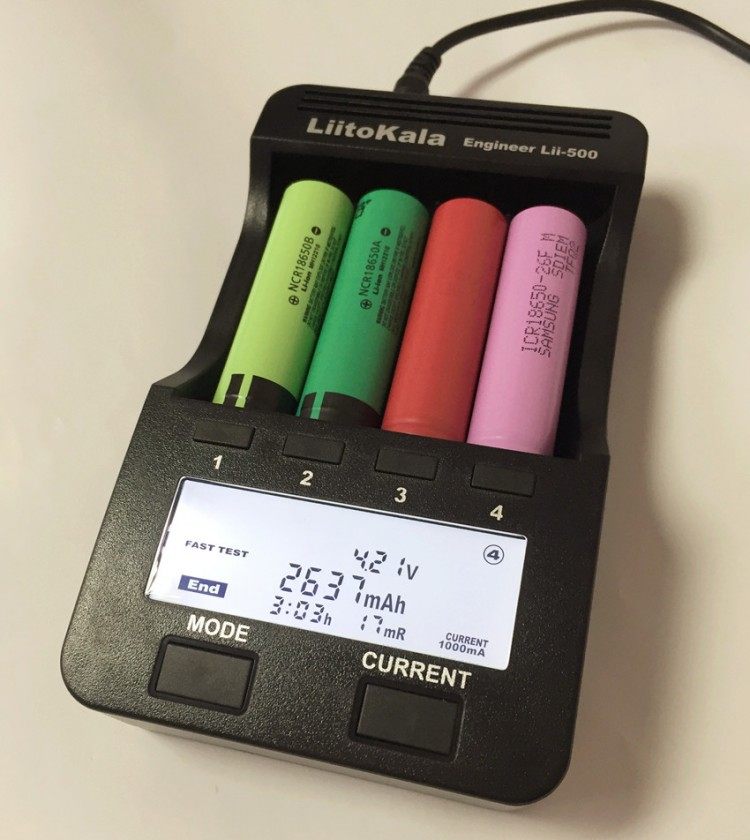

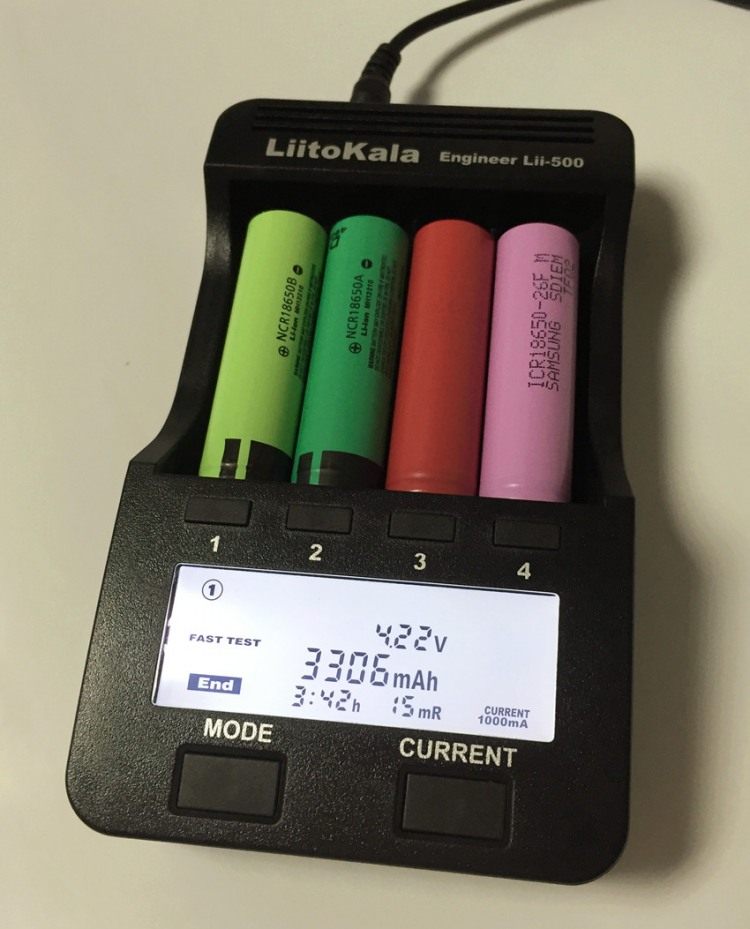

松下3400mah 测试容量为：3306mah。(目前测试内阻是不准的，偏低)

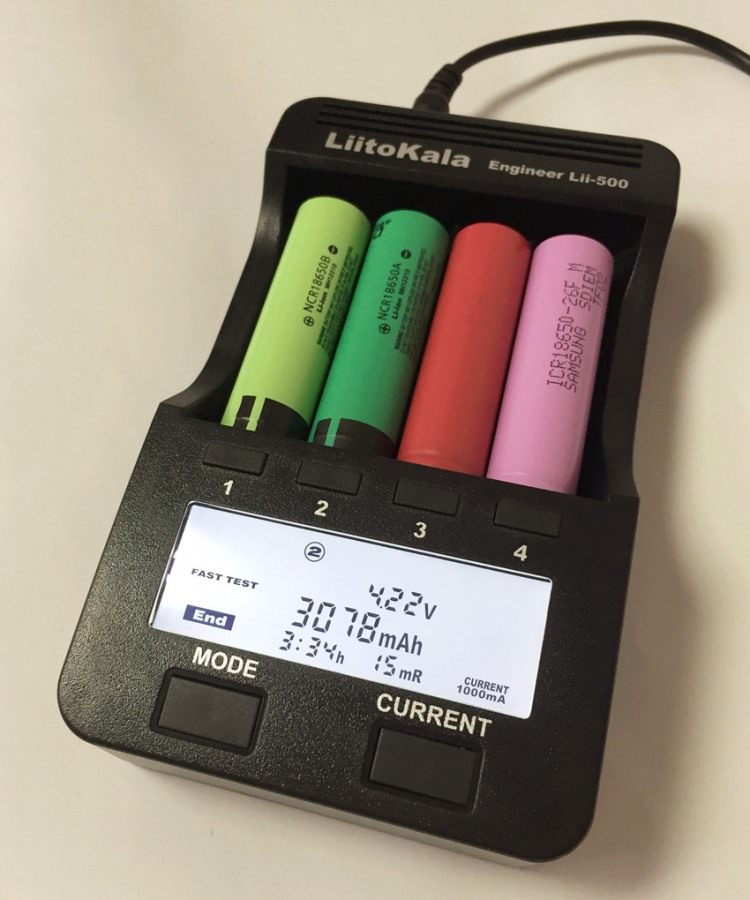

松下3100mah 测试容量为：3078mah。(目前测试内阻是不准的，偏低)

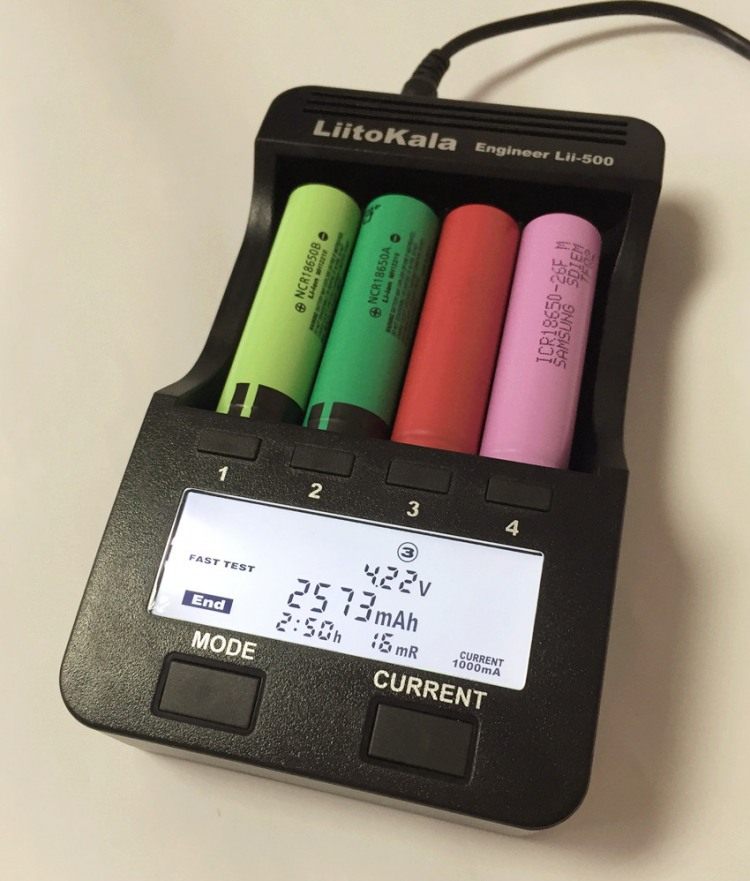

三洋2600mah测试容量为：2573mah。(目前测试内阻是不准的，偏低)
