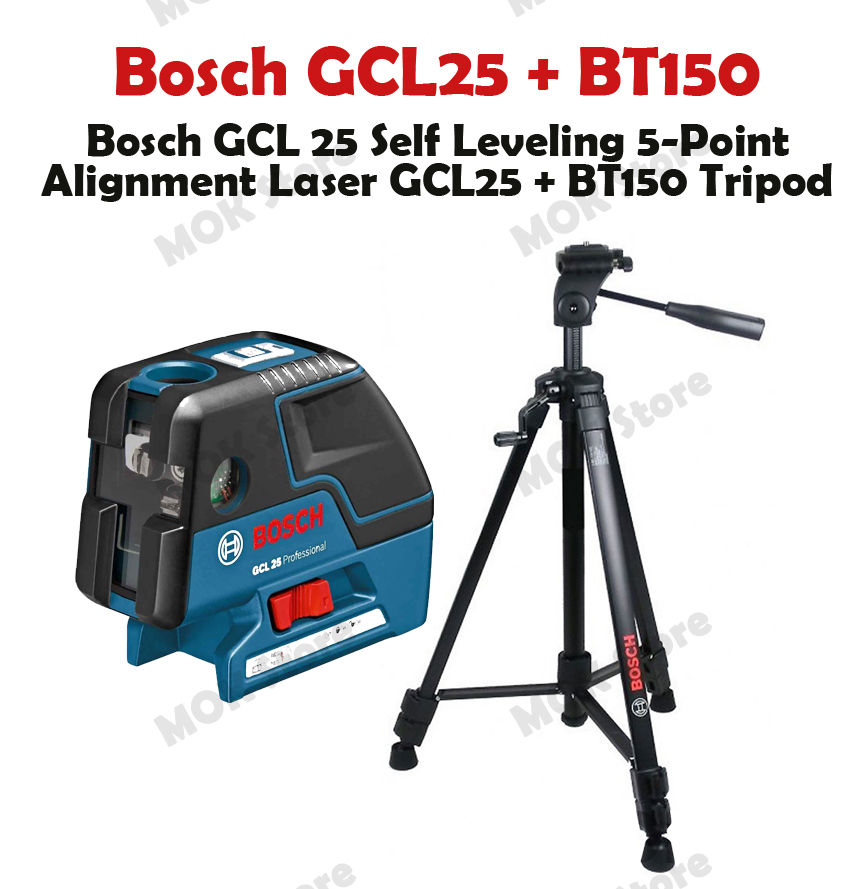

Bosch GCL25 5-Point Alignment Laser + BT150 Tripod

Bosch GCL 25 Self Leveling 5-Point Alignment
Laser GCL25 + BT150 Tripod
- GCL 25
Five points plus a cross-line for a two-in-one laser
Highly visible laser points and lines: for horizontal leveling, vertical alignment, squaring, layout and plumb point transfer
Manual mode locks lines for use at any angle
Smart pendulum system: self levels and indicates out-of-level condition
Four selectable modes: 5-point, horizontal line, vertical line or cross-line modes
- BT-150
Extendable height - expand tripod from 22 In. to 61 In. for different height applications
Steady adjustable base - swivel, adjust, and tighten product for steady measurement applications
Compact and lightweight - collapsible legs and weighing 2 lbs makes the tripod easy to store and transport
1/4 In. to 20 mounting thread of detachable base - compatible with Bosch line lasers, point lasers, and laser measures for a variety of applications

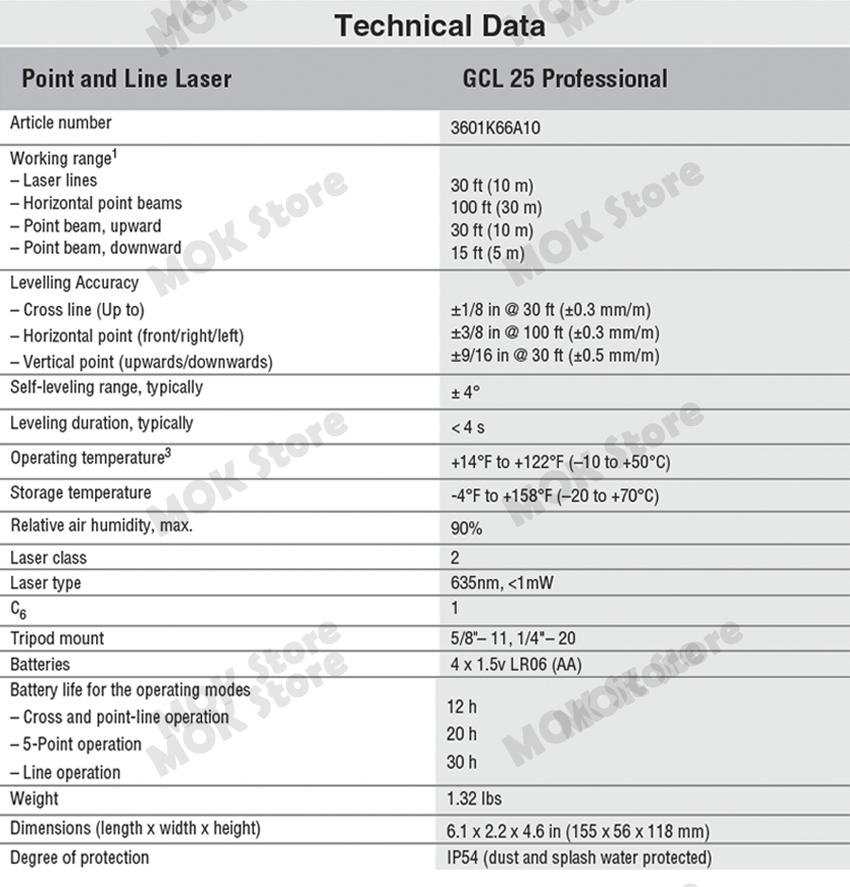

- GCL 25
Accuracy : Cross-Line +/- 1/8" at 30ft, Point +/- 1/4" at 30ft
Battery : 4 AA 1.5V Batteries
Battery Voltage : 1.5
Dimensions : 6.1" x 4.6" x 2.2"
Laser Diode : Class II, 635-670 nm
Length : 17.5"
Leveling Type : Self-Leveling, Up to 4°
Material : Durable plastic with overmold in key impact areas
Mount Threading : 1/4-20, 5/8-11
Operating Temperature : 14° F / -10° C ~1 22° F / 50° C
Range : Plumb Points (up to): 15-ft., Cross Line (up to): 30-ft., Horizontal Points (up to): 100-ft.
Weight : 1.1lb
- BT-150
Material : Aluminum
Weight : 2.9kg

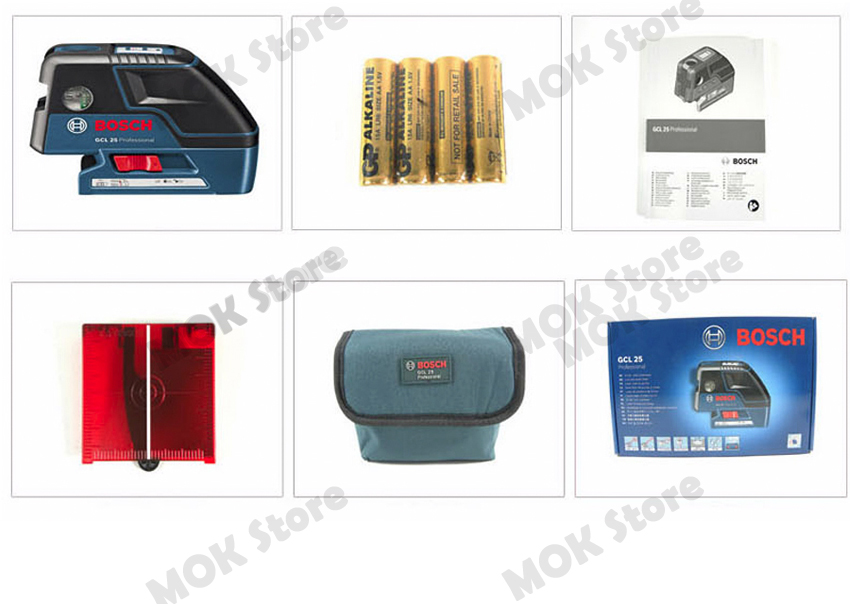

- GCL 25
(1) - GCL 25
(1) - BM 1 Positioning Device for Line and Point Lasers
(1) - L-Boxx 2
(1) - Laser Target
(1) - Belt Pouch
(4) - AA Batteries
- BT-150
(1) - BT 150
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
