Item Descriptions:

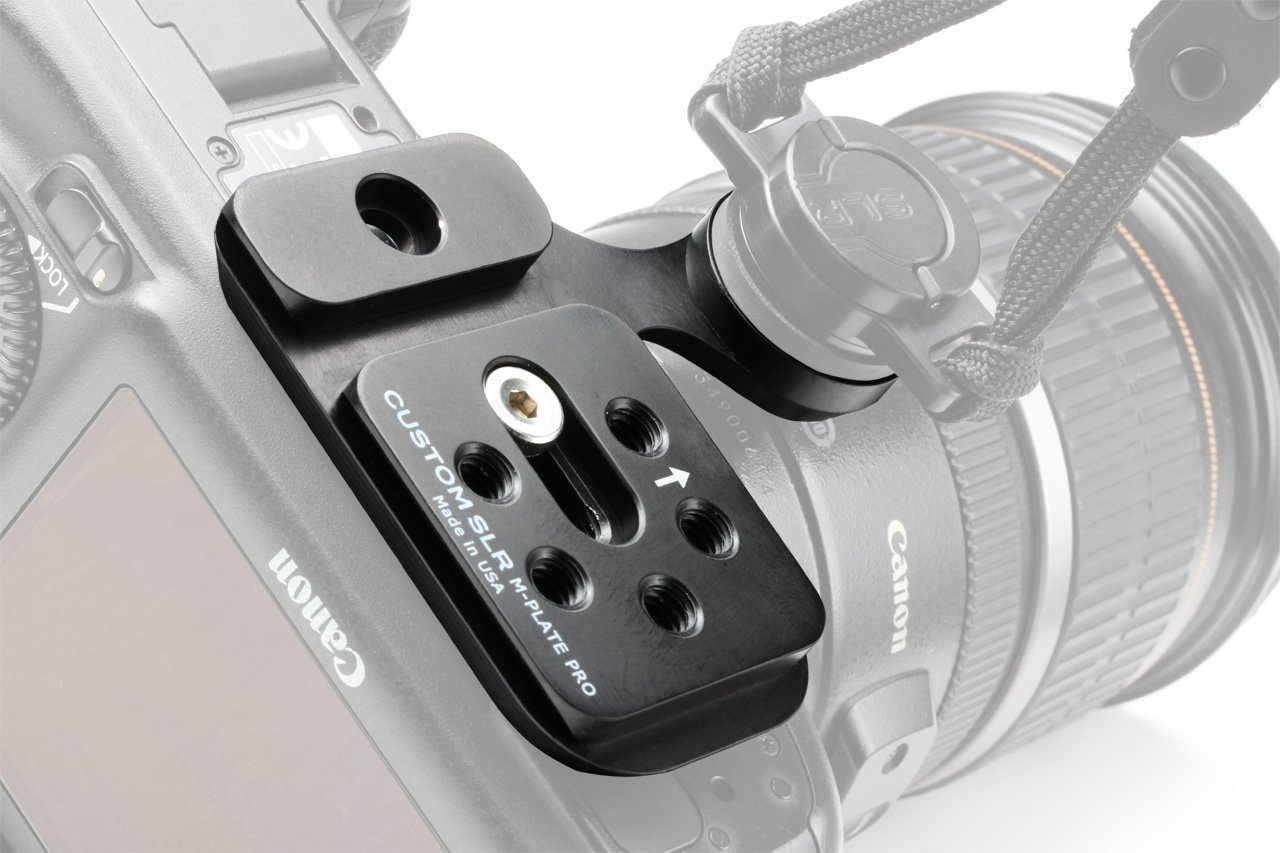

Hand strap attachment is attached

Tripod installation example

【Product Features】

With this product attached to the camera, a strap mount such as C - Loop can be installed

Furthermore, it is possible to mount it on a tripod while attaching a strap mount such as C - Loop

· Quick release plate

This product corresponds to both Manfrotto RC 2 and Alkalis Swiss installation

Other camera plates (quick shoe) can be attached to the expansion mount hole

· Corresponding camera strap mount

Custom SLR made C-Loop series

Other tripod hole mounting strap, carrying system

(Black Rapid, Sun Sniper etc. diagonal shooting strap)

C-Loop mounting image

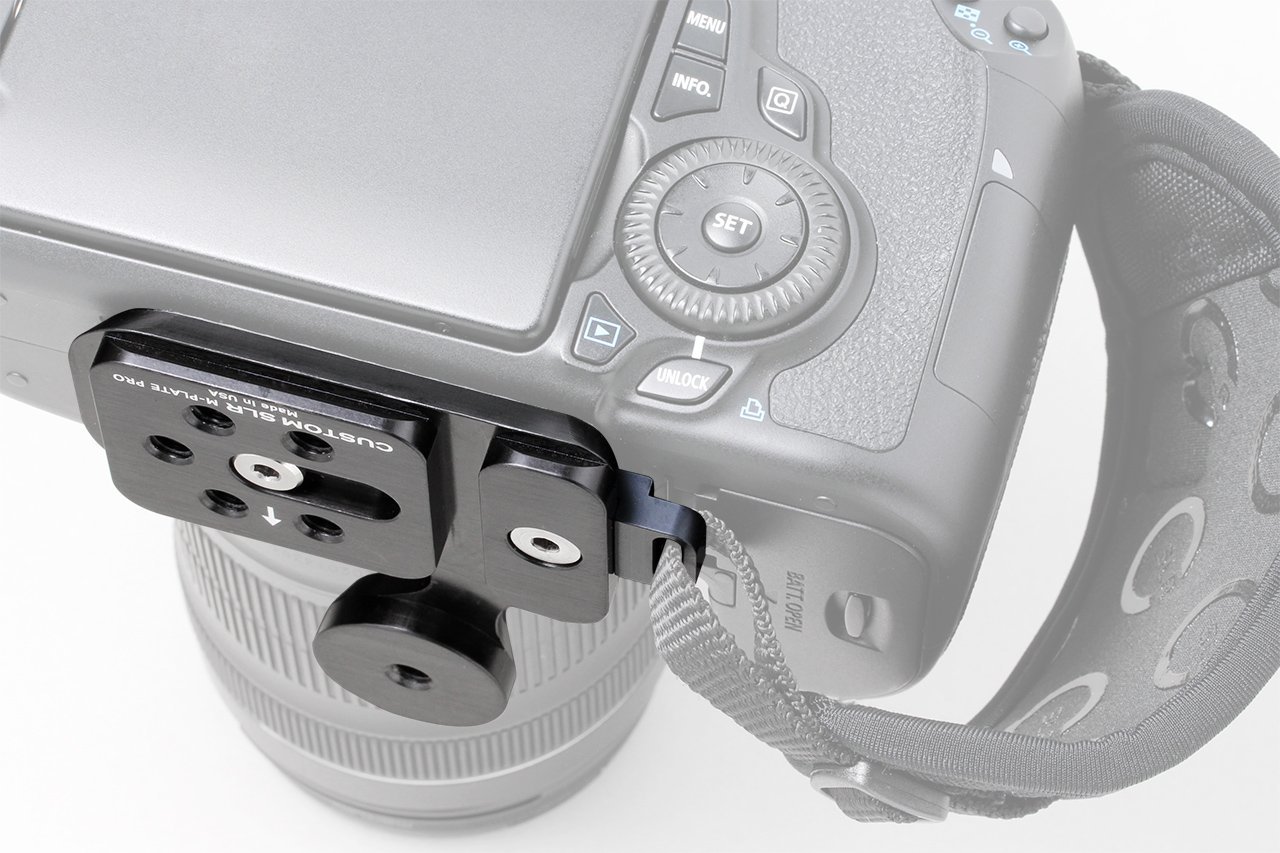

Hand strap attachment image

【Product Specification】

Body weight: Approx 63 g (excluding accessories)

Hexagonal wrench included for mounting a tripod screw hole (inch standard)

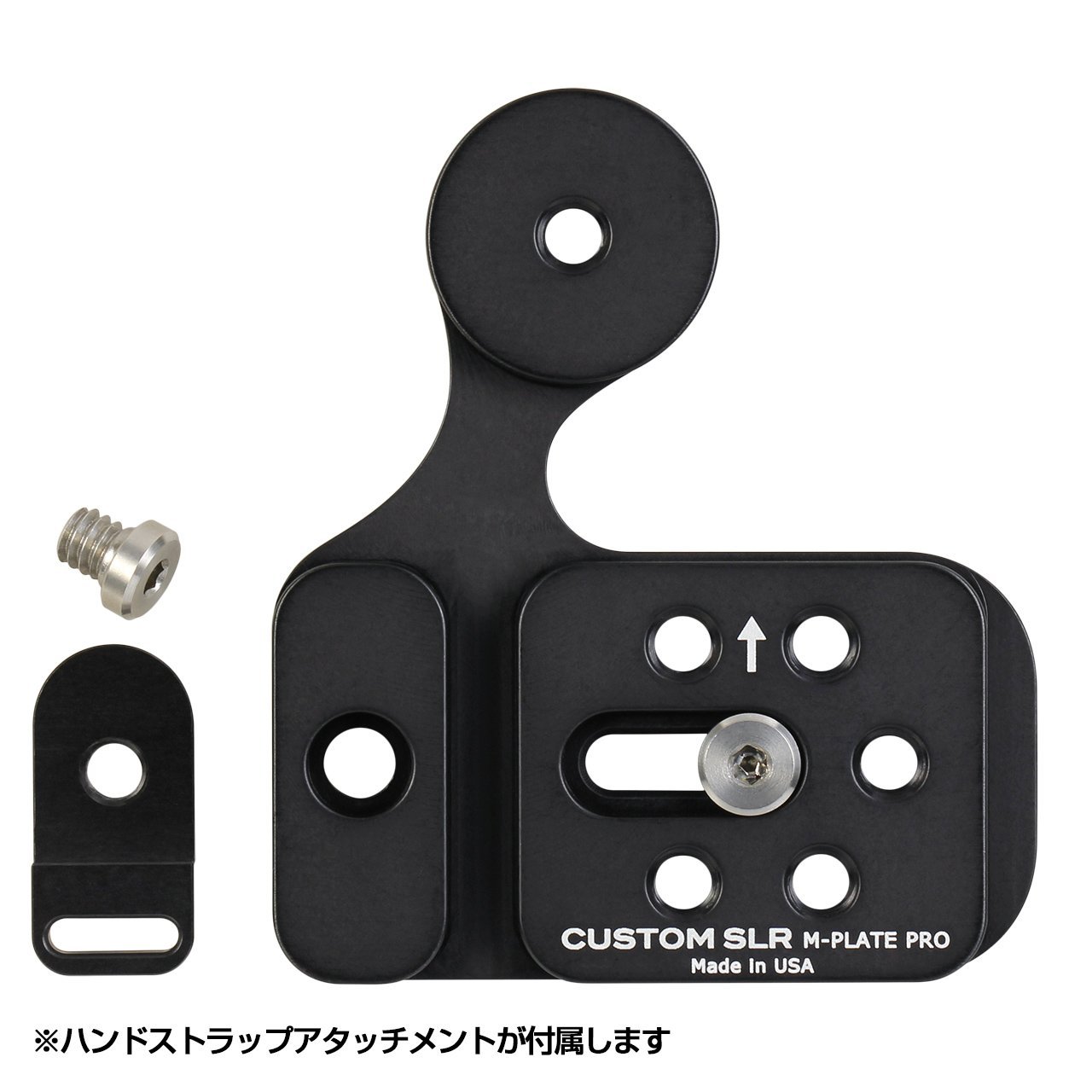

Hand strap attachable (Hand strap attachment included)

With Japanese explanation

Excellent durability with aircraft grade aluminum machined products

Made in USA

BLaKPIXEL (Black Pixel) is a Japanese distributor of US CustomSLR (Custom SRL)

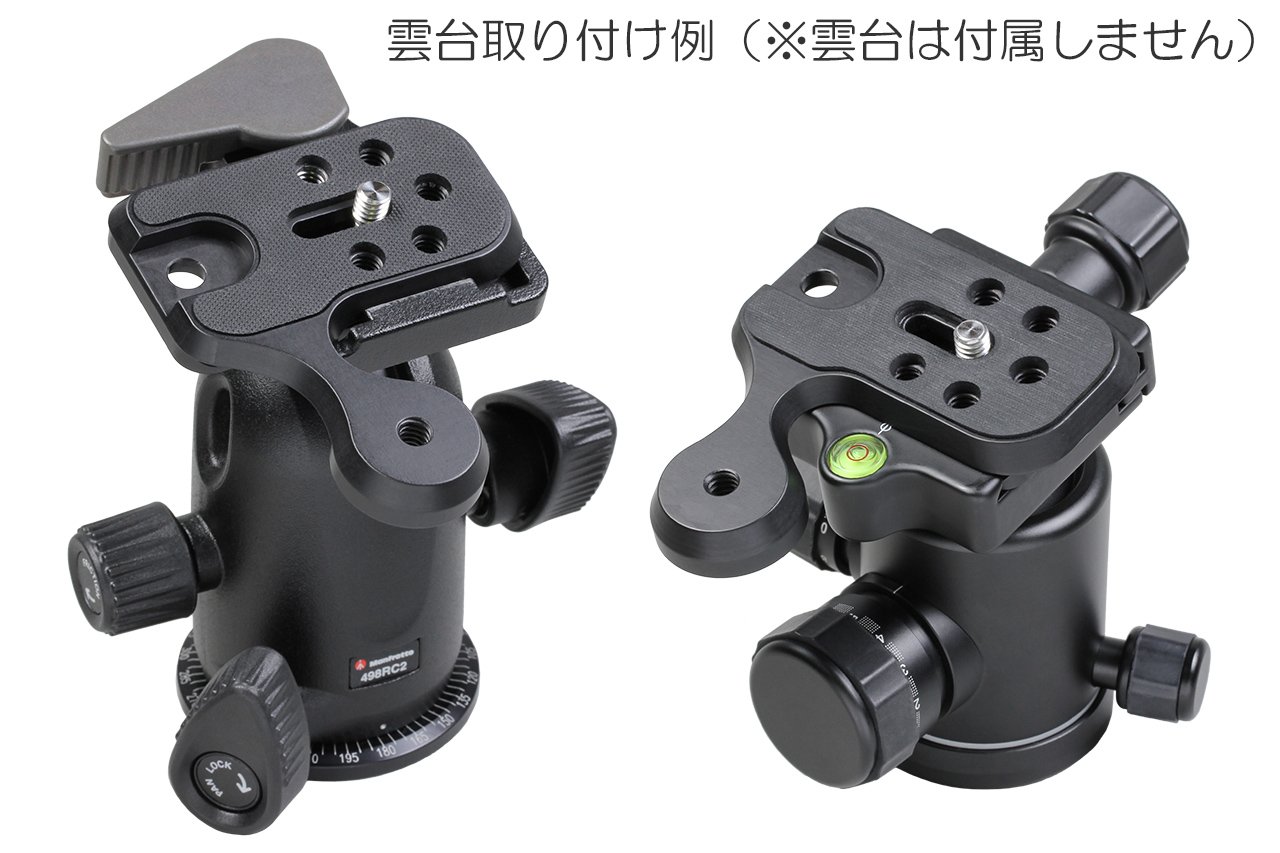

Example of mounting the camera head

【About compatibility】

· It is not compatible with the following heads

Manfrotto: Manfrotto (RC 2 3-way heads 804 RC 2, Q 2 Heads - 054, 128 RC, 327 RC 2, 324 RC 2 460 MG)

Novoflex: Nova Flex (Panorama = Q PRO, Q = Base)

Cullmann MAGNESIT MX 465

※ The camera plate is called by the name of quick release plate, quick plate, quick shoe, tripod plate etc

# 26034 Riser (sold separately) Installation example

【please note】

· When using a large diameter lens that protrudes from the bottom of the camera body, it may interfere with part of this product.

In this case, by installing # 26034 Riser (sold separately), it is possible to bulk about 6 mm

· When storing the lens hood in the reverse direction, it may interfere with part of this product.

In this case please attach the lens hood forward

· When the ring type tripod seat is attached to the lens, it may interfere with this product.

In this case please install it on a ring tripod seat

· The attached hexagonal wrench (inch standard) is required for detachment to / from the camera

· Before using, please be sure to inspect the product due to its nature and handle it under the responsibility of the user

· If you feel anything wrong with the product, please stop using it immediately and contact the seller

· It is not possible to compensate for any direct or indirect damage or damage to equipment such as purchaser, user, camera or lens, regardless of whether it is inside or outside the warranty period

· Specifications of the product are subject to change without prior notice for improvement, so please understand it beforehand

· Hand strap Attachment and mounting screws must be used in combination with the attached items

[About quality control of Japan specifications]

Although this product is imported, there are differences in quality unlike local specifications.

We perform all items inspection based on our own quality standards.

For products that require explanation of handling method, detailed Japanese manual is attached.

Also, if necessary, it may be repackaged into its own Japanese specification.

(Add or change accessories etc)

Products that do not satisfy some inspection criteria and have no problem in practical use are sold separately as "products with wake".

Please pay attention to parallel import goods other than BLaKPIXEL (operated: Tech Tec Co., Ltd.).

Features:

• Please enter model number Confirm this is compatible:
• With a C-Loop or other strap system attachment on, you can use a tripod with a quick release system!
• This one corresponds to Manfrotto RC 2, Ark Swiss, other camera plate (quick shoe)
• Made by CustomSLR in San Francisco Bay Area of the West Coast of the USA
• Aircraft grade aluminum scraping processed goods Outstanding durability Made in USA
• Hand strap attachable (Hand strap attachment included)

Product information:

Shipping Weight: 81 g

Package Dimensions: 1.50 x 11.10 x 14.91 cm
