Product Description

Description
DMS-59 is a 59-pin electrical connector generally used for computer video cards. It provides two DVI or VGA outputs on a single connector. An adapter cable is needed for conversion from DMS-59 (digital) to DVI (digital) or VGA (analog)， and different types of adapter cables exist. The connector is four pins high and 15 pins wide， with a single pin missing from the bottom row， in a D-shaped shell， with thumbscrews.
The application for DMS-59 is to support a higher density of video displays， in a similar amount of connector space to a DVI connector. DMS-59 supports two DVI Single Link digital channels or two VGA analog channels from a single connector. The compact size lets a half-height card support two high resolution displays， and a full-height card (with two DMS-59 connectors) up to four high resolution displays.
The DMS-59 connector is used by ATI， NVIDIA， and Matrox for video cards sold in Lenovo Thinkcentres， Viglen Genies and Omninos， Dell， HP， and Suncomputers
This cable is used to connect a LFH/DMS 59 equipped graphics card to 2 VGA monitors.
Package Included:

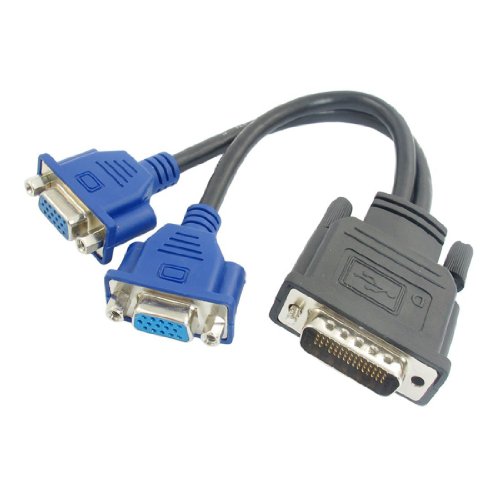

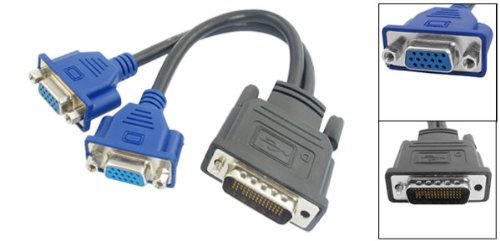

1 x Male DMS-59 to Dual Female VGA Y Splitter Video Adapter Cable
NO Retail Box. Packed Safely in Bubble Bag.

Feature

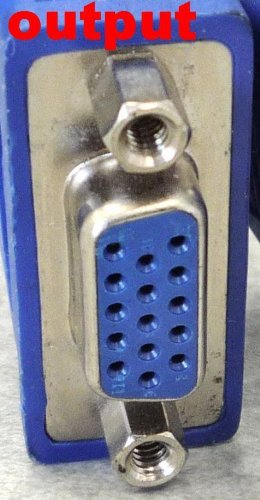

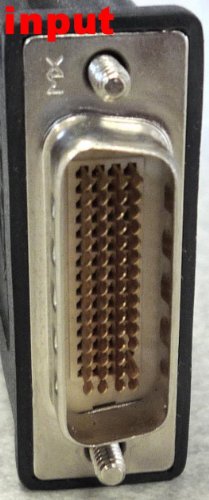

Connector: 1 x DMS-59 (male)， 2 x 15 pin VGA (female)
Split the video signal from your DMS-59 video output to two separate monitors
Connect your computer to two monitors through one video card
Foil shielded to prevent EMI/RFI Interference
Compatible with DELL， SONY， COMPAQ， HP， Gateway， and other manufacturers
Brand : Generic
Item model num : Smartchoice2000
MPN(PartNumber) : Smartchoice2000
EAN : 0519868692710
