Item Descriptions:
A standalone power supply, best suited for effect pedals, appears!
10 independent 9-18 V DC output jack, independent operation design, each connected device does not affect each other.
It improves on the original and increases the output current to meet even more needs.
In addition to 9V output, it also has 12V output and 18V output.
It is convenient to carry in a size that fits in the palm of 15.4 × 4.3 × 3.4 cm.
For each output individually:
It has a short circuit protection function, so even if there is a problem with one output somewhere else, other output lines can be used.

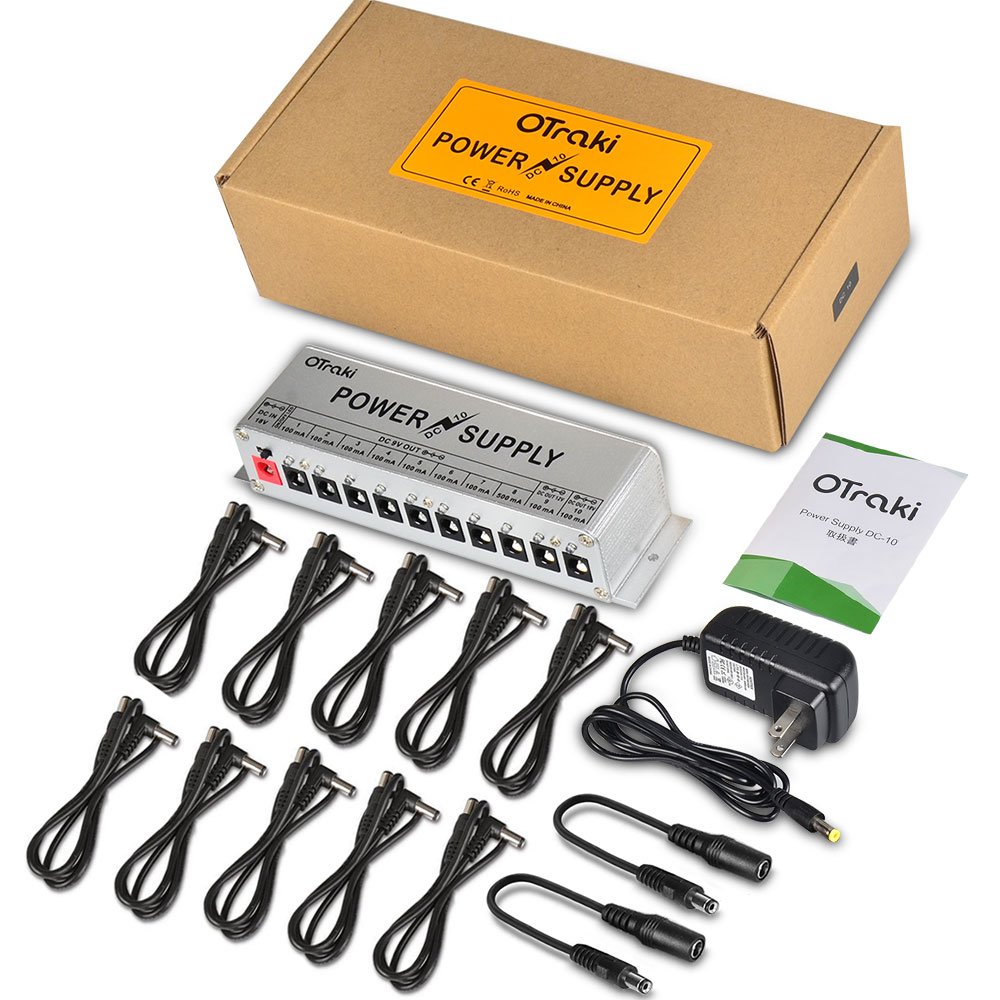

Package contents:
1x power supply body
10 x 50 cm DC cable
2x polarity change cable
1x Japanese Instruction Manual
1x English Instruction Manual
Polarity conversion cable
Please check the adapter of the effector.
Using it by mistake will cause malfunction.
1. If the input polarity of the power supply is center minus, please connect directly.
2. When input polarity of power supply is center plus, please use polarity change cable.
Body size: 15.4 × 4.3 × 3.4 cm
Weight: 445 g
Input: DC 15 V, 1000 mA

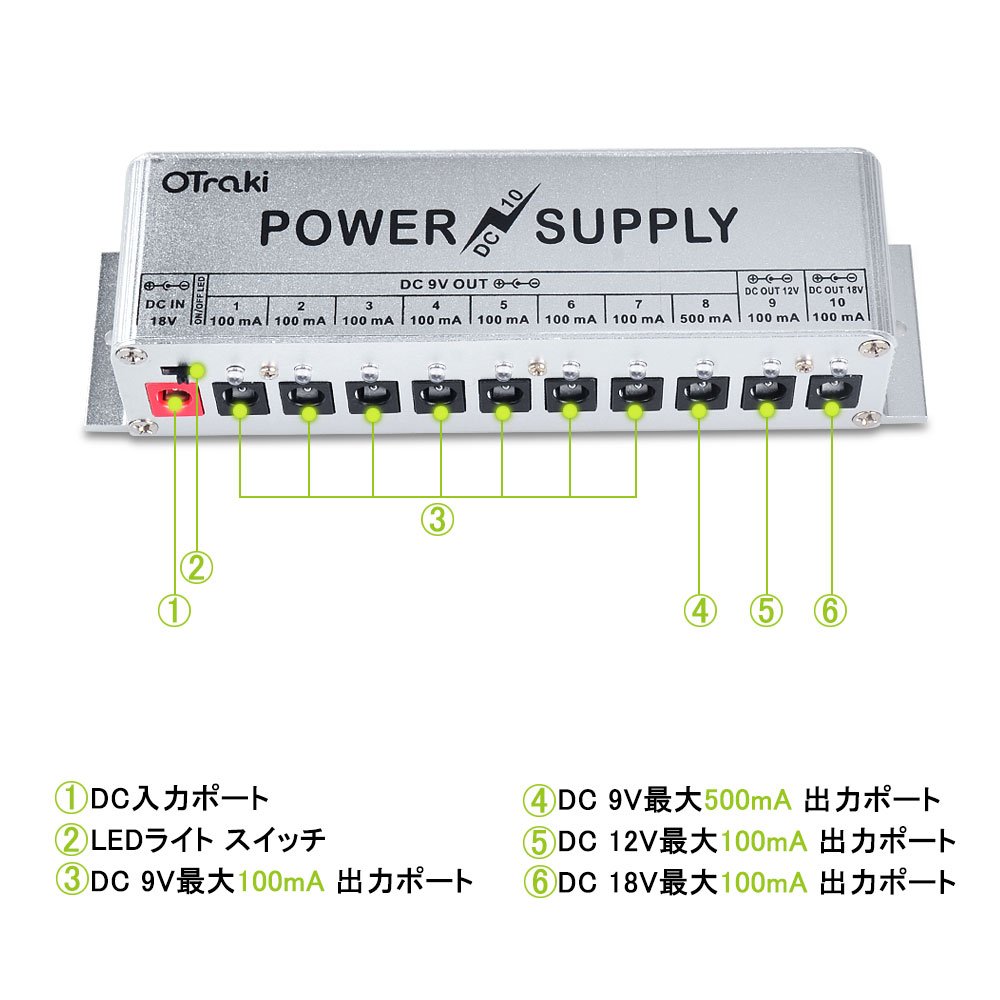

Output:
DC output 1 - 7 jack: DC 9 V You can connect guitar effects within 100 mA
DC output 8 jack: DC 9 V You can connect guitar effects within 500 mA
DC output 9 jack: Guitar effect within DC 12V 100 mA can be connected
DC output 10 jack: DC 18V 100mA guitar effects can be connected
Short circuit prevention, overcurrent automatic protection function:
OTraki Effector The portable effects pedal automatically enters its self-protecting mode, restarts automatically in 2 seconds after unplugging the short circuit guitar effect plug.

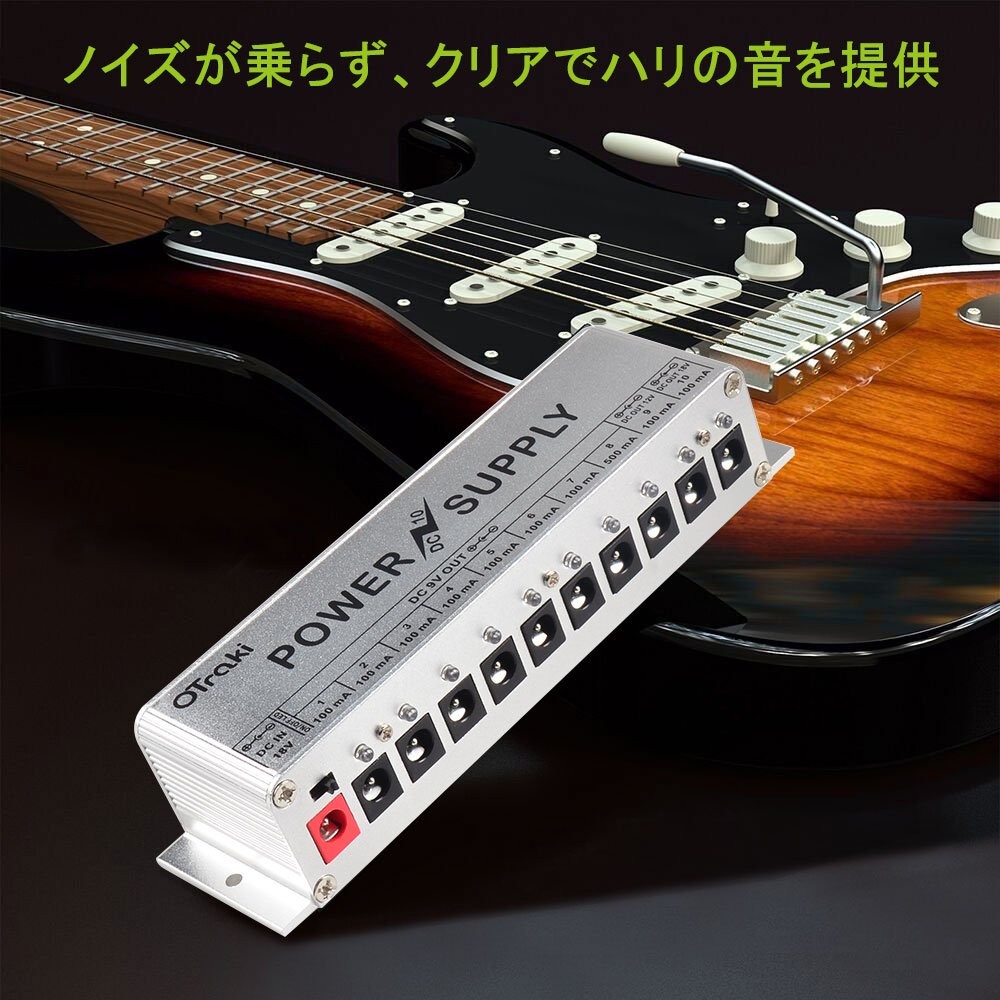

Noise countermeasure, mini size:

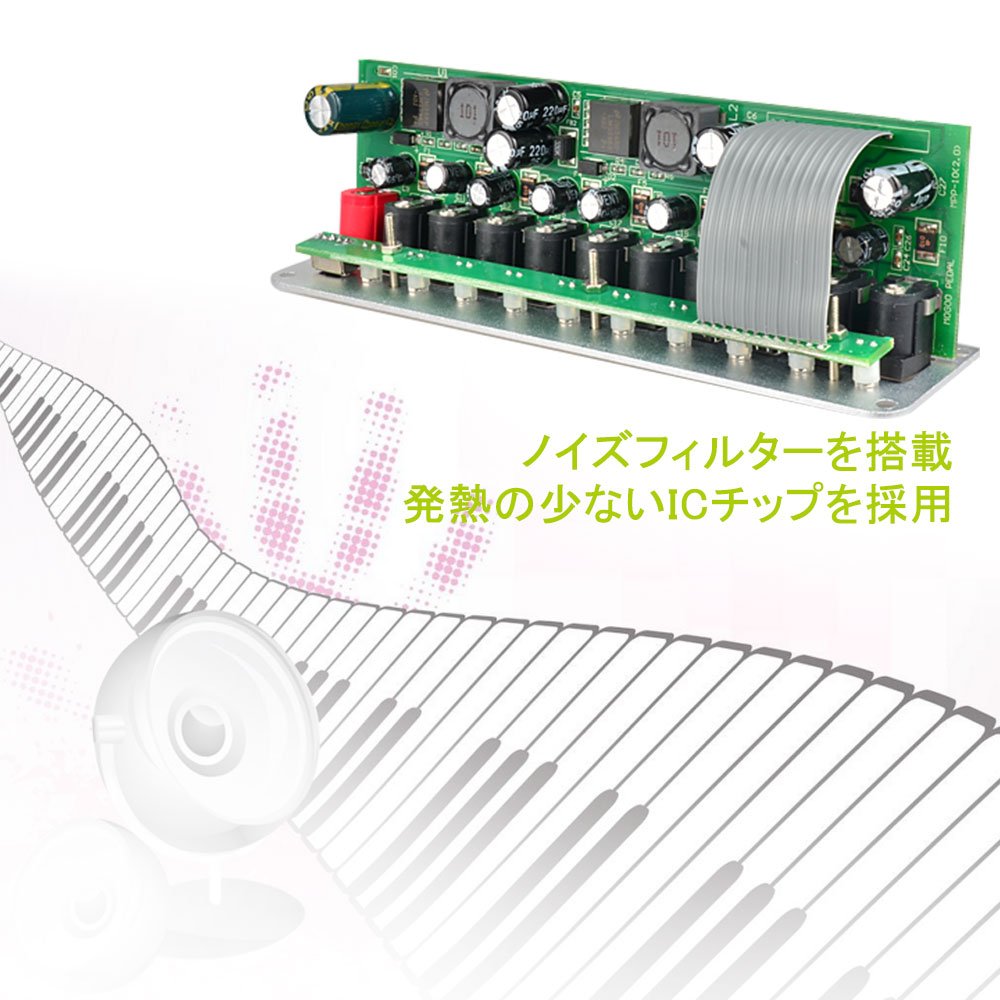

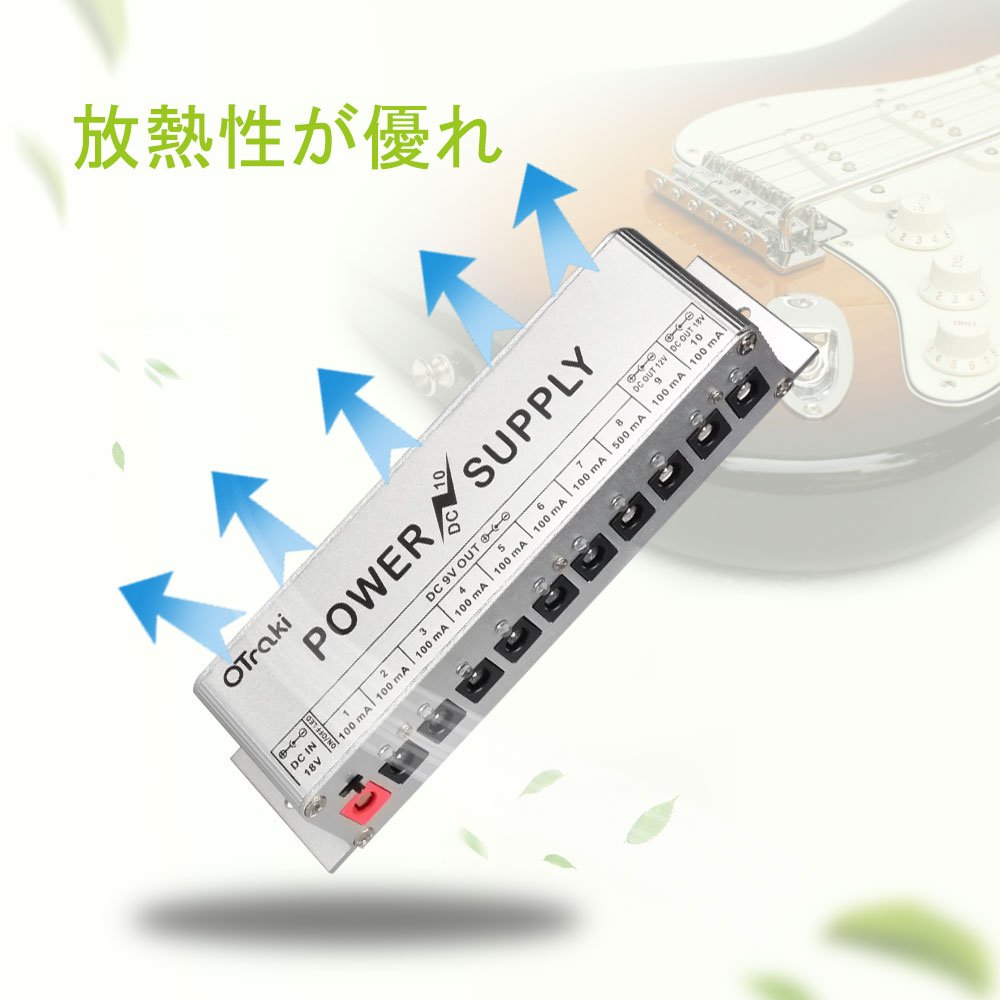

Aluminum alloy case design, supply low noise and stable voltage.
Lightweight power supply with 1 input jack and 10 output jack.
Note: If you are supplying overdrive effectors and distortion effectors, noise may occur.
Features:
- Please enter model number Confirm this is compatible:
- Independent output of 10 channels: 10 independent 9-18 V DC output jacks (7 9 V 100 mA output, 1 9 V 500 mA output, 1 12 V 100 mA output, 1 18 V 100 mA output), independent operation design, each connected device
- It does not affect each other.
- Short-circuit protection, overcurrent automatic protection: Each channel has insurance and overcurrent automatic protection function, when one channel does not operate properly, other channels can operate correctly.
- Aluminum alloy material case

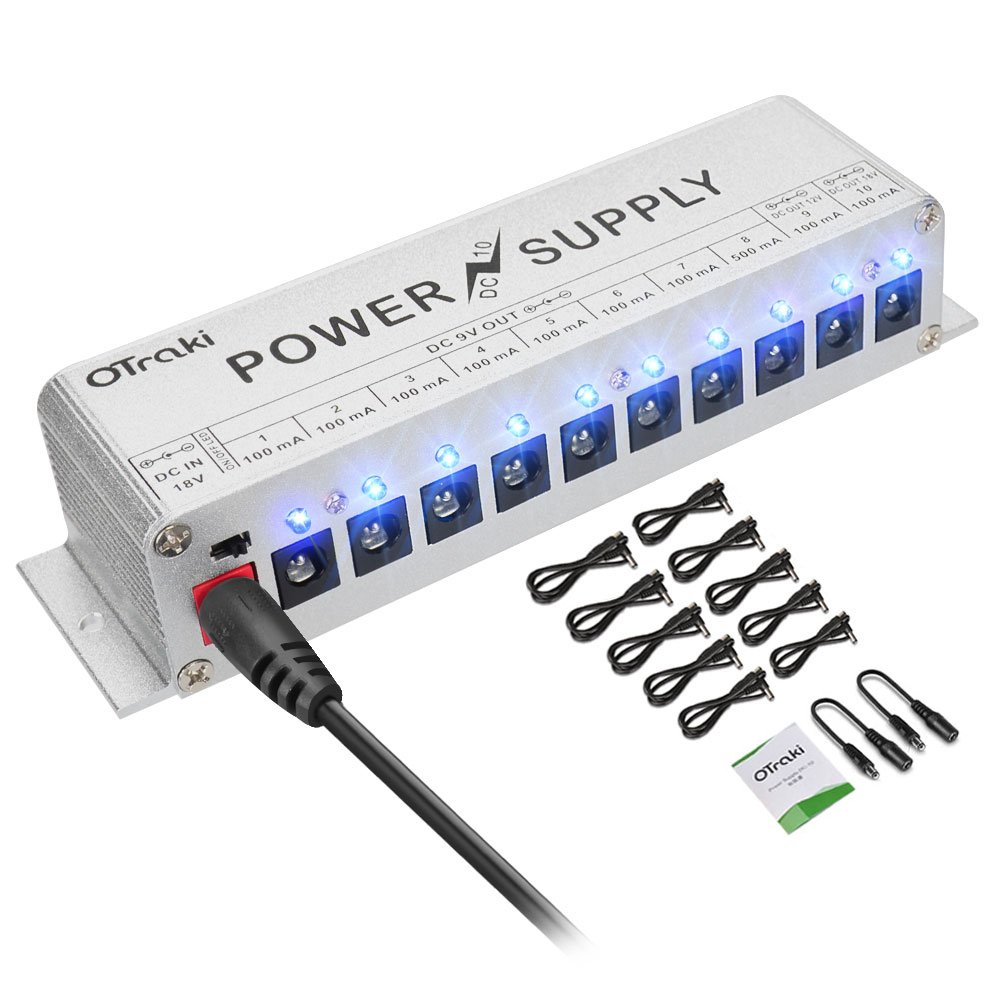

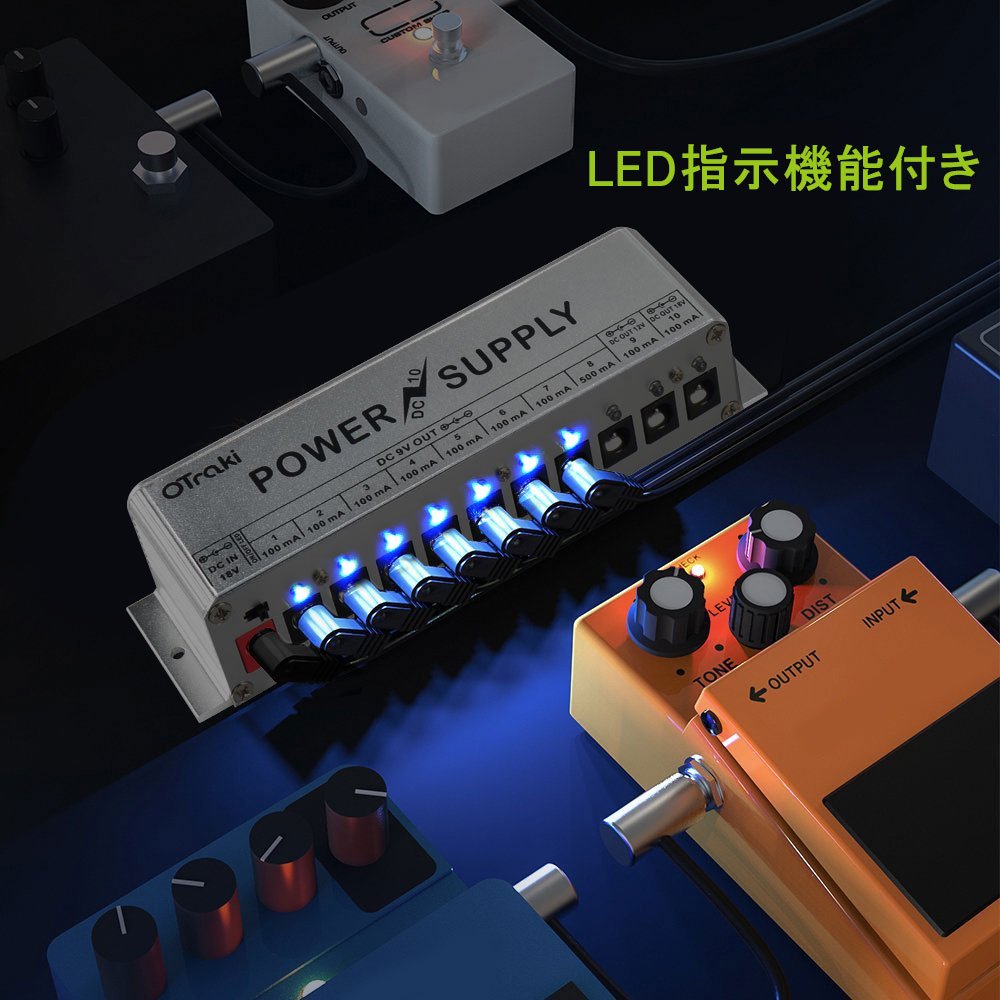

- LED indication function: Blue LED light on the panel, Pedal Board lighting function with shot circuit display, can be used freely even in dark environment.
- Accessories: DC power cable (10 pcs), polarity reversing cable (2 pcs), PSE certified power adapter, Japanese and English instruction manual
Product information:
Shipping Weight: 439 g
Package Dimensions: 5.89 x 10.49 x 21.41 cm
