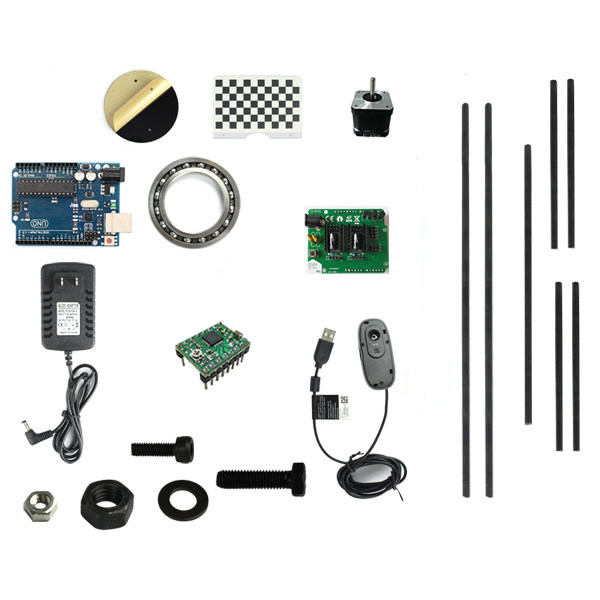

3D Scanner Packing List:
1, 1 * Arduino uno control panel (latest version)
2, 1 * ZUM Scan expansion board
3, 1 * A4988
4, 1 * C270 camera
5, 2 * laser
6, 1 * 42 motor
7, 1 * 16014 bearing
8, 1 * 12V, 2A power supply
9, 1 * 200mm Acrylic platform
10, 1 * Acrylic calibration board
11, 1 * calibration paper
12, 1 * black tie band
13, 2 * M8 * 400mm screw
14, 4 * M8 * 170mm screw
15, 1 * M8 * 292mm screw
16, 10 * M3 * 10 screws
17, 6 * M3 nuts
18, 3 * M8 * 10mm screws
19, 28 * M8 nuts
20, 18 * M8 gasket

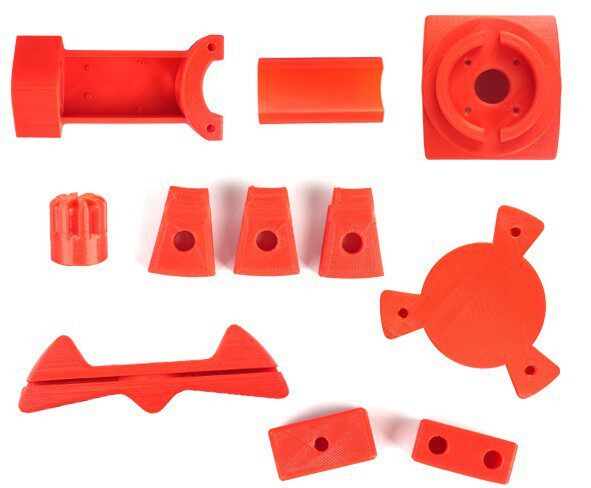

21, 1 set of prints
3D Scanner for easy scanning of objects:
1, opaque objects
2, the weight of the object is less than 3 kg
3, the object volume is greater than 5x5CM (space diameter and height)
4, the object volume is less than 20.3x20.3CM
5, the object is stable
The 3D scanner is difficult to scan objects
1, transparent objects (glass, organic plastics, etc.)
2, light or strong reflective objects
3, the volume is less than 5x5 cm objects
4, very dark objects and surface blurred objects (such as plush toys, black objects)
The 3D scanner does not scan the object
1, the volume is greater than 20.3x20.3CM objects
2, moving objects
3, the weight is greater than 3 kg
Complet set (pls refer to the picture above )
DIY 3D Scanner kit
This Scanner is easy to scan: 1, object space volume is bigger than 5*5cm 2, object space volume is smaller than 20.3cm*20.3cm 3. object weight is less than 3kgs 4. still object 5. opaque object FAQ: which things are hard to scan or can not scan ? 1.object space volume is smaller than 5*5cm 2.transparent oject (glass or organic plastics) 3.luminous object or highly reflective objects 4.dark object and fuzzy object(such as plush toys ) 5.object space volume is bigger than 20.3*20.3cm 6.object weight is more than 3kgs 7.moving object

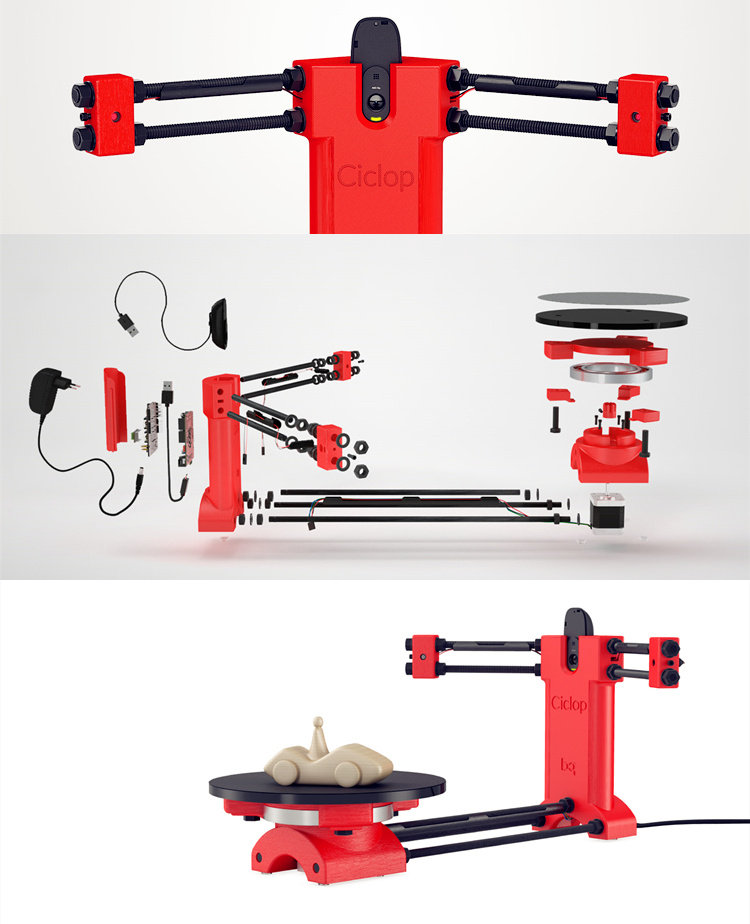

The Ciclop 3D scanner is a 100% open source project. As with all products of the BQ DIY ecosystem, Ciclop and
Horus have been made freely available under CC-BY-SA and GPL.
Product features: Scanning features: Scanning precision: 0.5 mm, Scanning time (configurable): 2-8 min, Steps per rotation: 1600 max, Scan volume: (Ø) 250 x (H) 205 mm, Maximum supported weight: 3 Kg. Note: This product is BQ Ciclop 3d scanner kit, you need to assemble it yourself. All files can be found in Internet. We were provide the link let u download
|
