Item Descriptions:
size:
HDMI to HDMI + light + 3.5 mm audio
specification:

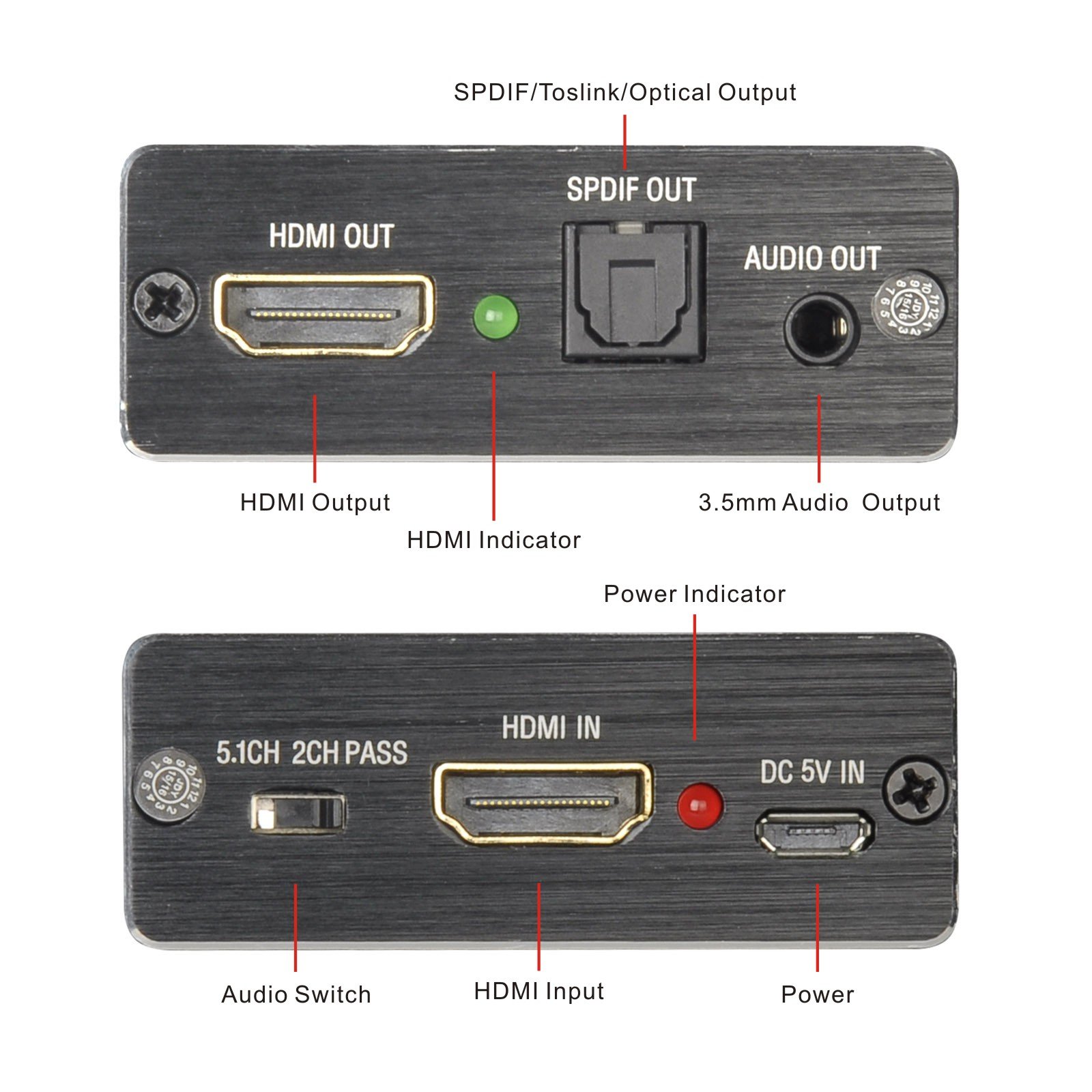

Input port: 1 x HDMI, 1 x Micro USB charging port, 3 x EDID audio (Pass / 2 CH / 5.1 CH)
Output port: 1 x HDMI, 1 x SPDIF (fiber optic-digital), 1 x 3.5 mm audio port
HDMI resolution: 4 K x 2 K, 24/50/60 fs / 1080 P / 1080 i / 720 p / 576 p / 576 i / 480 p / 480 i
Video color format: 24bit / 30bit, 36bit
Maximum bandwidth: 225 MHz
Maximum baud rate: 6.75 Gbps
Working current: 190 mA
Audio included in HDMI signal can be separated and output from optical digital terminal / analog audio (3.5 mm stereo).
Optical digital output · Analog (3.5 mm stereo) is output at the same time.
The original video and audio are included in the HDMI output.

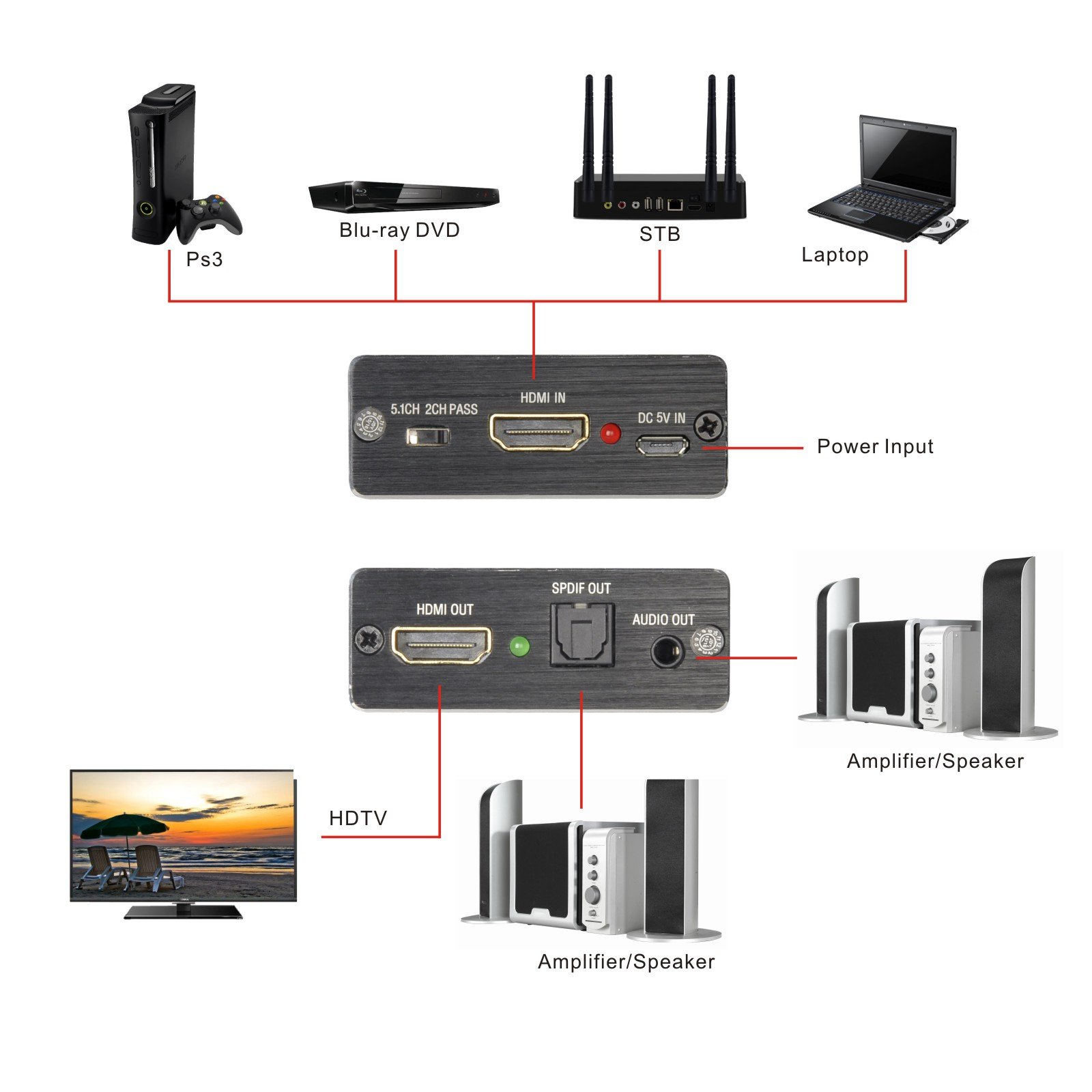

For example, you can enjoy the sound of game machines and BD players connected to a separate speaker, amplifier, audio system.
It can also be used when using an external speaker with a monitor with no audio output.
The HDMI on the output side contains video and audio signals and outputs (pass-through) as it is.
EDID set:
Pass: HDMI pass mode. Although audio and video can be output from the HDMI port, SPDIF / L / R can not output sound
2CH mode: Digital 2CH PCM from HDMI input Derive stereo audio signal and convert it to analog stereo audio output through RCA L / R analog output and support 5.1CH AC3, DTS 5.1CH
5.1 CH mode: Output HDMI / SPDIF through 5.1 Dolby Digital / DTS
Package list:
1 X body
1 X 3.5 mm to RCA audio cable
1 x Micro USB cable
1 X Instructions
One year limited warranty by Tendak
Note: While the Tendak HDMI conversion adapter is in normal operation and no AC adapter is required, a 5 V / 500 mA external power supply is required when this converter box is connected to a nonstandard HDMI interface or HDMI cable
Features:
- Please enter model number Confirm this is compatible:
- Tendak HDMI digital audio separator HDMI input, HDMI output (Pass mode) SPDIF (Pass Mode) Digital audio output (2 CH / 5.1 CH mode), analog RCA L / R audio output (2 CH mode) 3.5 mm RCA audio cable
- HDMI audio signal separation synchronization realized and HDCP 1.3 (maximum HDCP 1.4 possible) Resolution: 4 K x 2 K, 1080 P / 60 Hz, 3D / 24 Hz
- Deep color of 24 bit / deep color 30bit, 36bit channel (all 36bit channels) is supported EDID set: Pass 2CH / 5.1CH
- 3.5mm audio output: 2CHPCM stereoscopic audio SPDIF output 2CH PCM, 5.1CH Dolby Digital, DTS audio
- Machine compatible with having all HDMI ports No Roku or Chromecast audio output Blu - ray / DVD / HD player, wired / satellite box (satellite box) Amazon Fire TV, Apple TV, PS3 / 4, Xbox, PC / laptop
- , HD camera, HD DVR etc.
Product information:
Shipping Weight: 185 g
Package Dimensions: 5.31 x 11.99 x 15.01 cm
