Item Descriptions:

size:

60M

[Instantaneous measurement with laser light]

Since the laser light catches the target at pinpoint, it can easily and accurately measure even at the site where furniture and members are placed.

Measurement work that was two persons, such as using a tape measure, can be done easily by one person alone.

suaoki laser range finder S9 features:

Maximum measuring distance 60 meters

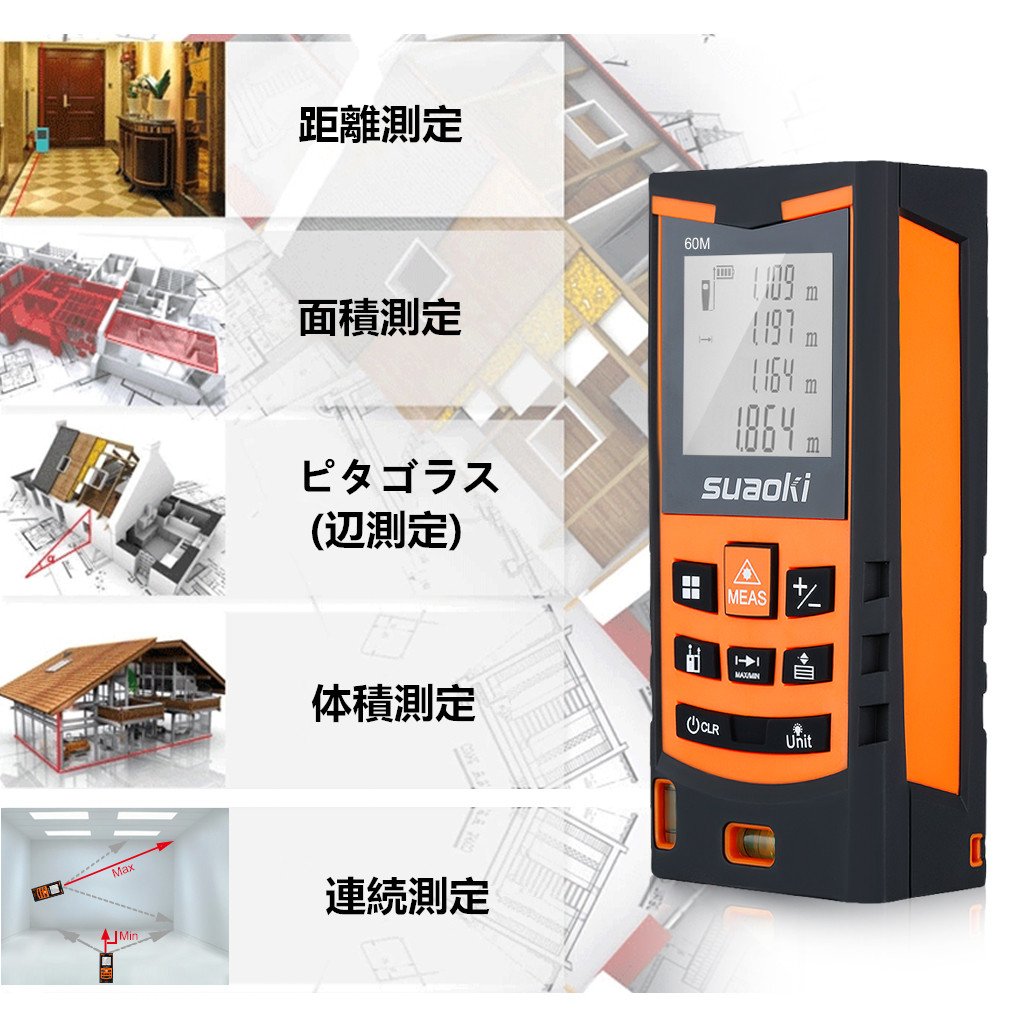

● Five kinds of measurement modes that can be selected depending on the work: distance, continuous measurement (maximum / minimum distance), area, volume, Pythagoras + calculation function (addition / subtraction of measurement values ​​is possible)

● IP54 waterproof and dustproof standard

● A wide range is rubber coated, it is hard to slip, and higher impact resistance performance is realized.

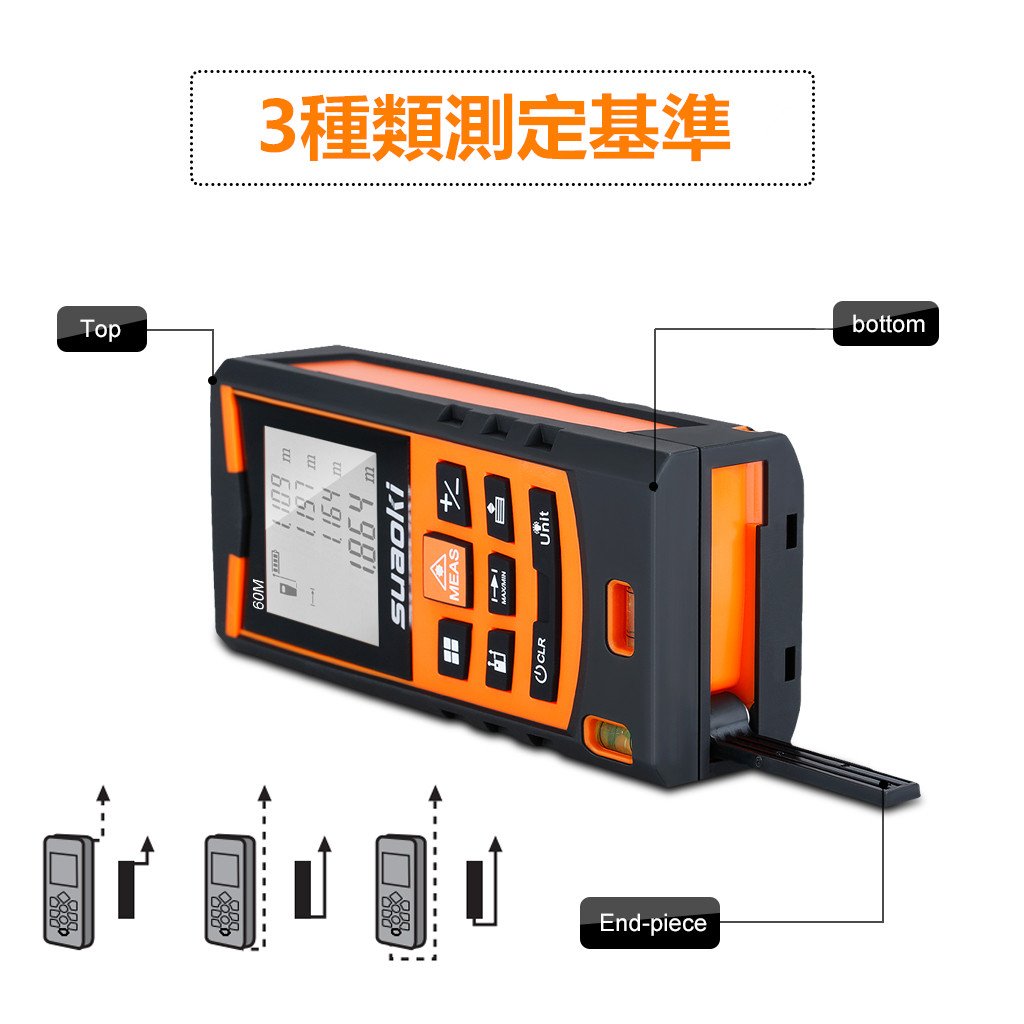

【Three measurement standard points】

From the front end of the main body, the rear end of the main body, from the extension rod

※ The material of the extension rod is plastic resin.

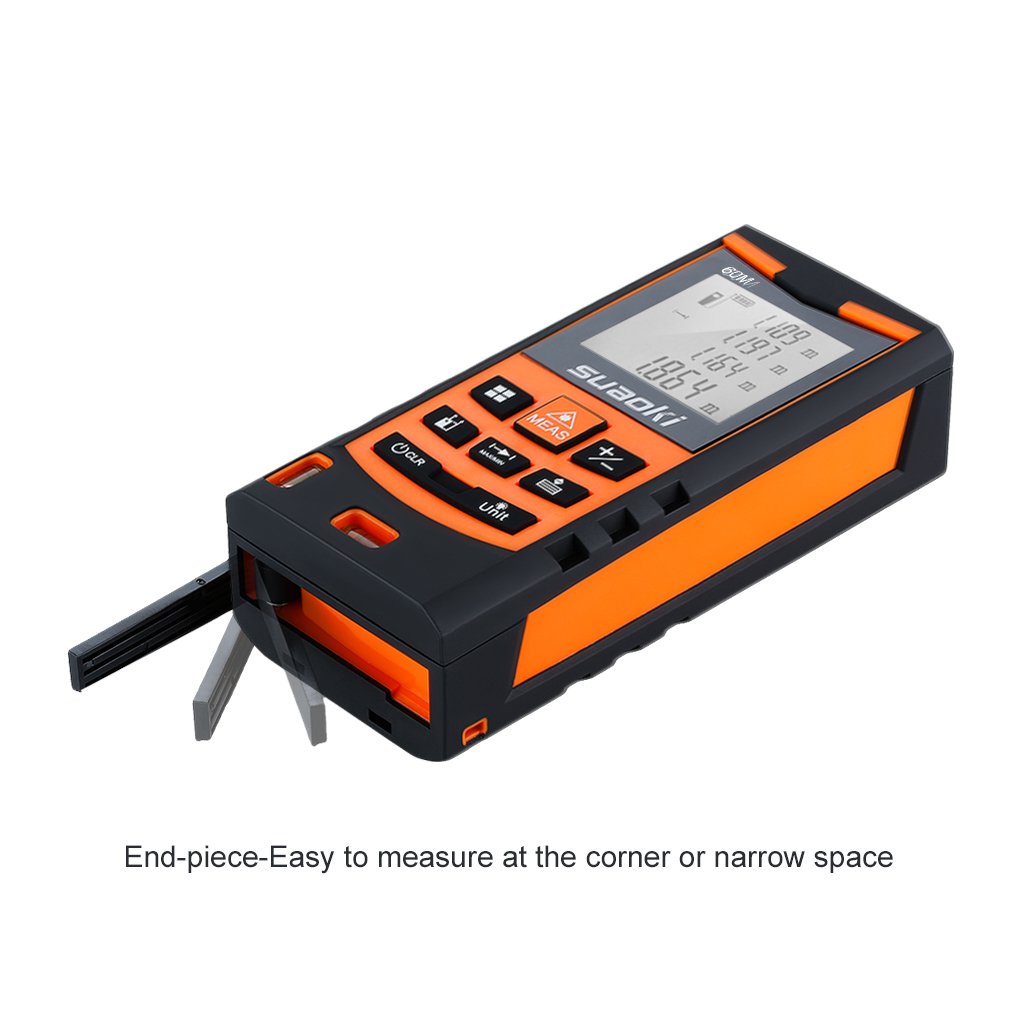

It is possible to measure corners and narrow places.

【Automatic measurement value storage (20 cases)】

The latest data of 20 are automatically stored.

There is nothing to say "I forgot to save!"

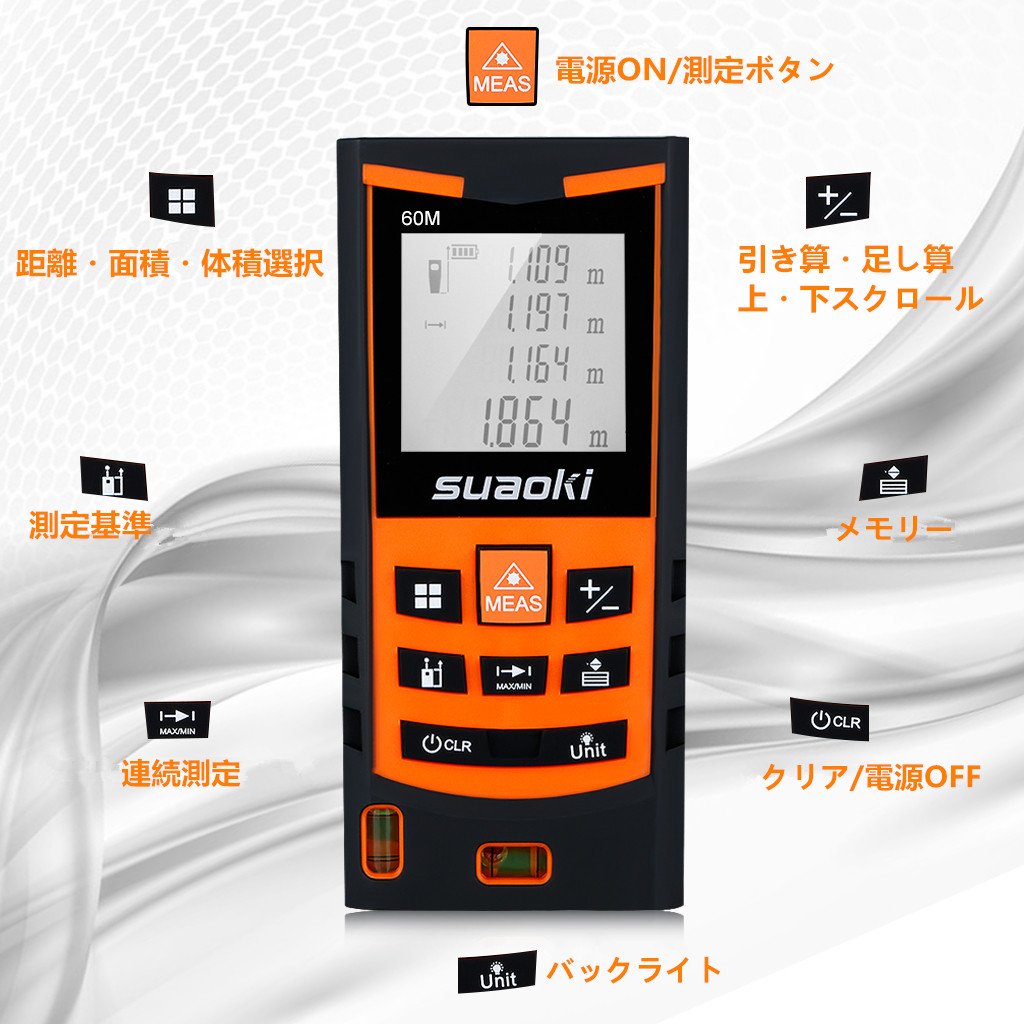

【Backlight with easy to see even in the dark · 4 row display】

When you press the "unit" button, the backlight of the display lights, and you can see it even in a dark place.

【Caution:】

1. The measurable range varies depending on the reflection characteristics of the laser beam from the measurement target surface and the brightness around the use.

Diffuse reflection (not mirror reflection) from the surface to be measured is secured, its measurement capability is demonstrated in indoor, dark places, etc. where there is a large difference in brightness between laser light and the surroundings.

When using in an environment unfavorable to measurement, such as strong direct sunlight, cover the surface of the measurement object with white paper or an optional target plate if necessary.

2. This product is warranted for 1 year from the date of purchase, if initial malfunction or normal use breakdown, please contact directly our shop.

【Product Specifications:】

Measurable range: 0.1 to 60 m

Measurement accuracy: ± 1.5 mm

Usage selection unit: m

Standard: IP54

Auto power off: laser light: about 30 seconds Body: about 3 minutes

Laser type: 635 nm, <1 mW

Laser class: Class 2

Power supply: 2 AAA alkaline batteries

Battery life: Approximately 5000 times (when using a new alkaline dry battery)

Usage / storage temperature range: 0 - 40 ° C / - 10 - 60 ° C

Weight: 123 g (including batteries)

Size: 115 x 52 x 32.5 mm

【accessories:】

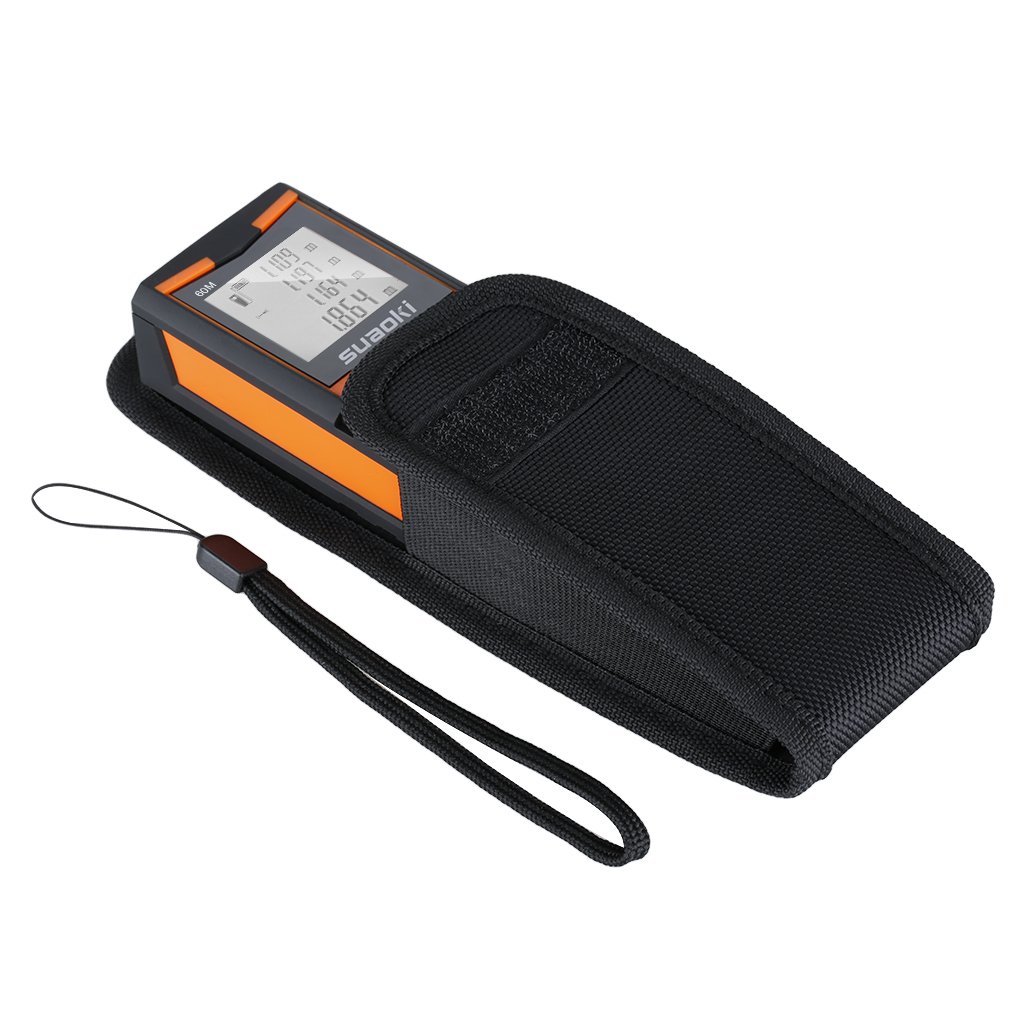

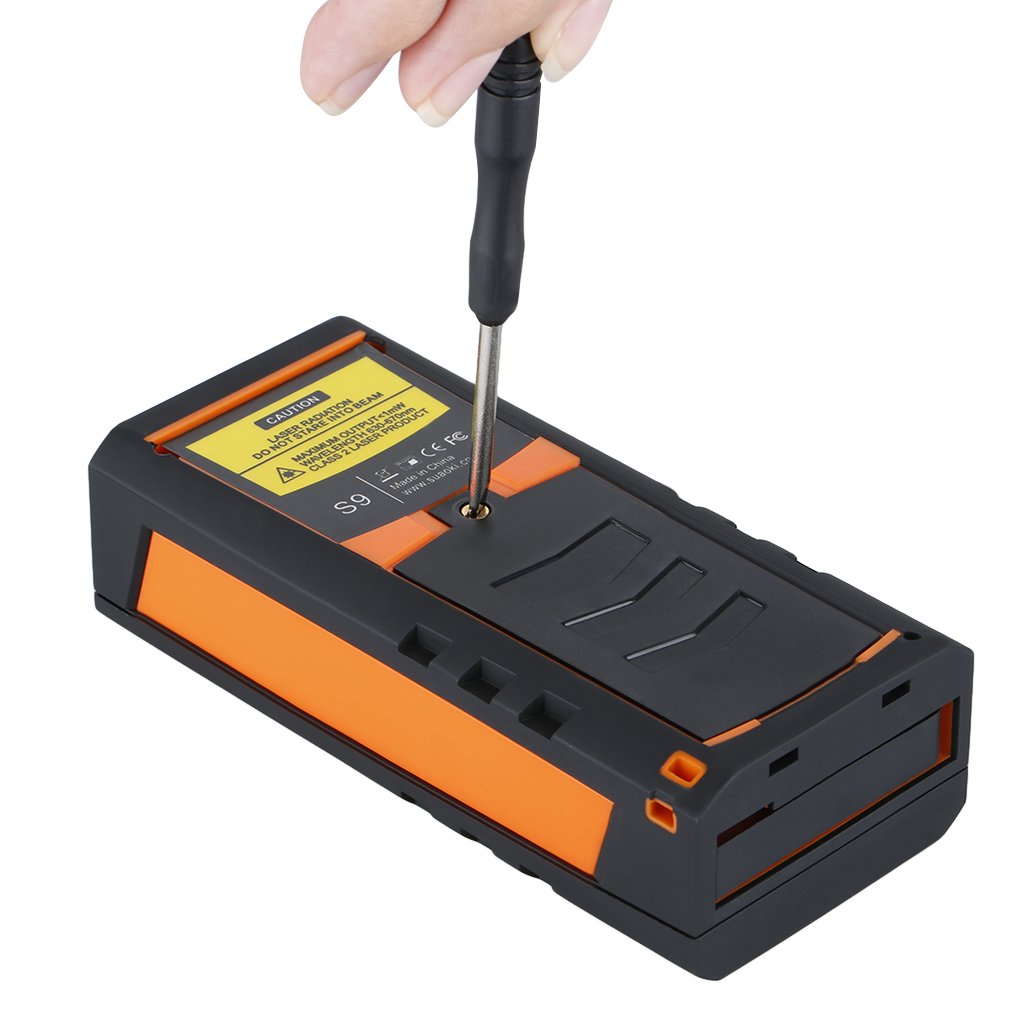

Flathead screwdriver, battery, neck strap, storage case, instruction manual

Features:

• Maximum measurement range: 60 m Measurement accuracy: ± 1.5 mm Laser class: Class 2
• Measurement mode: Measure distance / continuous measurement (maximum / minimum distance) · area · volume · Pythagorean (side measurement).
• Addition / subtraction of measured values is also possible.
• Three measurement reference points: From the front end of the main body, from the rear end of the main body, from the extension rod * The material of the extension rod is plastic resin.
• It is possible to measure corners and narrow places.
• Measurement value automatic storage (20 cases), with backlight
• Product size: 115 X 52 X 32.5 mm Weight: 123 g Power supply: 2 AAA alkaline batteries (built-in) Battery life: About 5000 times (when using a new alkaline dry battery)

Product information:

Shipping Weight: 281 g

Package Dimensions: 9.19 x 19.51 x 22.81 cm
