12V / 122rpm / 38kg.cm Metal DC Geared Motor w/Encoder. for Projects Such as Robots and 3D Printers.









Product Description

INTRODUCTION

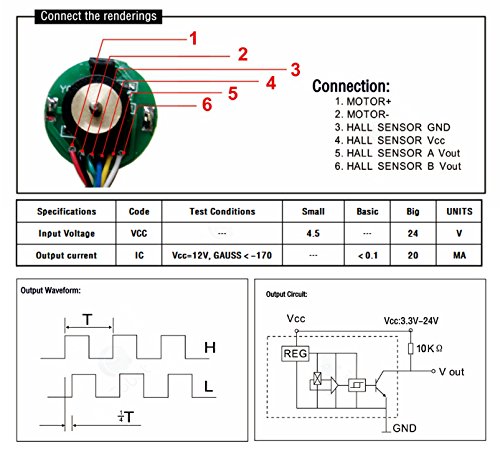

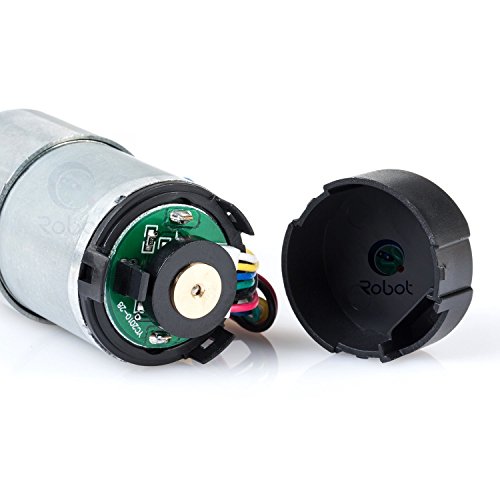

CQRobot-Gear Motor w/Encoder. It is a powerful 12V motor with a 90:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 16 counts per revolution of the motor shaft, which corresponds to 1440 counts per revolution of the gearbox's output shaft.

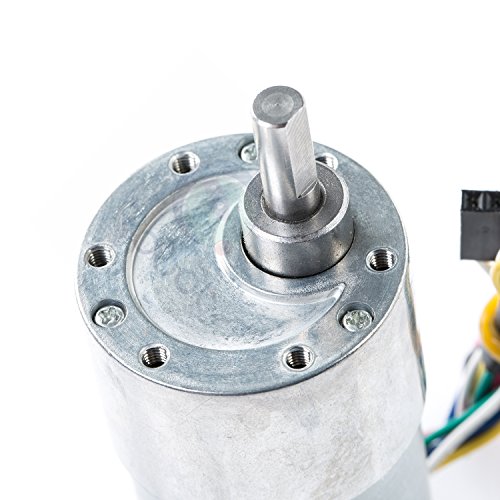

These units have a 0.61 inch long, 6 mm(0.24 inch)-diameter D-shaped output shaft. This motor is intended for use at 12V, though the motor can begin rotating at voltages as low as 1V.

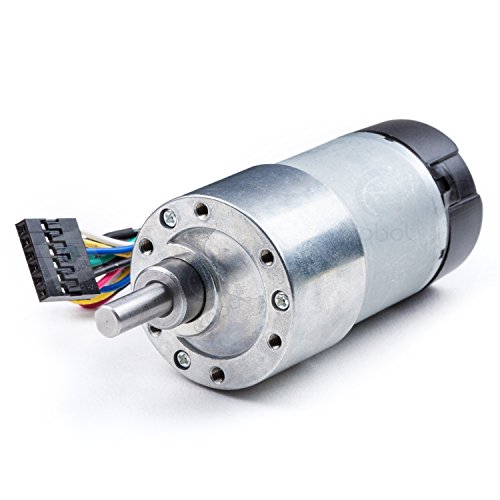

The face plate has six mounting holes evenly spaced around the outer edge threaded for M3 screws. These mounting holes form a regular hexagon and the centers of neighboring holes are 15.5 mm（0.61 inch） apart.

This motor is an ideal option for your mobile robot project.

NOTE

Do not screw too far into the mounting holes as the screws can hit the gears. Manufacturer recommends screwing no further than 3mm (1/8 inch) into the screw hole.

SPECIFICATION

- Gear Ratio: 90:1

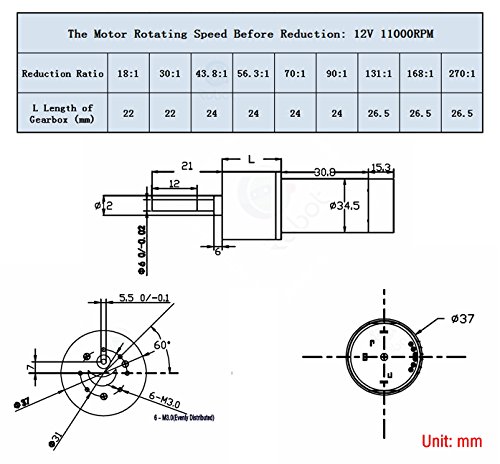

- Reducer L Length: 24mm
- No-load Speed: 122 RPM (Plus/Minus 10%)
- No-load Current: 350 mA
- Start Voltage: 1.0V
- Stall Torque: 38 kg.cm
- Stall Current: 6.0A
- Insulation Resistance: 20MΩ (with DC 250V, the Resistance Between Motor Terminal and Shell is More than 20MΩ)
- EncoderOperating Voltage: 3.3V - 24V
- Encoder Type: Hall (Incremental Type)
- Encoder Resolution: 16CPR(Motor Shaft)/1440CPR(Gearbox Shaft)
- Weight: 205g

SHIPPING LIST

1 * 12V/DC Gear Motor with Encoder 122RPM


Feature

This motor is an ideal option for your mobile robot project.
It is a powerful 12V motor with a 90:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 16 counts per revolution of the motor shaft, which corresponds to 1440 counts per revolution of the gearbox's output shaft.
These units have a 0.61 inch long, 6 mm(0.24 inch)-diameter D-shaped output shaft. This motor is intended for use at 12V, though the motor can begin rotating at voltages as low as 1V.
The face plate has six mounting holes evenly spaced around the outer edge threaded for M3 screws. These mounting holes form a regular hexagon and the centers of neighboring holes are 15.5 mm（0.61 inch） apart.
Brand : CQRobot
Item model num : CQRFIT0403US
MPN(PartNumber) : 1
EAN : 0712104670699
Package Dimensions(LxWxH) : 11x5x5cm ; 204 g
