Deep and large feces at the same time more players please note: If your tank and more， and the cylinder depth， a single cylinder outside the filter barrel is not enough， because the filter is mainly bacteria fermentation tank， its water absorption Pipe is one meter long， little suction， suction is not outside the barrel filter barrel strengths (all outside the barrel filter barrels are)， in which case to use the filter barrel， it is necessary to match a submersible pump or made Wave pump， submersible pump or wave pump does not take any tube directly on the bottom of the cylinder， submersible pump or wave pump outlet fixed in the direction of the filter bucket inlet in the opposite direction of red; so the bottom of the cylinder water has been moving up and down ， The cylinder below the stool will be sucked away by the filter bucket!

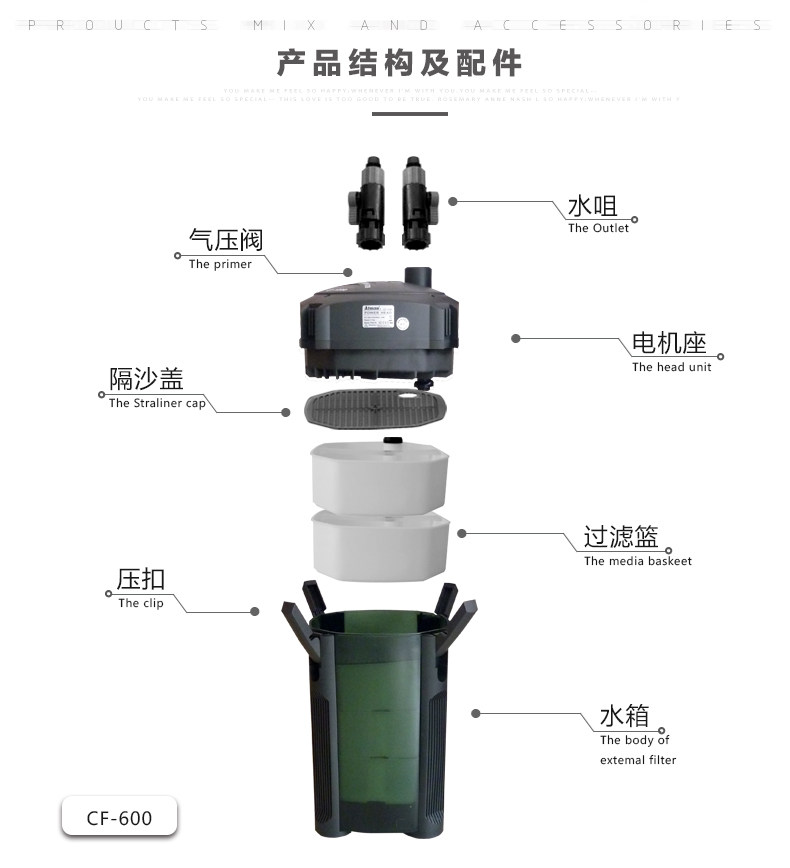

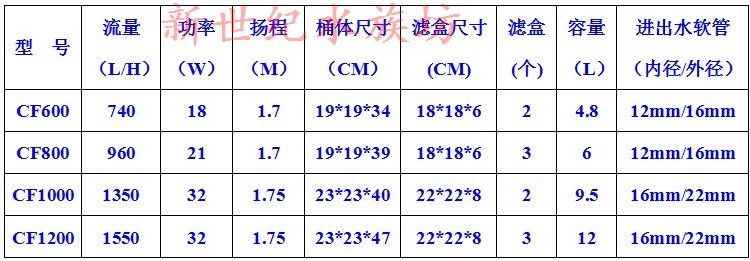

[A star cf600 related parameters]:

Power: 18W
Flow: 740L / H
Head: 1.7 meters
Dimensions: Length 19 × Width 19 × Height 34cm
The number of filter box: 2

Out of the water hose: 1.5 m * 2 (diameter 12MM; diameter 16MM)
Weight: 5.5kg

The number of filter box: 2


[CF800 related parameters]:

Power: 21W
Flow rate: 960L / H
Head: 1.7 meters
Size: Length 19 × Width 19 × Height 39cm
The number of filter box: 3

Out of the water hose: 1.5 m * 2 (diameter 12MM; diameter 16MM)

Shipping Weight: 6kg



[CF1000 related parameters]:

Voltage: 220 ~ 240V / 50-60HZ
Power: 32W
Head: 1.75 meters
Maximum flow: 1350L / H

Out of the water: filter box: 2
Out of the water pipe specifications: 1.5M * 2 (diameter 16MM; diameter 22MM)

Filter barrel size: 23CM × 23CM × 40CM (length and width)
Weight: 7 kg

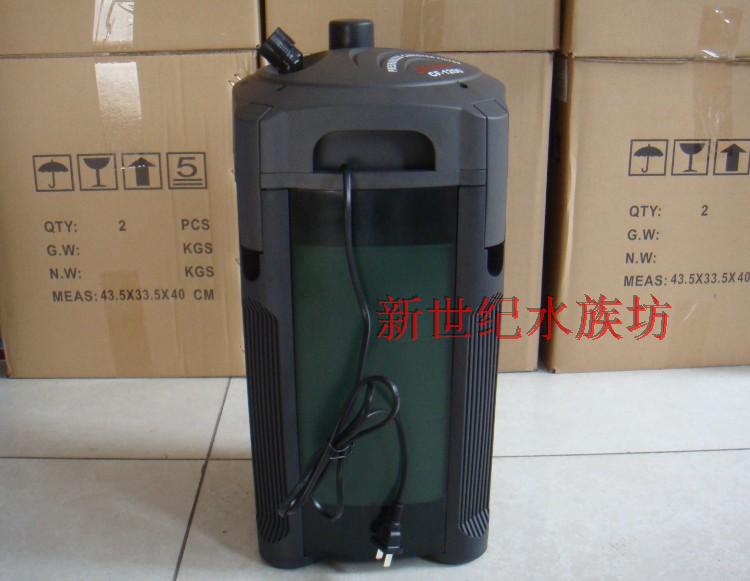

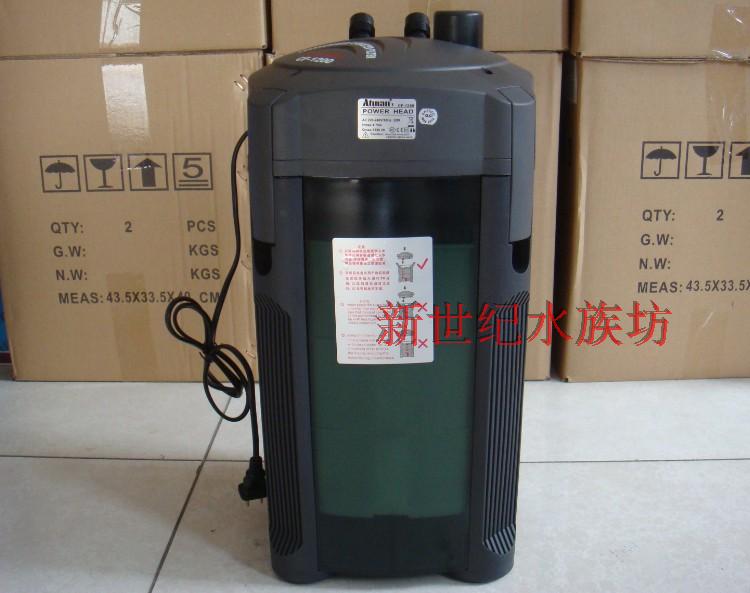

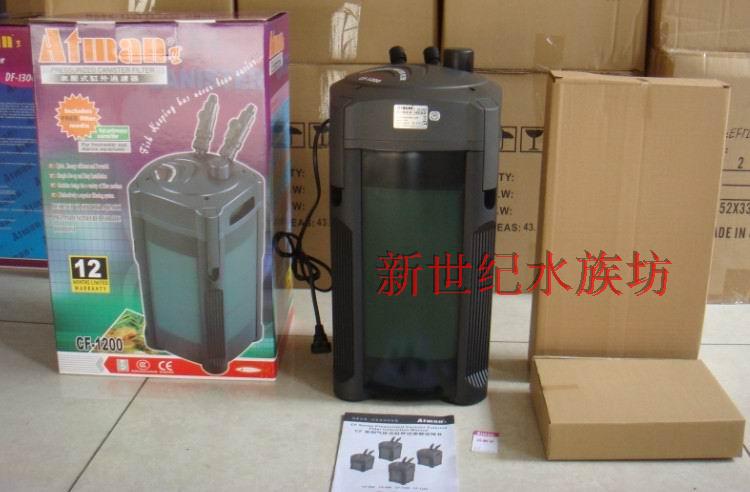

[CF1200 related parameters]:

Voltage: 220 ~ 240V / 50-60HZ
Power: 32W
Head: 1.75 meters
Maximum flow: 1550L / H

Out of the water: Filter box: 3
Out of the water pipe specifications: 1.5M * 2 (diameter 16MM; diameter 22MM)

Filter barrel size: 23CM × 23CM × 47CM (length and width)
Weight: 7 kg

Product warranty Please refer to the operating instructions

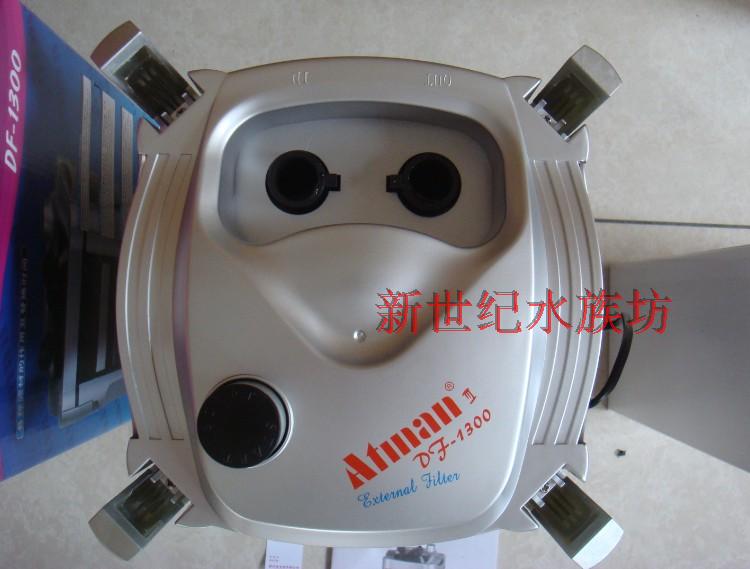

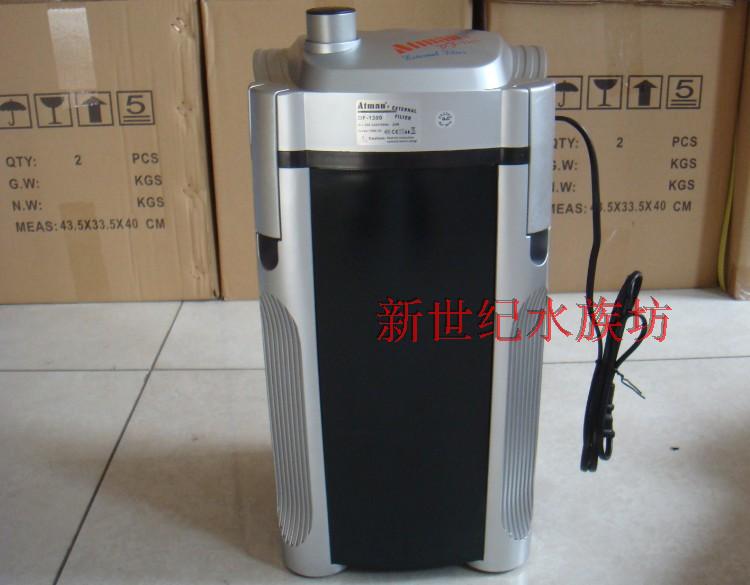

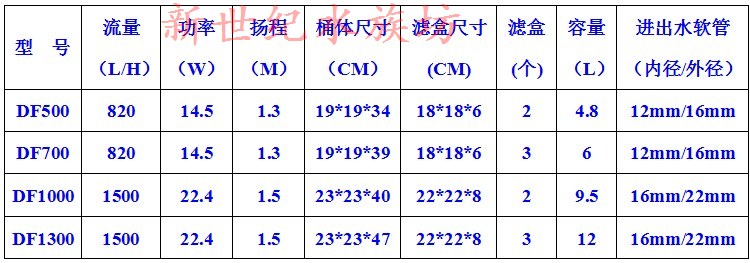

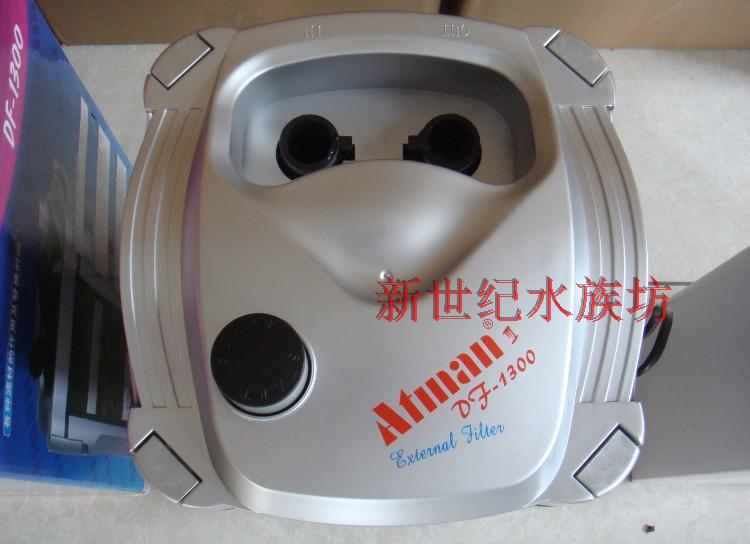

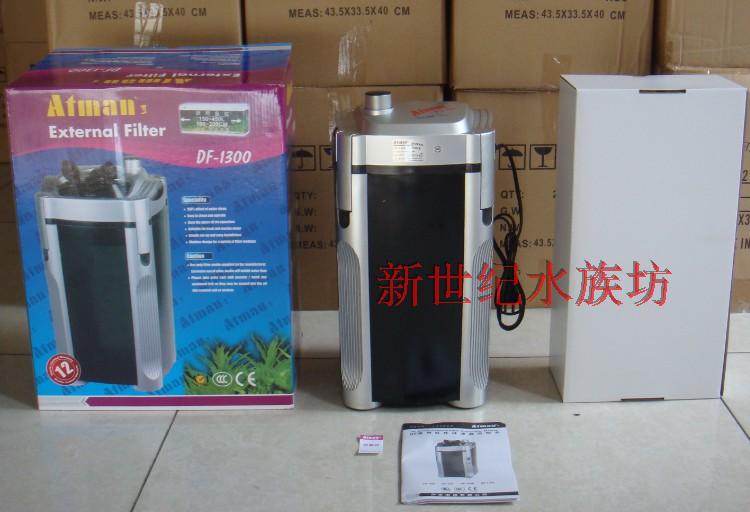

[A star DF-1300 filter barrels related parameters:]

1. Flow rate: 1500L / hour
2. Applicable water tank: 100 ~ 200CM / about 150 ~ 450L
3. The highest head: 1.5 meters
4. Out of the water pipe diameter: diameter 16MM; diameter 22MM (1.5 m 2)
5. Voltage frequency: 220V / 50Hz
6. Rated power: 22.4W

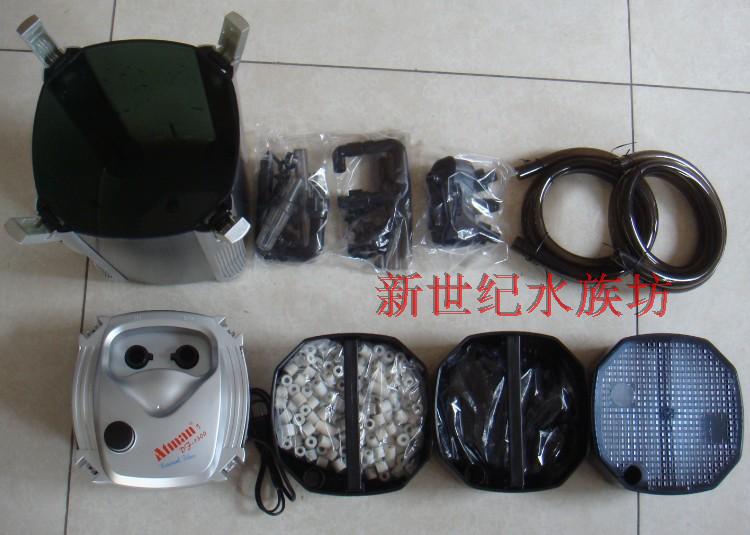

7 filter box: 3 (original configuration: biochemical cotton 2， filter cotton 1， ceramic ring 1 package， biochemical ball a pack)

8. Size: Length 23CM Width 23CM Height 47CM

Shipping Weight: 9KG





[A star DF-1000 filter barrels related parameters:]

1. Flow rate: 1500L / hour
2. Applicable water tank: 100 ~ 200CM / about 150 ~ 450L
3. The highest head: 1.5 meters
4. Out of the water pipe diameter: diameter 16MM; diameter 22MM (1.5 m 2)
5. Voltage frequency: 220V / 50Hz
6. Rated power: 22.4W
(Note: DF500， DF1000 filter box two， so the ball directly down the ball house of the manufacturer.). Filter box: 2 (original configuration: biochemical cotton 2， filter cotton 1， ceramic ring 1 package， biochemical ball package). At the bottom of the barrel)

8. Size: Length 23CM wide 23CM high 40CM

Shipping Weight: 9KG

[A star DF-700 filter barrels related parameters:]

1. Flow: 820L / hour
2. Applicable water tank: 60 ~ 100CM / about 60 ~ 160L
3. The highest lift: 1.3 meters
4. Out of the water pipe diameter: diameter 12MM; diameter 16MM (1.5 m 2)
5. Voltage frequency: 220V / 50Hz
6. Rated power: 14.5W
7 filter box: 3 (original configuration: biochemical cotton 2， filter cotton 1， ceramic ring 1 package， biochemical ball a pack)

8. Size: Length 19CM Width 19CM Height 39CM

Shipping Weight: 6KG


[A star DF-500 filter barrels related parameters:]

1. Flow: 820L / hour
2. Applicable water tank: 60 ~ 100CM / about 60 ~ 160L
3. The highest lift: 1.3 meters
4. Out of the water pipe diameter: diameter 12MM; diameter 16MM (1.5 m 2)
5. Voltage frequency: 220V / 50Hz
6. Rated power: 14.5W
(Note: DF500， DF1000 filter box two， so the biological ball factory directly down the house， At the bottom of the barrel)

8. Size: Length 19CM Width 19CM Height 34CM

Shipping Weight: 6KG

DF series is the CF series after the new， DF more energy than the CF energy saving， the same barrel size， the same volume， the same flow， DF original factory with There are filter， CF original with no filter， the appearance of different， the other is almost the same. CF600 / 800/1000/1200 Equivalent to the DF500 / 700/1000/1300 However， DF original with the filter ring is very general (ceramic ring)， the proposed top filter package!


[product manual]:

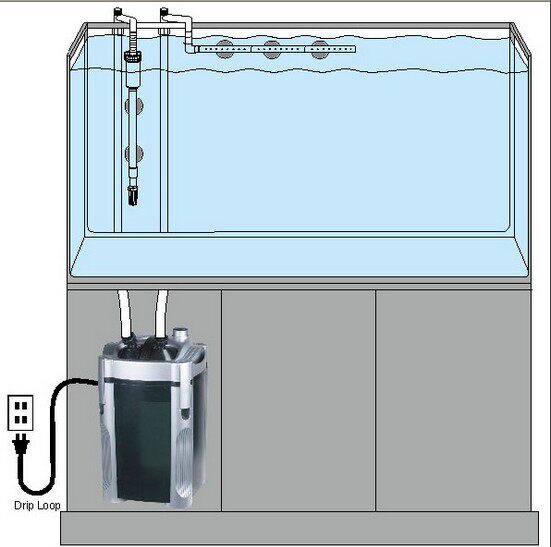

1， the filter based on fish， aquatic biochemical system design， the use of a closed circulatory system to filter the water tank. A maintenance-free water pump in the motor block assures a permanent water circulation. Water from the tank into the filter， flowing through the filter material， can quickly cultivate the use of biochemical bacteria and biochemical bacteria in the filter， pumped out by the filter back to the fish tank.
2， exhaust design， the use of air compression principle， do not direct irrigation into the bucket， the operation is simple， convenient and fast.
3， circulating water design， effective filter impurities in the tank， so that water quality is more clear， more pure.
4， for fresh water tank， sea water tank， filter effect， safe power.
5， the barrel of space， according to the needs of hierarchical placement of a variety of physical， chemical， biological filter equipment (such as activated carbon， cotton filter， bio-ball， ceramic ring).

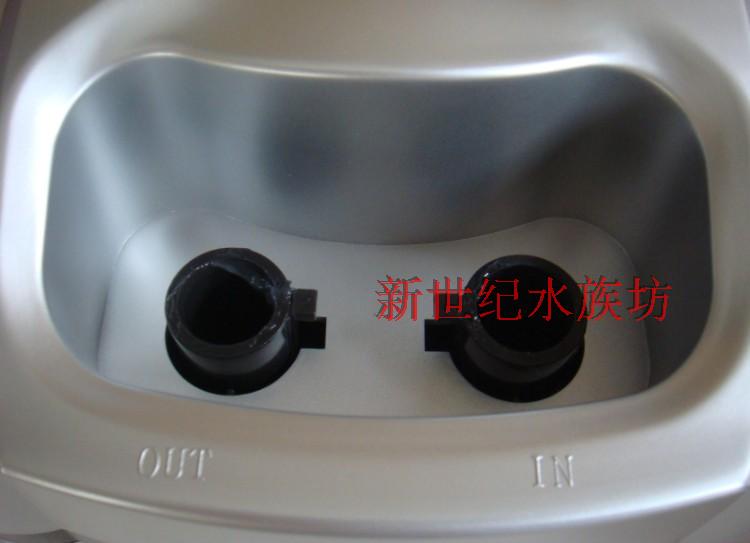

6， connecting the nozzle switch can be rotated 360 degrees， easy to install or clean the filter.
7， high-tech motor design， with permanent magnets， ceramic shaft， the pump sound more quiet.
8， the precise pipe connection design， safe， reliable， water nozzle switch can be adjusted water.

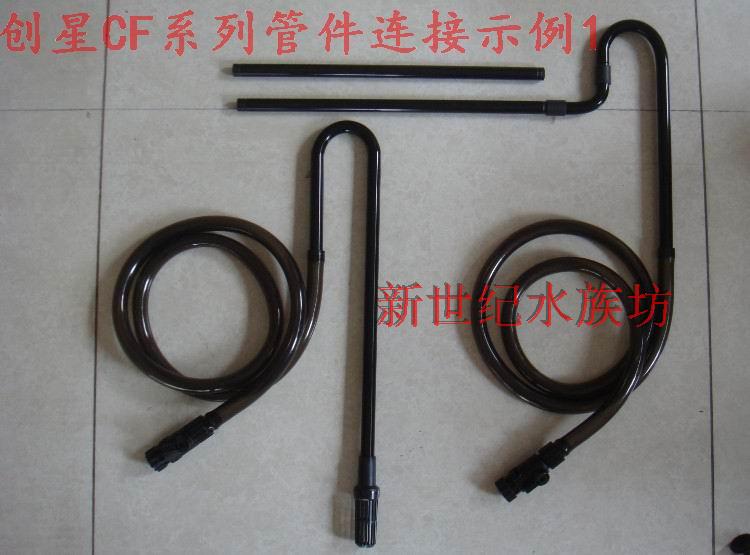

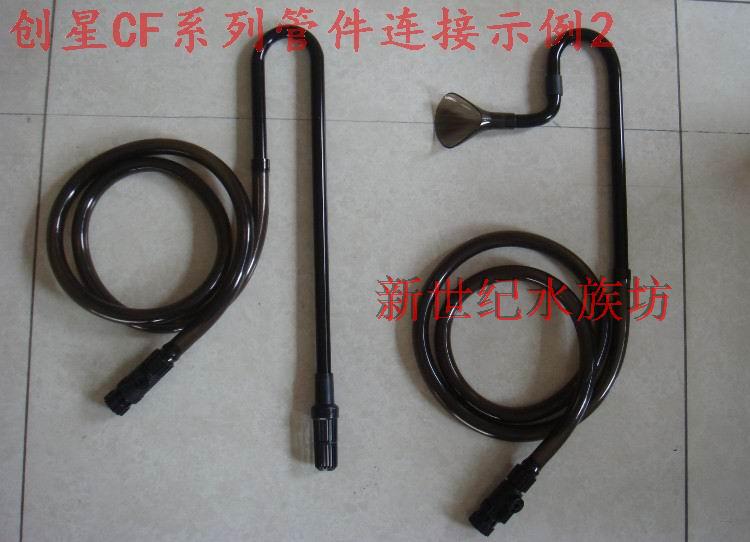

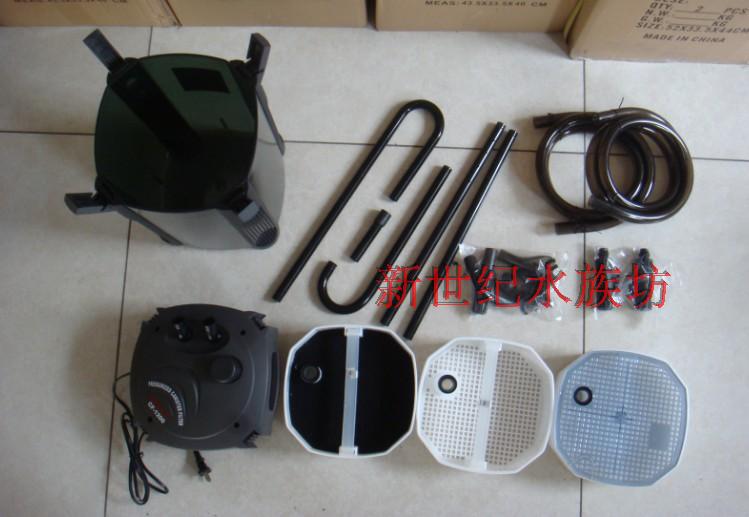

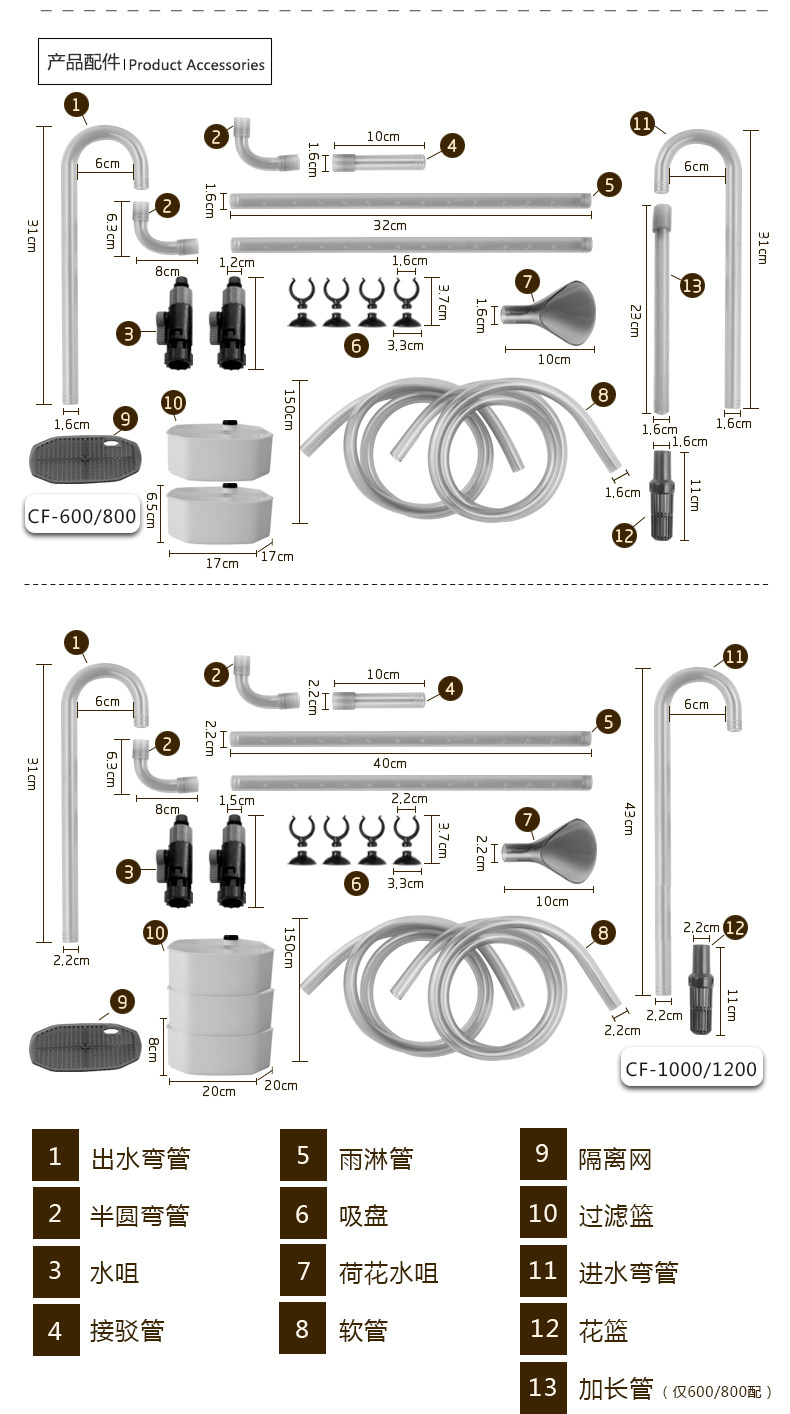

CF600 / CF800 has instructions on the 15th part of the accessories; instructions on the 10th， 11， aprons are now installed in the product， the CF100 / 1200 is not available on the 15th part of the instructions， So receive the baby accessories box is not， please buyers friend attention， so as not to misunderstand!
