Item Descriptions:

size:

4 inputs 1 output + audio separator + ARC

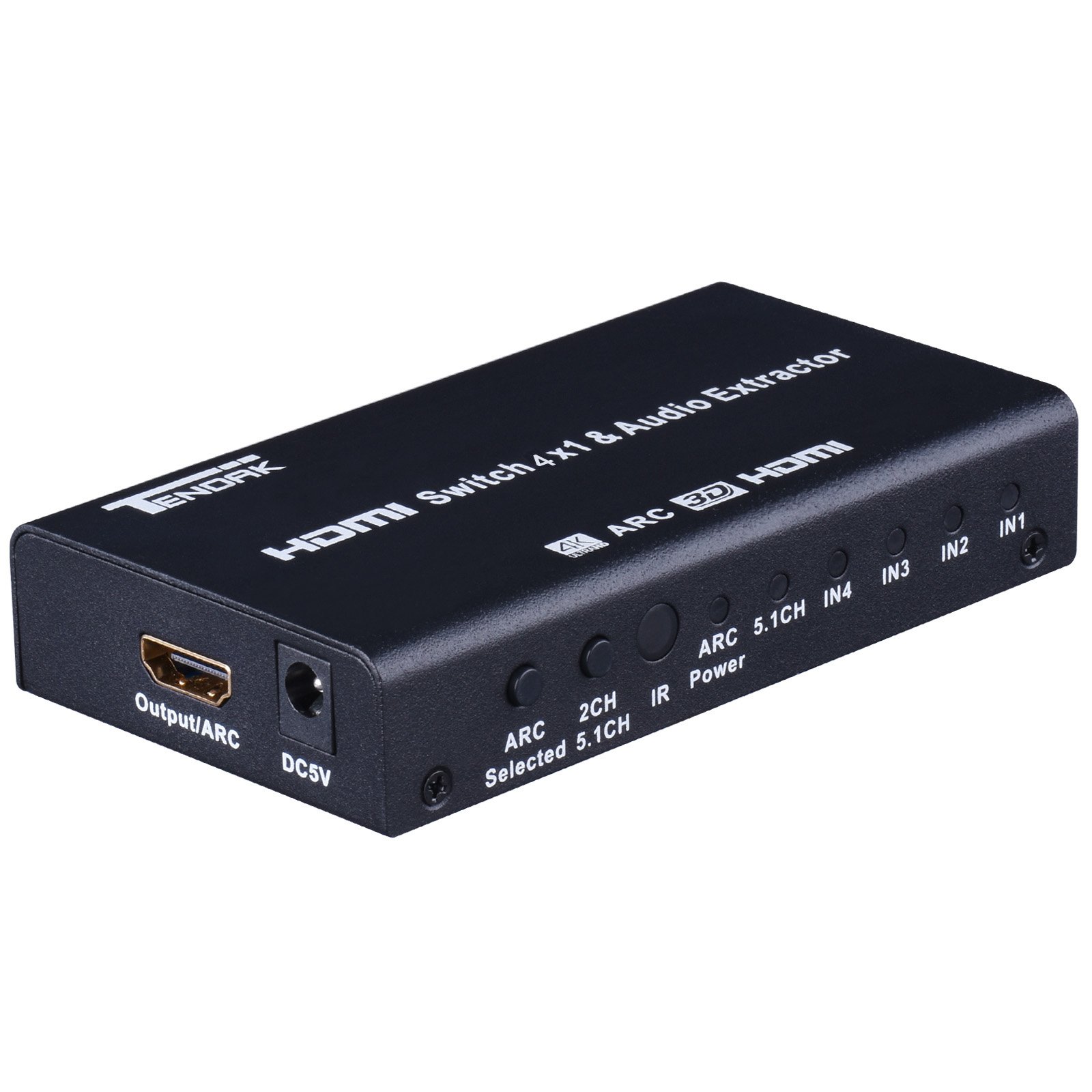

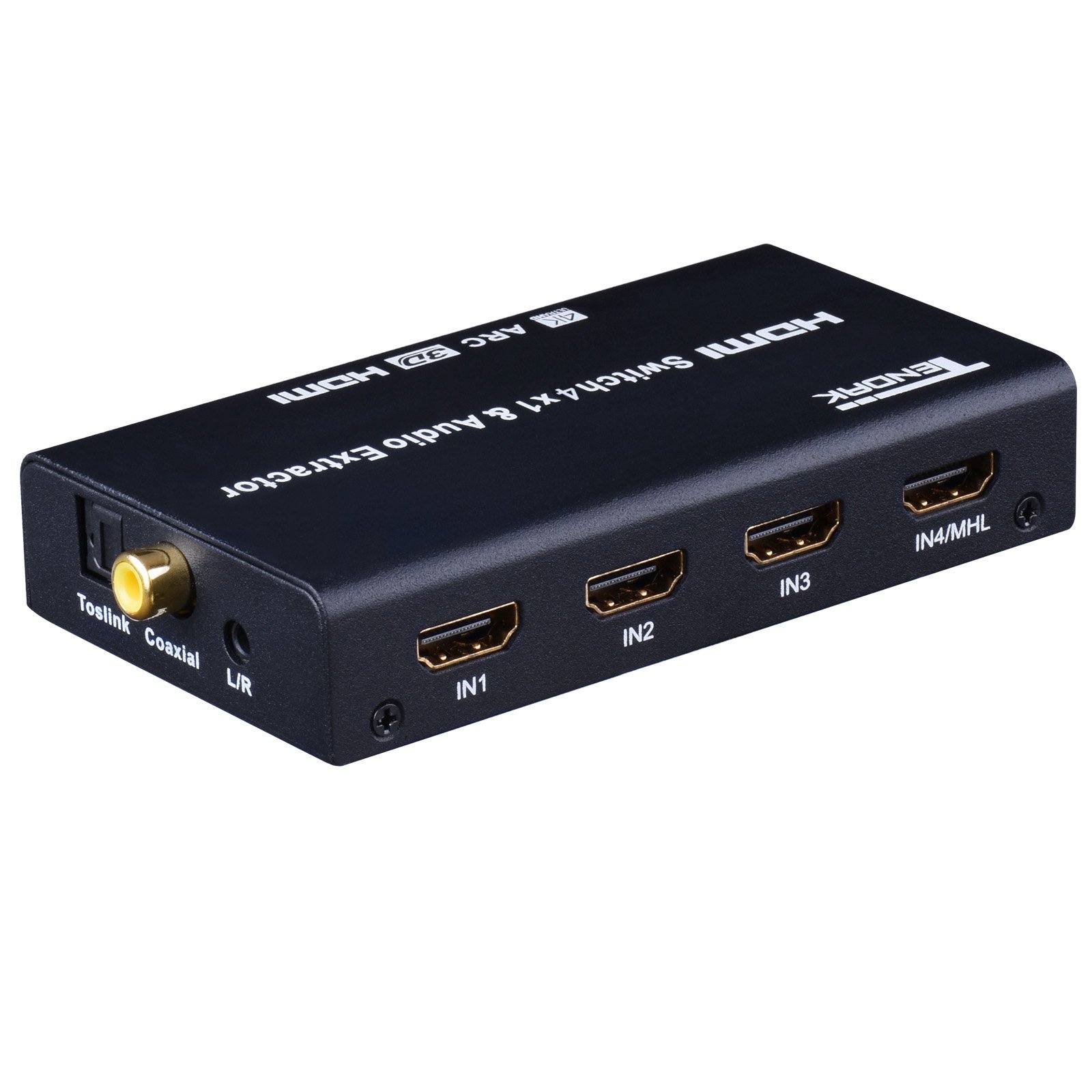

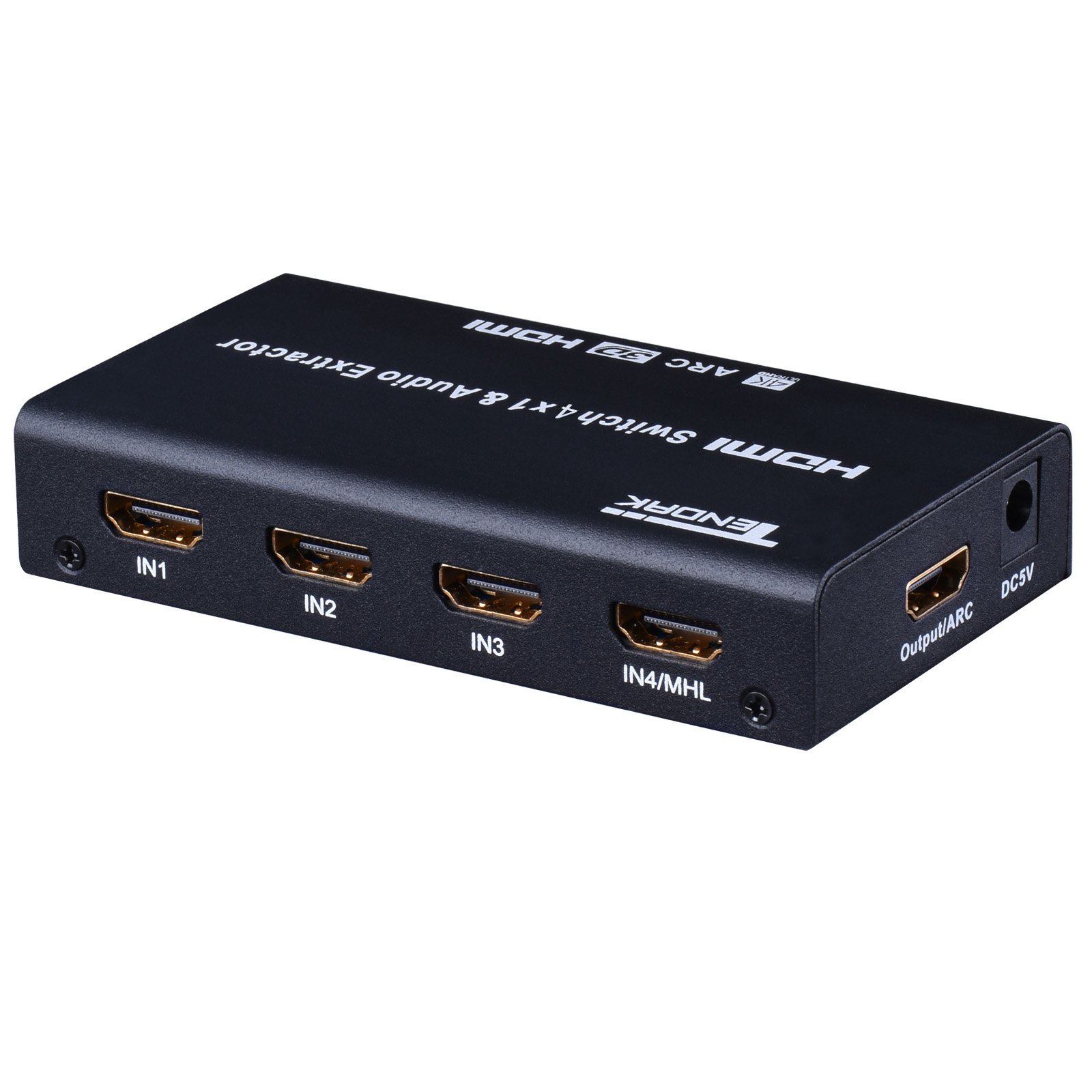

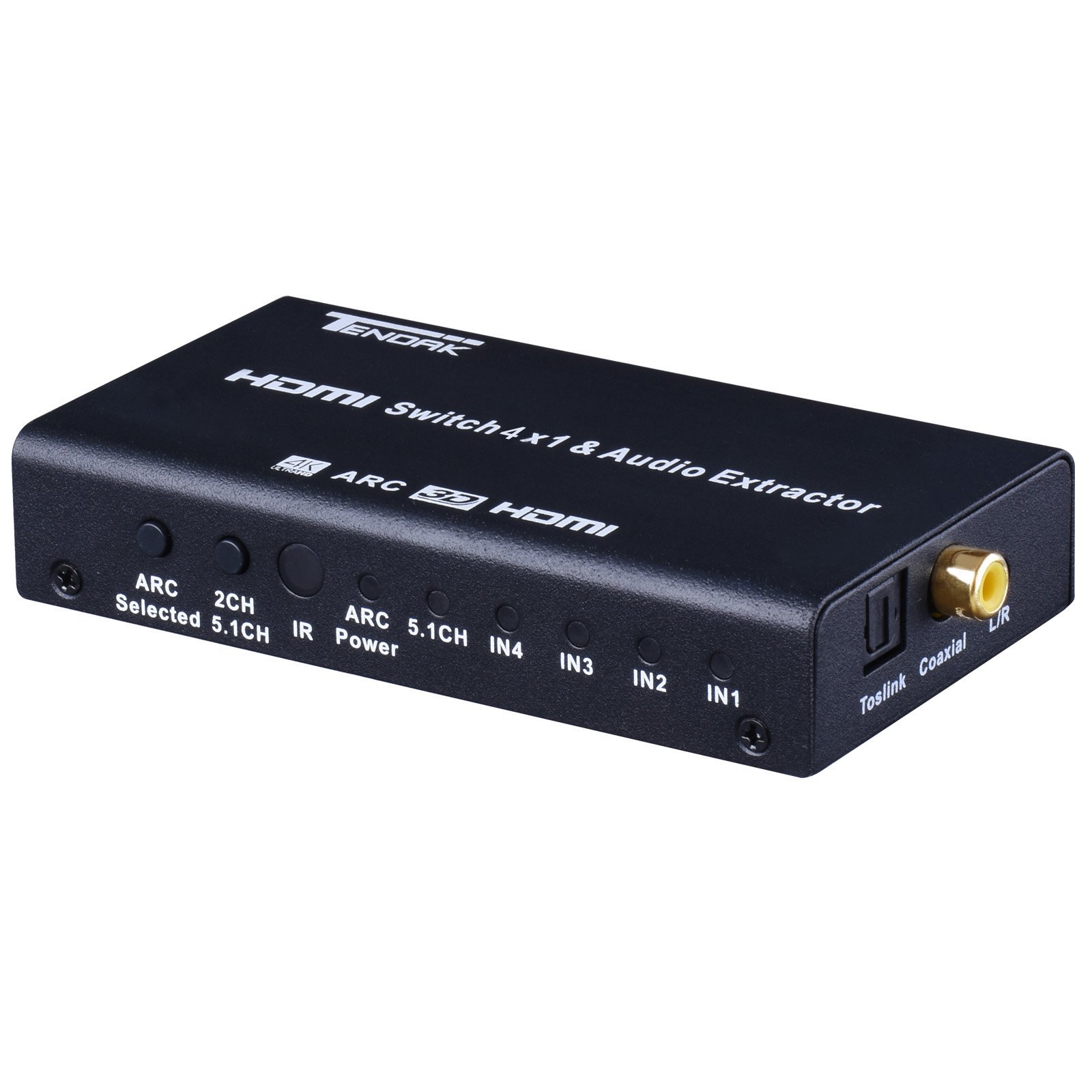

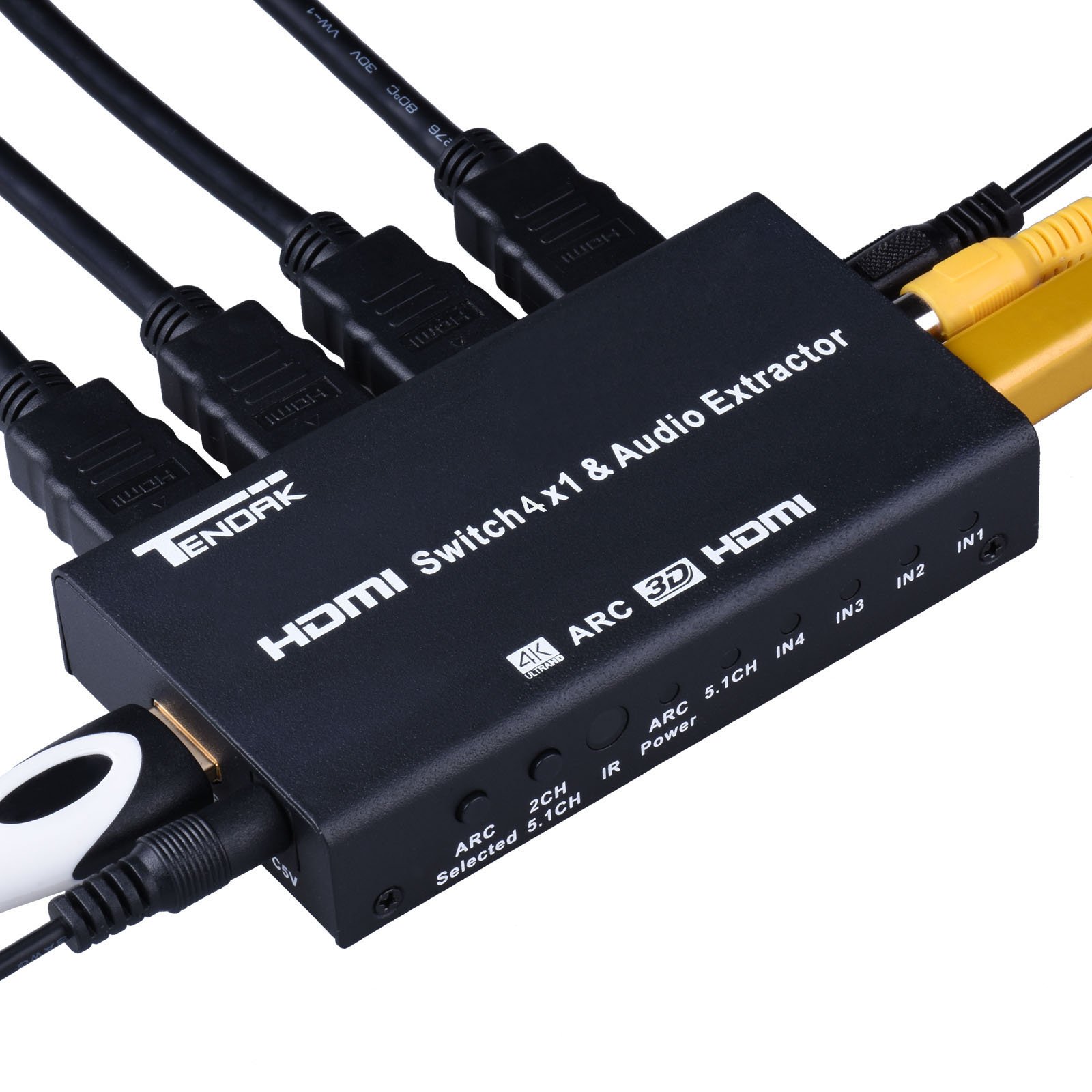

Product name: Tendak 4 input 1 output HDMI switcher HDMI switching device hdmi separator Audio output: Toslink optical digital / coaxial L / R audio output ARC 3D compatible

Product specification

Input: 4 * HDMI (HDMI 4 has MHL function)

Output: 1 * HDMI (ARC function supported)

Supports HDMI output CEC channel

Output resolution: 480i / 480p / 576i / 576p / 720p @ 50 / 60Hz / 1080p @ 50 / 60Hz / 4Kx2K @ 20 / 30Hz

Audio output: optical Toslink / coaxial / L / R audio output

Audio format: DTS-HD / Dolby-True HD / AC 3 / DTS / DSD

Audio bandwidth: 300 MHz / 10.2 Gbps

Video color format: Up to 36-bit deep color all channels

HDMI cable input: 1080p / 12bits (15m)

HDMI cable output: 1080p / 12bits (15m)

Power supply: DC 5 V / 1A

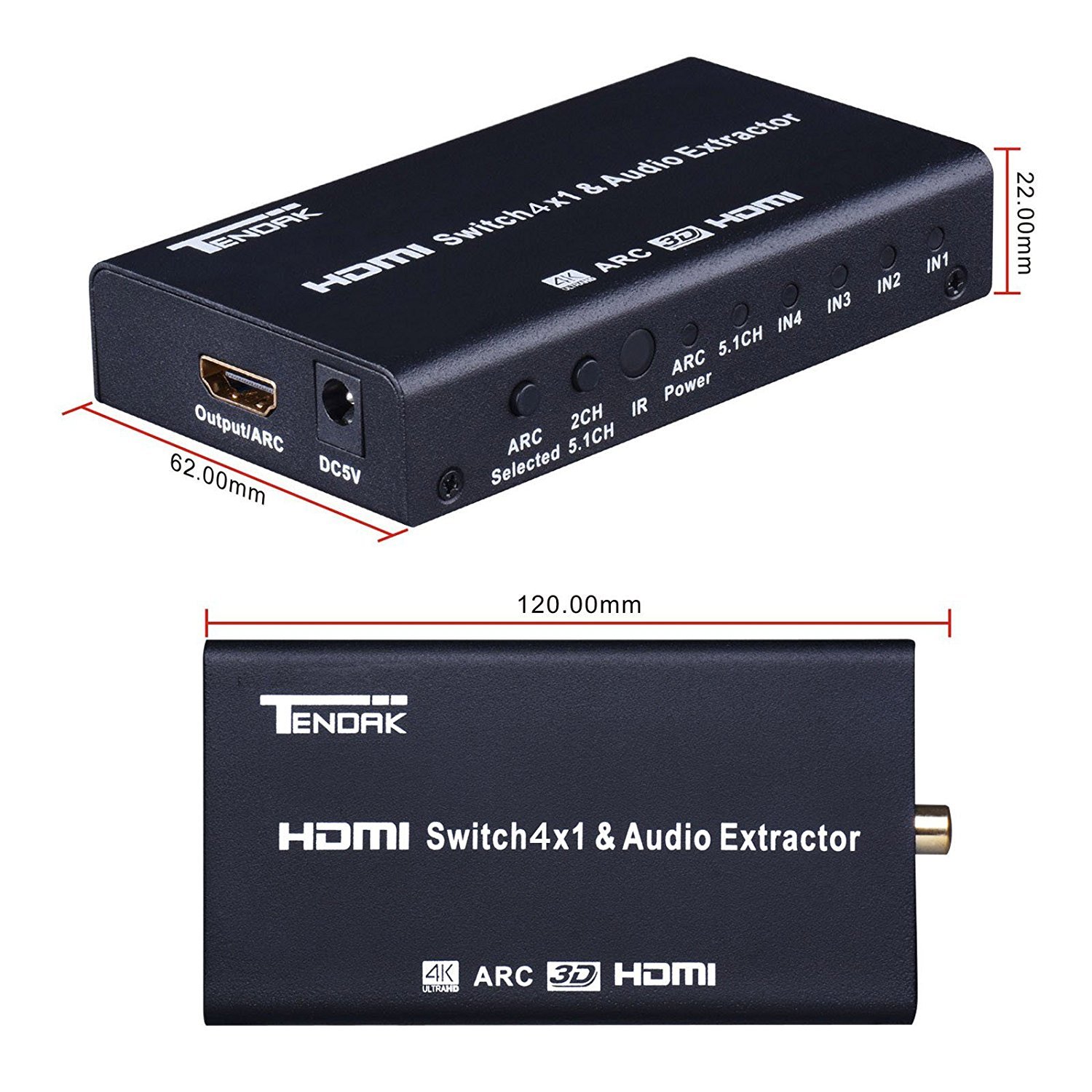

Dimension: 60 mm (W) * 114 mm (D) * 22 mm (H)

Weight: 170 g

Material: Metal

Operating temperature: 0 ° C to 40 ° C / 32 ° F to 104 ° F

Storage temperature: -20 ° C to 60 ° C / -4 ° F to 140 ° F

Humidity: 20 to 90% RH (Non-condensing)

Consumption power: 2 W

Characteristic

ARC / Full HD / 3D compatible: When using the ARC function, the TV always supports the ARC function.

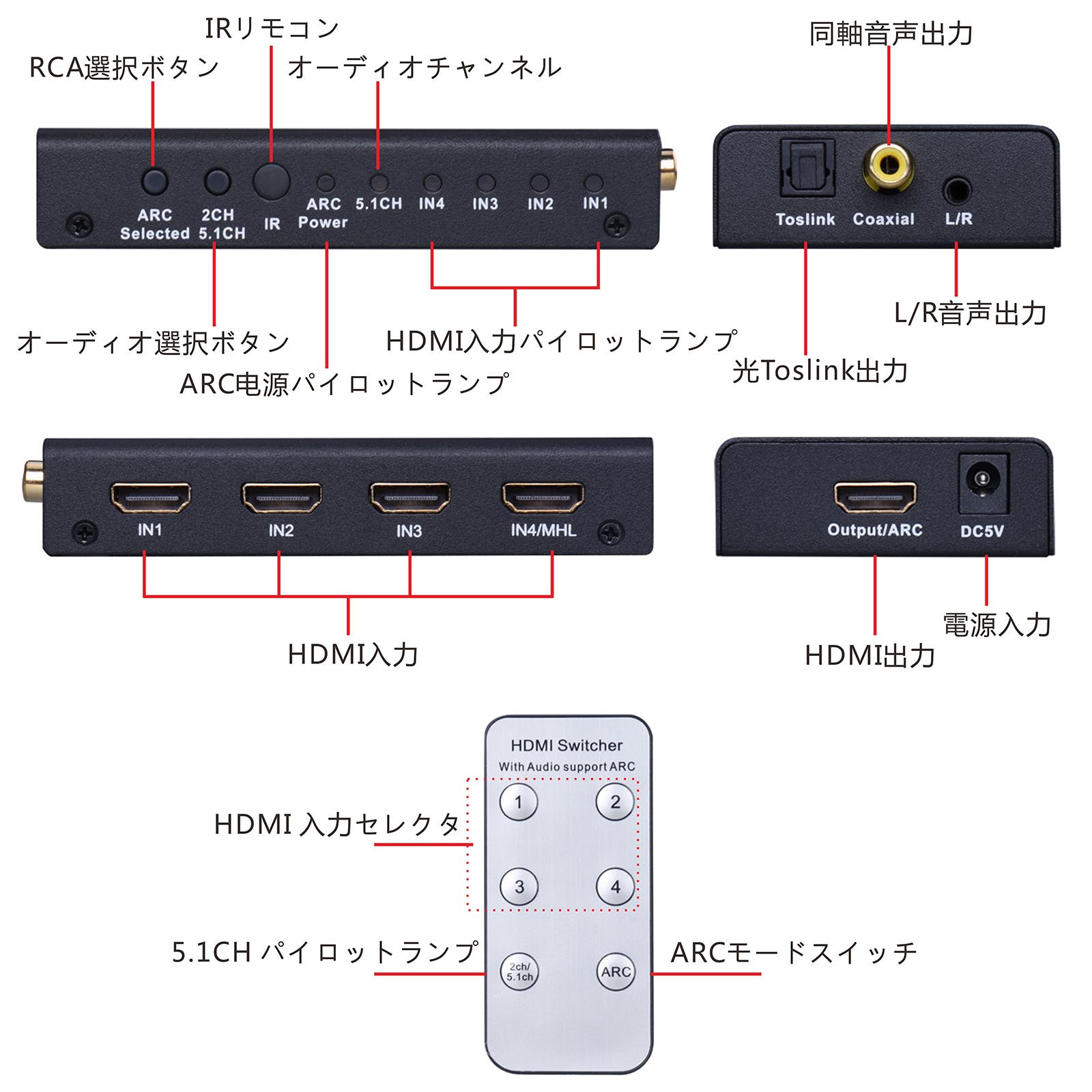

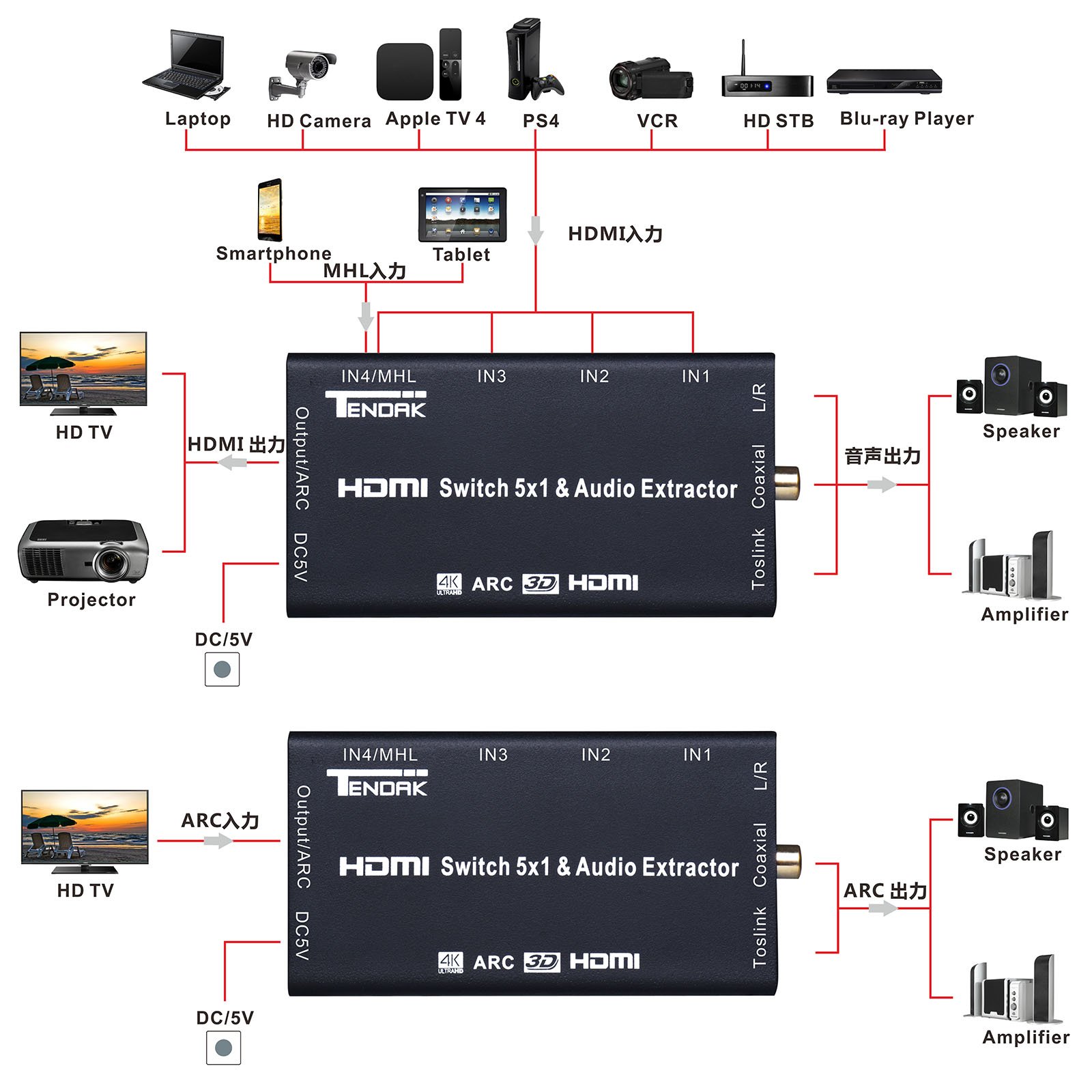

Connection diagram

Please confirm the following information when using ARC function.

Output / ARC: Corresponds to the output terminal GA ARC function of the main unit.

ARC is a function to send TV audio from the TV's HDMI input terminal to an AV device (AV amplifier, sound bar, etc.) through the HDMI cable.

The ARC function can be used only when the TV side has a function.

It corresponds only to the output from the audio system that is optically and coaxially connected.

If it says "ARC" near the HDMI input terminal of the TV it is ARC compatible TV.

Audio output: optical Toslink / coaxial / L / R audio output

2 CH and 5.1 CH

When selecting 2CH, optical Toslink / coaxial / L / RG 2.0 analog stereo audio output.

When choosing 5.1 channel, input equipment can output 5.1 channel audio, optical digital and coaxial 5.1 stereo audio if it supports 5.1 channel audio.

If the input equipment does not support 5.1 channel audio, both optical digital and coaxial will be output to 2 channel stereo audio.

Please be careful.

please note

1, all machines may be connected and may not be output normally

a Do you want to connect correctly?

Please check.

b Please confirm the setting of the video output of each device and set it so that resolution / video settings suitable for the output destination TV · projector and monitor are set.

Naturally, if the resolution setting on the output side does not match the display side, it will not move.

c The power button trying to press and hold long is ineffective, you need to unplug the power and connect again.

Please use HDMI cable of 2, 1.4 or more

3, Remarks on remote control

① Be sure to remove the transparent insulating film inside the battery cover before using the remote control.

② Please use the remote control facing the IR receiver of the main unit.

③ In the unlikely event of poor remote control operation, please contact us.

We will definitely provide you with a good measure.

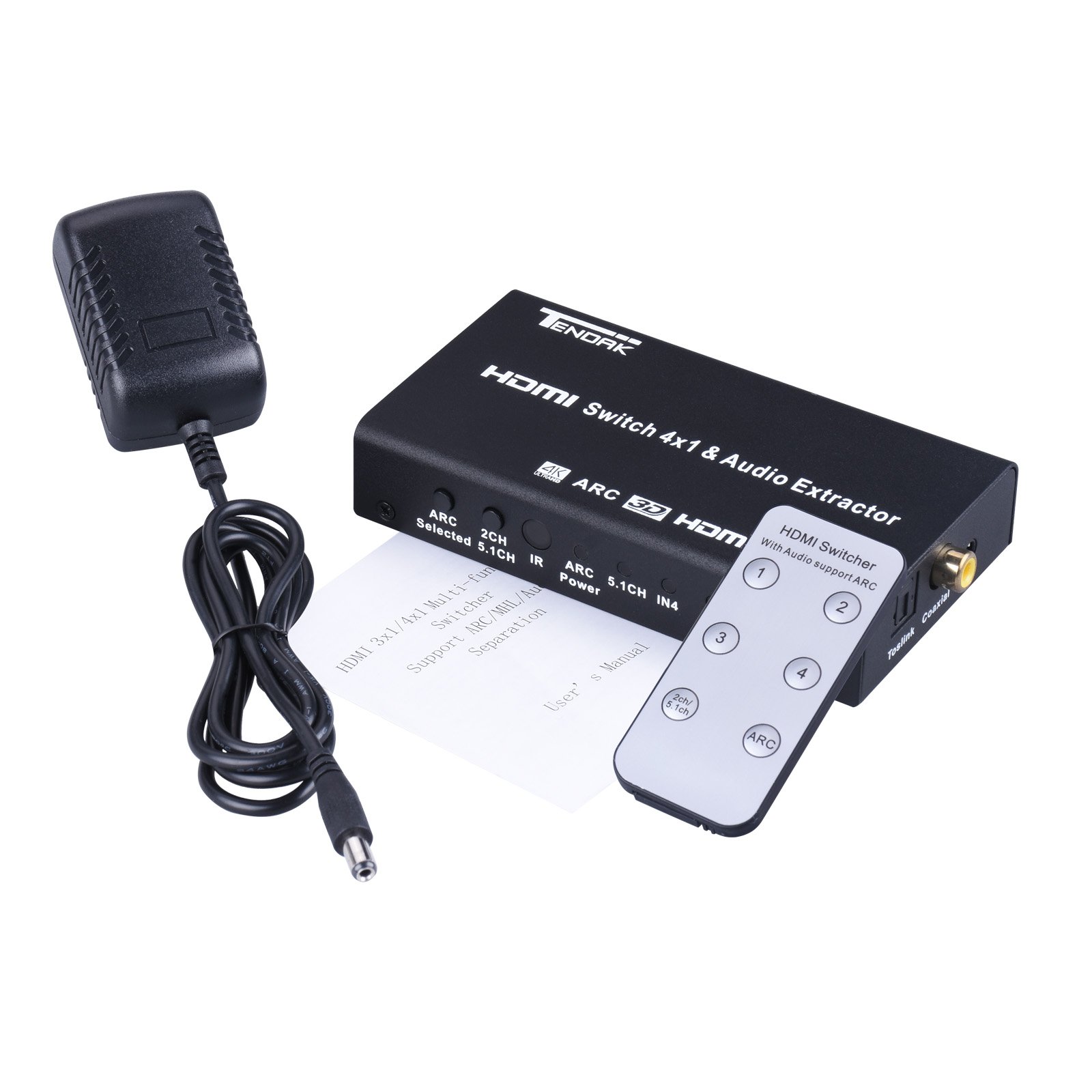

Package list

1 x HDMI switcher

1 x IR remote control

1 x adapter

1 x Manual

Features:

• Please enter model number Confirm this is compatible:
• hdmi switching: HDMI input 4, HDMI output 1.4 HDMI signals are switched to one display and output.
• Easy switching with one button.
• It is convenient with optical digital selector.
• Applicable equipments: Video equipment with HDMI output terminal as standard equipment · Consumer game machine · Personal computer etc. hdmi Audio separation: HDMI input, optical Toslink / coaxial / L / R audio output.
• hdmi Audio separation: HDMI input, optical Toslink / coaxial / L / R audio output.
• ARC / 3D compatible: ARC is a function to send TV audio from the TV's HDMI input terminal to an AV device (AV amplifier, sound bar, etc.) through the HDMI cable.
• When using the ARC function, the TV always supports the ARC function.
• Compatible with Full HD / 3D, you can enjoy wonderful movies at home.
• Package and 1 year warranty: 4K x 2K HDMI switch, with remote control, adapter, instructions.
• We accept returned goods within 30 days after arrival of unopened / unused product g.
• There is one year warranty during use

Product information:

Shipping Weight: 349 g

Package Dimensions: 6.10 x 12.29 x 17.30 cm
