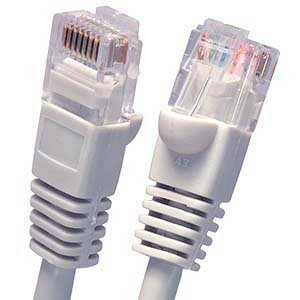

Arrowmounts AM-Cat5e-541GY 8' Cat5e RJ45 Ethernet LAN Network Patch Cable, Booted Snagless, White
[Product Information]- Enter your model numberto make sure this fits.
- 8 ft. Cat 5e cat5e RJ45 Ethernet LAN network patch cable booted snag less Gray
- Made of 100% pure copper wire with 50 micron gold plated RJ45 plugs. 24AWG 4Pair stranded pure copper. We do not use CCA aluminum wire. Certification: TIA/EIA. RoHS compliant. T-568b standard wiring.
- Conductor material/size: Bare copper/24AWG. Insulation material: HD PE. Insulation thickness: nominal: 0.186 mm. Insulation Diameter: nominal: 0.96 mm. Insulation unaged elongation: min. 300%.
- Electrical performance - dielectric strength of insulation: 2850 V DC / 2 Seconds. Insulation resistance Test: min. 5000 mohm km. Conductor resistance: max. 9.38 Ohm/100M at 20 degrees CE lc I US.
- Compliance with the following standards: all Category 5e requirements as per ANSI/TIA, ISO/IEC, and cenelec en standards. ANSI/TIA-568-C.2 Cat.5e. ISO/IEC 2nd edition 11801 Class D.
