Product Description

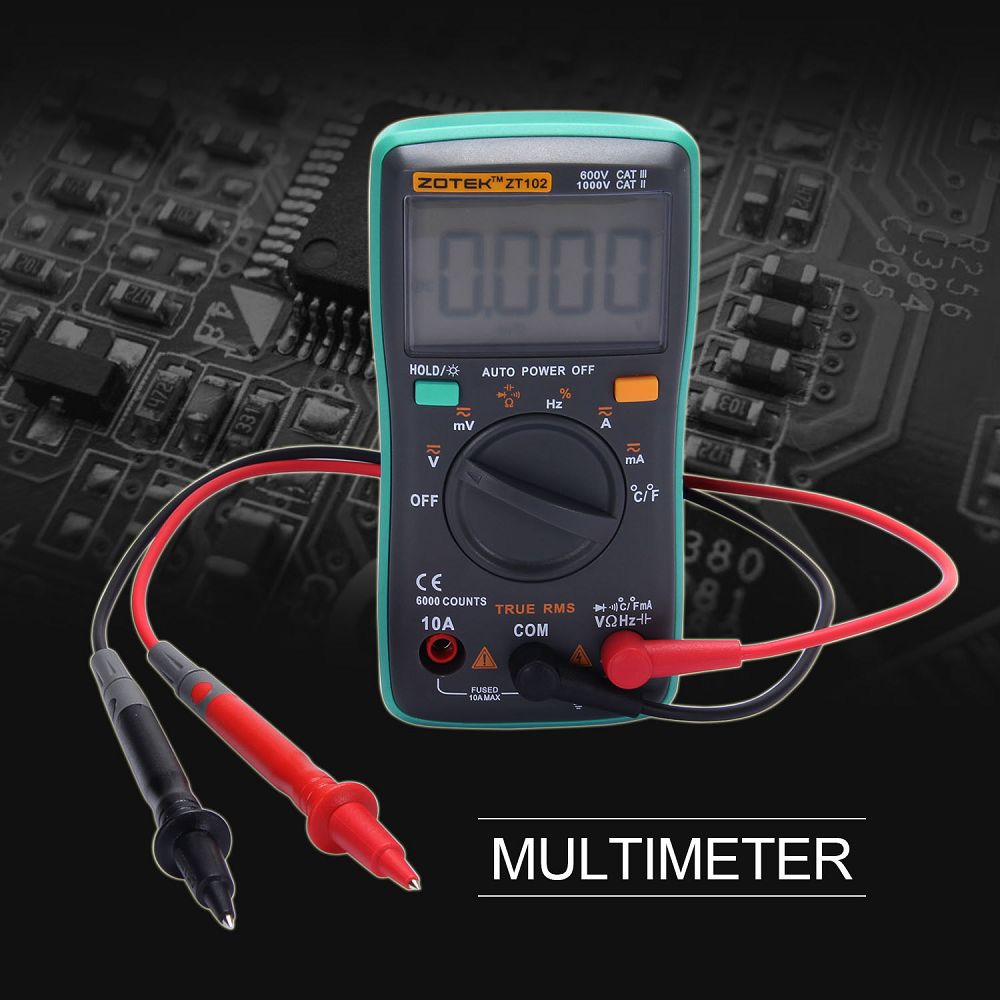

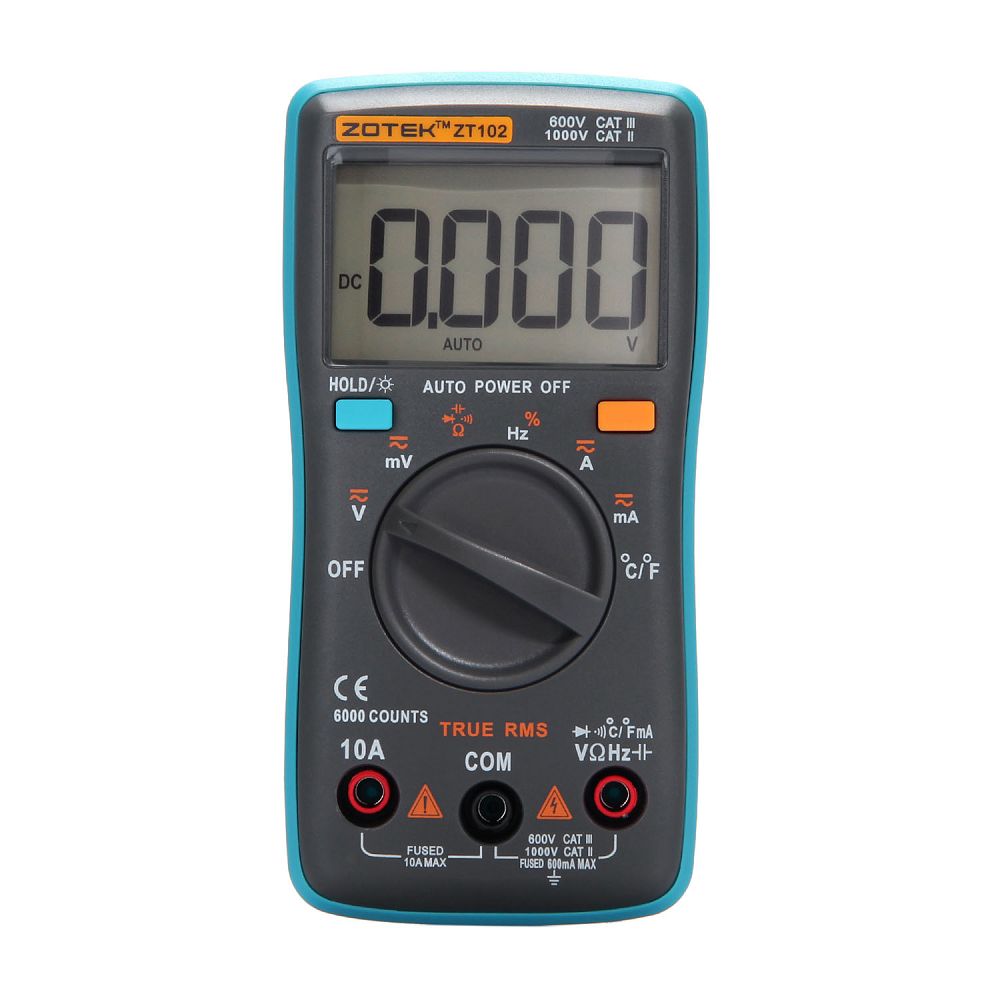

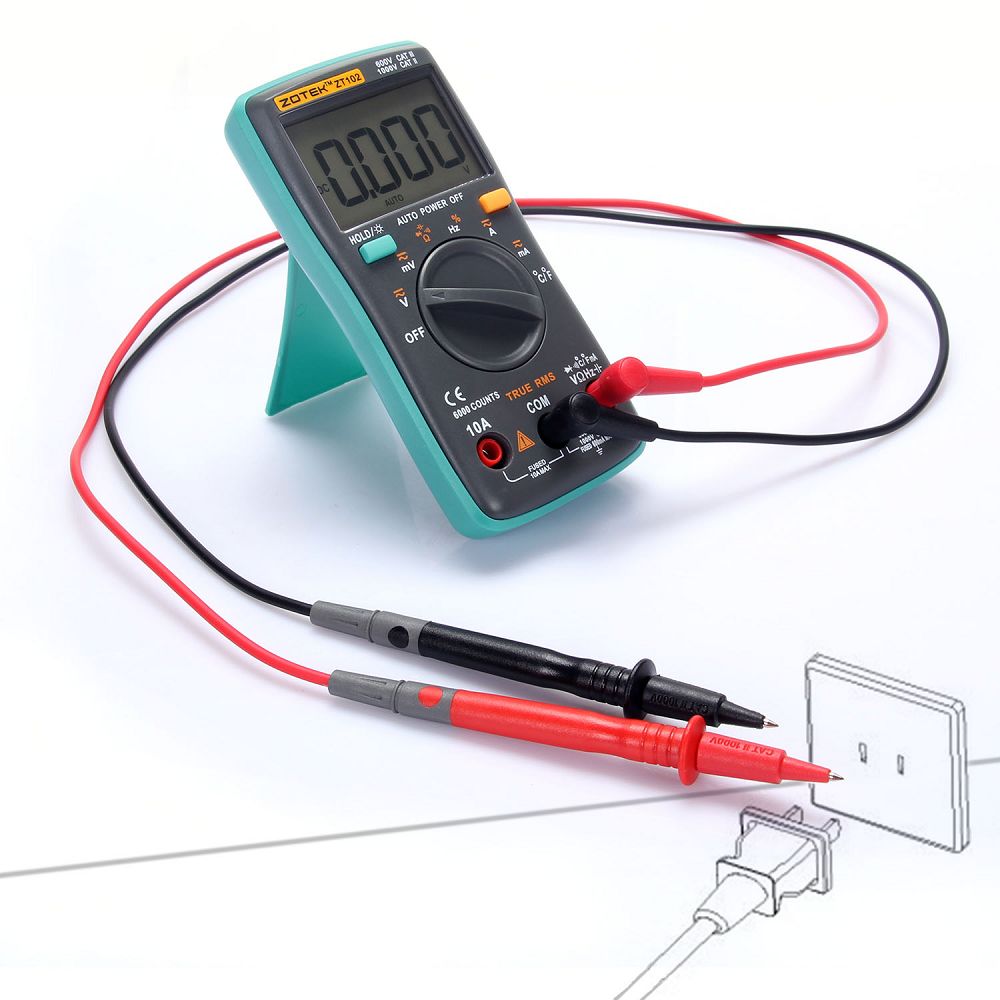

It is an Auto-ranging Digital Multimeter Using style double integral A / D transform as the core,
Can be to measure AC / DC voltage, AC / DC Current, Resistance, Capacitance Diode and Continuity test, temperature, frequency and Etc.
The products are battery powered. They are characterized by stable function and high reliability, with features overload and LCD display for clear reading, are an ideal tool for lav, factory, radio fans and family use.

General Characteristic

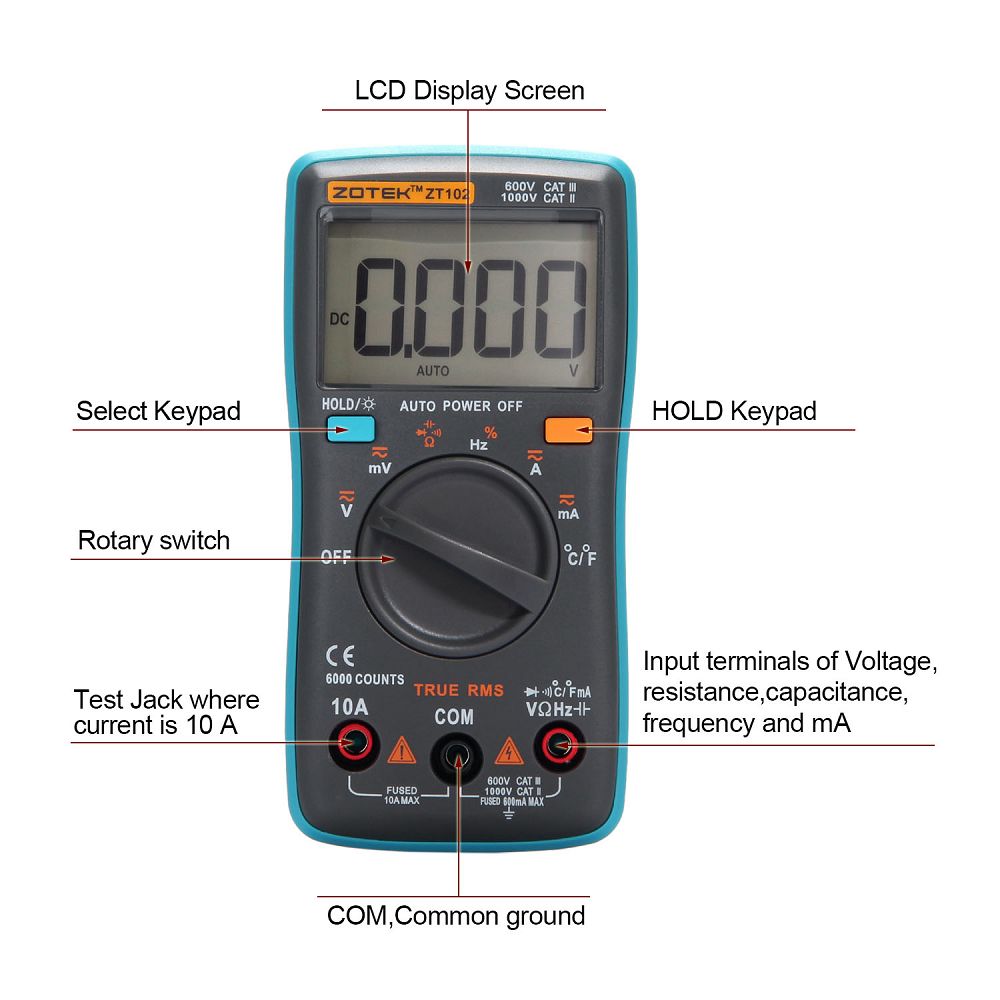

LCD Display
Max display: 6000 counts
Polarity identification
Measurement mode: style double integral A / D transform
Sample rate: 3 times per second
Over range indication: OL
Frequency range: 1 Hz to 10 MHz
Temperature range: -20 degrees C (-4 degrees Fahrenheit to 1,000 degrees Fahrenheit in 1832)
Capacitive measurement range: up to 6000 uF 10pF
AC voltage range: 750 V to 0.1mV
DC voltage measuring range to 1000 V 0.1mV
AC current measurement range: 10A to 0.1uA
DC current range: 10A to 0.1uA
Resistance measurement range: 0.1 to 60 M
Width ratio measuring range: from 1% to 99%

Specificatie parameter:

Frequency: 5/50/500/5 k / 50k / 500k / 5M / 10M (0.1 3)
Capacity: 10nF (5.0 20), 100 nF / 1 uF / 10 uF / 100 uF (2.0% 5), 1000 uF / 10000 uF (5.0% 5)
DC spanning: 600mV (1.0% 10), 6 V/60 V/600 V/1000 V (0.5% 3)
DC current 600uA / 6000uA (1.5% 3), 60mA / 600mA (+ 1.5% 3), 10A (1.5% 3)
AC current 600uA / 6000uA (1.5% 3), 60mA / 600mA (+ 1.5% 3), 10A (1.5% 3)
Resistance: 600 (0.5% 3), 6 K / 60 K / 600 K / 6 M (0.5% 2), 60 M (1.5% 3)
Temperature: <400 + C (1.0% 5), more than 400 DEG C + (1.5% 15)<752 + (1.0% 5), more than 752 degrees Fahrenheit (1.5% 15).
Parts ratio: 1% to 99% (+ 1%)
Methods: double integral A / D converter
Ultra range display: OL
Work environment: 0 ~ 40 ° C, relative humidity <80%
Power supply: 3 V (1.5 V AAA x2 Pcs)
Product: 130 * 65 * 30mm
Weight: 190g

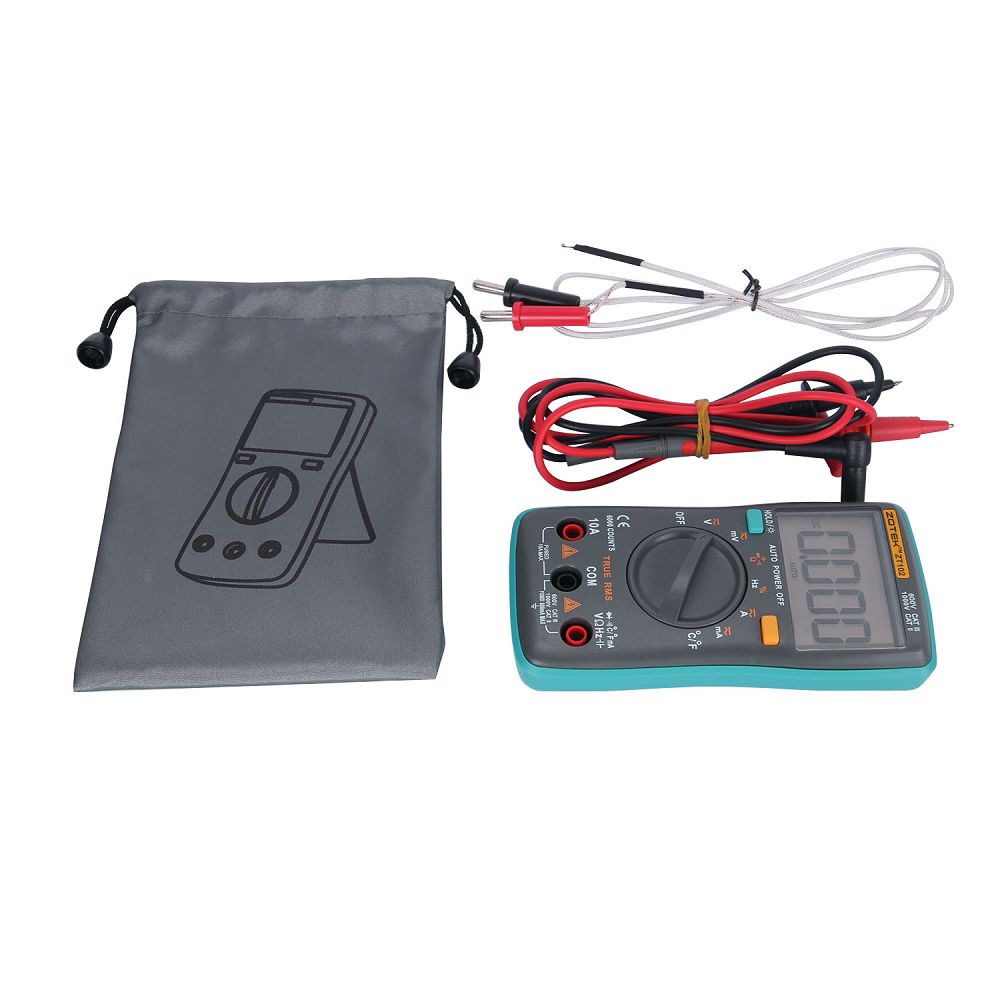

Package

Manual x1,

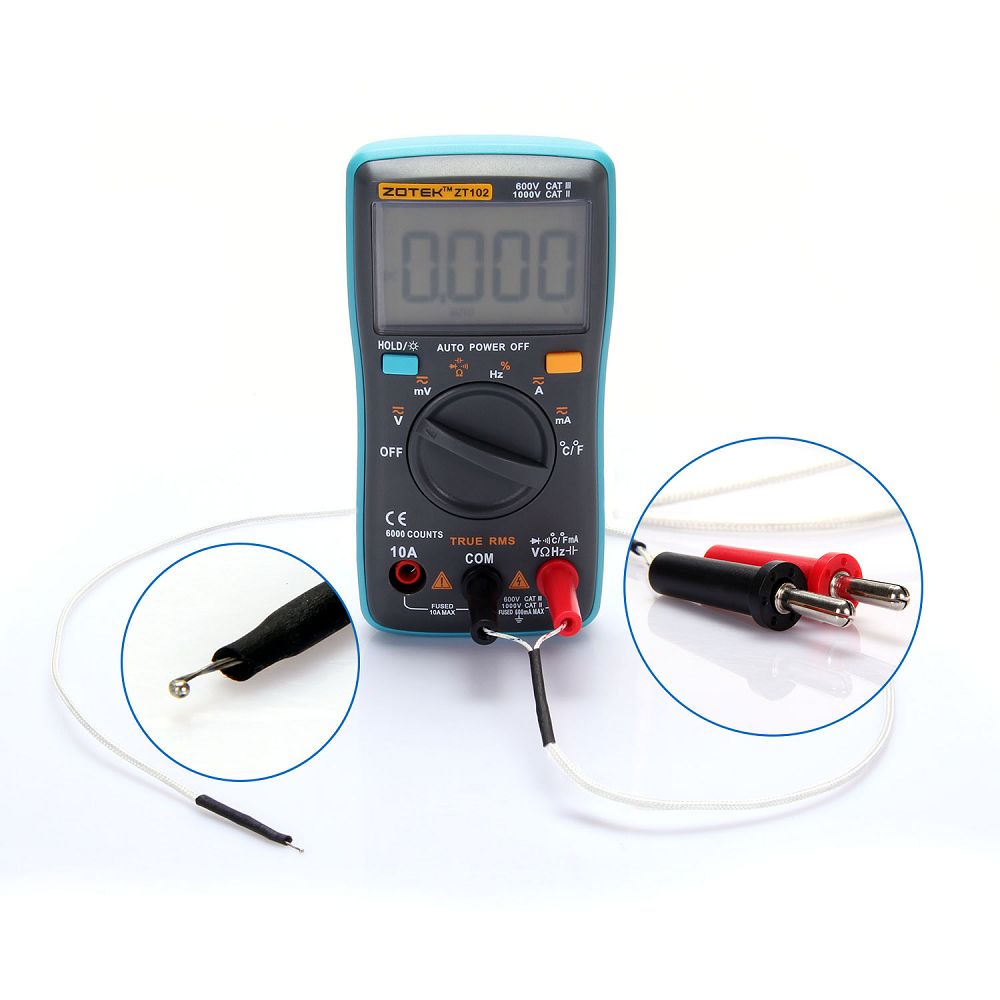

Temperature probe x 1 pair
Electronic Probe x 1 pair
