Product Description

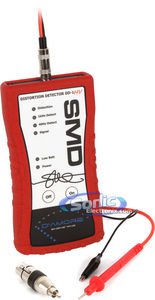

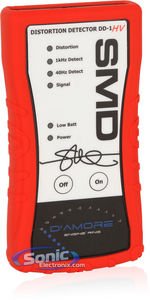

The purpose of this tool is to enable the installer to set the gain of an audio amplifier to match the source unit's output level, accurately and quickly. It can also be useful for detecting distortion in the audio signal caused by poorly designed or malfunctioning audio equipment - What is included? •The Distortion Detector (DD-1) •RCA to XLR Adaptor •Protective silicon rubber boot •Calibrated Test tone CD •Harness •This manual •Pride of ownership When you pick up the DD-1, know that you are holding a precision piece of equipment. If treated as such it should provide you with many years of reliable service. We have chosen a 9V battery as a power source for a few reasons: •They are readily available •Isolating the DD-1 from the vehicle's electrical system for power, guarantees that it will only measure what it is supposed to measure; distortion in the audio signal, not noise in the charging system

Feature

•The Distortion Detector's circuitry is 100% analog
•Distortion Detection trigger level > 1.0% Harmonic Distortion
•Guaranteed operating range of input signal is 1.2Vrms - 200Vrms. (40,000 Watts at 1ohm) Autoranging
•Signal Present LED trigger voltage 750mVrms
•Auto-shut off timer 8 - 10 minutes after ON button is pressed
Brand : Steve Meade Designs
Item model num : DD-1 HV
MPN(PartNumber) : DD-1 HV
EAN : 0700621720294
