Item Descriptions:

【Product

specification

Lighting time (full charge lighting indication)

Steady mode:

8-10 hours

Small lamp mode:

8 hours

Off mode:

12 hours

Charging time: about 8 hours

Recommended installation height: about 2 m

Warranty time: 12 months

Sensor sensing distance: approx. 3 m

Sensor angle: 120 °

Light color: white

LED light: 20 pieces

Waterproof rating: IP65

Size: W 96 * H 124 * D 48 mm

Weight: Approximately 165 g (1 piece)

Charging method: solar power generation

Solar panel: 0.55 W 17% conversion efficiency

Full charge in about 6 hours!

Approximately 500 lights on!

Body material: ABS resin + polycarbonate

set content

① Product body

② 2 mounting screws X

③ Concrete sleep X 2

④ Mounting Guide Sheet X 1 sheet

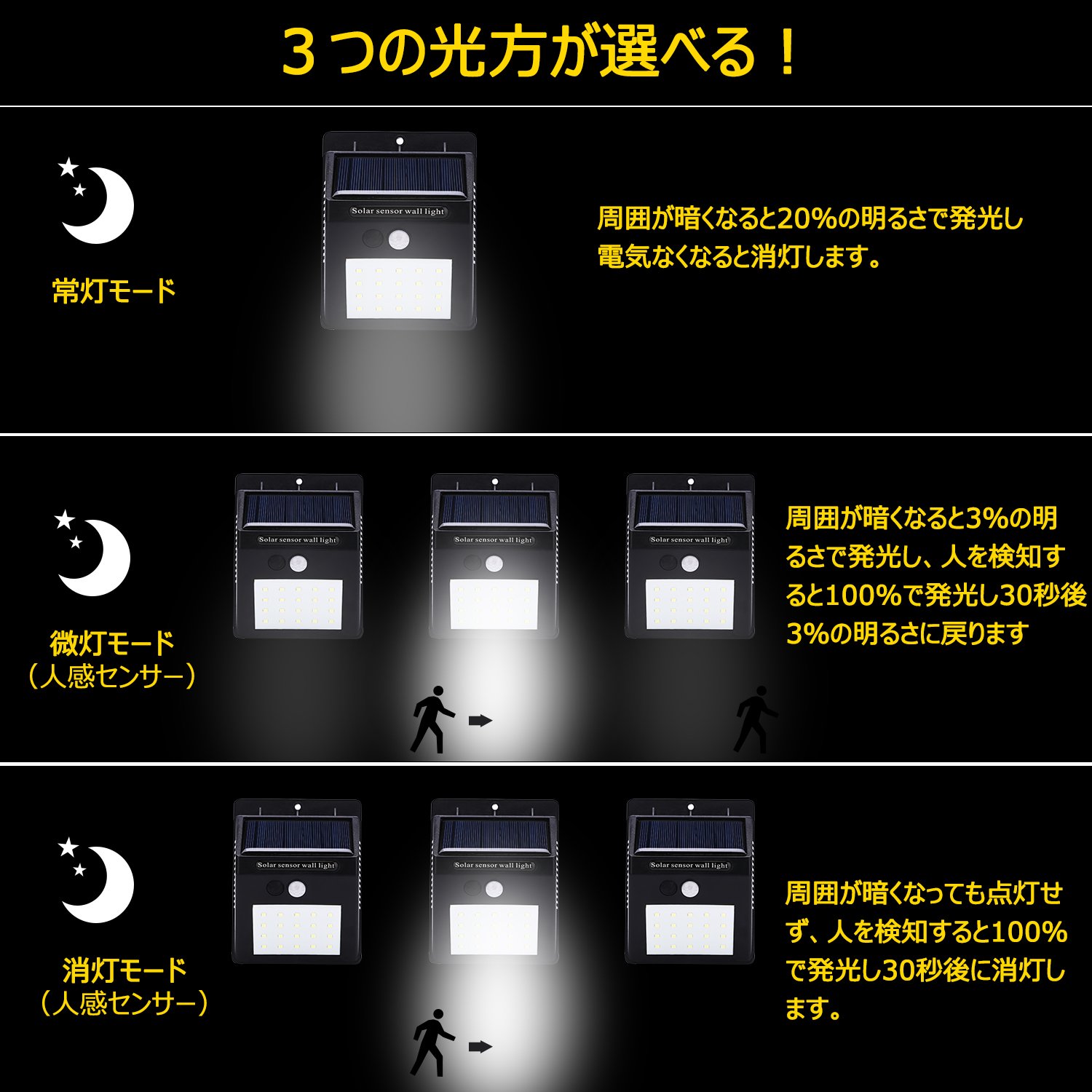

Three light modes can be chosen!

Steady light mode When the surroundings become dark it will emit at 20% brightness and will go out when the light stops.

Lighting mode (human sensor) When the surroundings become dark, it emits light at 3% brightness. When detecting people, 100% emits light and after 30 seconds it returns to 3% brightness

Off mode (human sensor) It does not light even when the surroundings become dark, when it detects a person it will emit at 100% and turn off after 30 seconds.

● It varies greatly depending on temperature, clothing, movement speed, penetration direction, body temperature, fixture installation height, etc.

● In the constant light mode, the human sensor does not operate.

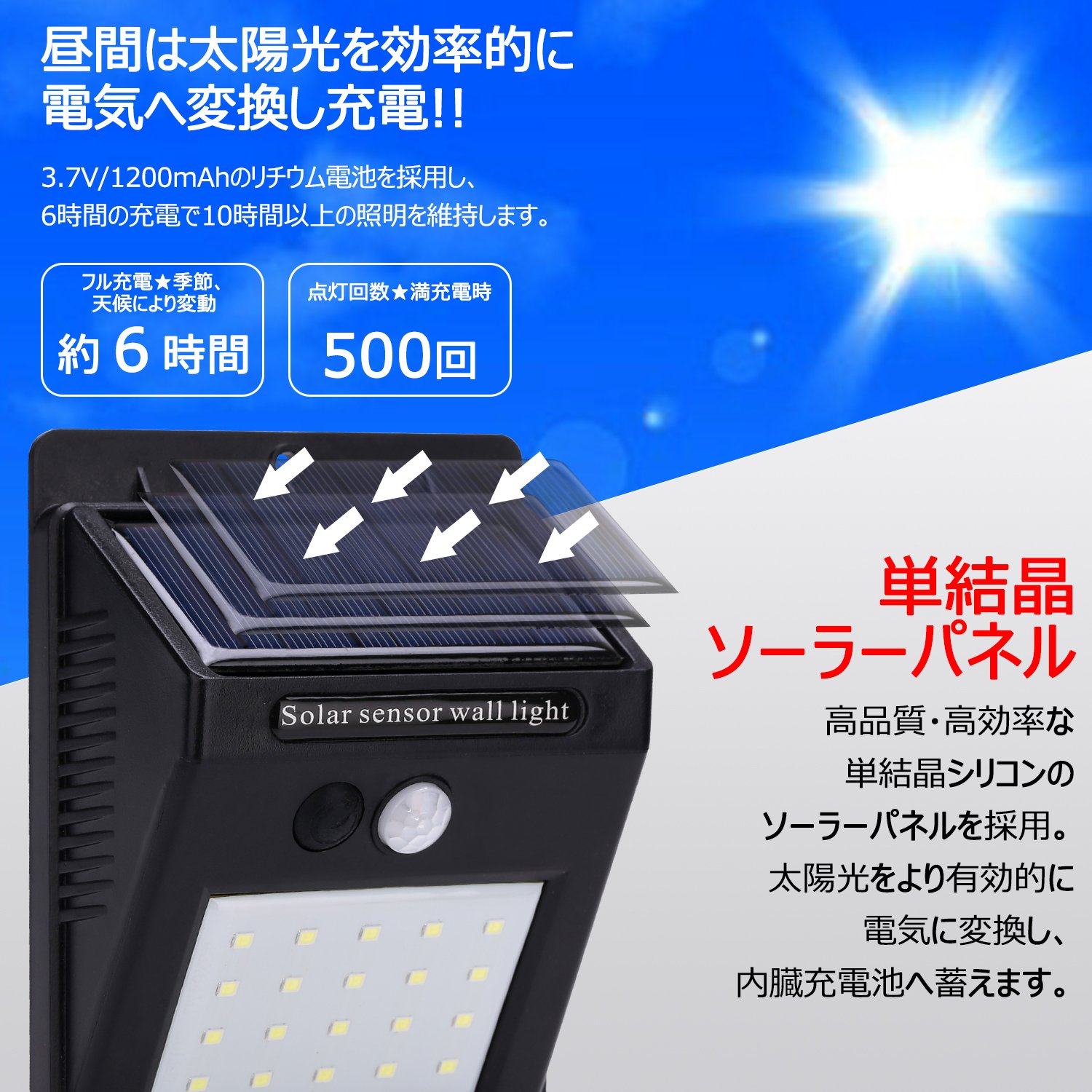

● High quality single crystal solar panels convert sunlight to electricity with high efficiency and charge!

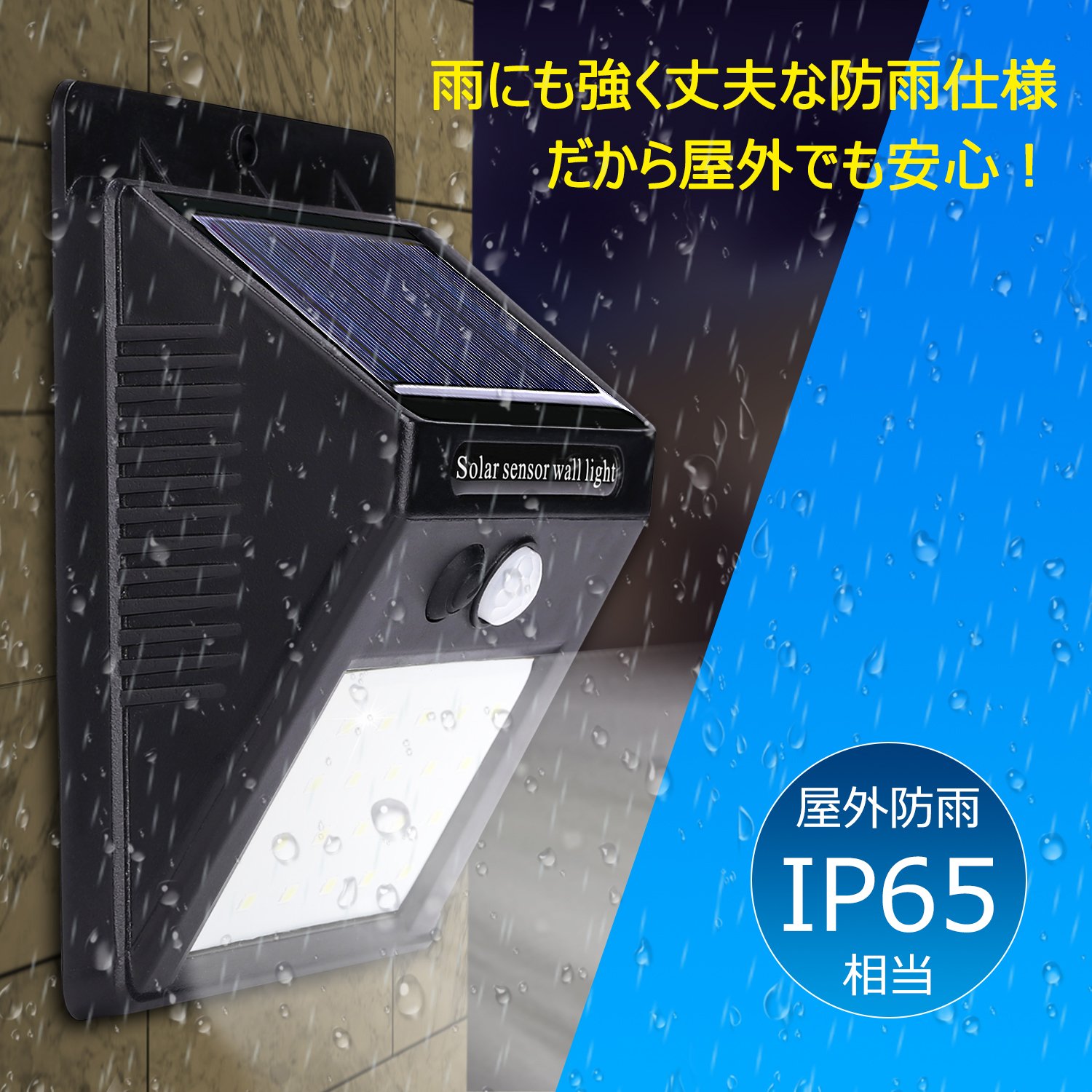

● Since it is equivalent to IP65, it can be used in various places outdoors without worrying about rain etc!

● Do not worry even the first time!

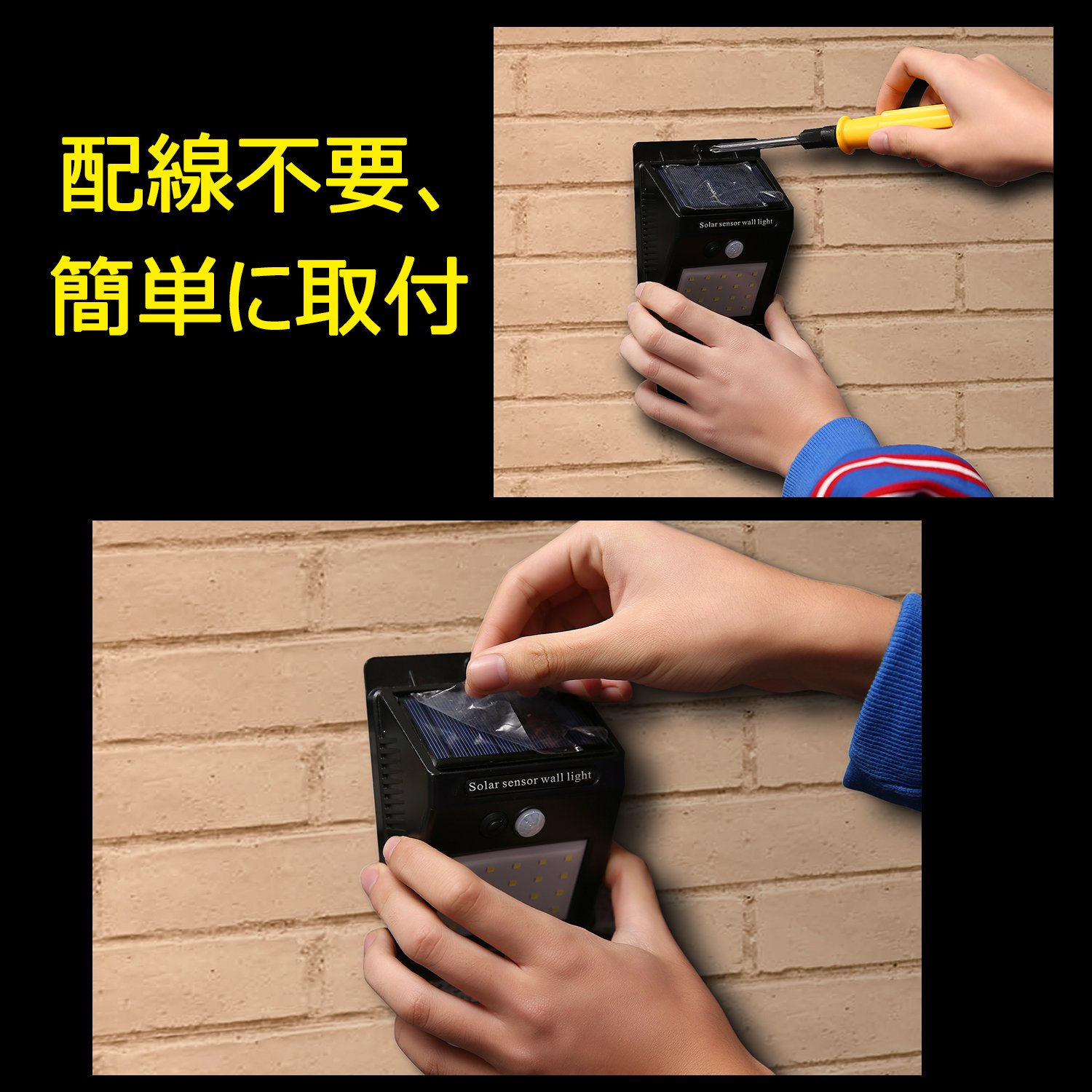

Easy installation with wiring required & installation guide paper attached!

* Initial charge is required for about 2 days on sunny days in the power OFF state.

It also varies depending on the weather and the season.

"Notes"

① Product and package designs are subject to change without notice.

② Sensor may rarely malfunction due to weather change such as air temperature and pressure, but it is not a malfunction.

③ If the cloudy day continues, the remaining battery level will be low and the light will go dark, it will not light up, and it may blink.

In that case please perform initial charge with sunlight.

④ Although it is waterproof, sinking into water in Kanzen may cause it to not work properly.

⑤ Please be sure to use the accessories correctly as it may cause a fall or breakdown.

⑥ LED can not be replaced.

⑦ The internal battery can not be replaced.

⑧ With imported goods, scratches and dirt may be found in the product box etc.

Attention on installation

Please install the main unit in the following place.

● Side facing walls exposed to direct sunlight for a long time

● Places that do not shade from trees or buildings

● Wall perpendicular to the ground

OVEIPO

Only those things purchased directly from regular items are genuine, except for genuine replacement, henpin correspondence / repair, inquiries etc can not be accepted.

If you purchased the product, if it fails in normal use within 30 days, we will correspond to Henkin for free replacement or full amount.

Also, one year from the purchase date will be the manufacturer warranty period

Features:

• ● [3 detection modes] Strong light emission by the human sensor at night.
• The latest constant light mode, small light mode, light extinguishing mode Equipped with three detection modes, with a switch, it freely switches on lighting mode.
• Detection range about 3 to 4.5 m, about 120 °.
• ● 【Eco · Electricity Charge Zero】 We will exchange sunlight more efficiently with electricity and store it in the built-in rechargeable battery.
• Built-in lithium battery of 3.7 V / 1200 mAh, it keeps lighting for more than 12 hours with charging for about 6 hours with full charge.
• (Seasons, fluctuate depending on the weather)

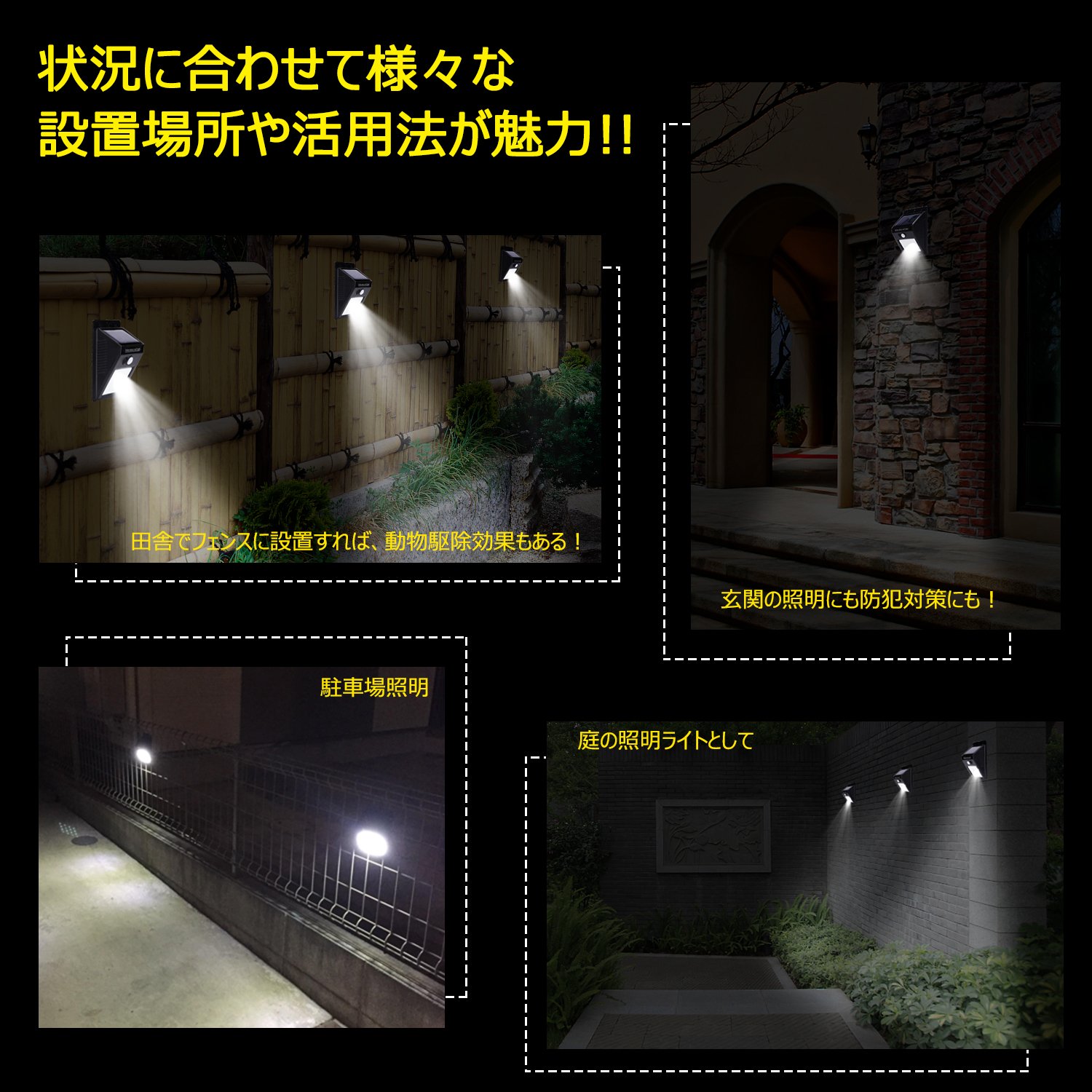

• ● [Waterproof specification] Since it is a highly waterproof standard equivalent to IP65, you can use it safely in various places such as outdoor eaves front, entrance entrance, garden, parking lot.
• ● [Easy to install] safe for the first time!
• Easy installation with power supply unnecessary, wiring unnecessary & mounting guide paper attached!
• * Initial charge is required for about 2 days on sunny days in the power OFF state.
• ● 【1 year security warranty】 Products purchased from OVEIPO, within 30 days, in case of breakdown in normal use condition, we will correspond at no charge or full refund.
• Also one year from the date of purchase will be the manufacturer's warranty period.

Product information:

Shipping Weight: 190 g

Package Dimensions: 5.69 x 10.21 x 13.11 cm
