Item Descriptions:

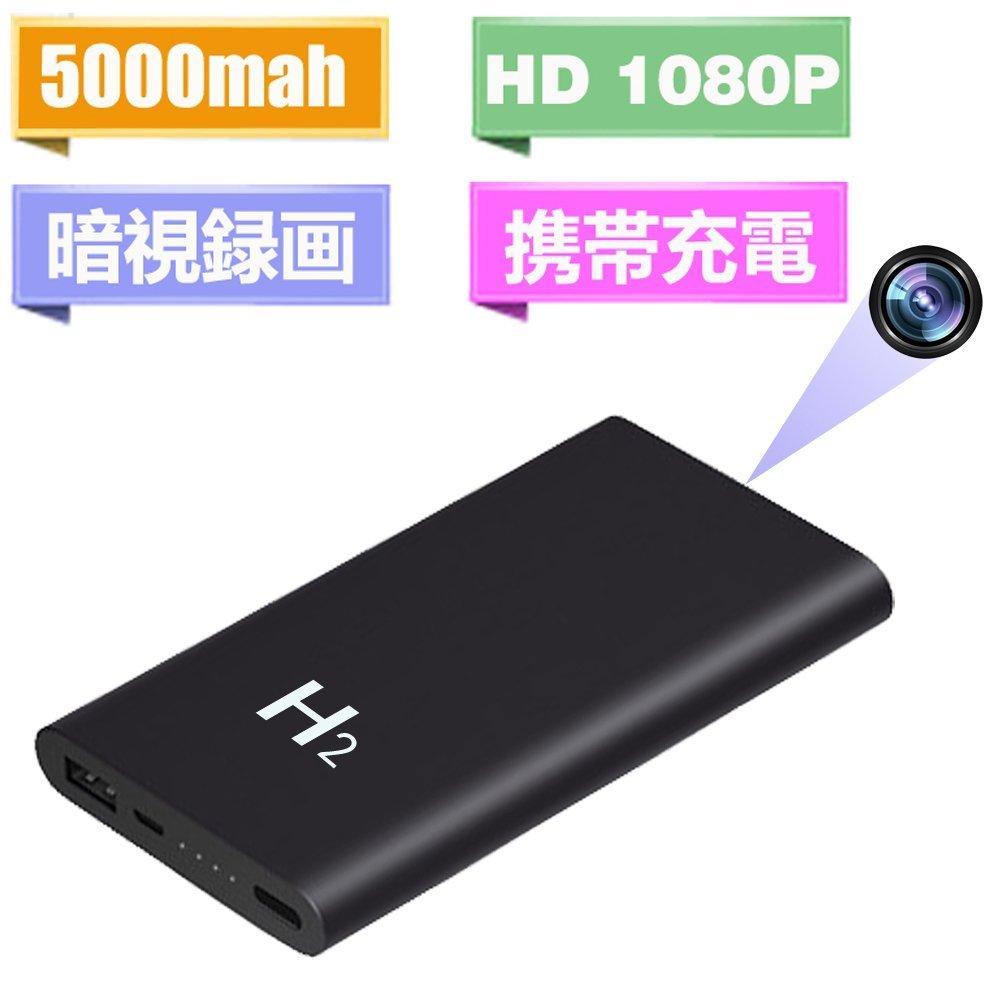

1080P high image quality hidden camera long time recording wireless small compact camouflage crime prevention surveillance video camera spy camera with night vision recording function Japanese handling

Product Description:

【New model function】

Movie shooting · Recording lamp OFF function · night vision recording · loop record · date and time setting function ·

【Time set function also included】

Machine provides display of video file recording time function, you can set the time according to the actual needs.

If you connect to a PC without being disconnected, open the "Time" folder that can be used as a U disk. The format of the content is as follows: For example: "2017-

03-20 09: 10: 05 "Then save the file.

After restarting, setting the time, the time of the video file became the same as the set time.

【During recording, the lamp goes off】

Please inform the lamp of the start and stop of recording!

Unnecessary lamp does not shine when recording starts.

Of course you can also open a night vision lamp.

【High Practicality · Simple Operability】

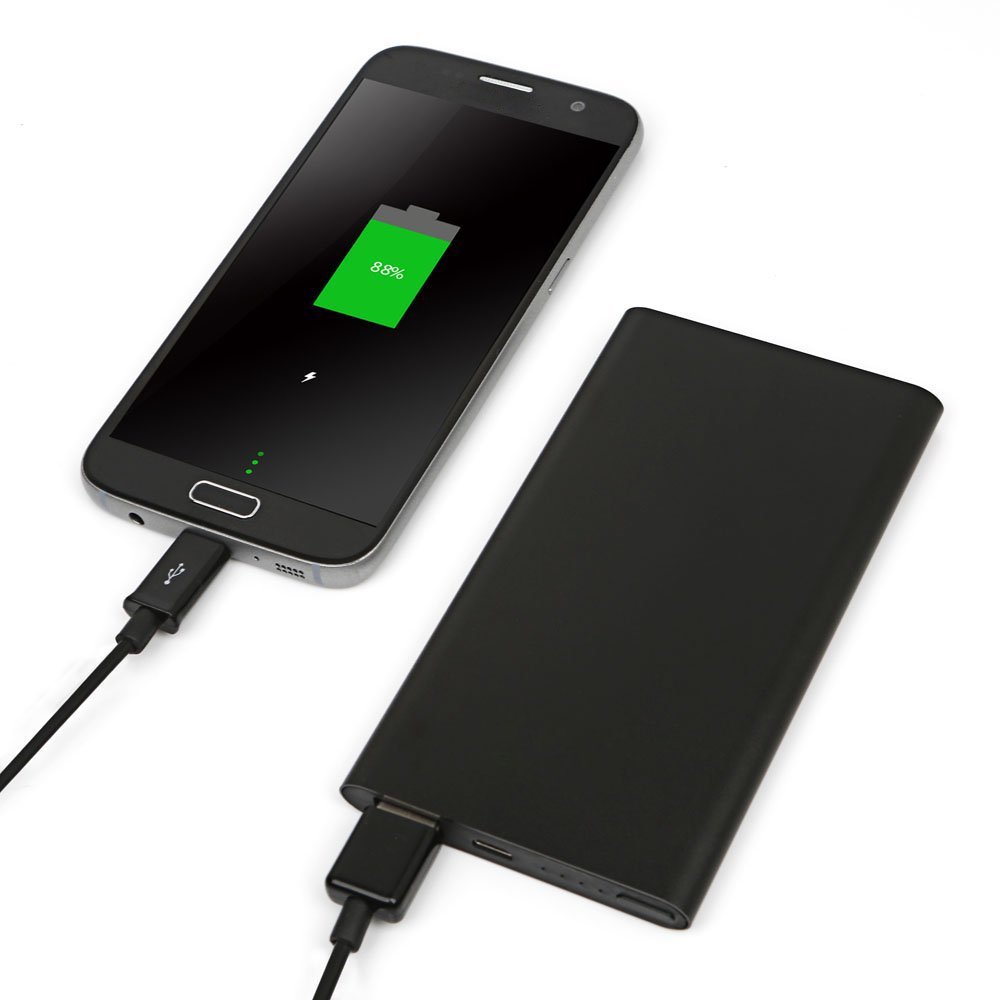

Mobile battery type small camera!

Power can be supplied to smartphones.

Long time recording

8 hour video is possible!

FAQ:

Q: The size of the video file.

A: The video file is 4 GB per hour.

Q: How much capacity Micro SD HC card can be used for the machine?

A: Supports up to 32 GB.

Q: Do you have a loop record function?

A: No, this function does not exist.

Therefore, recording stops automatically when the card becomes full.

Q: How can I record for 8 hours?

A: 1. Confirm that the machine is fully charged.

Please use 2.32 GB Micro SD HC card.

Q: Recording / recording was interrupted.

A: Since there is no loop recording / recording function, please use FAT format 32GB Micro SD HC card to avoid interruption of recording / recording.

Q: The subject is blurry.

A: Since the product lens is not a macro lens, please keep a certain distance from the subject.

Note: Make sure that you inserted the Micro SD HC card before use.

If there are other files on the card, please FAT format in advance.

If the Micro SD card is not inserted, the product shuts down automatically if the red and blue lamps blink for 6 seconds and then disappear after the product.

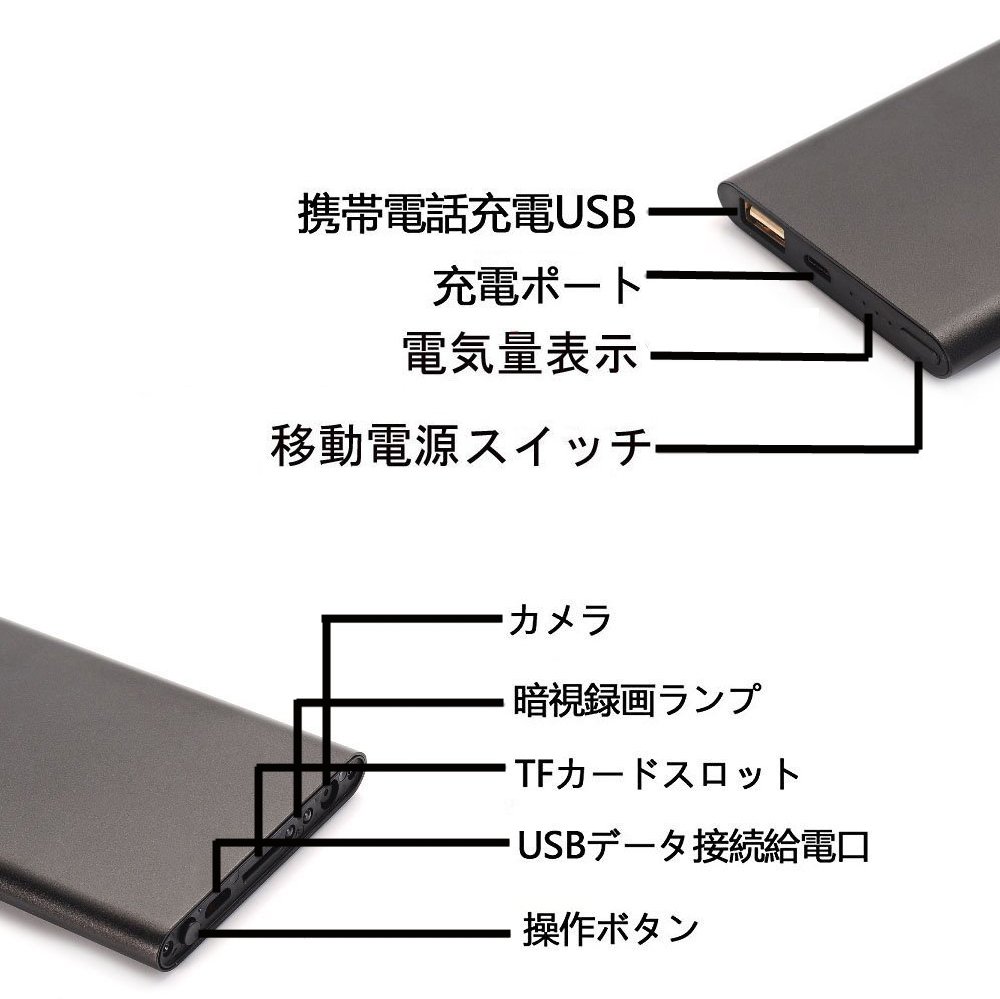

Behind the infrared, there is an indicator light.

Pay attention to the state of the indicator lamp.

When charging, the red lamp blinks.

The possibilities are as follows.

1. The charging voltage is insufficient.

Because this is a mobile battery, the voltage requirements are relatively high.

A stable voltage of at least 5 V or more is required.

2. Refer to the figure in the manual.

Please do not connect wrong charging interface.

Inappropriate operation causes the product to crash.

The product will be reset automatically.

However, it takes time for the product to shut down automatically.

The time is about 2 to 3 minutes.

Please wait.

[Product specifications]

Video format: AVI

Video Resolution: 1920 * 1080 P

Video frame rate: 30 fps

Image ratio: 4: 3

Photo resolution: 10 M (3648 * 2736)

Photo format: JPG

Save support: FAT formatted

32GB micro SD HC compatible (micro SD HC card not included)

Built-in microphone: New high-performance microphone

Interface: 2.0 USB

Interface type: Micro USB

Operating temperature: -5 ° C - 60 ° C

Operating humidity: 20 to 80%

Supported OS: WinXP, Win 2000, Windows Vista, Win 7

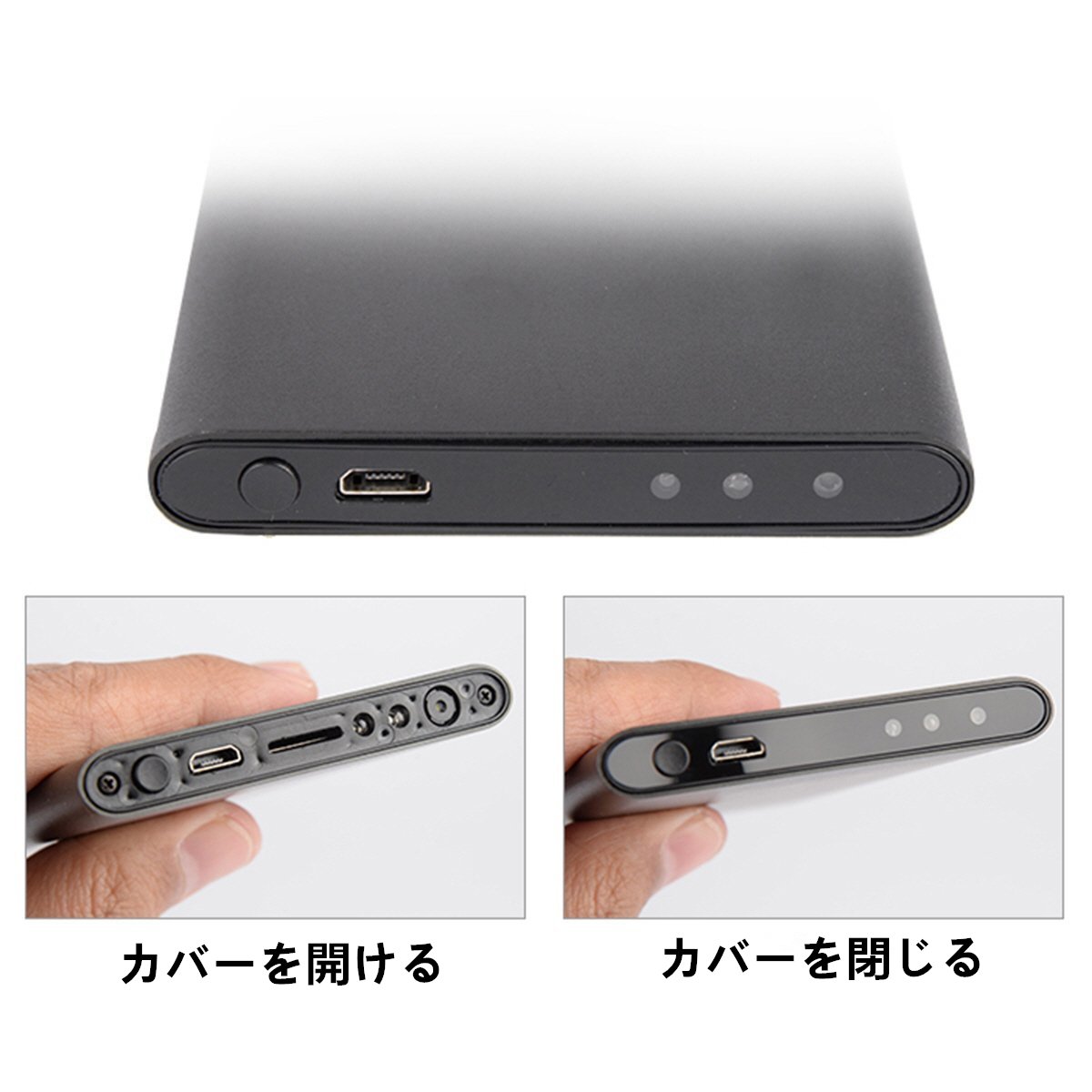

Micro SD card slot is relatively low.

Please use a thin one to push the Micro SD card downward.

accessories:

1 x body

1 x USB cable

2 x side sticker

1 x Japanese Instruction Manual

【Place of use】

1. If you install a security camera / surveillance camera in a room or office, evidence collection is possible.

2. You can shoot without being noticed by children, pets, etc.

3. There are terrible things that you can not see bullying and abuse of recent years in collecting evidence such as bullying, abuse, DV etc.

4. In order to compete against malicious power harassment and sexual harassment, it is essential to collect definitive evidence.

5. Evidence images are becoming increasingly important, as it is an act of infidelity such as cheating or adultery.

Features:

• 【Easy operation】 There is no need for complicated operation, and operation buttons can perform all operations.
• 【High Resolution】 We realized overwhelmingly beautiful movie shooting which has never been possible with high image quality & high resolution which realizes movie resolution "1920 × 1080pix" and image frame rate of 30 fps.
• 【Multi-function】 Recording / Night Vision Recording / Photography Shooting / Charging Recording + Photo Shooting / Loop Record (Do not limit time and memory card space.)
• 【Long Time Recording】 Over 5 Hour Shooting Time (The product is fully charged using 32 GB Micro SD card in FAT format.The Micro SD card is not included in this product.)
• [Practicality] This product is intended for crime prevention and security to protect important families and property.
• (We will translate easily for Japanese instruction manual, if you have any problems, please do not hesitate to contact us)

Product information:

Shipping Weight: 199 g

Package Dimensions: 3.10 x 9.80 x 17.80 cm
