Product Description

Specifications:

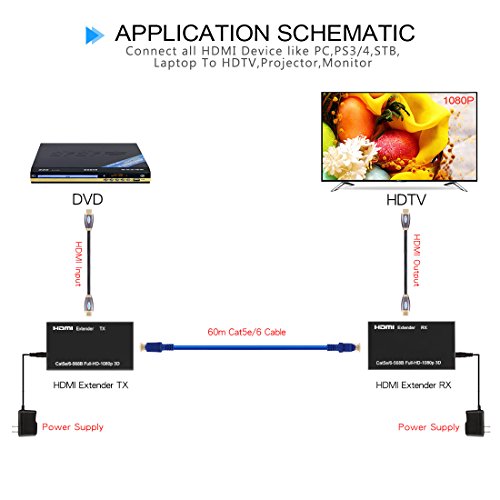

Length of CAT-6/CAT-5E cable between Rx and TX:Up to 60 meters
HDMI Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio input: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI Output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio output: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth: 165MHz
Max baud rate: 1.65Gbps
Input video signal: 0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TT1L)
Input HDMI cable distance: ≤15m AWG26 HDMI standard cable
Output HDMI cable distance: ≤20m AWG26 HDMI standard cable
TX Max working current: 510mA
RX Max working current: 100mA
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: (-15 to 55 °C)
Operating Humidity range:5 to 90%RH (No Condensation)

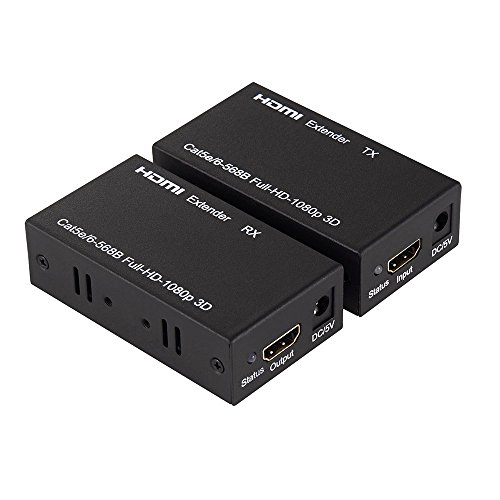

Dimension (L x W x H): 81x43x22 (mm)
TX Weight: 100g
RX Weight: 120g

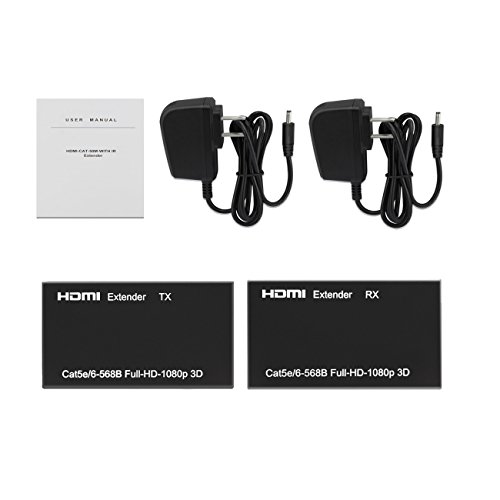

The Package includes:
