Studio : ANNKE

Publisher : ANNKE

Binding : Electronics

Product Description
1080p Wireless HDMI Extender Specifications:
HDMI interface standard: HDMI1.4 / HDCP1.4
Support resolution: up to 1080P @ 50 / 60Hz SVGA / XGA / WXGA / SXGA / WXGA / UXGA / WSXGA / WUXGA
HDMI supports audio formats: LPCM2.0
HDMI maximum transmission bandwidth: 225MHz
HDMI maximum transfer rate: 6.75Gbps
Input and output TMDS signal: 0.5 ~ 1.5Vp-p (TTL)
Input and output DDC signal: 5Vp-p (TTL)
HDMI output cable length: ≤ 12m AWG26 HDMI standard line
Antenna type: External double 3dBi gain antenna
Wireless transmission standard: IEEE 802.11a / b / g / n
Wireless transmission band: 2.4GHz, 5GHz ISM Band
Maximum wireless transmission rate: 2T2R up to 300Mbps
Wireless transmit power: (IPEX) 16 ± 2dBm

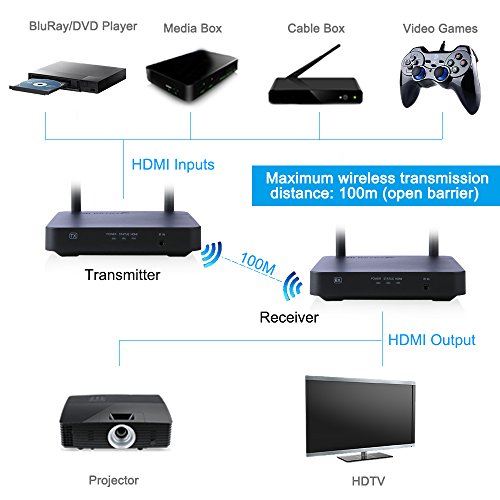

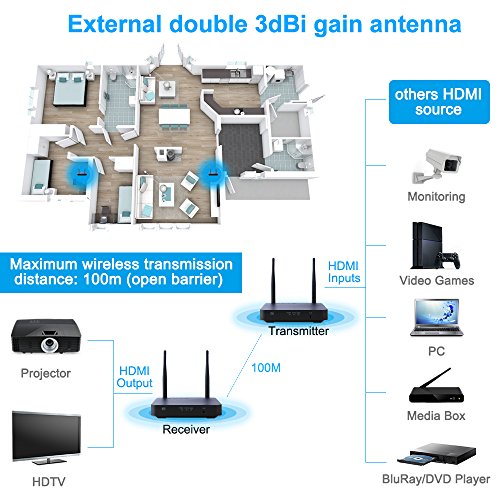

Maximum wireless transmission distance: 100m (open barrier)
IR carrier frequency range: 38KHz
Maximum operating current: 1A
Power adapter specifications: AC 100V-240V 50 / 60Hz, DC 12V / 1.5A
Operating temperature: 0 ~ 40 ℃
Storage temperature: -20 ~ 60 ℃
Operating Humidity: 10 ~ 90% RH (no condensation)
Storage humidity: 5 ~ 95% RH (no condensation)
Shell size: 127.5x127.5x25 (mm)
Weight: TX175g / RX170g

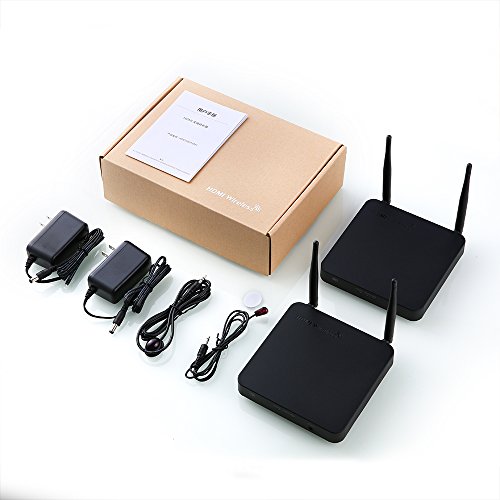

Package includes:
1 x HDMI wireless transmitter
1 x HDMI wireless receiver
1 x Infrared emission extension line
1 x Infrared receive extension line
1 x User manual
2 x Power adapters
