Product Description

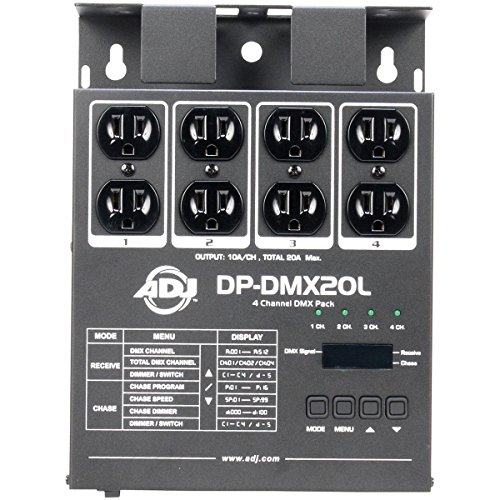

Front View
View larger
- 4 channel DMX Dimmer Pack
- Digital display- used to set starting DMX address channels and set all other menu options
- Selectable 1, 2, or 4 channel operation
- Adjustable master dim level.
- Two three prong Edison sockets per channel
- 3 pin XLR DMX Input & Output
- Four LED’s display channel activity
- External channel fuses for quick and easy replacement
- Sleek reversible mounting panel on the rear
- Zero crossing circuitry for protection of transformer loads when switching
- 16 built in Chases when in Chase mode with adjustable speed setting
- Use in conjunction with Elation; DMX Operator Pro, Stage Setter-8, Scene
- Reversible mounting brackets.
- Setter, Scene Setter-48, Stage Desk-16 or any universal DMX controller
- Power Input: 120V ~ 60Hz
- Maximum Load: 10A per channel / 20A total
- Dimensions: 10.25”L x 8.25”W x 3”H
- Weight: 6 lbs
Feature
4 channel DMX Dimmer Pack
Two three prong Edison sockets per channel
16 built-in chase programs
Use with DMX Controoler when using Par Cans or DJ lighting
Max Power: 600W per channel
Brand : Elation Control
Item model num : DP-DMX20L
MPN(PartNumber) : DP-DMX20L
EAN : 0658700907336
