DFRobot Gravity: Laser PM2.5 Air Quality Sensor for Arduino






Product Description

INTRODUCTION
PM2.5 laser dust sensor is a digital universal particle concentration sensor，it can be used to obtain the number of suspended particulate matter in a unit volume of air within 0.3 to 10 microns, namely the concentration of particulate matter, and output with digital interface, also can output quality data of per particle. The sensors can be embedded in a variety of concentrations of environment-related instruments suspended particulate matter in the air, to provide timely and accurate concentration data.

SPECIFICATION
Voltage: 4.95 ~ 5.05V
Maximum electric current: 120mA
Measuring pm diameter: 0.3~1.0/1.0~2.5/2.5~10 (um)
Measuring pm range: 0~1000 ug/m3
Standby Current: ≤200 uA
Response time: ≤10 s
Operating temperature range: -20 ~ 50C
Operating humidity range: 0 ~ 99% RH
Maximum size: 46 * 35 * 20mm (1.82 x 1.38 x 0.79 inches)
MTBF: > = 5 years

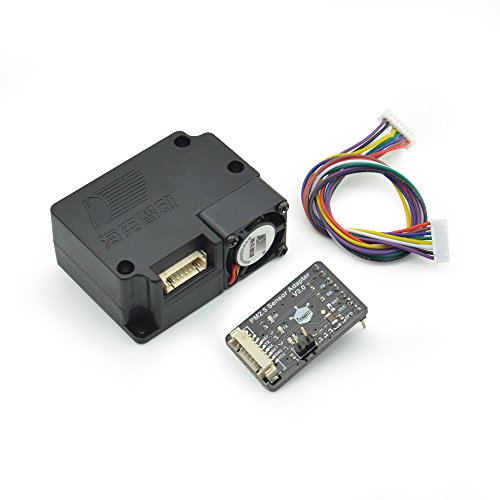

SHIPPING LIST

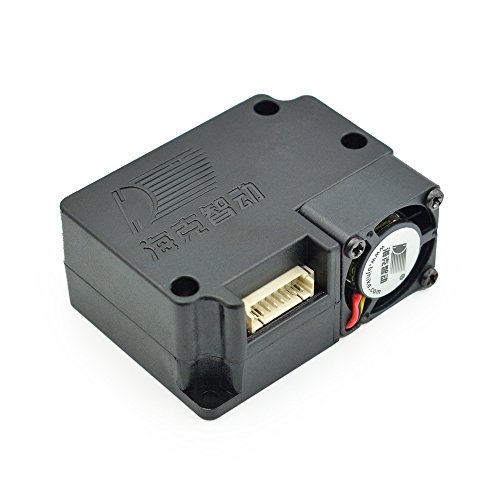

PM2.5 laser dust sensor x1

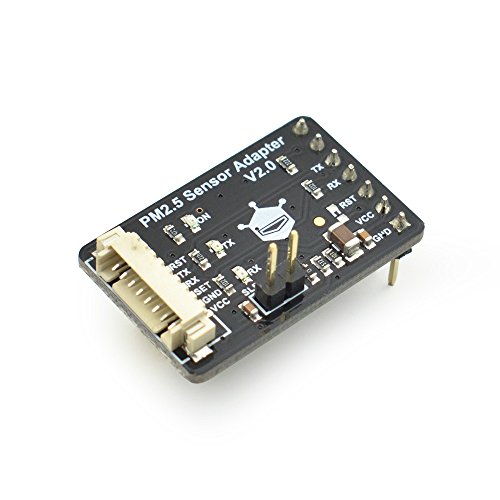

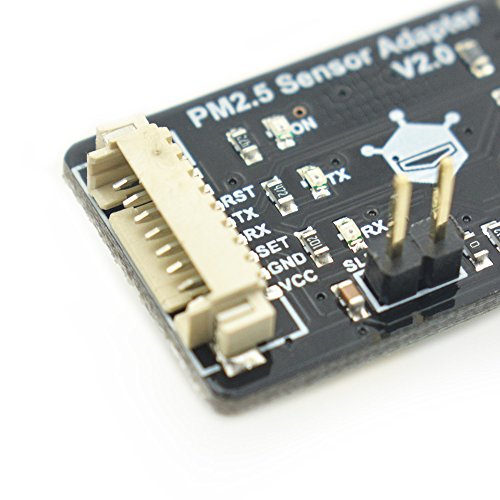

PM2.5 sensor adapter x1

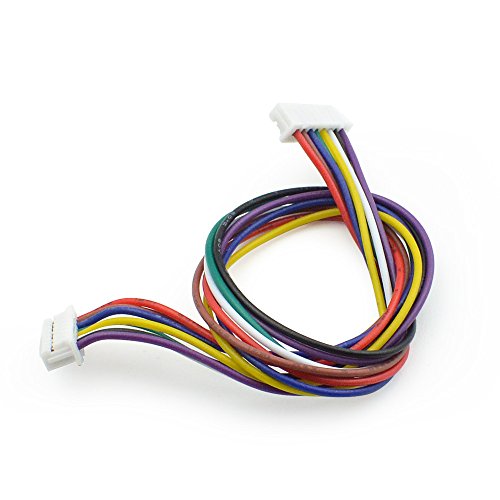

Sensor adapter cable x1

Feature

PM2.5 laser dust sensor is a digital universal particle concentration sensor
It can be used to obtain the number of suspended particulate matter in a unit volume of air within 0.3 to 10 microns, namely the concentration of particulate matter, and output with digital interface, also can output quality data of per particle
The sensors can be embedded in a variety of concentrations of environment-related instruments suspended particulate matter in the air, to provide timely and accurate concentration data
Brand : DFROBOT
Item model num : SEN0177
MPN(PartNumber) : SEN0177
EAN : 6959420908462
Package Dimensions(LxWxH) : 5x4x3cm ; 64 g
