Product Description

Designed with headroom for tomorrow's emerging high speed LAN technologies, these Cat6 bulk (LAN) cables are perfect for Gigabit Ethernet, ATM and Broadband Video. CAT 6 plenum Category 6 (ANSI/TIE/EIA-568-B is a cable standard for Gigabig Ethernet and other network protocols that is backward compatible with the Category 5/5e and Category 3 cable standards. Cat-6 features more stringent specifications for crosstalk and system noise. The cable standard provides performance of up to 250 MHz and is suitable for 10BASE-T / 100BASE-TX and 1000BASE-T (Gigabit Ethernet). It is expected to suit the 10GBASE-T (10Gigabit Ethernet) standard, although with limitations on length if unshielded Cat 6 plenum cable is used. The cable contains four twisted copper wire pairs, just like earlier copper cable standards. Although CAT-6 is sometimes made with 23 gauge wire, this is not a requirement; the ANSI/TIA-568-B.2-1 specification states the cable may be made with 22 to 24 AWG gauge wire, so long as the cable meets the specified testing standards. When used as a patch cable, CAT-6 is normally terminated in 8P8C modular connectors, often incorrectly referred to as ôRJ-45ö electrical connectors. Some CAT-6 cables are too large and may be difficult to attach to 8P8C connectors without a special modular piece and are technically not standard compliant. If components of the various cable standards are intermixed, the performance of the signal path will be limited to that of the lowest category. As with all cables defined by TIA/EIA-568-B, the maximum allowed length of a Cat-6 plenum horizontal cable is 90 meters (295 feet). A complete channel (horizontal cable plus cords on either end) is allowed to be up to 100 meters in length, depending upon the ratio of cord length: horizontal cable length.

Warranty

25 Years Warranty and Product Support

Feature

Premium quality CAT 6 for Solid UTP Unshielded Plenum White
CMP Rated, Plenum Rated

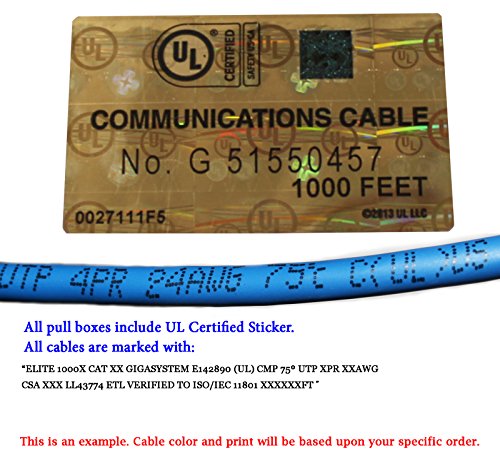

UL Listed, ETL Verified, RoHS Compliant, 3rd Party Tested. All pull box includes UL Certified sticker. All cables have specification and UL printed on jacket
Conductor: 23 AWG 4 Pairs
Solid Copper, White Jacket, ReelexTM II Box
Brand : Infinity Cable Products
MPN(PartNumber) : TUP2404N70WH
Product Dimensions(LxWxH) :
