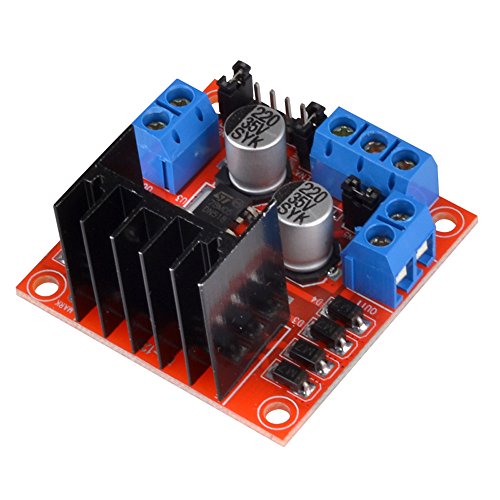

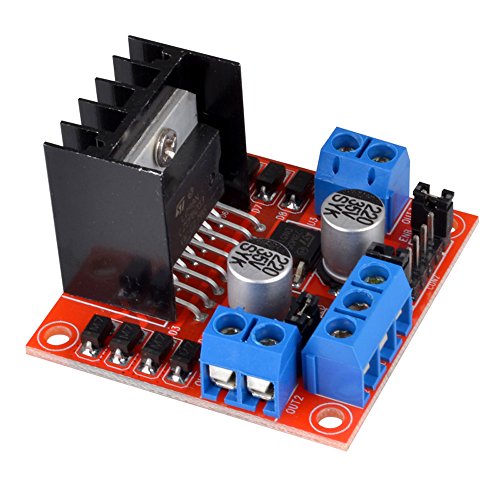

kuman L298N Motor Drive Controller Board DC Dual H-Bridge Robot Stepper Motor Control & Drives Module for Arduino Smart Car Power UNO MEGA R3 Mega2560 Duemilanove Nano Robot K48








L293D Motor Drive

Product Description

Features:
1.L298N as main driver chip makes strong driving ability/small heating/strong anti-interference
2.Use large-capacity filter capacitors and diode with freewheeling protection function, increasing reliability
3.This moduel integrated with one internal 5V power supply, meaning when your driving voltage is 7V-35V,it makes 5V of energy board power supply logically; when 5V of energy board power on, please not input voltage to +5V power supply in interface but you can lead 5V voltage for external usage
Eg: ENA enable IN1 IN2 to control OUT1 OUT2ENB enable IN3 IN4 to control OUT3 OUT4

Specification:
Chip: ST L298N dual H-bridge driver chip
Logic voltage: 5V
Logic current 0mA-36mA
Storage Temperature: -20 ¡æ to +135 ¡æ
Operating mode: H-bridge driver (dual)
Drive voltage: 5V-35V
Drive current: 2A (MAX single bridge)
Maximum power: 25W
Dimensions: 43x43x27mm

Package includes:
1x L298N Module

Feature

The module using ST L298N chipset,has strong driver capability,afterflow protection diode, more stable and reliable.
Logical voltage 5V. Drive voltage 5V-35V Drive current 2A(MAX single bridge). Max power 25W Storage temperature: -25 ~ +130
Size:43*43*27mm Use large-capacity filter capacitors and diode with freewheeling protection function, increasing reliability
Dual-channel H-bridge driver working mode creates higher working efficiency
To avoid damage the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage
Brand : Kuman
Item model num : K48-Motor-US
MPN(PartNumber) : K48-Motor-US
Product Dimensions(LxWxH) : 8x8x3cm ; 36 g
Package Dimensions(LxWxH) : 8x8x3cm ; 36 g
