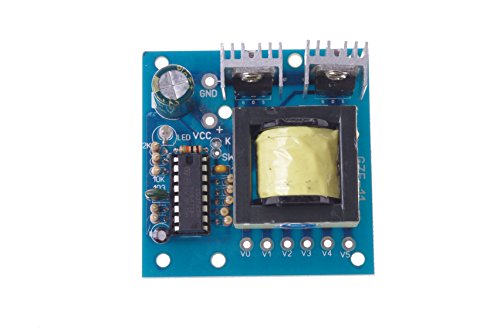

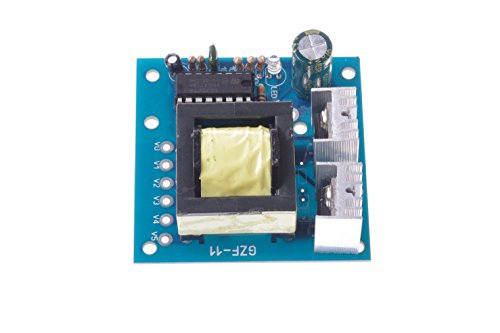

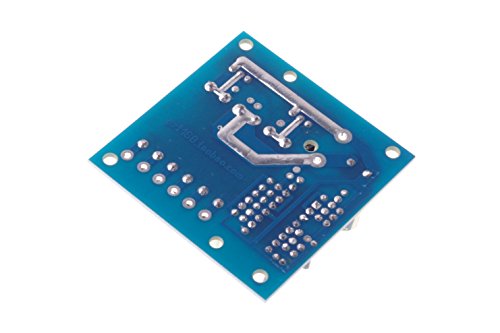

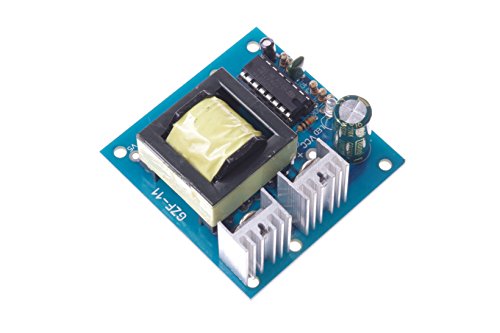

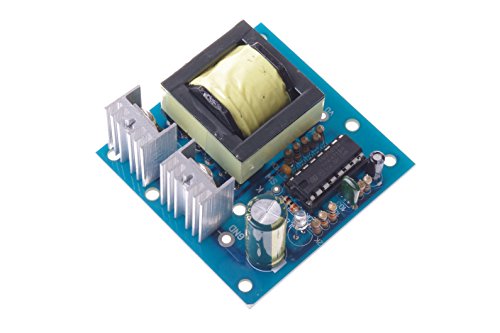

Product Description

*Power: 150W.
*Input voltage: DC12V.
*Output voltage: AC 0-110V-172V-200V-220V.
*Quiescent current: about 0.05A.
*Output waveform: high frequency square wave.
*Output frequency: about 20KHZ.
*Protection: none.

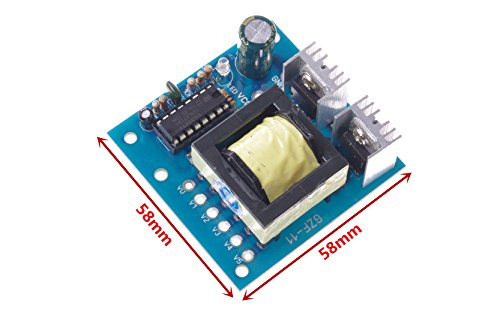

*Size: 58*58*28 mm.
Warnings: *The board belongs to high frequency square AC output; it is not suitable for the inductive appliance, such as motor, fan and coil transformer.
*While picked up with low-load machines (LED light, mobile phone charger and DVD set-top box), you are suggested to pick up with low voltage point, such as: 172V/110V.
*You should install a large heat sink to release its long time high-load (≥100W) work.
*You could not connect the power inversely. Besides, power supply and power wire should have large enough current. *Do not overload and short-circuit because it without any protections.
*The number in measured by the output high frequency non-load voltage meter will be a little higher.

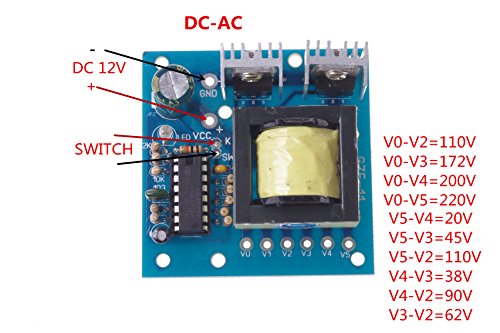

Output wiring the following voltages: *V0--V2=110V.
*V0--V3=175V.
*V0--V4=200V.
*V0--V5=220V.
*V5--V4=20V.
*V5--V3=45V.
*V5--V2=110V.
*V4--V3=28V.
*V4--V2=90V.
*V3--V2=62V.


Feature

Power: 150W.
Input voltage: DC12V.
Output voltage: AC 0-110V-172V-200V-220V.
Quiescent current: about 0.05A.
Output waveform: high frequency square wave.
Brand : SMAKN
EAN : 0710185280059
