Item Descriptions:
Wavlink USB 3.0 UG39DK3 The docking station allows you to connect various devices to a Windows tablet or laptop with just one USB cable.
We also support Windows 10 by updating the driver and firmware.
Even PCs with USB 2.0 ports are compatible, so you can connect without problems.
Supports expansion / mirror / individual / 90 ° / 180 ° / 270 ° rotation modes.

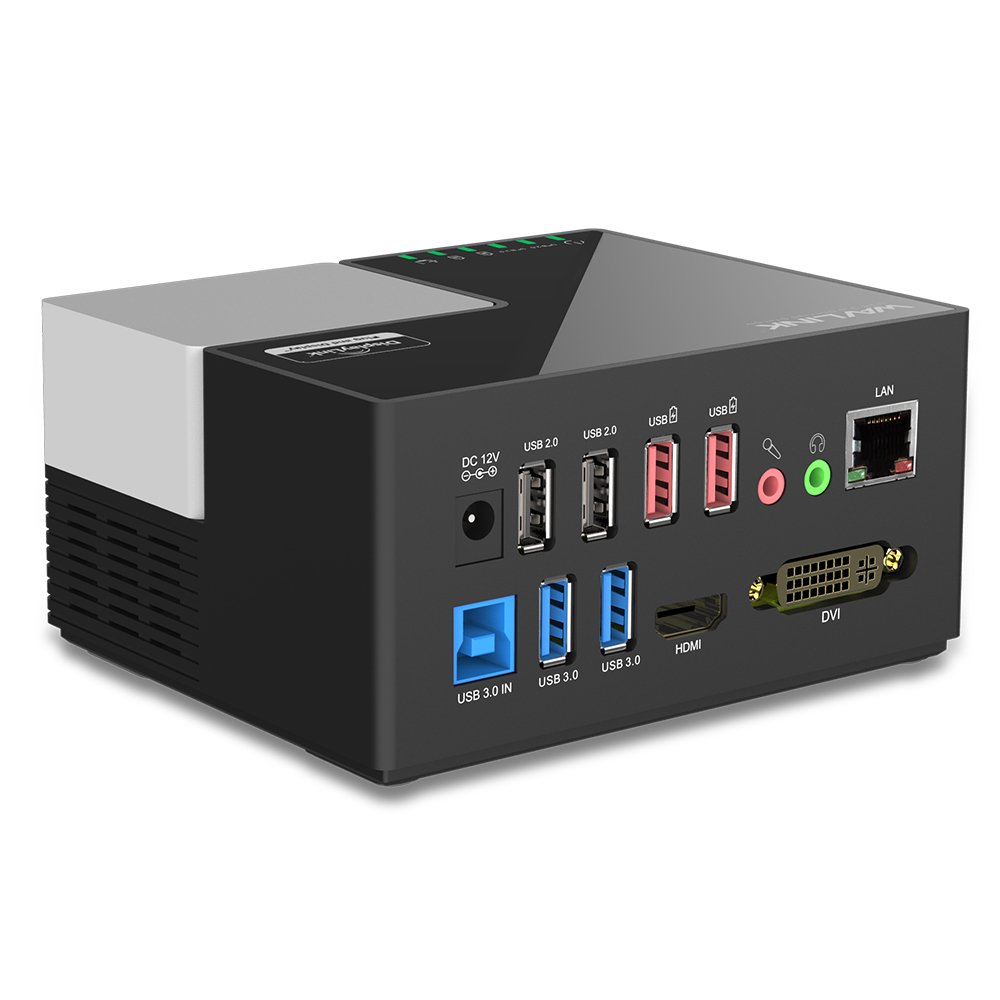

Wavlink USB 3.0 UG39DK3 docking station specification:
One DVI port and one HDMI port are attached.
HDMI and DVI output Maximum resolution supports display resolution up to 2048x1152
RJ-45 Gigabit Ethernet port (also supports 10/100/1000 Ethernet)
Audio output port for external headphones and speakers and input port for microphone
Two USB 3.0 ports (corresponding to external hard disk, USB graphic adapter, etc.)
Two USB 2.0 ports (corresponding to mouse, keyboard, printer etc)
Two rapid charging ports (corresponding to smart phones etc.)
Note 1) When setting the HDMI monitor resolution to 2560 × 1440, only one monitor can be connected.
The maximum resolution for each of the two monitors is limited to 1920 x 1200.
When setting to 2560 x 1440 resolution, you need to use high speed HDMI cable and the refresh rate is up to 50 Hz.
It supports up to 60 Hz at lower resolutions.
When setting to 2560 x 1440 resolution, the monitor side must also support this resolution.
Please note that many 2560 x 1600 compatible monitors do not support 2560 x 1440 resolution.
If you connect an external monitor via two graphic ports, HDMI and DVI, you can set it up as a duplicate or extended desktop just like a monitor connected directly to the system.

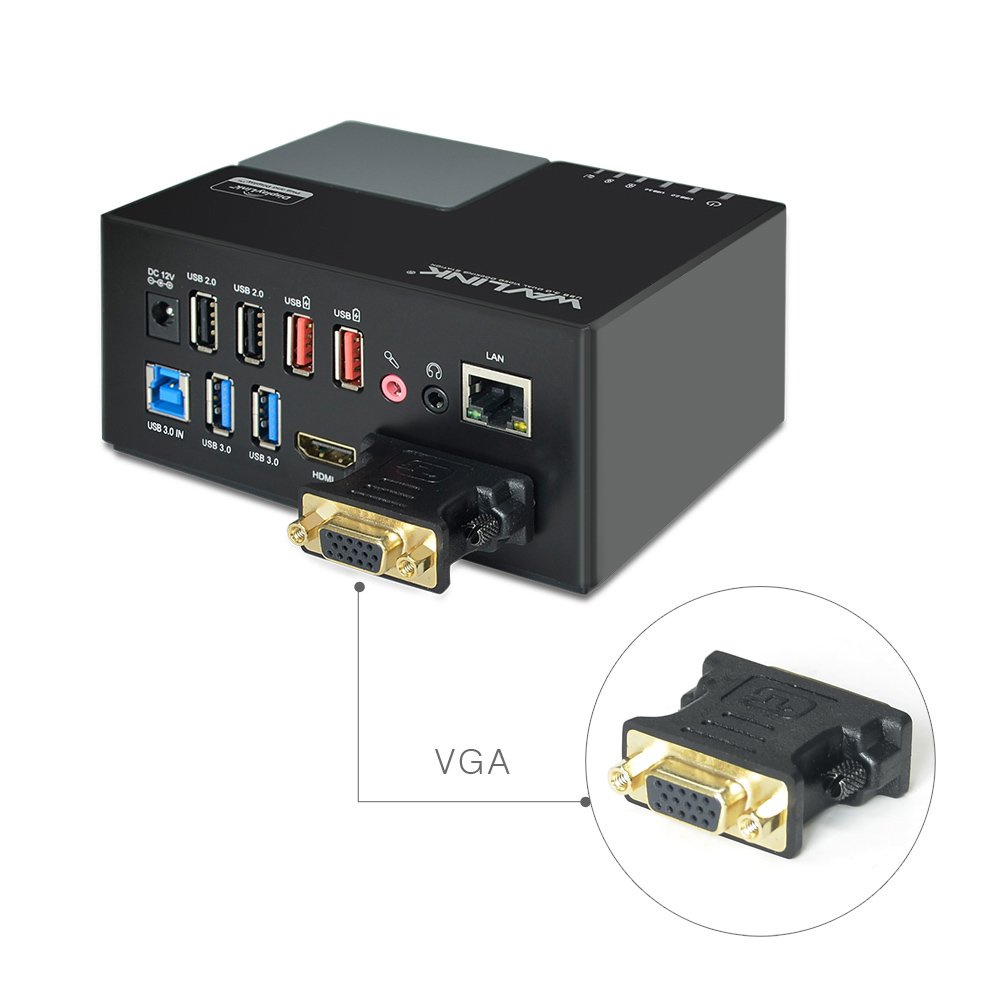

Since a DVI to VGA conversion adapter is also included, you can also connect a VGA monitor.
It also has a Gigabit Ethernet port, a voice input / output port, and two quick 3.0 charging ports, two USB 3.0 and two USB 2.0 ports.
Note: The USB port of this docking station is for normal data transfer.
There is no special function to charge a connected tablet or smartphone at high speed.
There is no function to supply power to the host system (Windows computer or tablet).
It is necessary to connect the power supply to the host system.

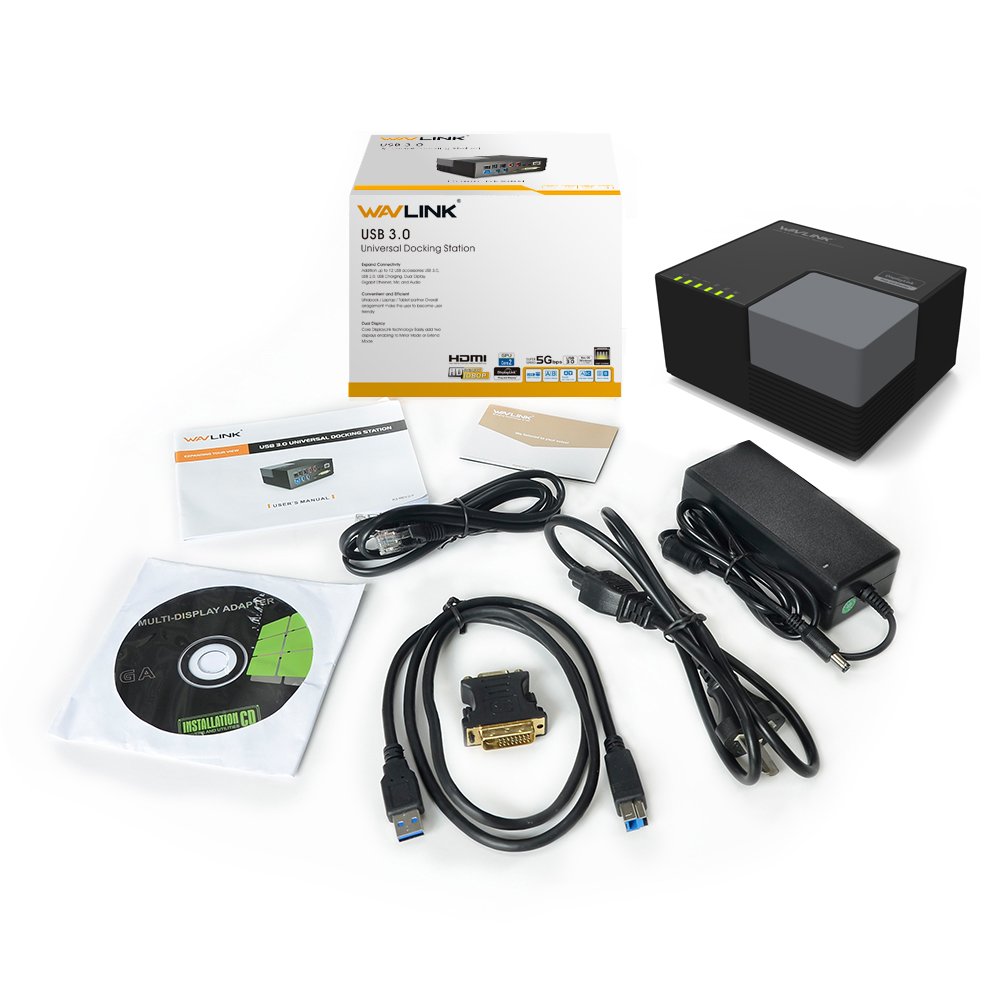

Packing content:
1 x Wavlink USB 3.0 Universal Docking Station
1 x PSE certified 12 V / 2 A (24 W) power adapter
1 x USB Type A - Type B 3.0 cable (USB 2.0 compatible)
1 x DVI to VGA port conversion adapter -
1 x Driver - CD
1 x Japanese + English instruction manual
Features:
- Please enter model number Confirm this is compatible:
- 1080P HDMI and DIV graphic ports support up to 2048x1152 / 1920x1200 resolutions.
- Since a DVI to VGA conversion adapter is also included, you can also connect a VGA monitor.
- Two displays via USB 3.0, 10/100/1000 Ethernet, audio out, two more USB 3.0 ports (USB 2.0 compatible) NOTE: If you use this docking station with a Windows tablet that only has microUSB,
- Please note that it is necessary to purchase an OTG cable that converts full size USB to microUSB separately.
- With two USB 3.0 ports, the maximum transfer rate is 5 Gbps.
- Two USB 2.0 ports support USB 2.0 devices, such as: scanner, digital camera, keyboard, mouse, printer etc
- Two fast charge G ports can be charged to a smartphone as iPhone.
- It is USB type-C docking station with 2.4A charging function.
- It is possible to charge the host system at the same time while connecting up to three monitors and other peripherals at the same time.
- USB 3.0 GPU certified with DisplayLink has been applied.
- Compact and slim square body, motion state is more display than LED, easy to set up, is a product that is gentle operability.
Product information:
Shipping Weight: 861 g
Package Dimensions: 12.39 x 13.00 x 16.99 cm
