Product Description

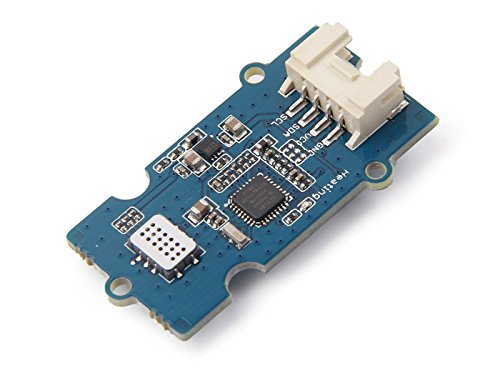

Grove - Multichannel Gas sensor is a environment detecting sensor with a built in MiCS-6814 which can detect many unhealthful gases, and three gases can be measured simultaneously due to its three channels, so it can help you to monitor the concentration which more than one gas.?

This sensor is belong to Grove system, and you can plug it onto the Base shield and work with Arduino directly without any jumper wires. The interface of it is I2C, so plug it onto the I2C port of Base shield, then you can start to work it.

Features:
Three fully independent sensing elements on one package
Built with ATmega168PA
I2C interface with programmable address
Heating power can be shut down for low power
Detectable gases:Carbon monoxide (CO) , Nitrogen dioxide (NO2) , Hydrogen (H2) , Ammonia (NH3) , Methane (CH4) , etc.

Specification:
Voltage: 3.1~ 5.25V
Ripple(@Max Power):80~100mV
Max Heating Power: 88mW
Max Power: 150mW
ADC Precision : 10Bits
I2C Rate: 100kHz
VIL(@I2C): -0.5~0.99V
VIH(@I2C): 2.31~5.2V

Part List:?
1 x Grove - Multichannel Gas Sensor
1 x 26AWG Grove Cable

Feature

Three fully independent sensing elements on one package
Built with ATmega168PA
I2C interface with programmable address
Heating power can be shut down for low power
Detectable gases:Carbon monoxide (CO) , Nitrogen dioxide (NO2) , Hydrogen (H2) , Ammonia (NH3) , Methane (CH4) , etc.
Brand : seeed studio
EAN : 0841454107910
Package Dimensions(LxWxH) : 6x4x1cm ; 5 g
