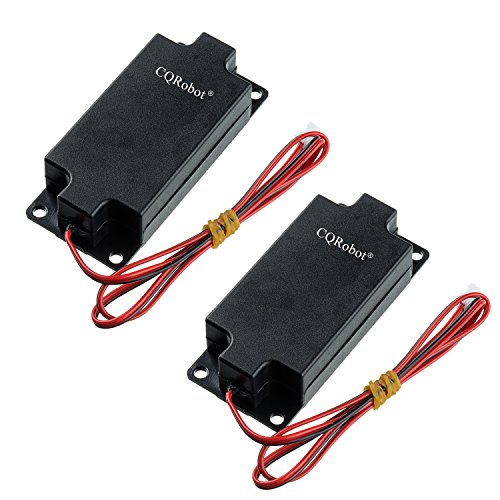

JST - PH2.0 interface Stereo Enclosed Speaker (2 PCS), 3 W, 8 Ohm. Applied to All Kinds of Audio Production, Raspberry Pi and Arduino DIY Projects.









Product Description

INTRODUCTION

CQRobot painstakingly deploys this passive speaker small speaker for the Makers and electronic enthusiasts, this small passive speaker with JST PH2.0 interface, the internal resistance is 8 ohms, the power of it is 3 watts. Strip size, with mounting screw, suitable for all kinds of sound source fabrication, the sound is clear and melodious without distortion.

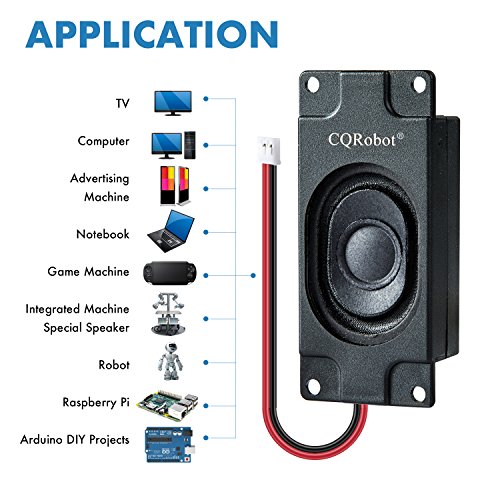

APPLICATION

- TV
- Advertising machine
- Integrated machine special speaker
- Robot

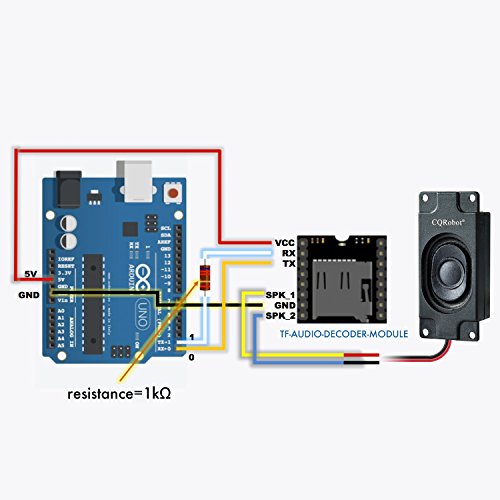

- Raspberry Pi and Arduino DIY Projects

TECHNICAL SPECIFICATIONS

- Magnetic Hugh: 12.5 * 2.0
- Power: rated power / maximum power 2.0W / 3.0W
- Impedance: 8 Ohms Plus/Minus 15%
- Resonance frequency: 450 HZ Plus/Minus 120 HZ
- S.P.L: 86dB Plus/Minus 3 dB Ref 1.0W/0.5M
- Effectine freq band: Fo to 20 KHZ MAX:20 dB

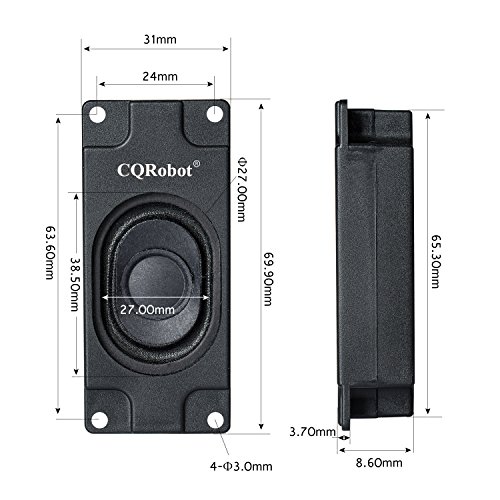

- Screw hole distance: 24 * 63 mm
- Size: 70 * 31 * 15 MM
- Total weight: 24g

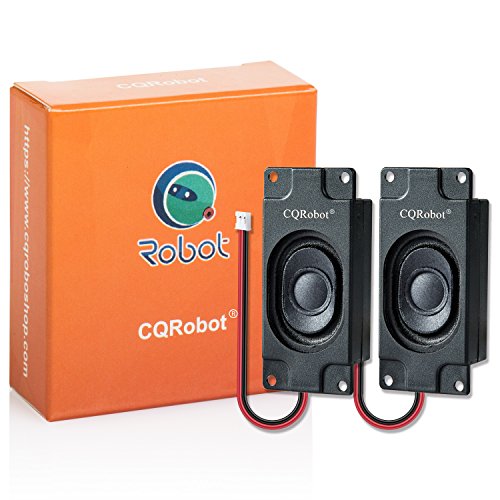

SHIPPING LIST

2 * Passive speaker


Feature

Applied to TV, Advertising machine,Integrated machine special speaker, Robot, DIY production and other projects.

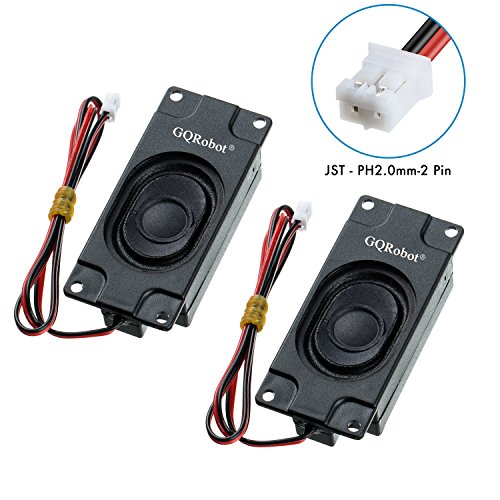

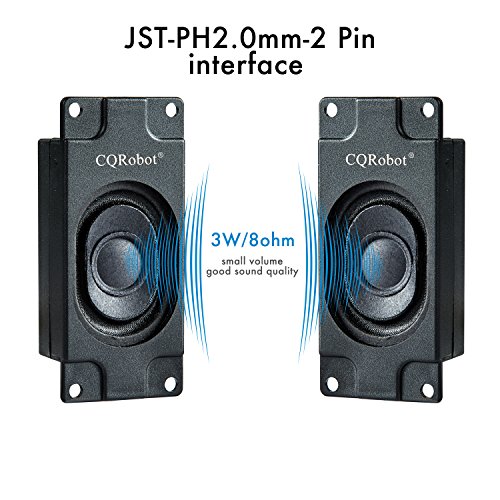

JST-PH2.0 interface passive speaker small horn, 3 watts power, 8 ohm impedance.
Long size with the screw holes of installation, suitable for all kinds of sound source fabrication, the sound is clear and melodious without distortion.
Brand : CQRobot
Item model num : CQRANQI0007US
MPN(PartNumber) : 1
Package Dimensions(LxWxH) : 8x8x3cm ; 41 g
