Item Descriptions:

Color:

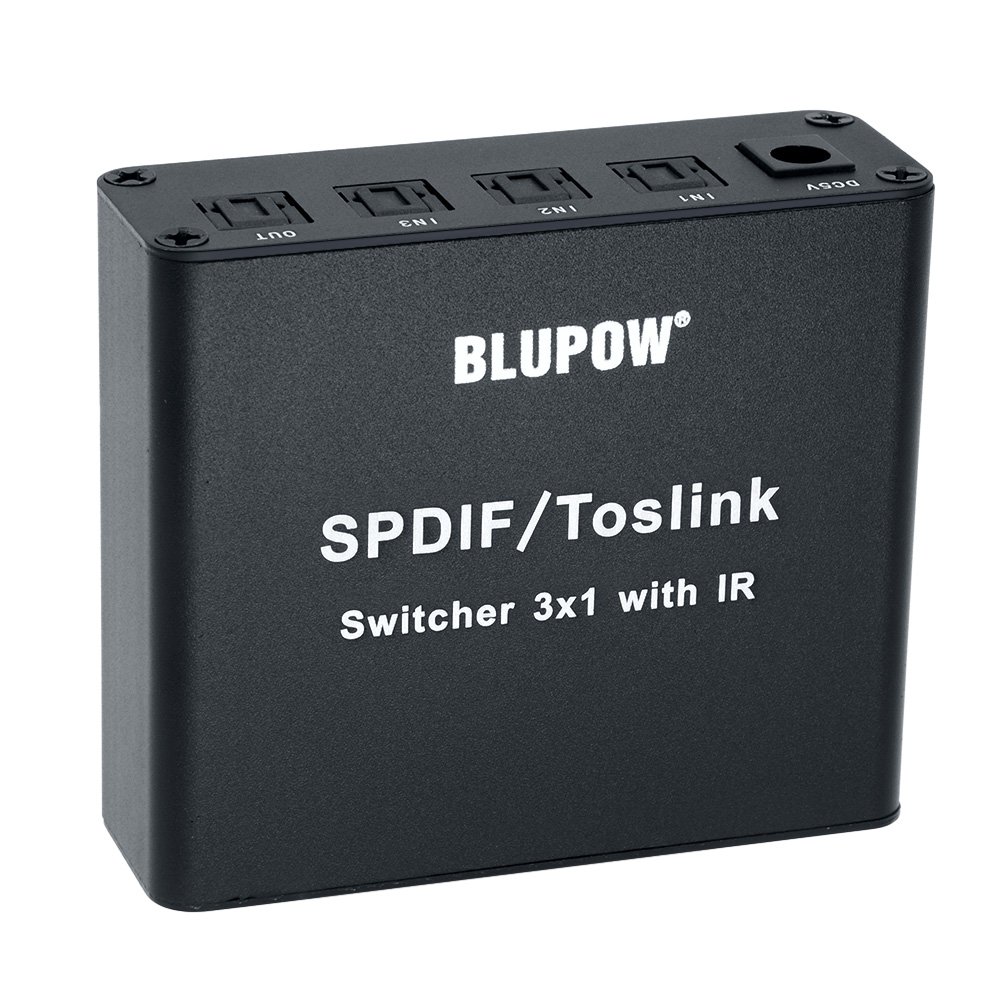

SPDIF / TosLink switch 3 input 1 output

The BLUPOW SPDIF / TosLink Optical Digital Audio Switch connects devices (Blu-ray, PS 3 / PS 4, XOBX, etc.) with three optical digital terminals to one optical digital input device (sound system)

can.

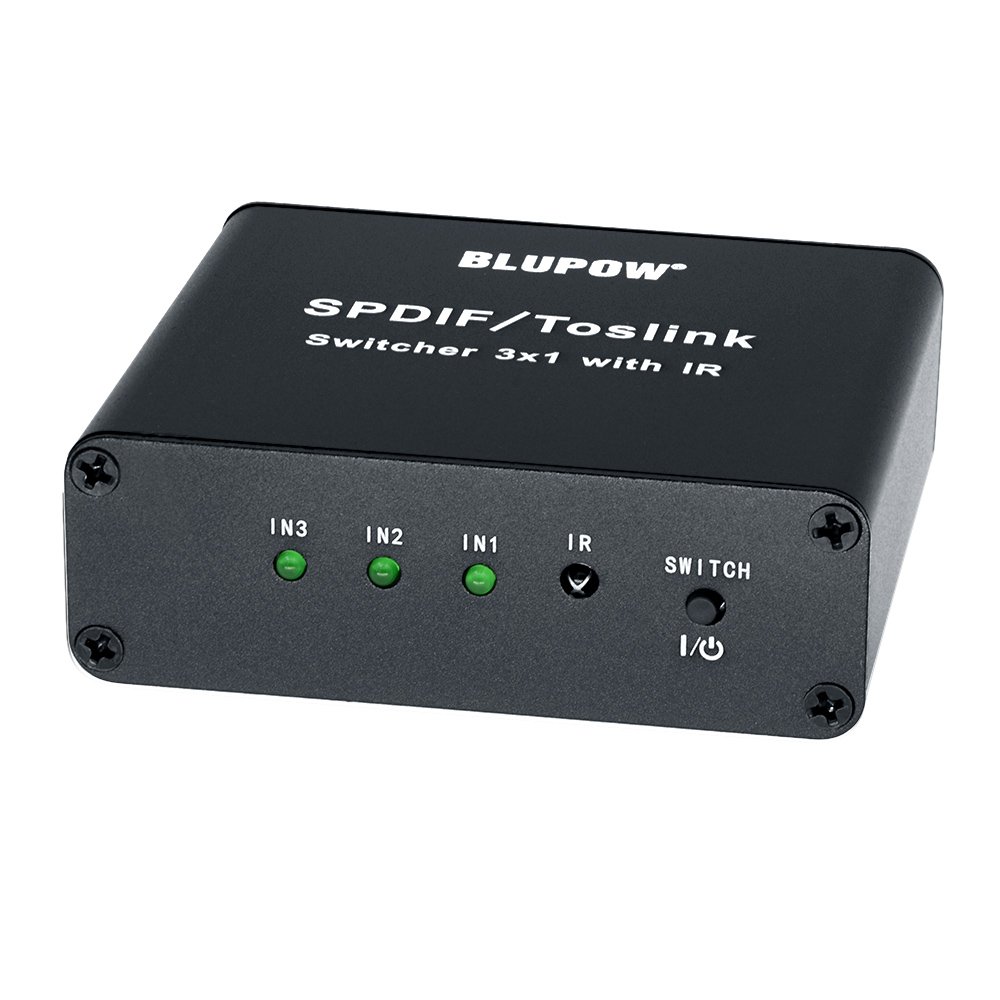

Easily switch with the "SWITCH" button on the main unit or on the remote control!

In case

Supported audio format: LPCM 2.0 / DTS / DOLBY-AC 3

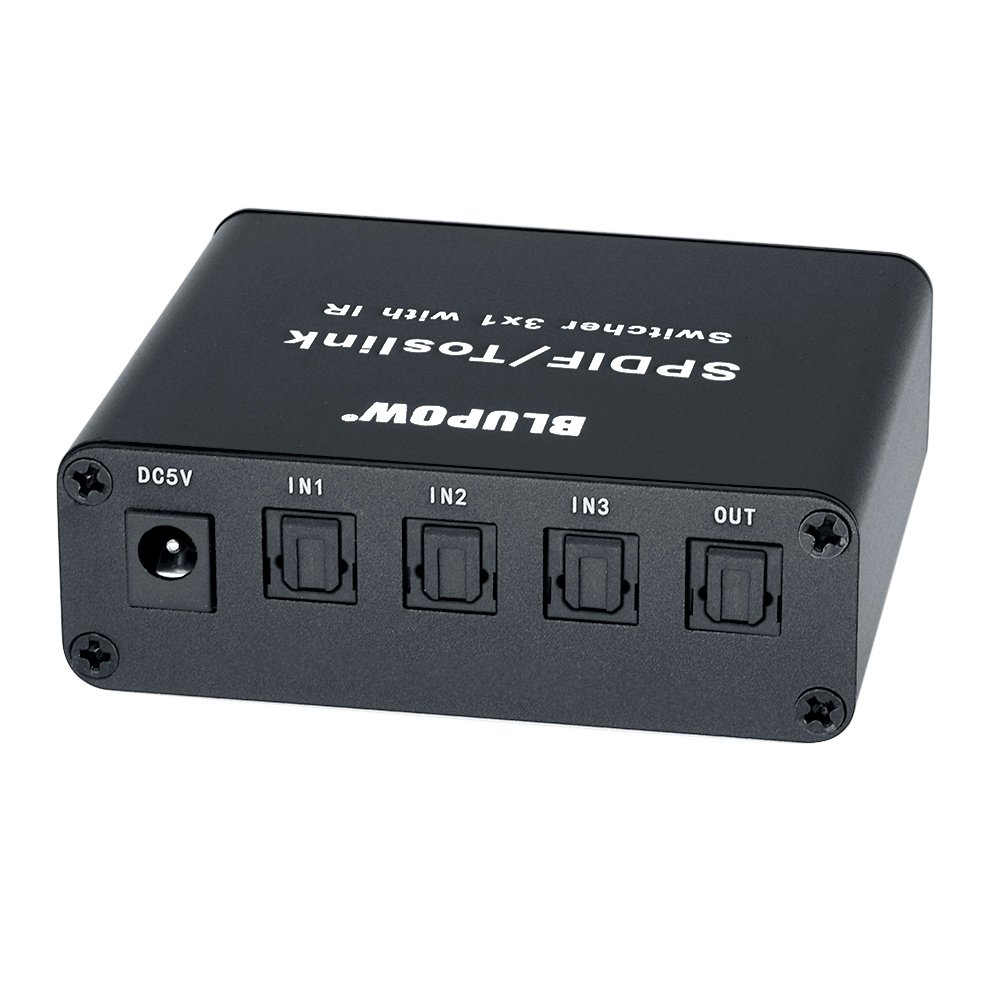

All wiring terminals are designed behind so you can clean up the cables cleanly.

Notes on remote control:

① Before using the remote control be sure to check the inside of the battery cover

A transparent insulating film

Please remove.

② Remote control

Toward the IR receiver of the main unit

Please use it.

③ In the case of poor remote control operation, it is displayed on the order page to the order page

"Contact the seller

Please click and contact us.

※important※

If you experience noise in the event of using this machine, please take a minute to change the optical cable,

If the quality / compatibility of the optical cable is bad, noise will be more likely to occur, so please use high quality / high standard optical cable.

Compatible with devices with optical digital output terminals such as PC, Blu-ray, DVD, PS3, PS4, XBOX, Fire TV, Apple TV

◆ Product Specifications ◆

Pick Value Frequency:

650 nm

Maximum transmission speed:

16 Mbps

Output cable length:

≤ 40 m (please use line loss <0.2 db / m gable)

Maximum operating current:

100 mA

Power adapter input

: AC 100 V - 240 V (50/60 Hz)

output:

DC 5 V / 500 mA

Operating temperature:

0 to + 40 ° C

Relative humidity:

5 to 90% RH (no condensation)

Material:

steel

body size:

95 (L) x 52 (W) x 20 (H) mm

Body weight:

Approximately 150 g

"Important: Sales of BLUPOW regular goods are only BLUPOW exhibitors, this product has 1 year warranty by BLUPOW" Please check purchasers often when purchasing, please purchase!

It's Compaq size, and I can not take places.

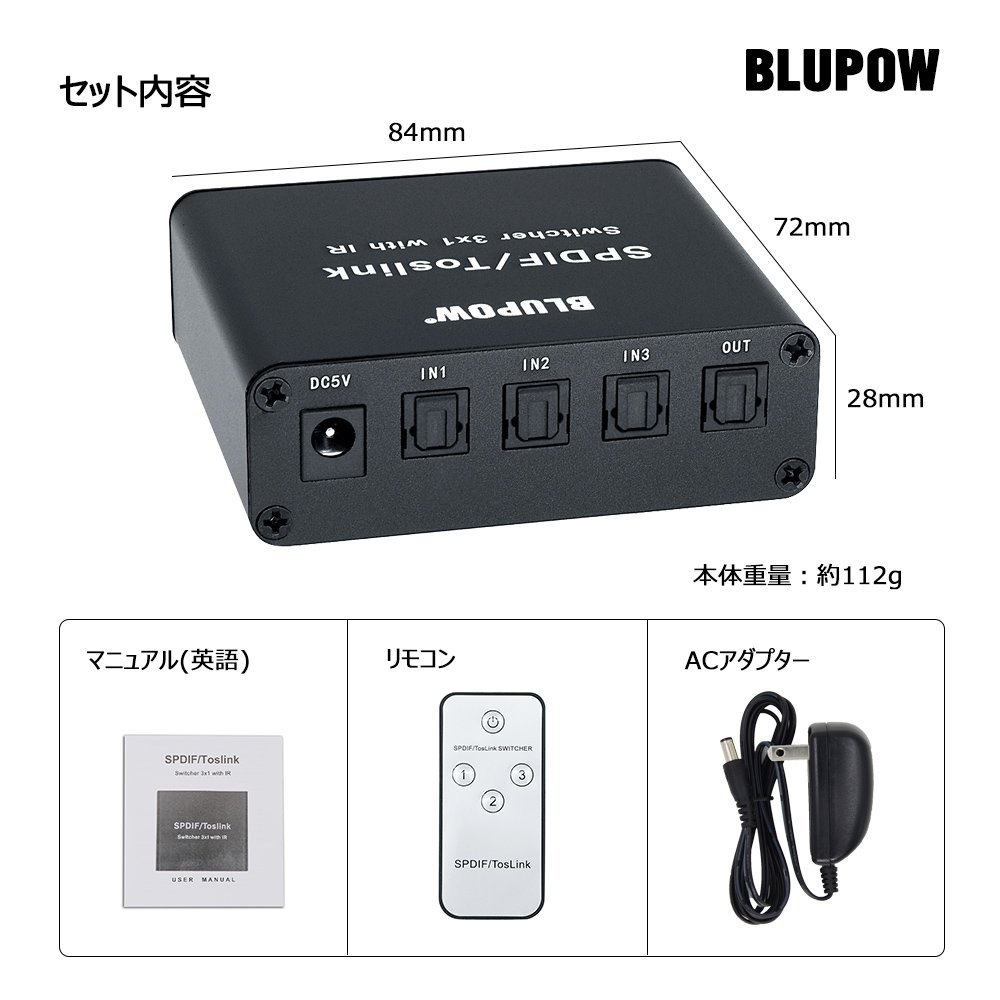

Enclosed list

1 x body

1 x AC Adapter

1 x remote control

1 x Manual (English)

※ This product has 1 year warranty by BLUPOW, please feel free to contact us if there are any uncertain points.

Our company e-mail:

[email protected]

Features:

• Please enter model number Confirm this is compatible:
• 【BLUPOW】 SPDIF / TosLink optical digital audio switcher connects devices (Blu-ray, PS3 / PS4, XOBX etc.) with three optical digital terminals to one optical digital input device (sound system)
• It can switch output.
• Easily switch with the "SWITCH" button on the main unit or on the remote control!
• Supported audio format: LPCM 2.0 / DTS / DOLBY-AC 3
• If you use a cable with a line loss less than 0.2 db / m, you can transmit the output distance up to 40 m.
• Signal timing reforming can be supported.
• Overvoltage protection function is also provided to prevent equipment damage due to accidental connection of power adapter.
• Driver unnecessary, can be used just by plugging in, good data transmission performance, quality is lossless.
• Enclosed list: 1 x main unit, 1 x power adapter, 1 x remote control, 1 x manual (English)

Product information:

Shipping Weight: 235 g

Package Dimensions: 5.21 x 14.10 x 19.89 cm
