Product Description

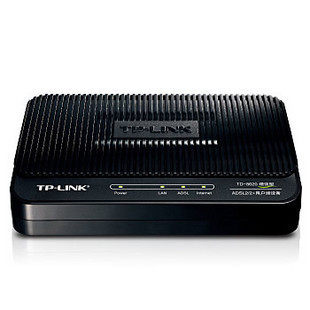

TD-8620 Enhanced ADSL2 + Modem， full support for ADSL / ADSL2 / ADSL2 + standards， homes， offices and small businesses achieve optimal access Internet access terminal!

Leading technology， excellent quality

TD-8620 is fully compatible with the enhanced ADSL / ADSL2 / ADSL2 + standard， supports bridging functions in ADSL2 + mode， can provide high-speed 24Mbps downlink rate， 1Mbps upstream rate， maximum transmission distance up to 6.5km; TD-8620 Enhanced by common central office equipment compatibility testing， and access to national compulsory product certification (3C certification) and telecommunications equipment into the network permits， the quality more secure.

Plug and Play， no configuration

TD-8620 enhanced the use of VPI / VCI automatic matching technology， the vast majority of the country built to use VPI / VCI combination， users simply connect the device correctly， eliminating the need to dial-up Internet access， do not worry about not configure the ADSL Modem， also without due forget VPI / VCI worry， you can enjoy the pleasure of enjoying the Internet!

Lightning higher performance， wider voltage range

TD-8620 enhanced specifically for the actual use of the domestic environment has been enhanced design. Switching power supply， adapt 100V ~ 240V operating voltage range， to eliminate the supply voltage instability caused by frequent dropped equipment; using PSTN 4000V mine design， mine design higher standards， frequent lightning protection equipment in the area when using the security and stability.

Hardware Specifications

Protocol Standards

IEEE 802.3， IEEE 802.3u

ANSI T1.41， ITU G.992.1， ITU G.992.2， ITU G.992.3， ITU G.992.5

ADSL speed

Downlink: 24Mbps (ADSL2 +)， 8Mbps (ADSL)

Upstream: 1Mbps

Operating Mode

RFC1483 (EoA) (Bridge)

Interface

A 10 / 100M adaptive RJ45 ports (Auto MDI / MDIX)

An RJ11 port

Button

A power switch button

Reset Reset button

LED

POWER Power indicator

LAN status indicator

ADSL Status Indication

Internet Status Indicator

Size

140mm x 92mm x 29mm (L x W x H)

Power supply

External power adapter output: 9V DC 0.6A

Other

Packing Accessories

A ADSL2 / 2 + CPE TD-8620 Enhanced

A power adapter

A user manual

A warranty card

A network cable

A voice separator

Two telephone lines

Environment

Operating temperature: 0 ℃ to 40 ℃

Storage temperature: -40 ℃ to 70 ℃

Humidity: 10% to 90% RH non-condensing

Storage humidity: 5% to 90% RH non-condensing
