Product Description

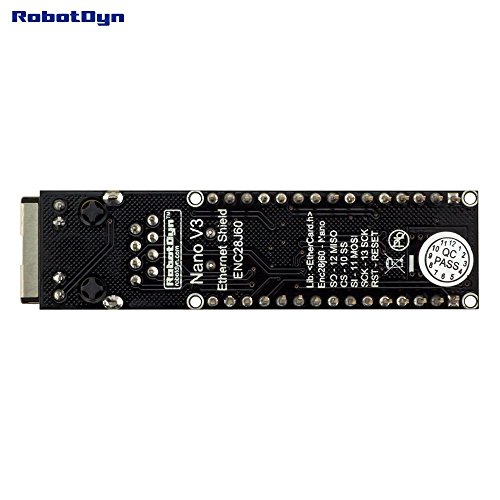

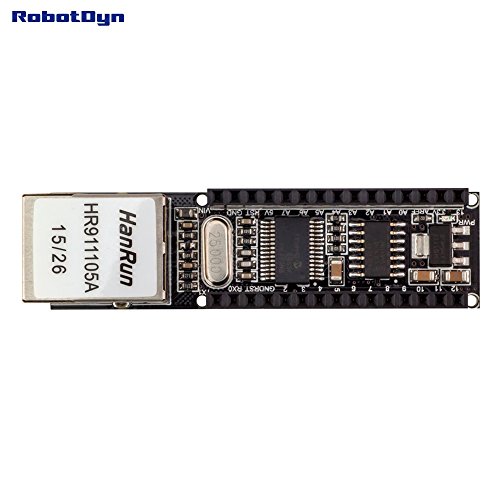

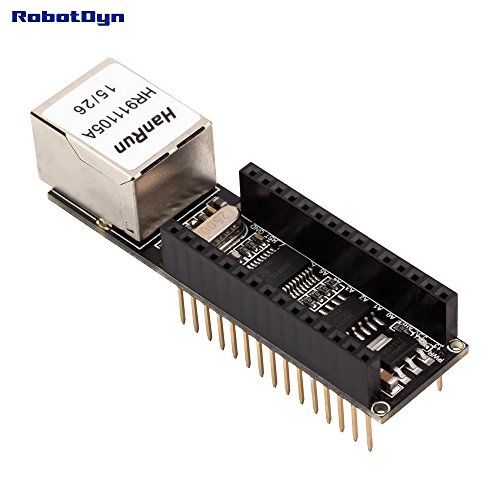

This Nano Ethernet Shield allows you to connect the Arduino Nano to a network. It is assembled with long stackable pin headers, and don't need to solder the headers separately.

The Nano Ethernet Shield is based on the ENC28J60 Ethernet chip which provide a network (IP) stack capable of both TCP and UDP. Use the Ethernet library EtherCard.h to write sketches which connect to the internet using the add-on module.

ENC28J60 is a 10BASE-T stand alone Ethernet unit with on board MAC & PHY, 8 Kbytes of Buffer RAM and an SPI serial interface for 3.3V and 5V logics. With a small size the Nano Ethernet Shield minimizes complexity, board space and cost. Target applications include VoIP, Industrial Automation, Building Automation, Home Control, Security and Instrumentation.

Shield use power 5V from Nano board and convert to 3.3V (on shield have 3.3V LDO).

Feature:
- Ethernet Bandwidth 10Base-T
- PHY Yes
- Interrupt Pin 1
- Ethernet Ports 1 - RJ45
- Ethernet protocol TCP/IP
- MAC Yes
- TX/RX RAM Buffer(Bytes) 8Kb
- Max Speed (MHz) 25MHz
- Power In 5V

Product official page:
http://robotdyn.com/catalog/shields/nano_i_o_expansion_shield/
* For get a detail information of product, instruction, schematic diagram, dimension diagram, guide and software, Pls visit to official page of product.

RobotDyn(R) - registered trademark in USA.
Zhuhai RobotDyn Technology Co.,Ltd - Developer and manufacture.

If you need bulk packing (3 PCS), ASIN: B073VJ3W1K

Feature

For Arduino IDE: Use the Ethernet library EtherCard.h to write sketches which connect to the internet using the add-on module
The Nano Ethernet Shield is based on the ENC28J60 Ethernet chip which provide a network (IP) stack capable of both TCP and UDP.
Brand : RobotDyn
MPN(PartNumber) : 4750830
EAN : 6970622930464

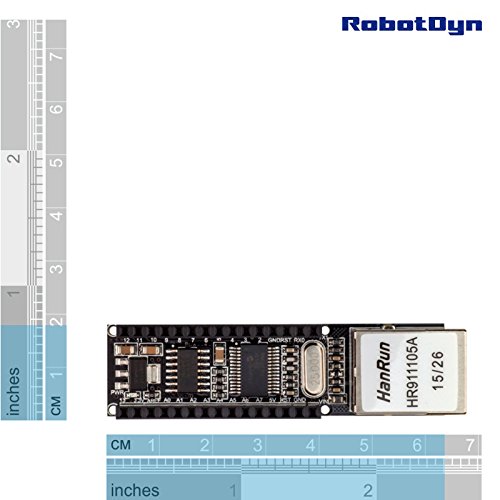

Product Dimensions(LxWxH) : 9x4x3cm ; 23 g
Package Dimensions(LxWxH) : 10x4x1cm ; 23 g
