Product Description

The MS14 is the 2nd generation Dragino mother board. It lets you embed Linux into your MCU projects. It is a low cost, open hardware Linux motherboard for micro-controllers. It runs open source linux system, has USB host port and has full Ethernet and 802.11 b/g/n WiFi capabilities.

The goal of the MS14 is to solve the connectivity problem and greatly enhance micro-controller products such as the Arduino. MS14 support generic OpenWrt linux version or modified OpenWrt version such as Arduino Yun.

Applications for MS14 include remote control of robots, data logging, web applications for data presentation, mesh networking over WiFi and many more.

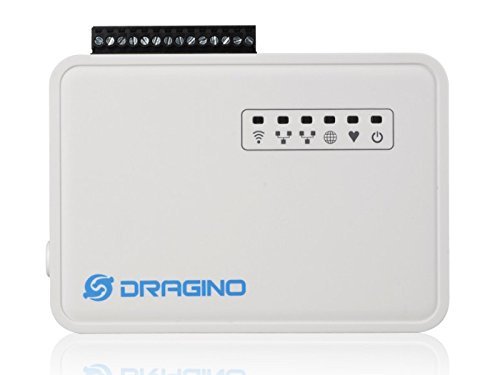

The suffix of the name: "S", means it contains Screw Terminal. We also sell another Dragino V2 without Screw Terminal.

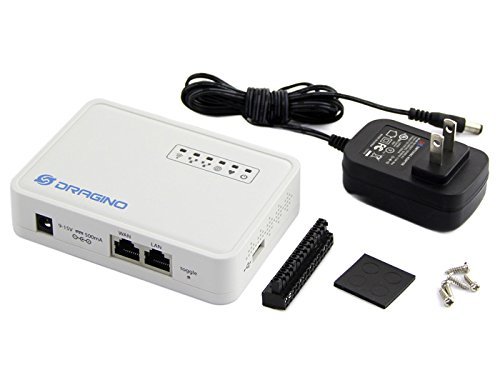

Includes:

1x Dragino v2 mother board

1x NEMA 1-15 type power supply adapter

1x Screw Terminal

1x M32 Internet of Things Module
Specification:

CPU: AR9331

DDR RAM: 64MB

FLASH: 16MB

2 x 10M/100M RJ45 interface

1 x power input: 9 ~ 12v DC or 5v DC

14 positions screw terminal

Protocol: 802.11 b/g/n

Frequency: 2,412 - 2,472 GHz

Power: 100mW
M32 Module specification：

Microcontroller ATmega32u4

Operating Voltage 5V

I/O voltage 5V

3.3V output channel 1

5V output channels 2

SRAM 2.5KB

Flash Memory 32KB(of which 4KB used by bootloader)

EEPROM 1KB

Clock Speed 16Mhz

Digital I/O pins 10

Analog input channels 8

PWM channels 4

ESD-protection(IEC 61000-4-2)

Over Voltage Protect

Feature

OpenWrt Inside. OpenWrt is a reliable Linux distribution for embedded system. It is open source, under well developed and maintained. OpenWrt used package system, lots of powerful utility, software are maintained as packages form. Users can easily install, remove these packages to make a deep customized system.
Open Hardware Design. Developers have the possibility to improve or do innovation on the hardware and release a new /unique product base on requirement.
Low Power Consumption. Around 1 watt power consumption in working mode.
AP, Client or Mesh mode WiFi. Can be configured in different WiFi mode for various applications. AP mode: as what a normal WiFi routers does, so other WiFi client can connect to MS14 and share its internet connection. Client mode: as what a normal PC does to connect to your existent WiFi router for internet connection. Ad-Hoc for mesh network.
Stable, Flexible WiFi Design. Can be configured in different WiFi mode for various applications. AP mode: as what a normal WiFi routers does, so other WiFi client can connect to MS14 and share its internet connection. Client mode: as what a normal PC does to connect to your existent WiFi router for internet connection. Ad-Hoc for mesh network.
Brand : Seeedstudio
Item model num : 800114001
MPN(PartNumber) : 800114001
EAN : 0799430212458
